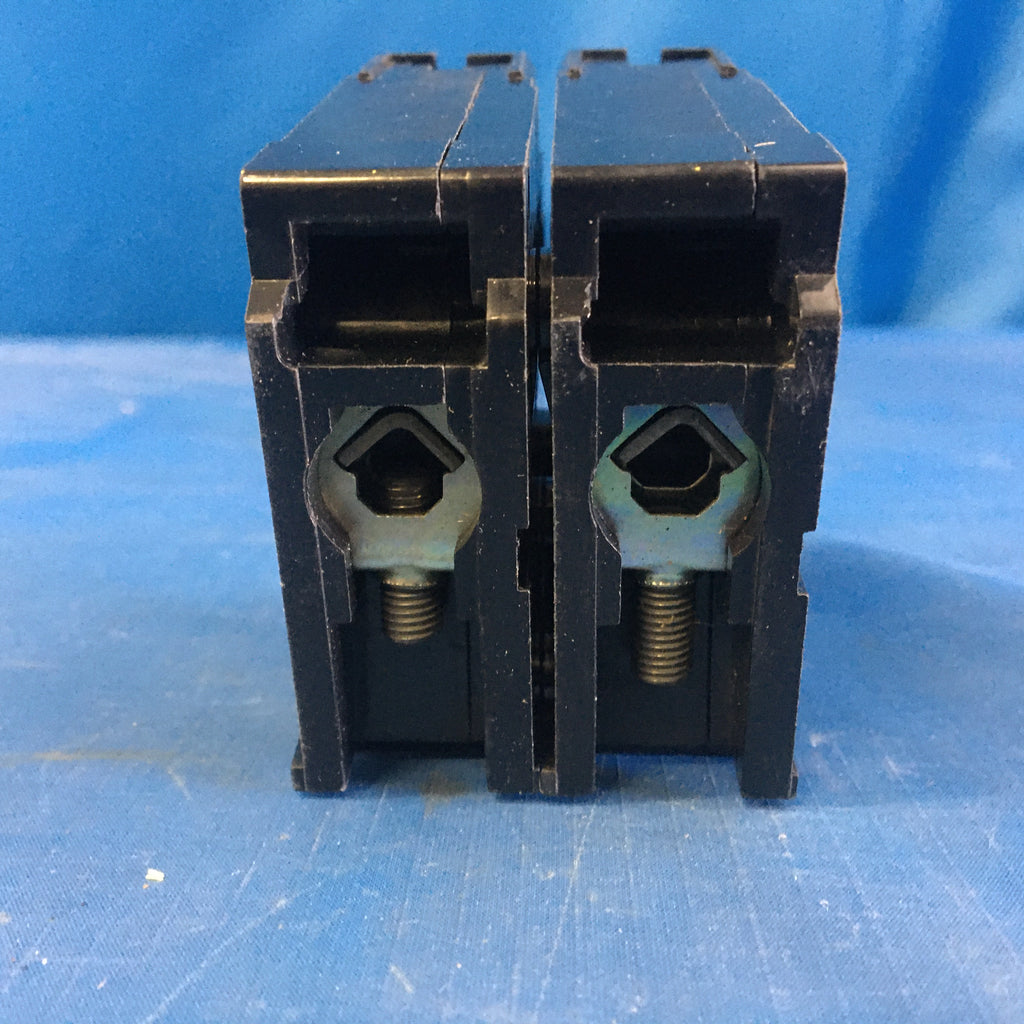

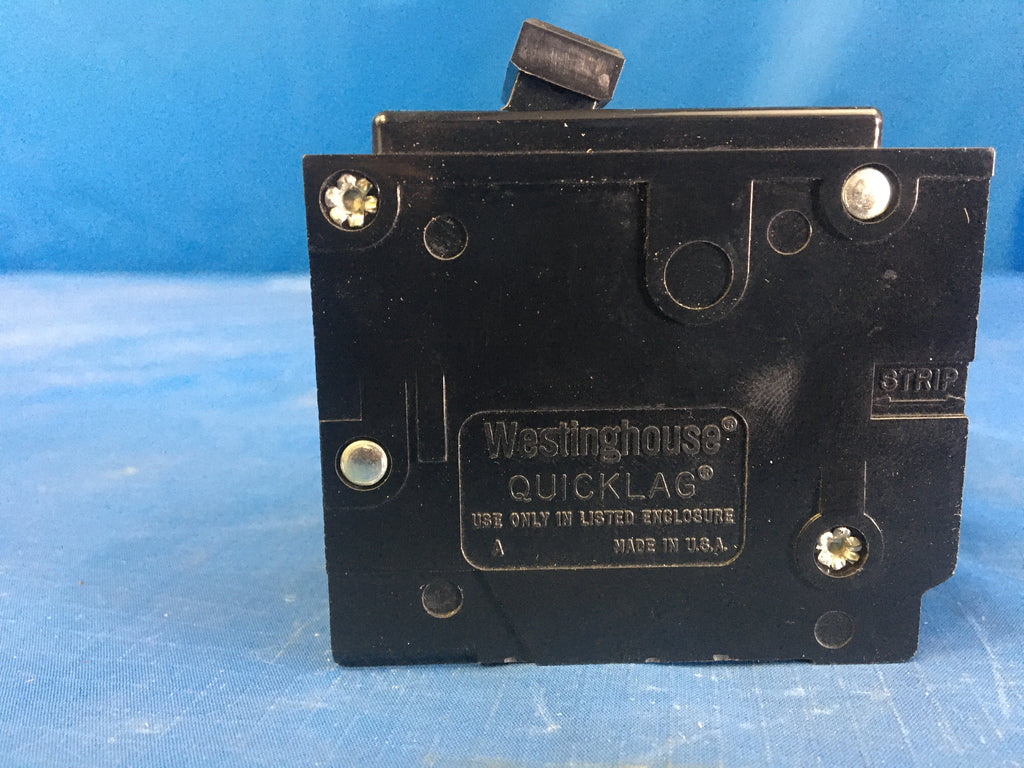

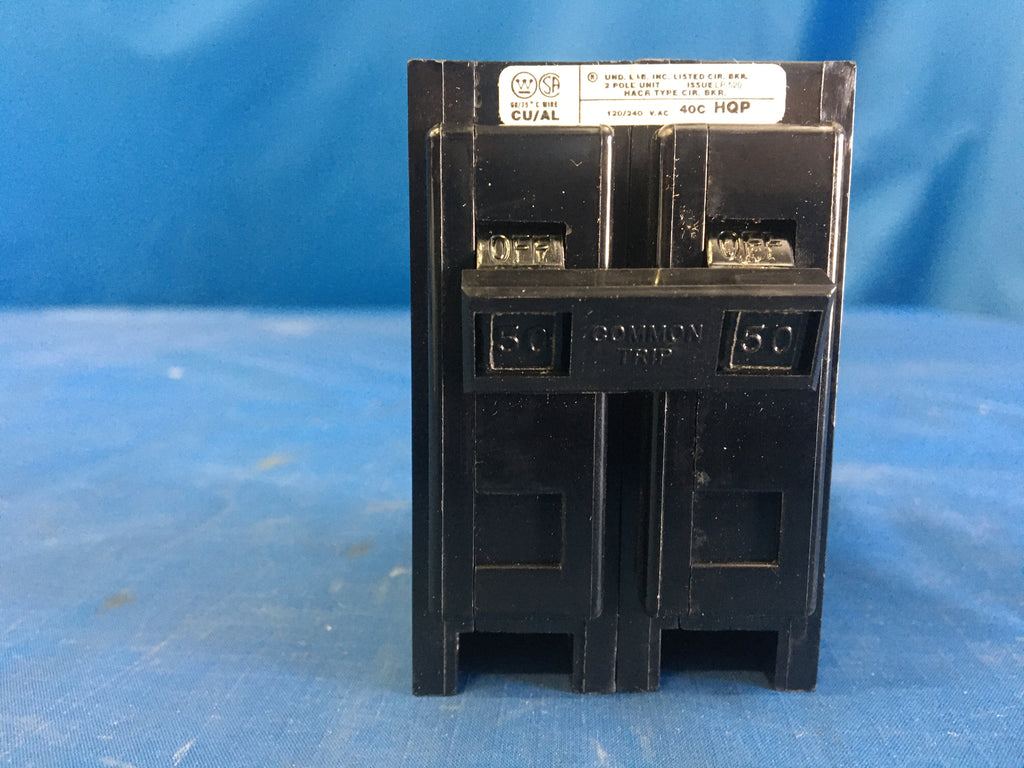

Circuit Breaker NSN: 5925-00-942-4418 P/N: HQP2050

Please fill out the form below for a price quote and availability on this item.

Circuit Breaker- A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. may include provisions for manual operation. at least one set of contacts must be in series with the actuating element(s). a combination of semiconductor and passive devices may be used in lieu of contacts. for automatically operated items in which the actuating (tripping) element and contacts are not in series, see relay (as modified). for items which are operated both manually and automatically but the actuating elements and contact are not in series, see relay-switch. excludes circuit breaker box and magneto "breaker" assemblies. see also switch (as modified); and controller

Actuator Function: Trip-reset
Actuator Position Designation: At each pole
Body Height: 2.375 inches nominal
Body Length: 2.875 inches nominal
Body Style: Multipole-multiple actuator type
Body Width: 2.000 inches nominal
Boss Height: 0.187 inches nominal
Case Material: Plastic
Center To Center Distance Between Terminals Parallel To Width: 1.000 inches nominal
Circuit Protection Type: Overcurrent all locations
External Actuator Linkage Arrangement: One and two linked
Fragility Factor: Moderately rugged
Frequency In Hertz: 60.0 all locations
Maximum Continuous Load Current Rating Per Pole: 50.0 amperes ac all locations

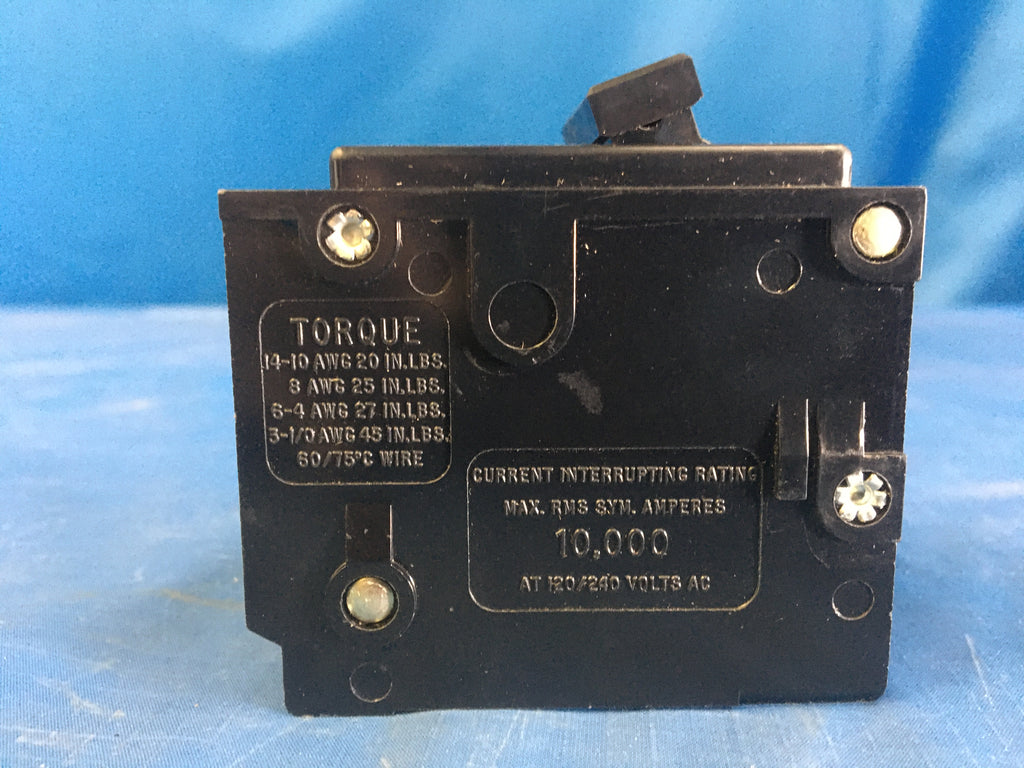

Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 10000.0 ac all locations
Mounting Facility Type And Quantity: 2 clip
Operating Voltage Type And Rating Per Pole In Volts: 240.0 ac all locations
Inclosure Protection Type For Which Designed: General purpose
Main Contact Tripping Mechanism Type: Trip free
Manual Actuator Type And Quantity: 2 toggle
Reset Method: Manual
Pole Quantity: 2
Storage Type: General purpose warehouse
Terminal Type And Quantity: 2 clip and 2 compression
Trip Delay Time In Seconds Per Rated Continuous Current: 12.500 minimum at 200 pct all locations and 100.000 maximum at 200 pct all locations
Trip Release Ambient Temp Rating: 40.0 deg celsius nominal all locations
Trip Release Characteristic: Instantaneous all locations and time delay all locations
Trip Release Method: Thermal-magnetic all locations
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 125.0 all locations

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
