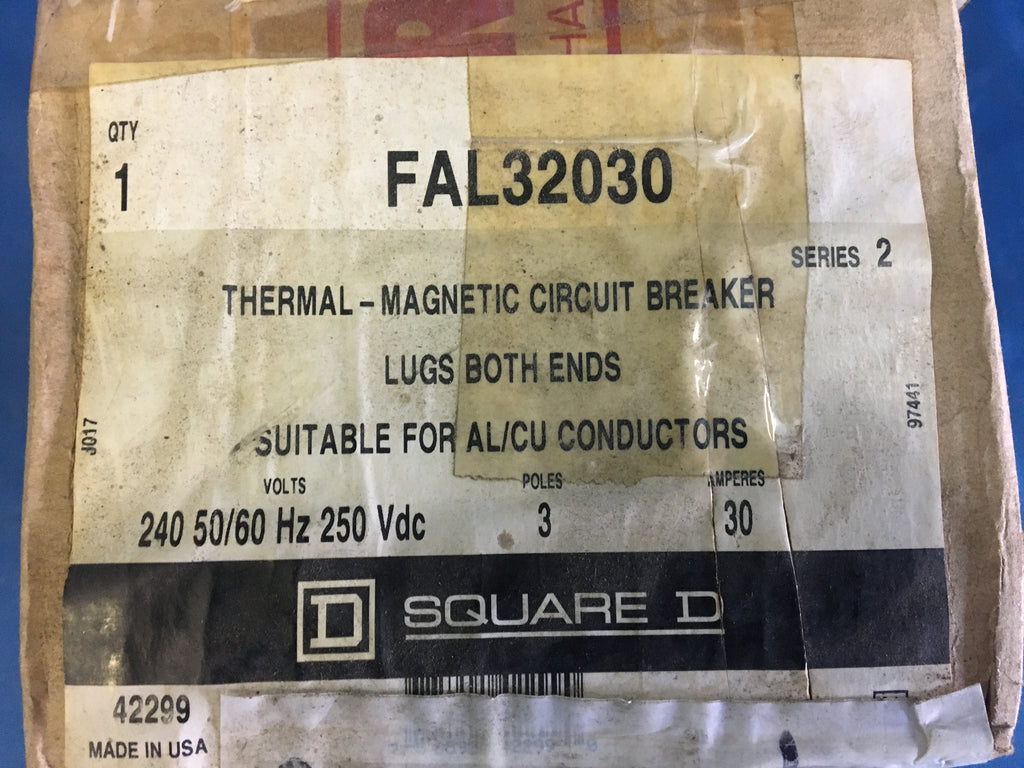

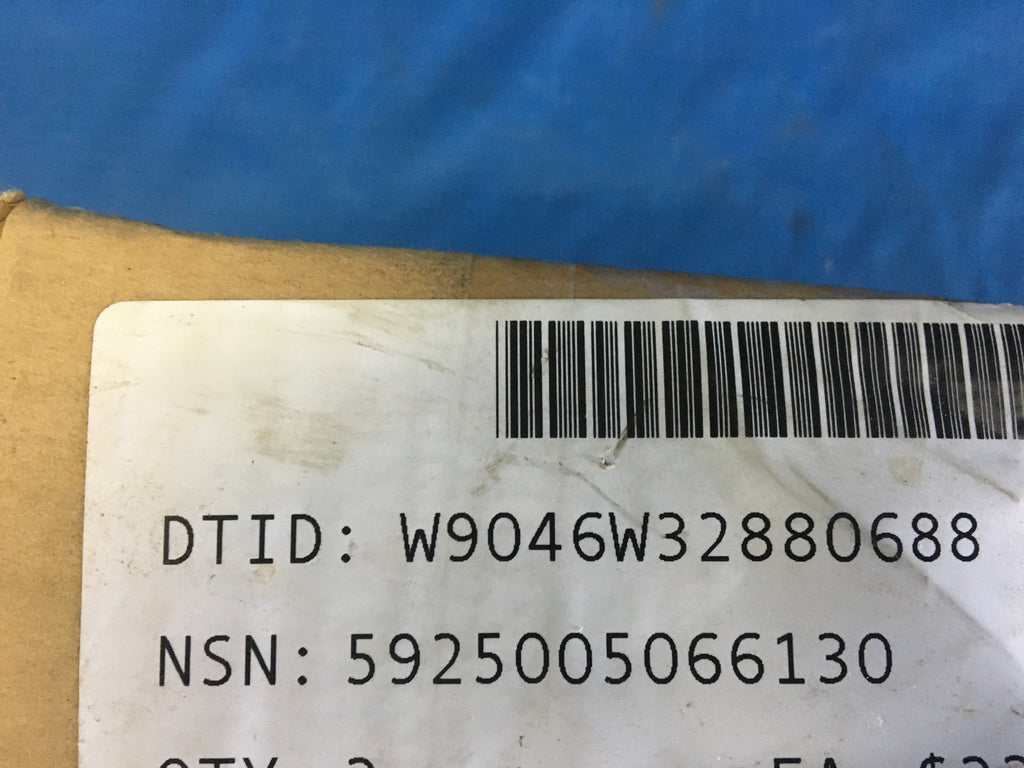

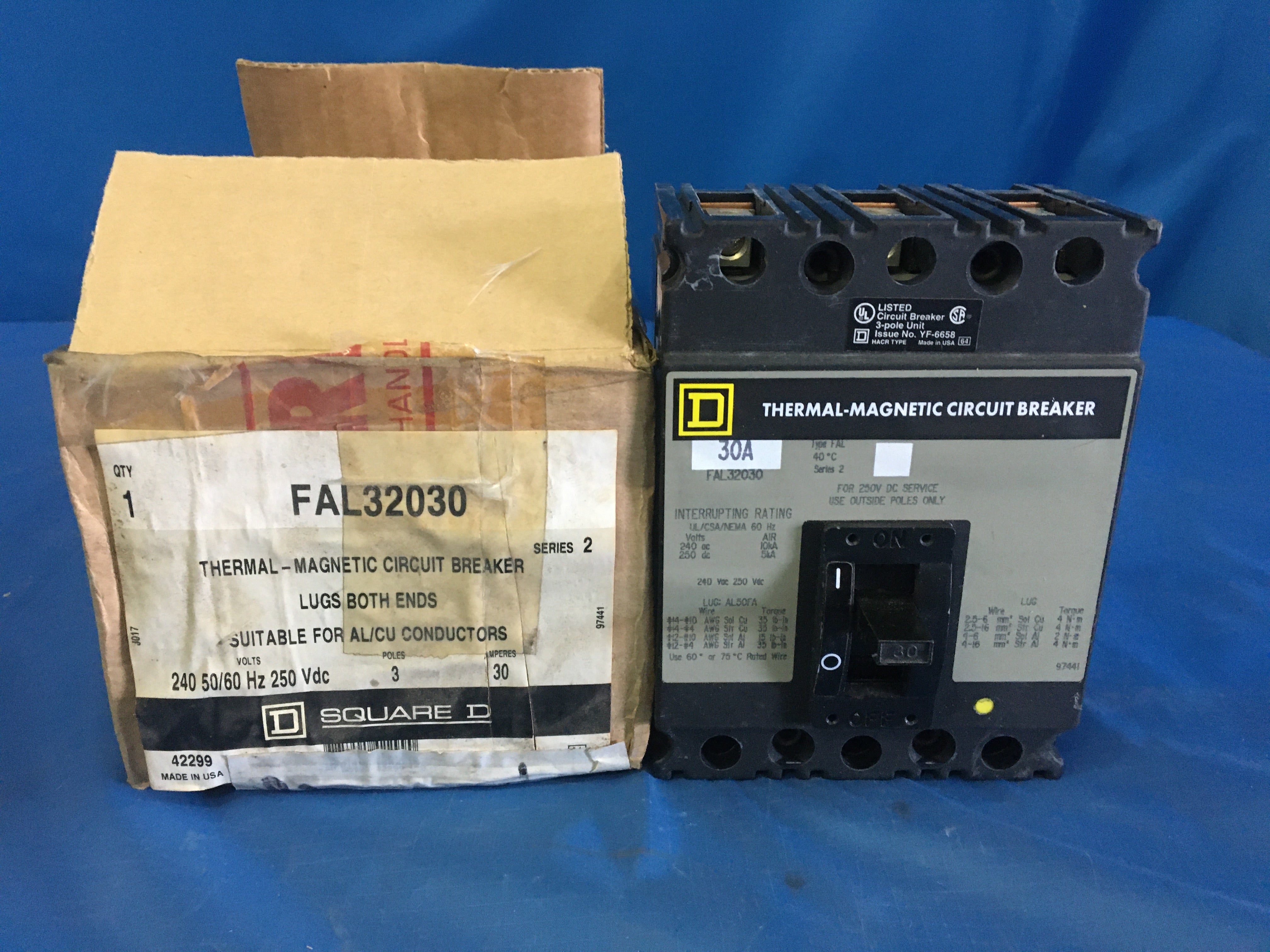

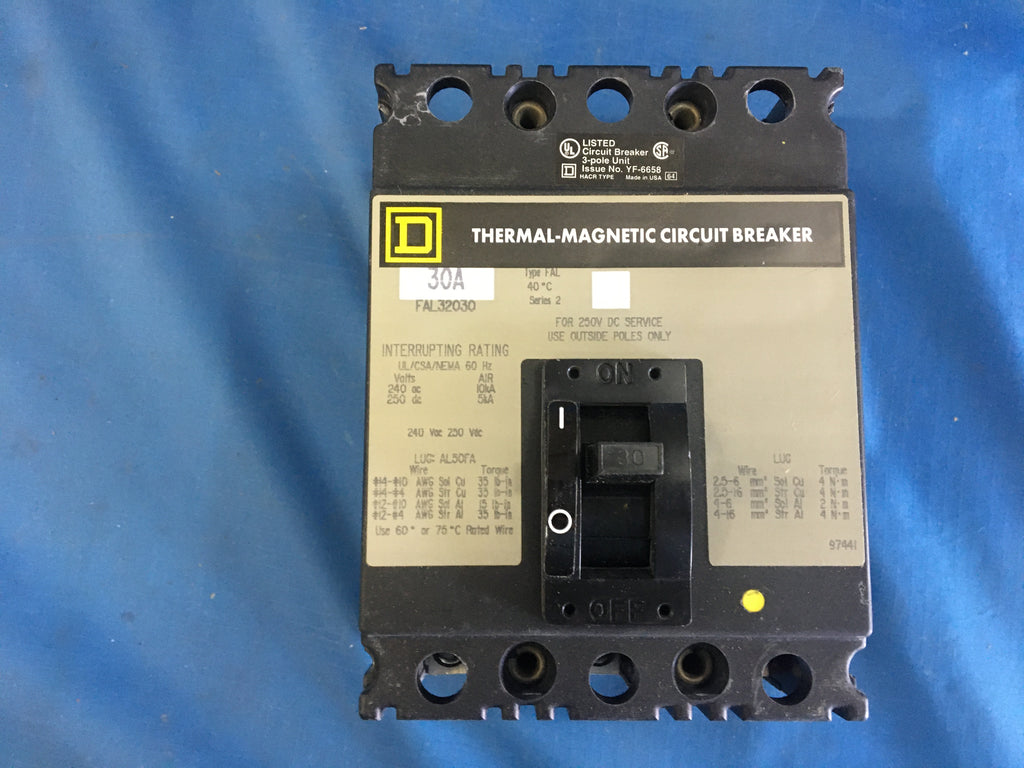

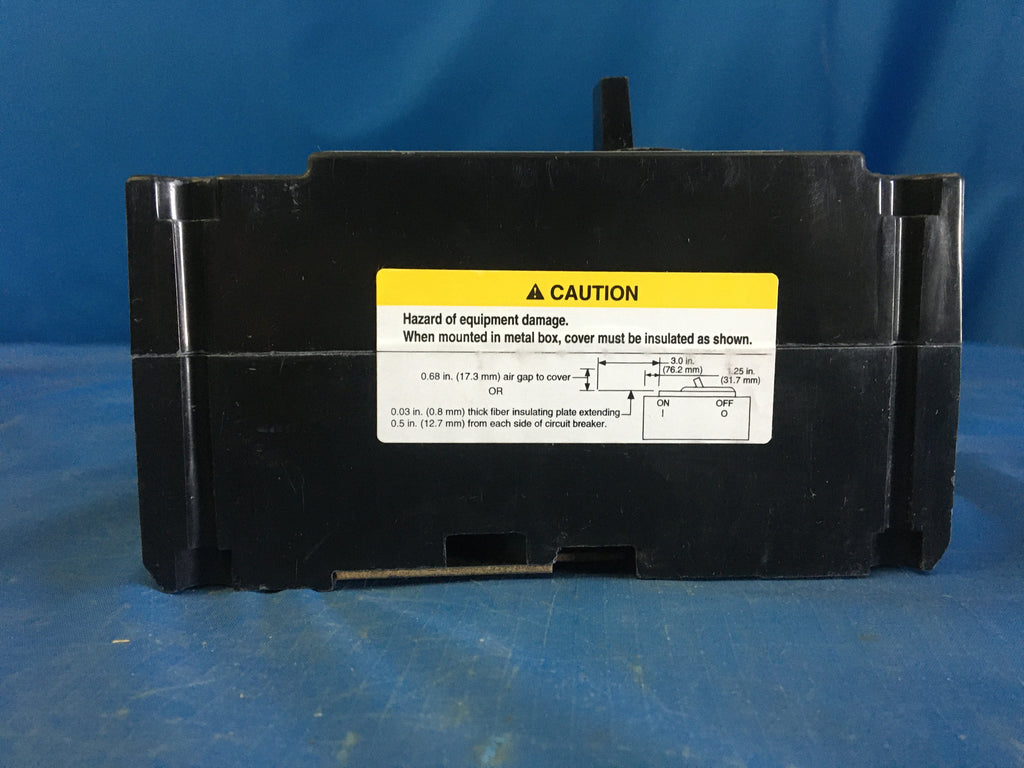

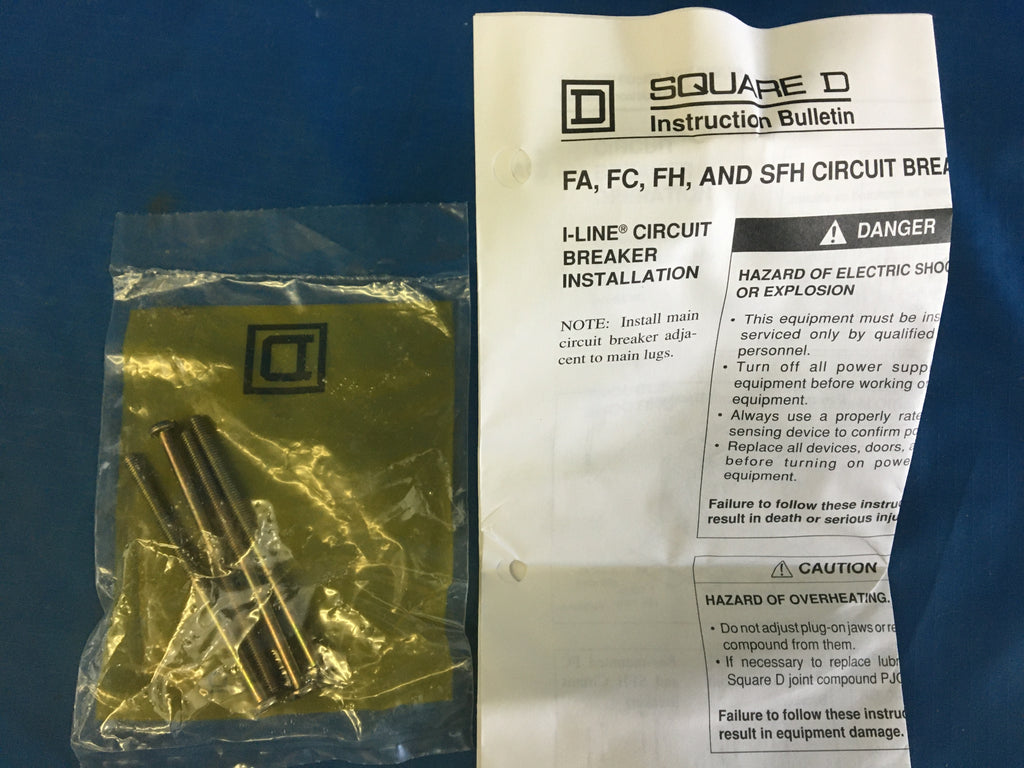

Circuit Breaker NSN: 5925-00-506-6130 P/N: FAL32030

Please fill out the form below for a price quote and availability on this item.

Circuit Breaker-A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. may include provisions for manual operation. at least one set of contacts must be in series with the actuating element(s). a combination of semiconductor and passive devices may be used in lieu of contacts. for automatically operated items in which the actuating (tripping) element and contacts are not in series, see relay (as modified). for items which are operated both manually and automatically but the actuating elements and contact are not in series, see relay-switch. excludes circuit breaker box and magneto "breaker" assemblies. see also switch (as modified); and controller.

Actuator Function: Trip-reset
Actuator Position Designation: At pole two
Body Height: 3.000 inches nominal
Body Length: 6.000 inches nominal

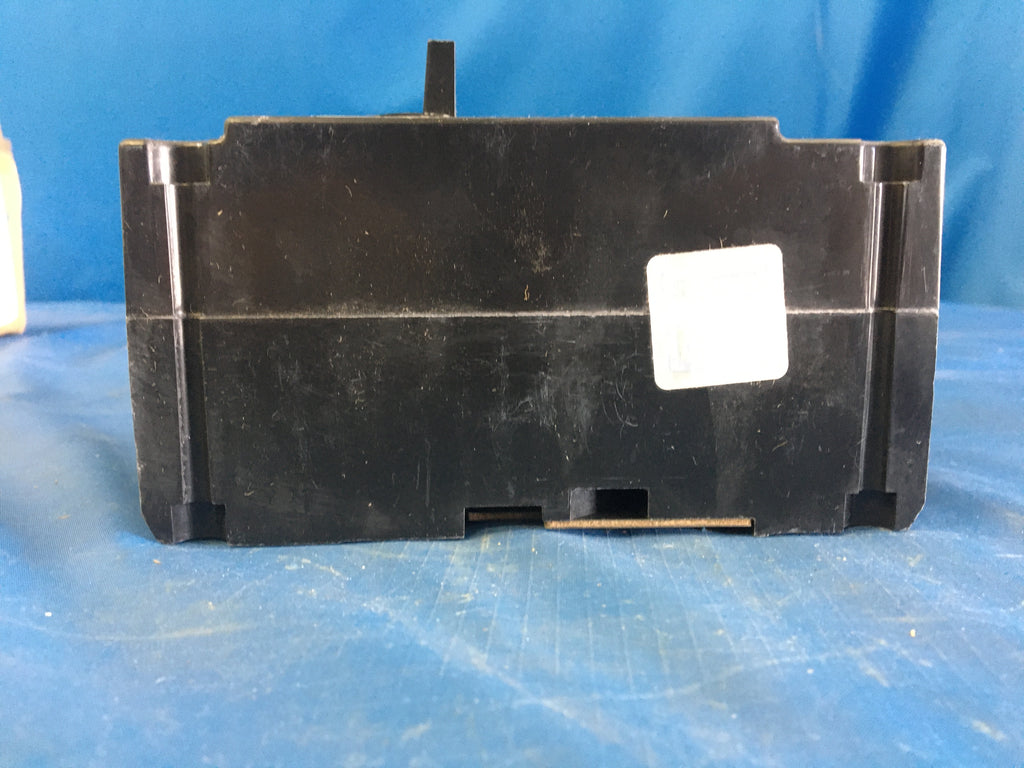

Body Style: Multipole-single actuator type
Body Width: 4.469 inches nominal
Boss Height: 0.156 inches nominal
Case Material: Plastic
Center To Center Distance Between Terminals Parallel To Length: 5.125 inches nominal
Center To Center Distance Between Terminals Parallel To Width: 1.500 inches nominal
Circuit Protection Type: Overcurrent all locations
Distance Between Centerlines Of Mounting Facilities Parallel To Body Width: 1.500 inches nominal
Distance Between Centerlines Of Mounting Facilities Parallel To Body Length: 5.125 inches nominal
Frequency In Hertz: 60.0 all locations
Maximum Continuous Load Current Rating Per Pole: 30.0 amperes ac all locations

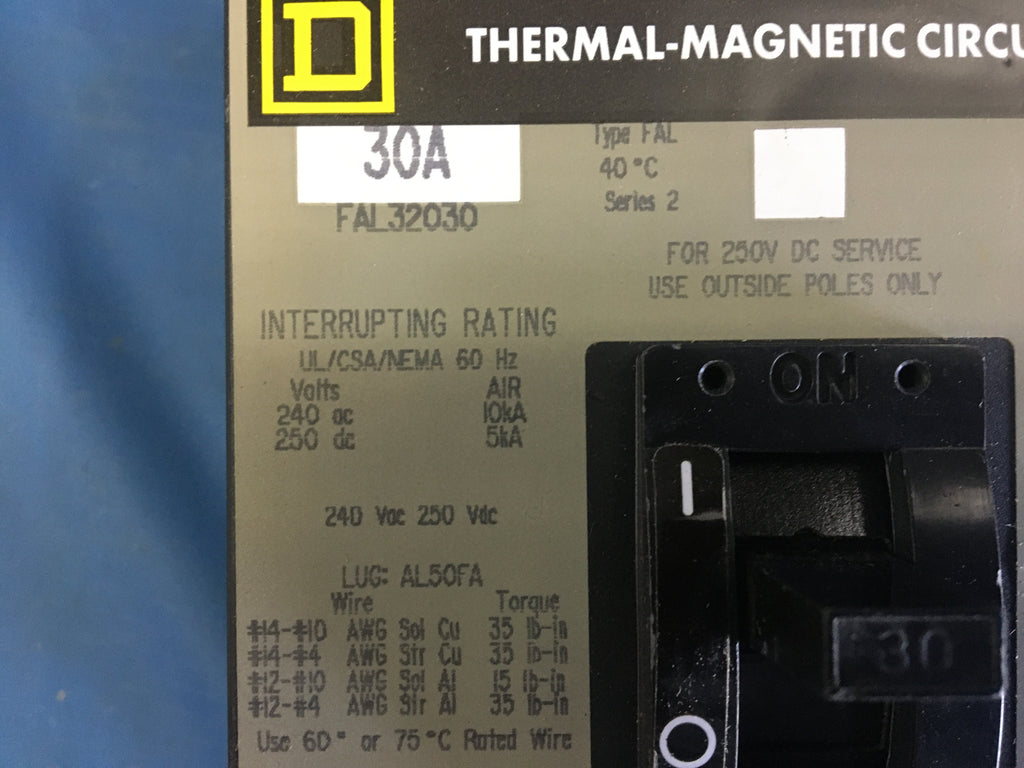

Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 10000.0 ac all locations

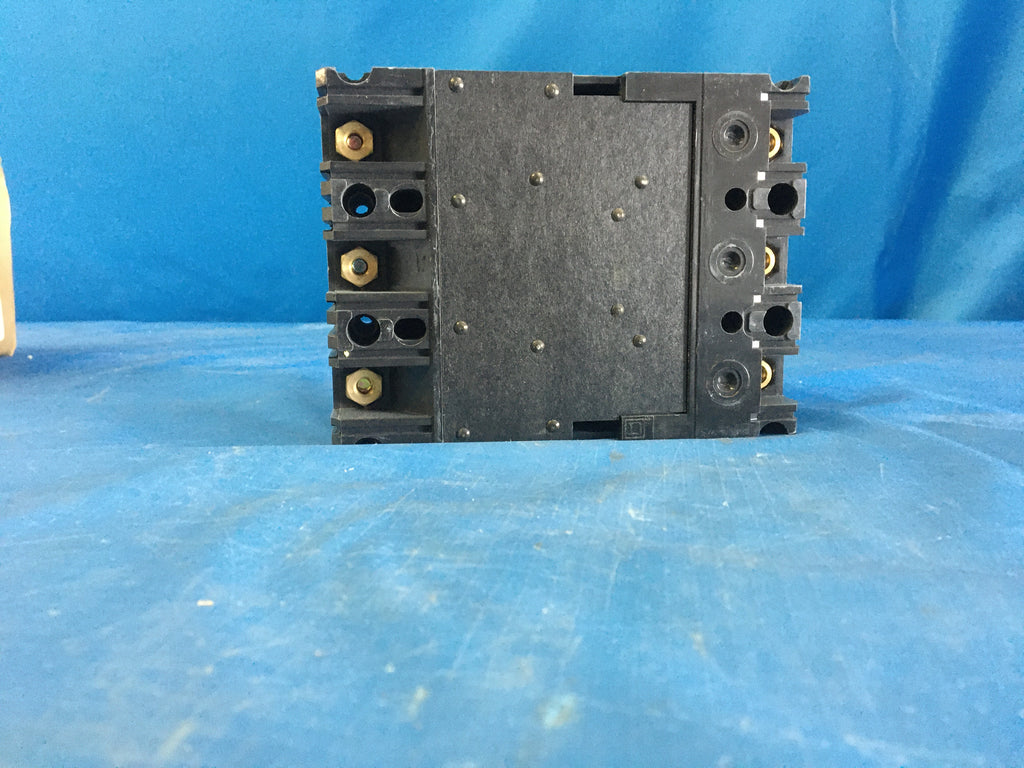

Mounting Facility Type And Quantity: 4 unthreaded hole
Operating Voltage Type And Rating Per Pole In Volts: 240.0 ac all locations
Inclosure Protection Type For Which Designed: Fungus resistant
Main Contact Tripping Mechanism Type: Trip free
Manual Actuator Type And Quantity: 1 toggle
Reset Method: Manual
Pole Quantity: 3
Storage Type: General purpose warehouse

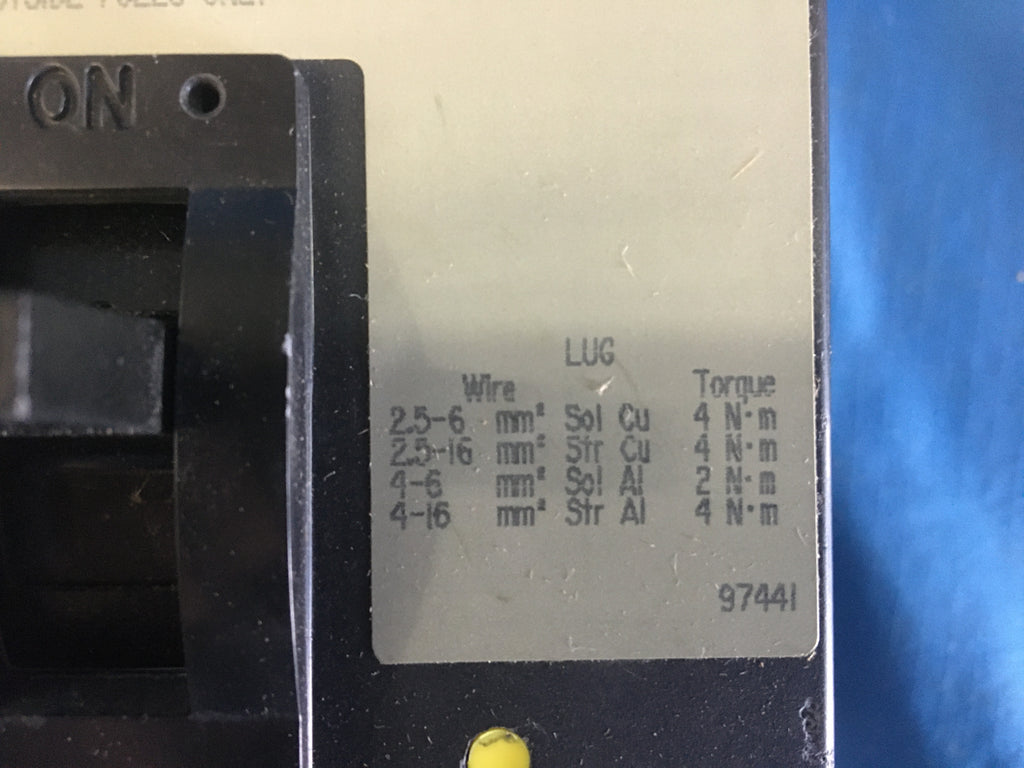

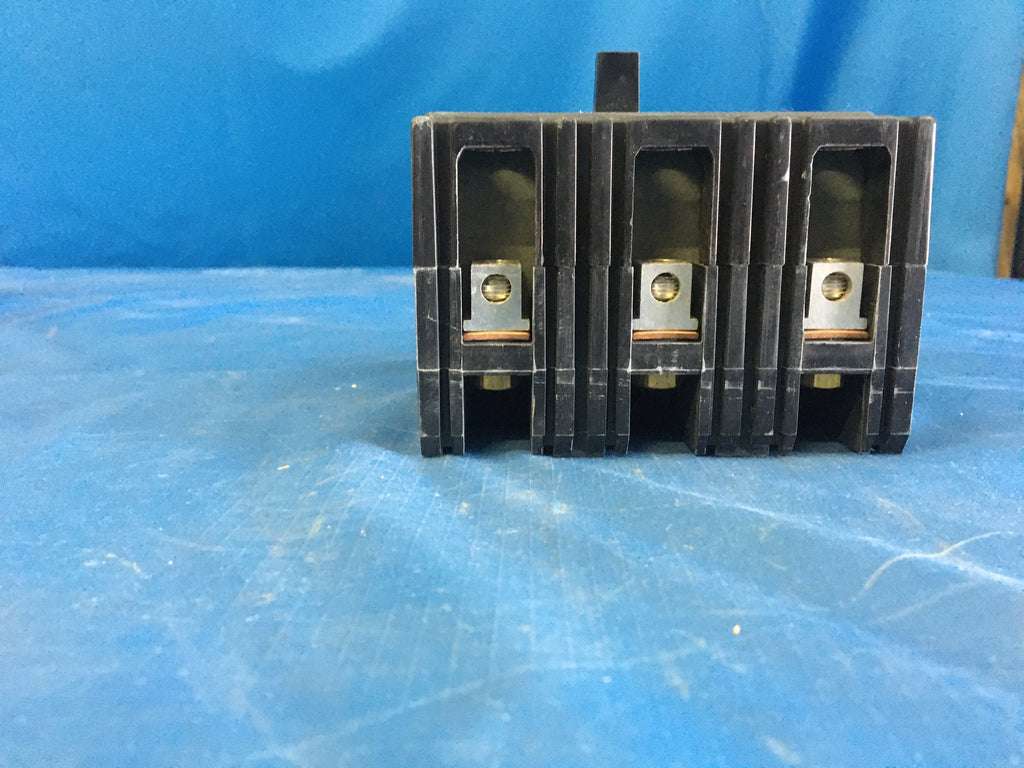

Terminal Type And Quantity: 6 compression
Trip Delay Time In Seconds Per Rated Continuous Current: 3.000 minimum at 200 pct all locations and 100.000 maximum at 200 pct all locations
Trip Release Ambient Temp Rating: 40.0 deg celsius maximum all locations
Trip Release Characteristic: Time delay all locations
Trip Release Method: Thermal-magnetic all locations
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 138.0 all locations
Unthreaded Mounting Hole Diameter: 0.172 inches nominal

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
