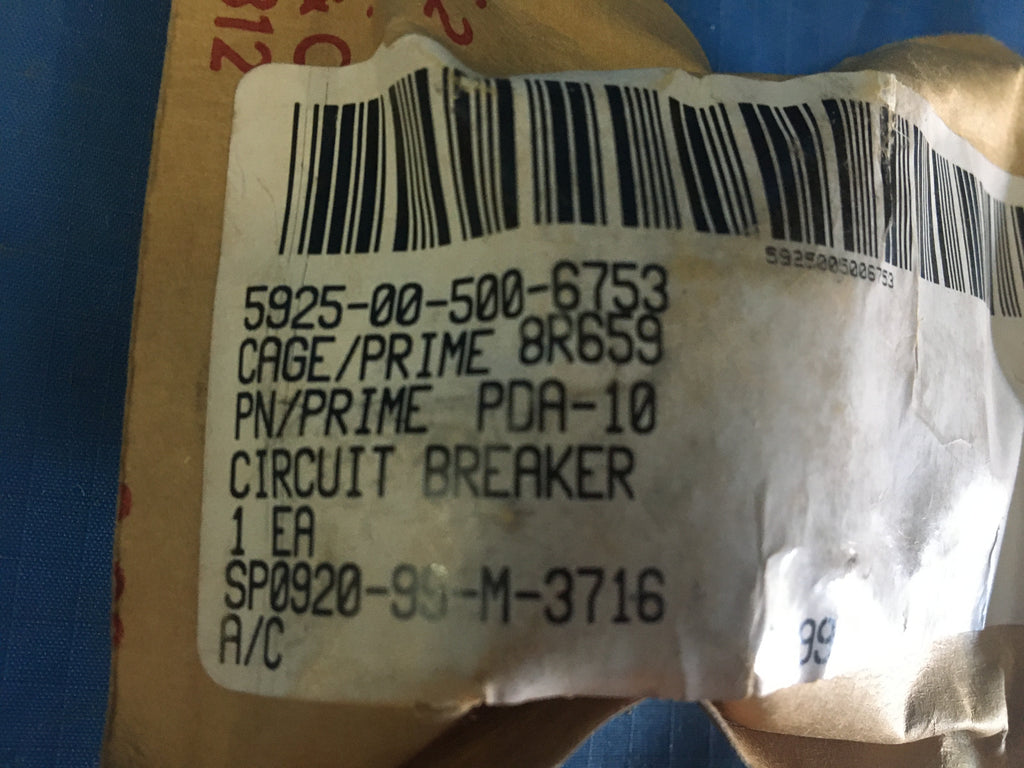

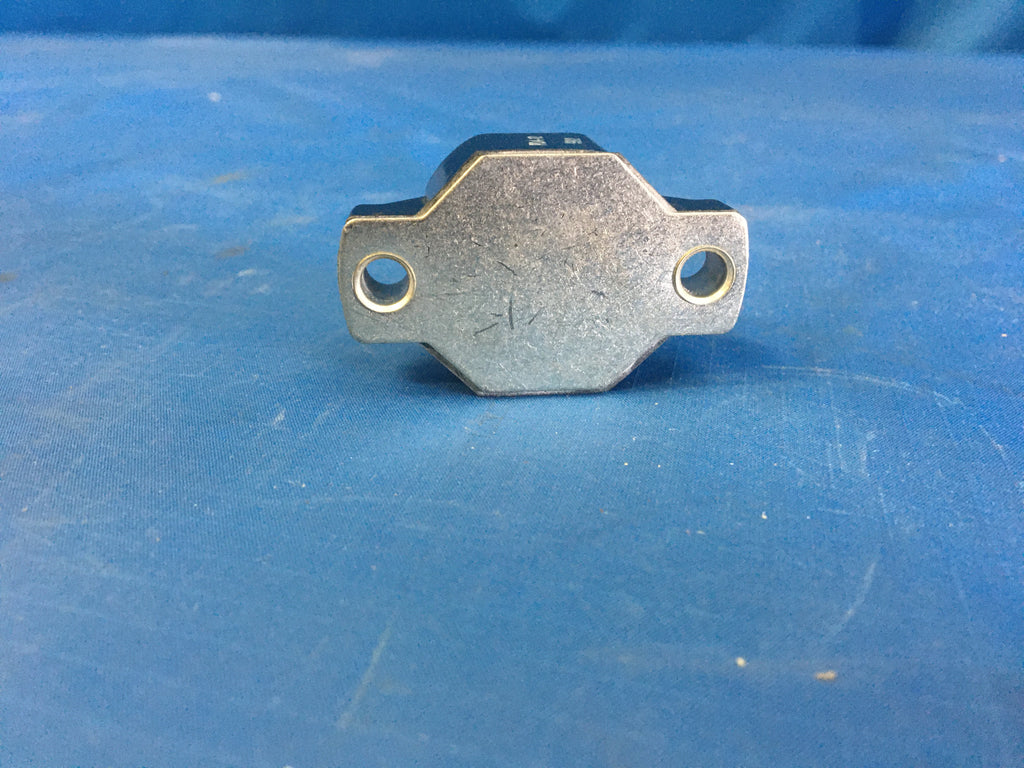

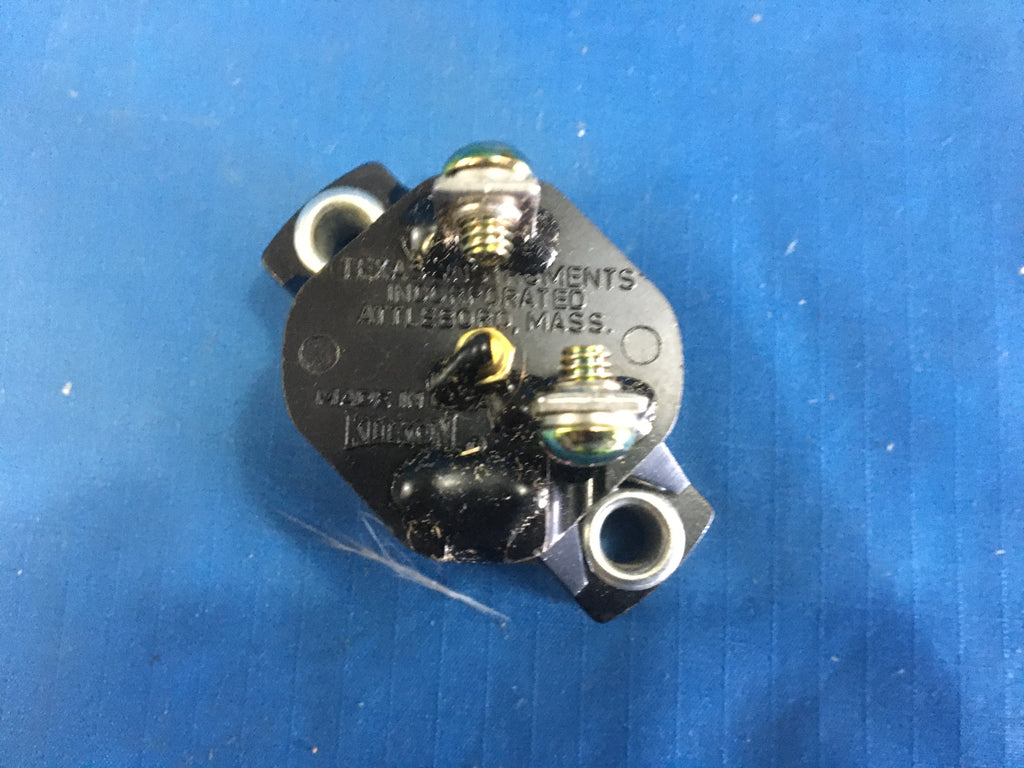

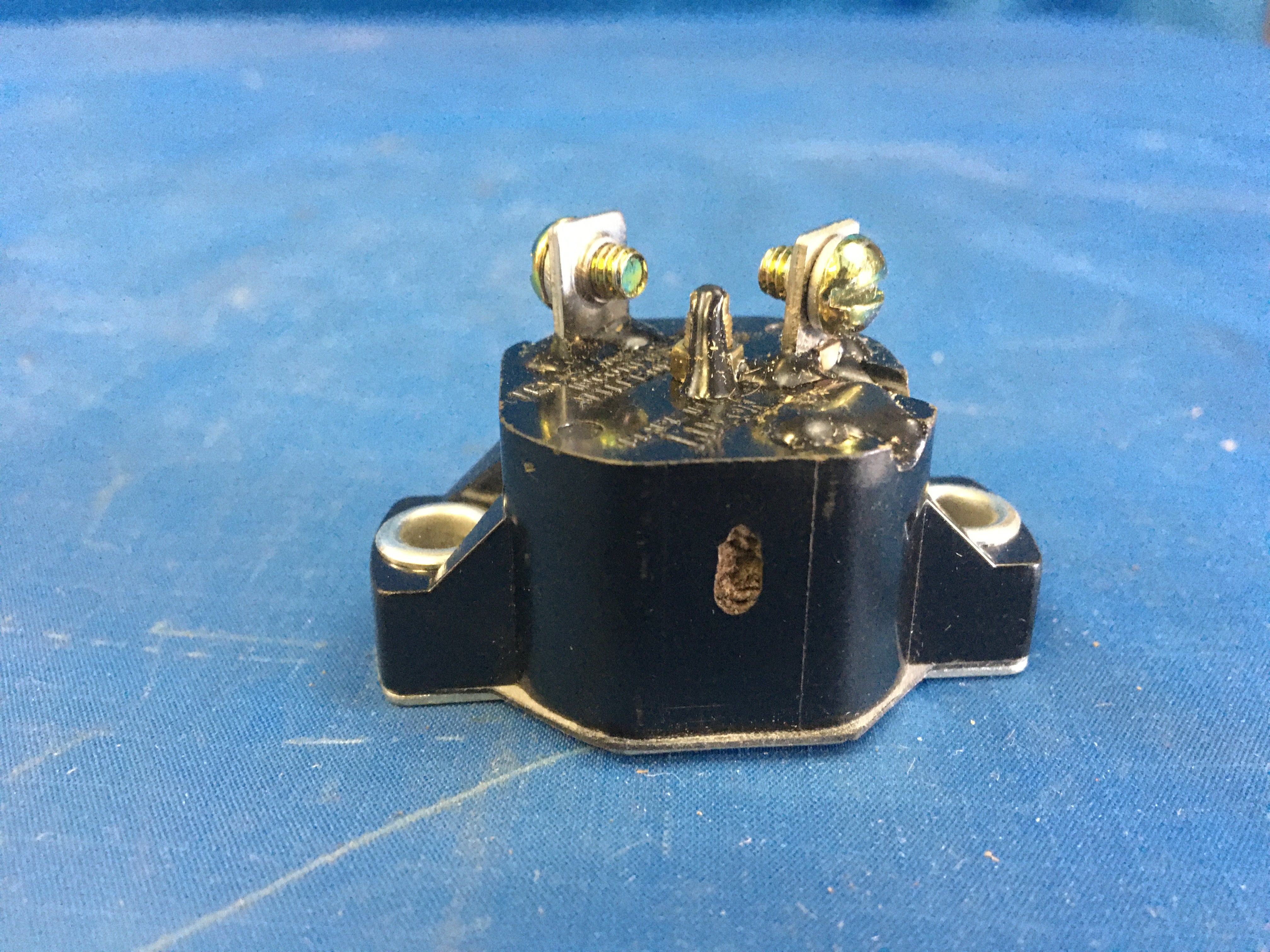

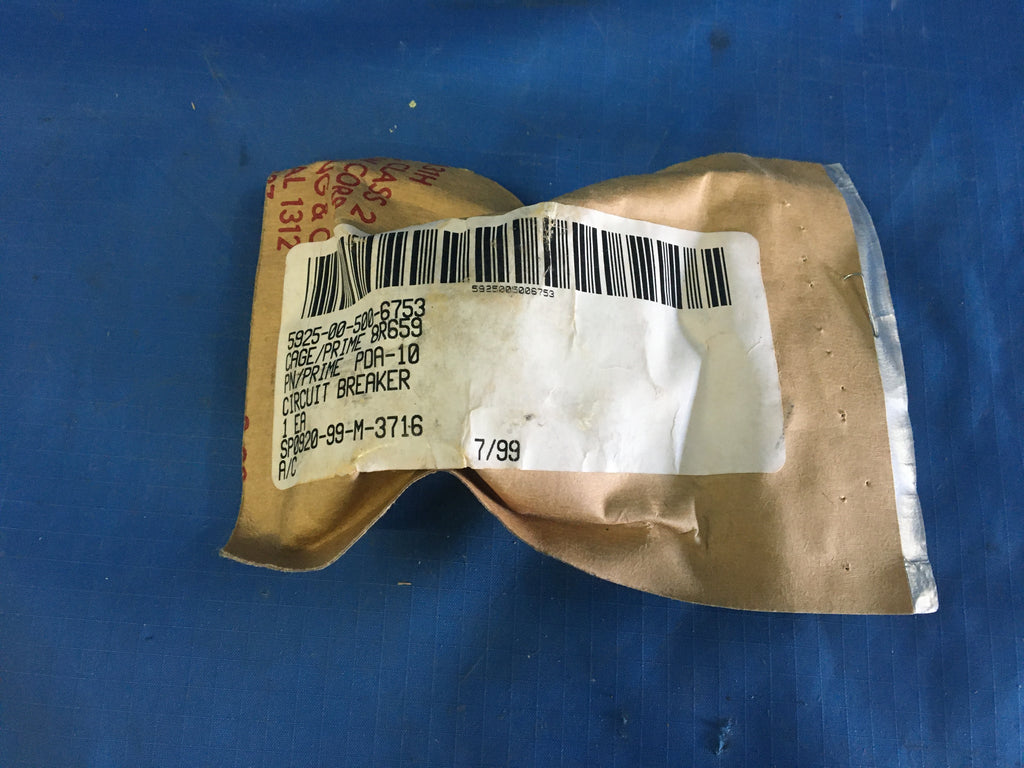

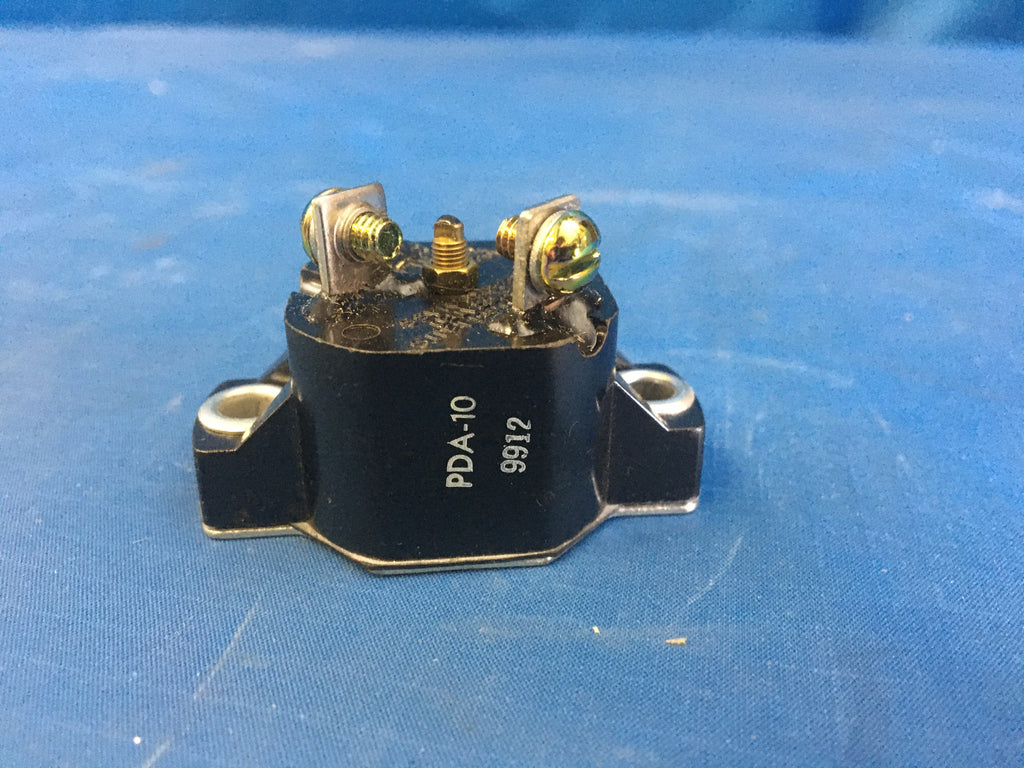

Circuit Breaker NSN: 5925-00-500-6753 P/N: PDA-10

Please fill out the form below for a price quote and availability on this item.

Body Style: Single pole type
Body Width: 1.188 inches nominal
Case Material: Plastic
Circuit Protection Type: Overcurrent single location
Maximum Continuous Load Current Rating Per Pole: 10.0 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 600.0 dc single location
Mounting Facility Type And Quantity: 2 threaded hole
Mounting Surface To Terminal End Distance: 1.281 inches nominal
Nominal Thread Size: 0.164 inches
Operating Voltage Type And Rating Per Pole In Volts: 30.0 dc single location
Inclosure Protection Type For Which Designed: Dustproof and weatherproof
Internal Trip Release Configuration: Series trip single location
Reset Method: Automatic
Overall Length: 2.000 inches nominal
Pole Quantity: 1
Storage Type: General purpose warehouse
Terminal Type And Quantity: 2 screw
Thread Quantity Per Inch: 32
Thread Series Designator: Unc
Trip Delay Time In Seconds Per Rated Continuous Current: 6.000 minimum at 200 pct and 60.000 maximum at 200 pct single location
Trip Release Ambient Temp Rating: 25.0 deg celsius maximum single location
Trip Release Characteristic: Time delay single location
Trip Release Method: Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 125.0 single location

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
