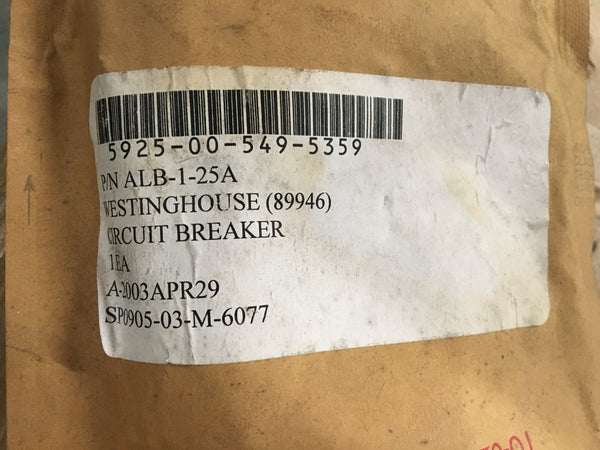

Circuit Breaker Model:TN1125 NSN: 5925-00-549-5359

Regular price $112.00

NSN: 5925-00-549-5359

A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. may include provisions for manual operation. at least one set of contacts must be in series with the actuating element(s). a combination of semiconductor and passive devices may be used in lieu of contacts. for automatically operated items in which the actuating (tripping) element and contacts are not in series, see relay (as modified). for items which are operated both manually and automatically but the actuating elements and contact are not in series, see relay-switch. excludes circuit breaker box and magneto "breaker" assemblies. see also switch (as modified); and controller.

Actuator Function: Trip-reset
Actuator Position Designation: At pole one
Body Height: 2.313 inches nominal
Body Length: 3.500 inches nominal
Body Style: Single pole type
Body Width: 0.969 inches nominal
Boss Height: 0.188 inches nominal
Case Material: Plastic
Circuit Protection Type: Overcurrent single location
Fragility Factor: Moderately rugged
Frequency In Hertz: 400.0 single location
Maximum Continuous Load Current Rating Per Pole: 25.0 amperes ac single location and 25.0 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 5000.0 ac single location and 2500.0 dc single location
Mounting Facility Type And Quantity: 1 terminal and 1 clip
Operating Voltage Type And Rating Per Pole In Volts: 120.0 ac single location and 125.0 dc single location
Inclosure Protection Type For Which Designed: Vibration resistant and shock resistant
Main Contact Tripping Mechanism Type: Trip free
Manual Actuator Type And Quantity: 1 toggle
Reset Method: Manual
Pole Quantity: 1
Precious Material And Location: Contact surfaces silver
Precious Material: Silver
Special Handling Feature: Magnetic
Specification/standard Data: 81349-mil-c-17588 government specification
Storage Type: General purpose warehouse
Terminal Type And Quantity: 1 compression and 1 quick disconnect, female
Test Data Document: 81349-mil-c-17588 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Trip Delay Time In Seconds Per Rated Continuous Current: 10.000 minimum at 200 pct single location and 210.000 maximum at 200 pct single location
Trip Release Ambient Temp Rating: 50.0 deg celsius nominal single location
Trip Release Characteristic: Time delay single location
Trip Release Method: Thermal-magnetic single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 138.0 single location
