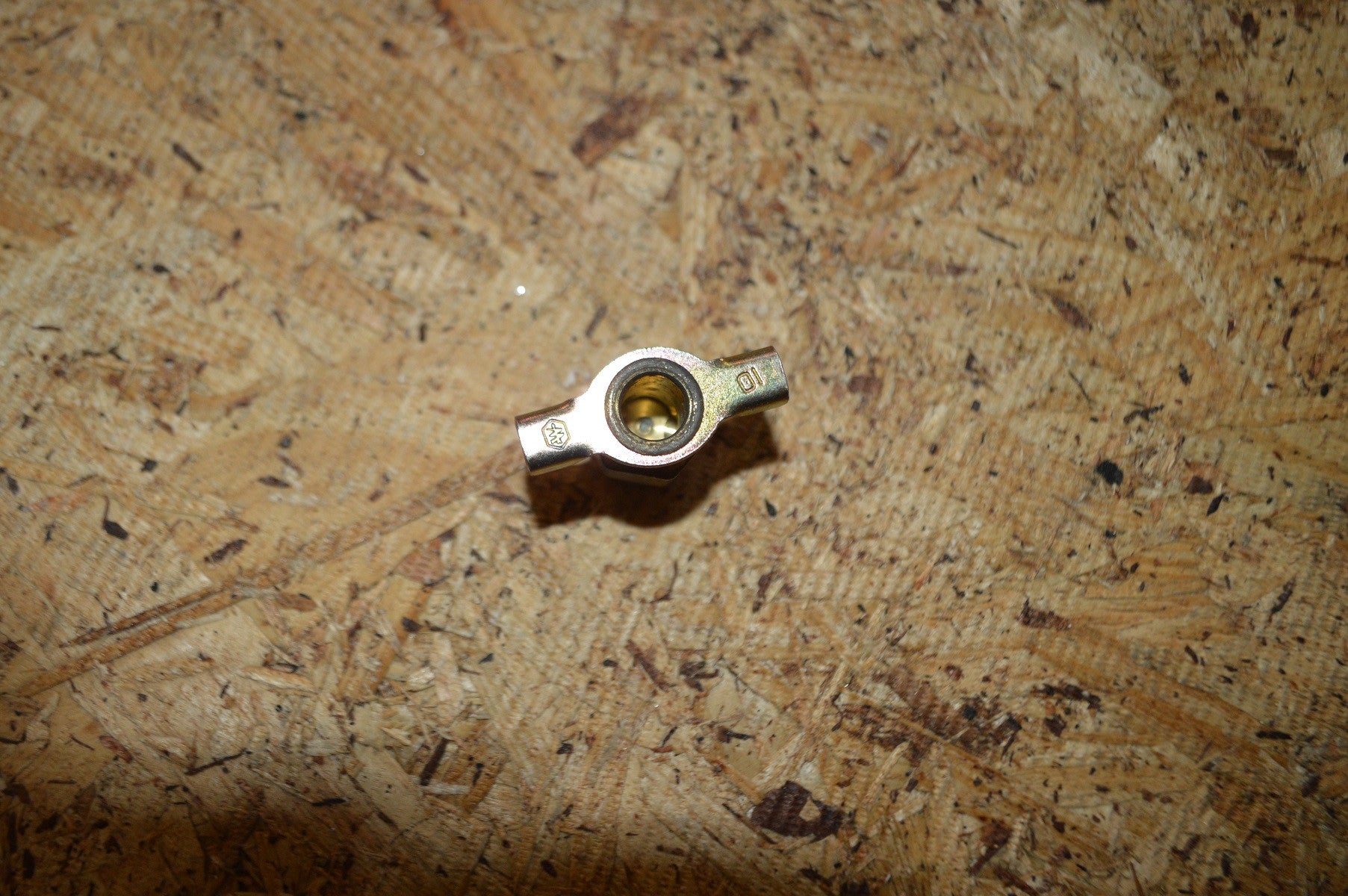

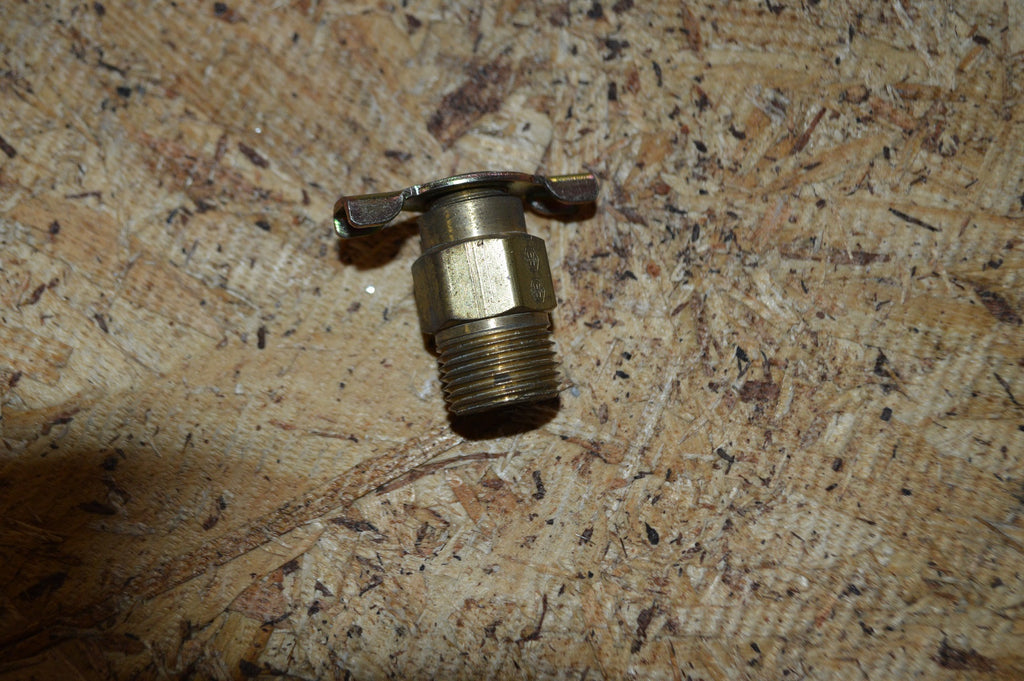

Check Valve Model: 9454270 NSN: 4820-01-494-3893
Please fill out the form below for a price quote and availability on this item.
Check Valve- A valve permitting flow in one direction only. it does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. it may be inline or cartridge (manifold) design.
|For Use With/On:||Nsn 4120-01-4490-459 air conditioner|
|Connection Style:||External seat for gasket seal (boss) 1st end|
|Connection Style:||Socket (tube) 2nd end|
|Connection Type:||Threaded external tube 1st end|
|Connection Type:||Unthreaded internal tube 2nd end|
|Material:||Copper alloy body|
|Nominal Outside Diameter Tube Accommodated:||0.375 inches 2nd end|
|Part Name Assigned By Controlling Agency:||Service valve|
|Special Features:||Also referred to as "access valve". working pressure is 400psig; 3/8 inch solder fitting x 1/4 inch sae male flare valve connector.|
|Style Designator:||Straight thru|
|Valve Operation Method:||Automatic|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
