Amphenol Corp Electrical Connector Cable Clamp NSN:5935-00-733-7966 Model:MS27291-4 P/N:48-2844

Please fill out the form below for a price quote and availability on this item.

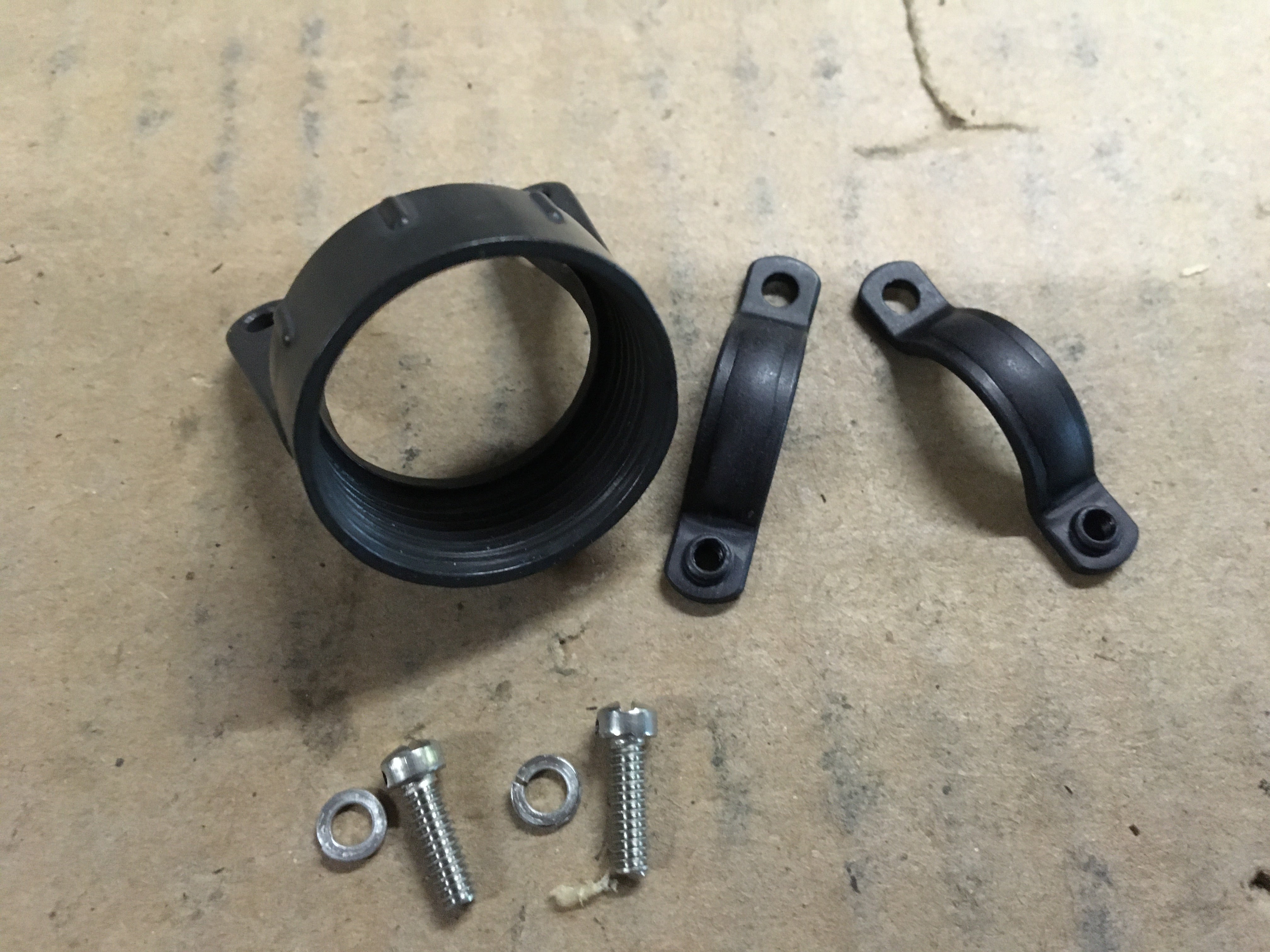

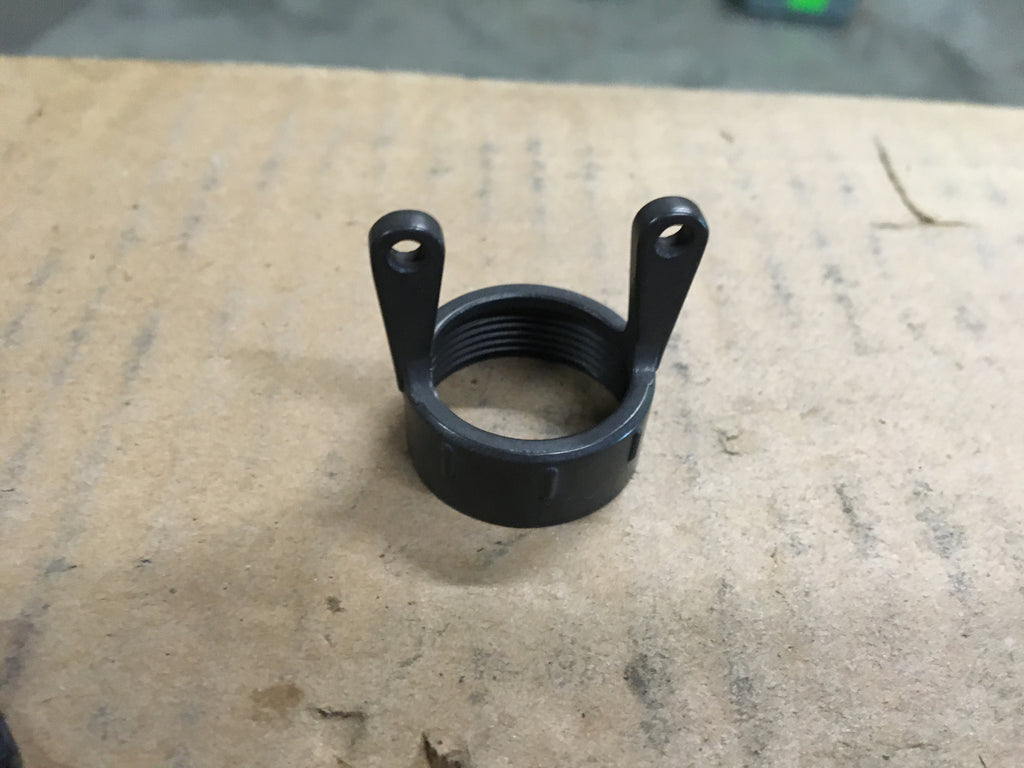

Electrical Connector Cable Clamp

NSN: 5935-00-733-7966 Model: MS27291-4 P/N:48-2844
ITAR Registered seal

A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes adapter (1), cable to connector.

NSN Properties and Flags
NATO Stock Number
5935-00-733-7966
DEMIL
Yes - ITAR Controlled
Thread Class
2B
Thread Direction
Right-hand
Seal Material
Any acceptable
Overall Length
Between 1.155 inches and 1.185 inches
Overall Diameter
1.106 inches
Cable Opening Diameter
Between 0.595 inches and 0.625 inches
Thread Length
0.262 inches
Cable Opening Quantity
1
Size Designation
16
Mounting Facility Type And Quantity
2 threaded hole
Thread Size
0.938 inches
Material
Aluminum alloy
Material
Aluminum alloy
Surface Treatment
Anodize
Style Designator
Double clamping action open frame type
Surface Treatment
Anodized
Test Data Document
96906-MS27291 standard (includes industry or association standards, individual manufactureer standards, etc.).
Thread Series Designator
Unef
Specification Data
81349-MS27291-4 government specification
Recent Solicitations



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
