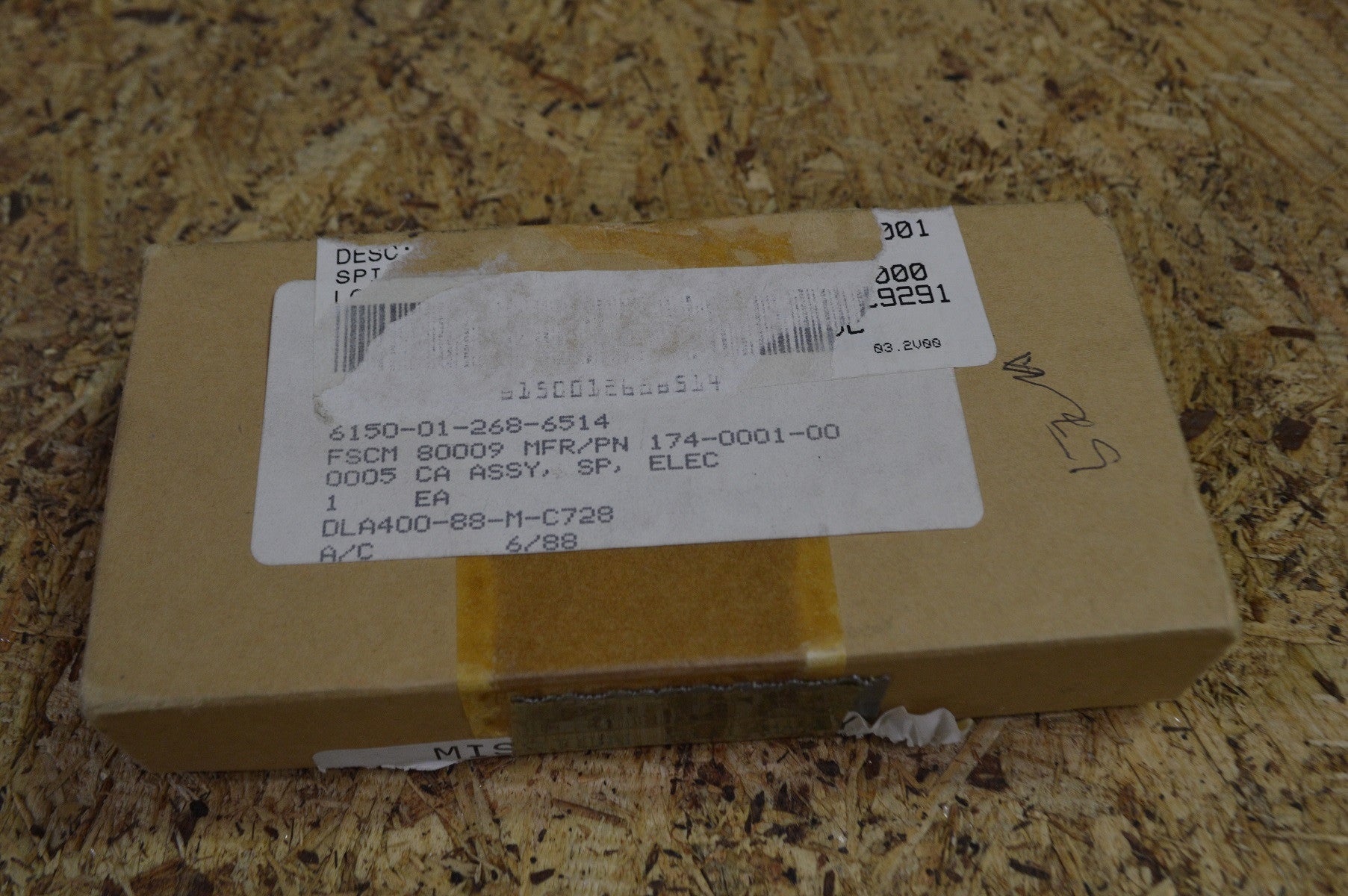

Cable Assembly NSN:6150-01-268-6514 P/N:174-0001-00

Please fill out the form below for a price quote and availability on this item.

Cable Assembly NSN:6150-01-268-6514 P/N:174-0001-00

A definite continuous length of cable, special purpose, electrical, having one or more ends processed or terminated in fittings which provide for connection to other items. excludes items having branches or forks. excludes lead, test and cable and conduit assembly, electrical.

NAME ITEM NAME CABLE ASSEMBLY,SPECIAL PURPOSE,E
AAJU OVERALL LENGTH 2.065 INCHES
AKRZ TERMINATION TYPE CONNECTOR INTERNAL STRAIGHT 1ST END ALL CONDUCTORS
AKRZ TERMINATION TYPE CONNECTOR INTERNAL ANGLE 2ND END ALL CONDUCTORS
AMQN CONDUCTOR QUANTITY 34
BLNZ STRAND QUANTITY PER CONDUCTOR 19 ALL CONDUCTORS
CXCW CONDUCTOR FORM STRANDED ALL CONDUCTORS
CXDC ROUND CONDUCTOR SIZE 28 AWG ALL CONDUCTORS
CXDG STRAND AWG SIZE PER CONDUCTOR 38 ALL CONDUCTORS
CXDQ CONDUCTOR ARRANGEMENT AND QUANTITY 34 SINGLES
MATT MATERIAL COPPER CORE CONDUCTOR ALL CONDUCTORS
PRPY PROPRIETARY CHARACTERISTICS PACS
STYL STYLE DESIGNATOR 32 INTERNAL AND EXTERNAL ANGLE CONNECTOR

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
