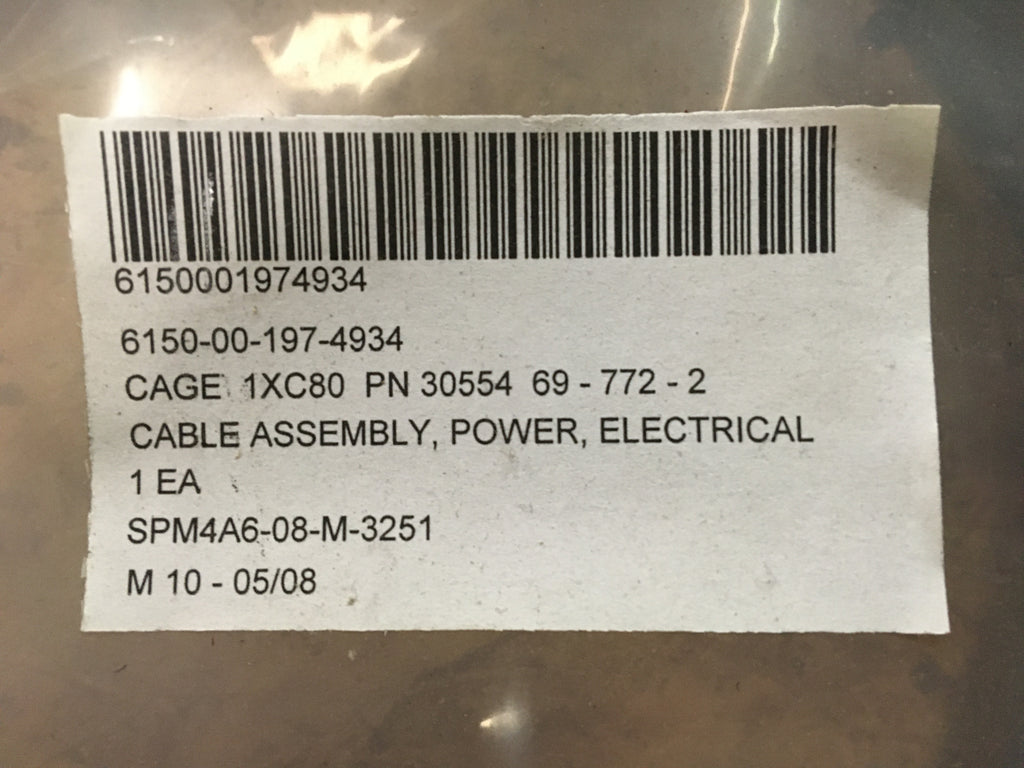

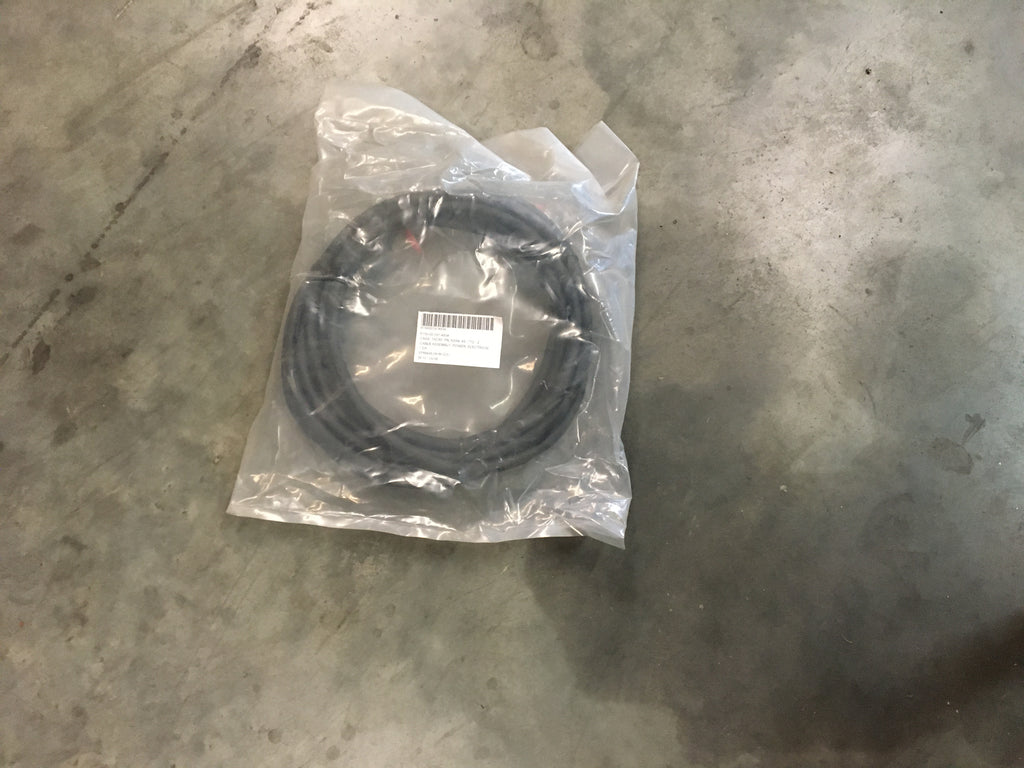

Cable Assembly NSN:6150-00-197-4934 P/N:69-772-2
Please fill out the form below for a price quote and availability on this item.
Cable Assembly- A definite continuous length of cable, power, electrical having one or both ends processed and/or terminated in fittings which provide for connection to other items. excludes cable and conduit assembly, electrical and items having branches or forks. see also wiring harness.
|Conductor Arrangement And Quantity:||4 singles|
|Conductor Form:||Stranded all conductors|
|Material:||Copper core conductor single conductor|
|Material:||Rubber butadiene-styrene class sbr 1st position primary insulation all conductors|

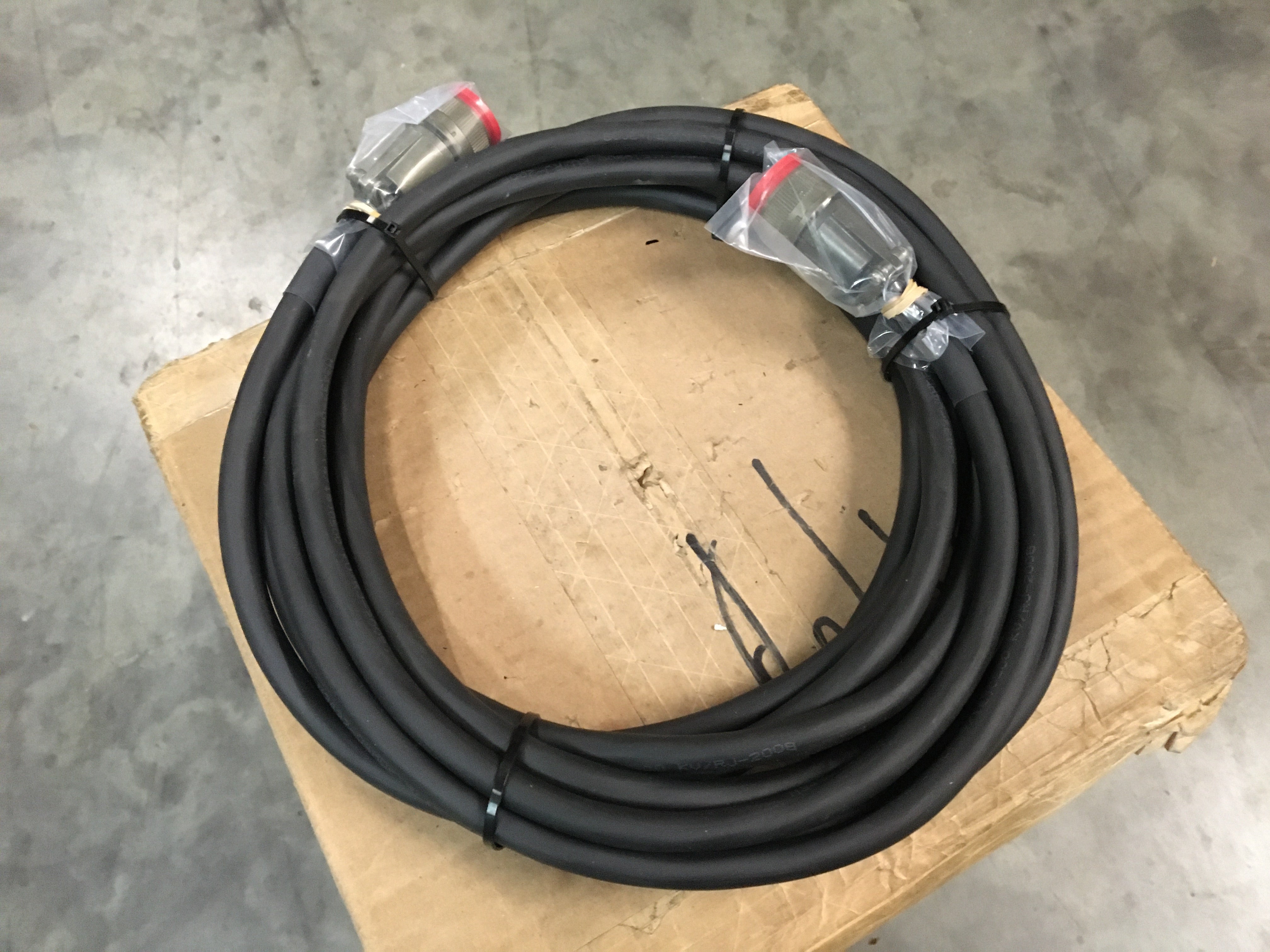

|Overall Length:||25.000 feet|
|Round Conductor Size:||16 awg all conductors|
|Voltage Rating:||600.0 ac maximum rated working voltage all conductors|
|Strand Awg Size Per Conductor:||34 all conductors|
|Strand Quantity Per Conductor:||65 all conductors|

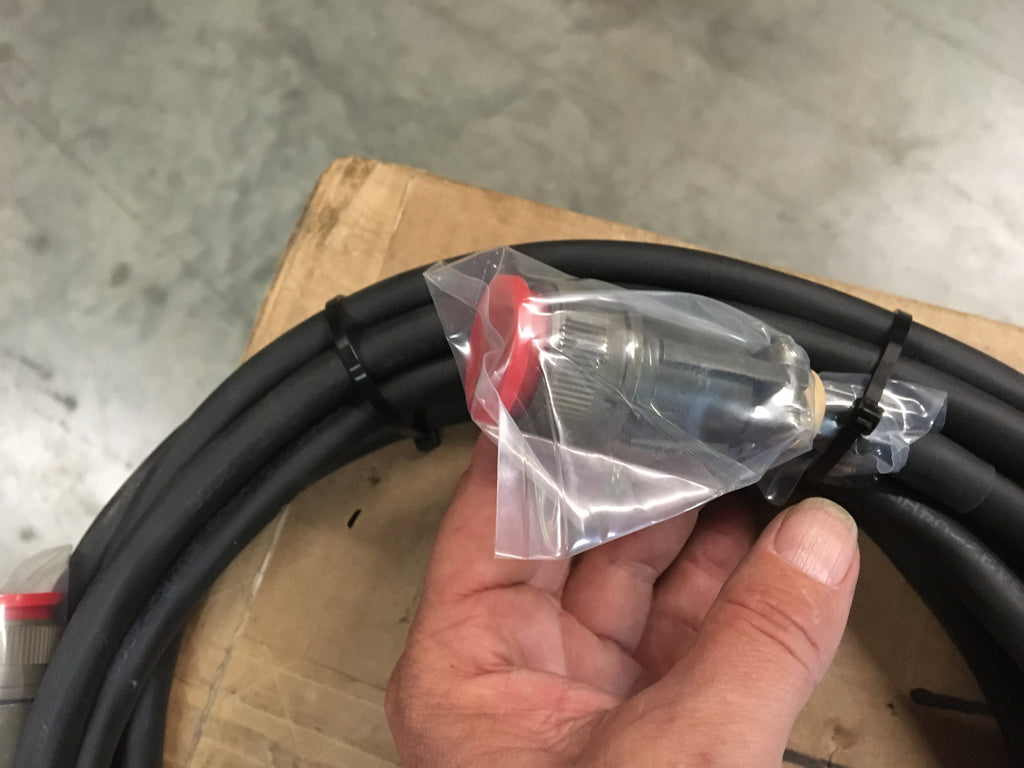

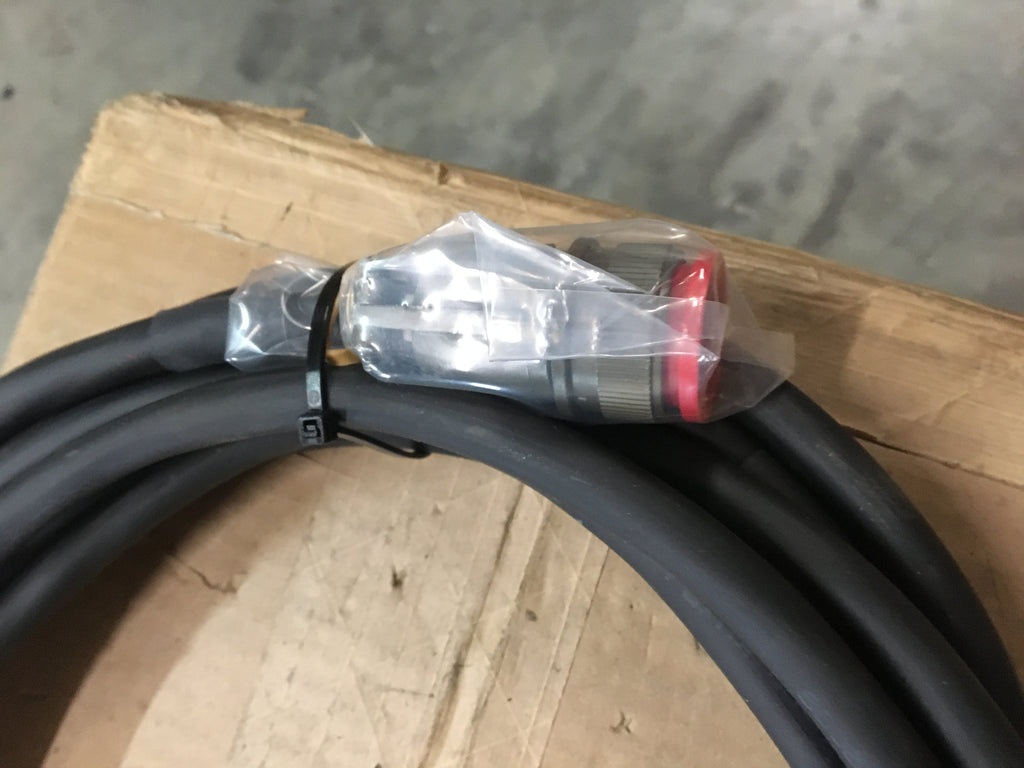

|Style Designator:||Jack and external connector|
|Terminal Commercial And Government Entity Code:||96906 1st end all conductors|
|Terminal Commercial And Government Entity Code:||96906 2nd end all conductors|

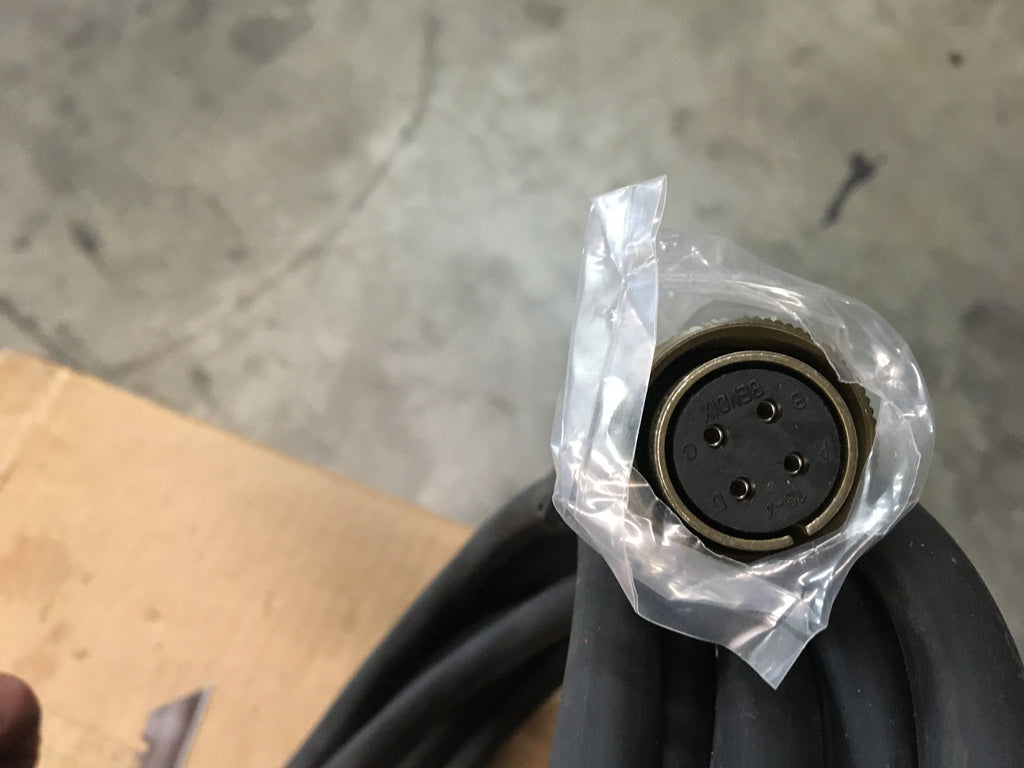

|Terminal Manufacturer Identifying Reference Number:||Ms3106f18-4s 1st end all conductors|
|Terminal Manufacturer Identifying Reference Number:||Ms3106f18-4s 2nd end all conductors|
|Termination Type:||Connector plug both ends all conductors|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
