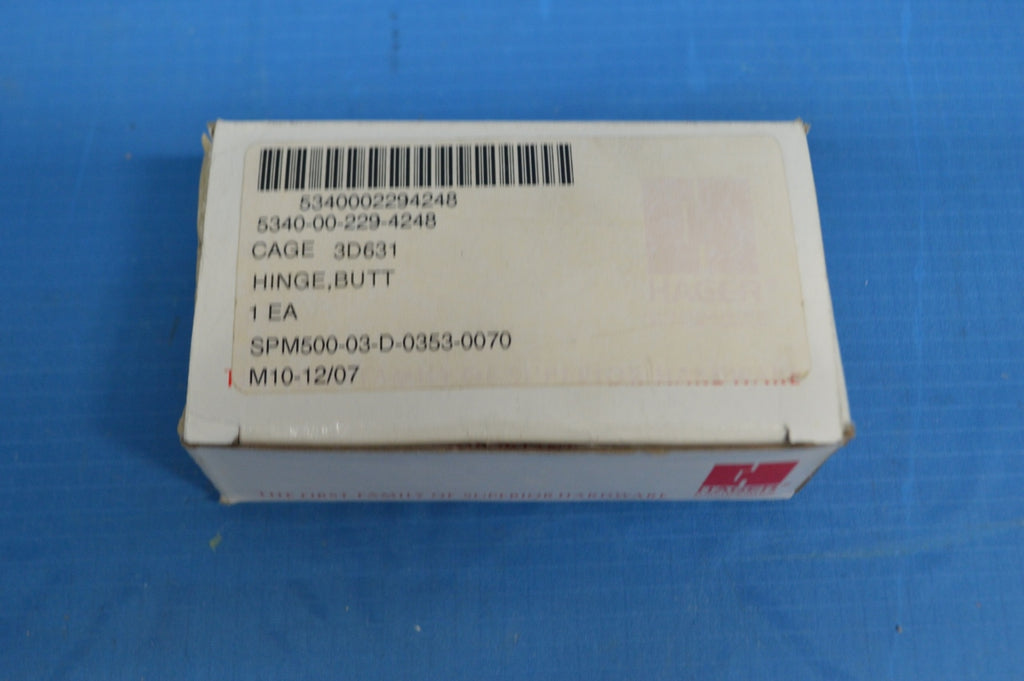

Butt Hinge NSN:5340-00-229-4248 P/N:MS27956-55

Regular price $1.00

Butt Hinge- A hinge usually with rectangularly shaped leaves. the dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. it may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.

Body Width: 3.500 inches nominal
Hinge Mounting Type: Full mortise
Material Thickness: 0.123 inches nominal
Mounting Hole Diameter: 0.196 inches nominal
Mounting Hole Quantity: 6
Knuckle Quantity: 5
Knuckle Type: Friction
Material And Location: Brass, astm b121-66 pin and steel, fed std 66, aisi 302, 303, or 305/sae 30302, 30303 or 30305 pin and steel, astm a245-58 body
Reversible Feature: Not included
Rising Pin: Not included
Performance Type: Not rated
Pin Center To Body Edge Distance: 1.500 inches nominal
Pin Removability: Removable
Style Designator: Butt
Surface Treatment And Location: Zinc, qq-z-325, type 2, class 2 body
