NOS Angle Bracket NSN:5340-00-169-5727 Model:8759892
Please fill out the form below for a price quote and availability on this item.

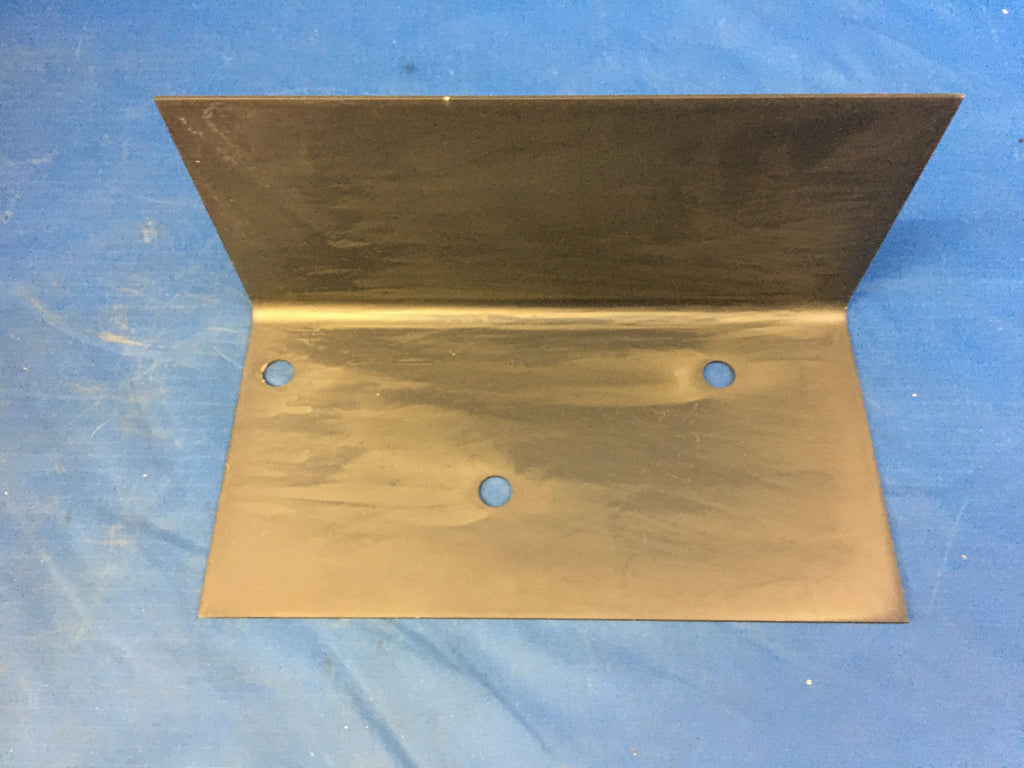

Angle Bracket
NSN: 5340-00-169-5727 | Model: 8759892A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an ite (s) in relation to another. Excludes brace (as modified); bracket (1) , mounting; and bracket, shelf.
NSN Properties and Flags
NATO Stock Number
5340-00-169-5727
DEMIL
Yes - ITAR Controlled
First Leg Length
4.000 inches
Second Leg Length
4.500 inches
Second Leg Width
8.500 inches
Second Leg Hole Diameter
0.437 inches
Second Leg Distance Between Upper Hole Centers Along Width
6.125 inches
Second Leg Distance Between Hole Centers Along Length
1.750 inches
Second Leg Distance Between First And Second Hole Centers Along Width
3.062 inches
Second Leg Distance From Edge To Hole Center Along Width
0.500 inches
Second Leg Distance From Edge To Hole Center Along Length
1.625 inches
First Leg Thickness
0.060 inches
Second Leg Thickness
0.060 inches
First Leg Width
8.500 inches
First Leg Style
Square
Second Leg Style
Square
First Leg Angle
90.0 degrees
Style Designator
Angle
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
