BUSSMAN

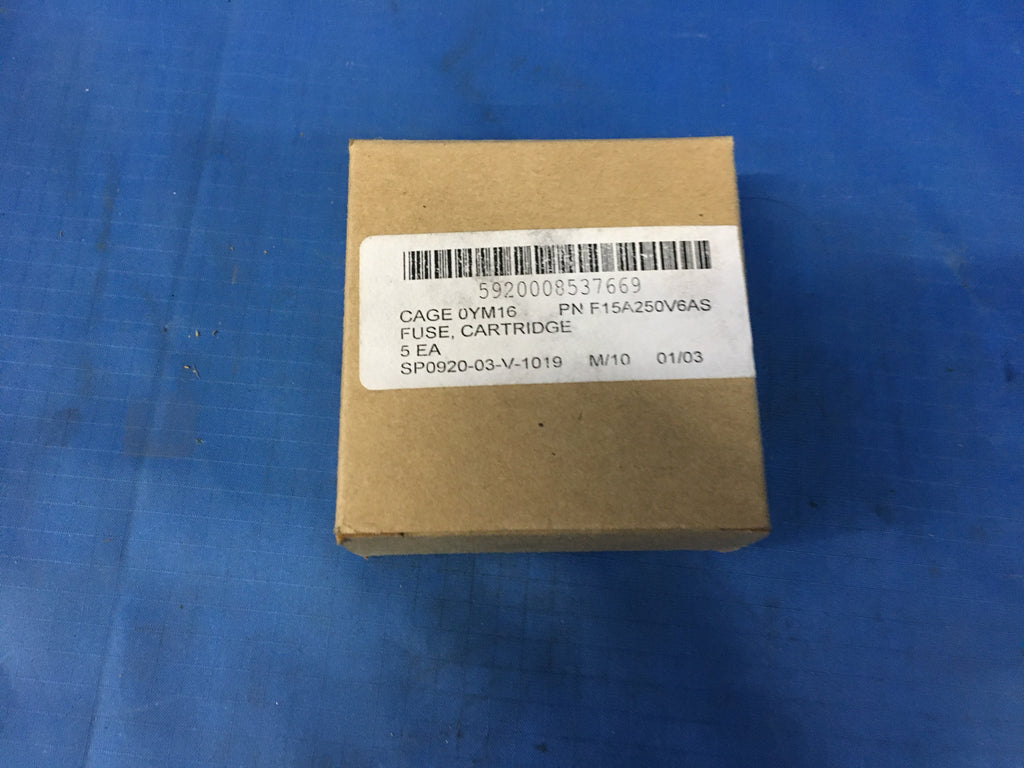

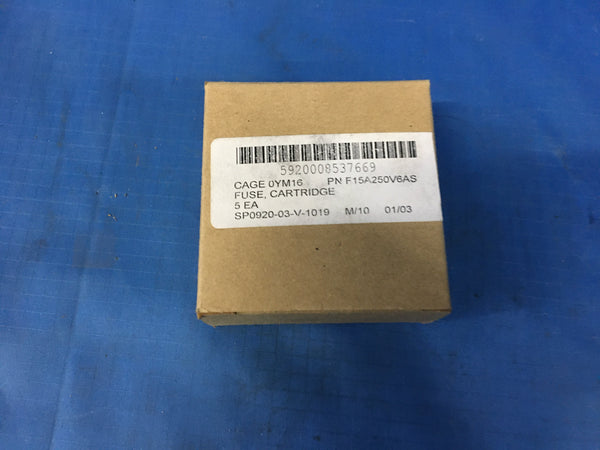

Box of 5 Bussman Fuse 250V 6A Silver Plated NSN:5920-00-853-7669 Model:F15A250V6AS

Regular price $27.99

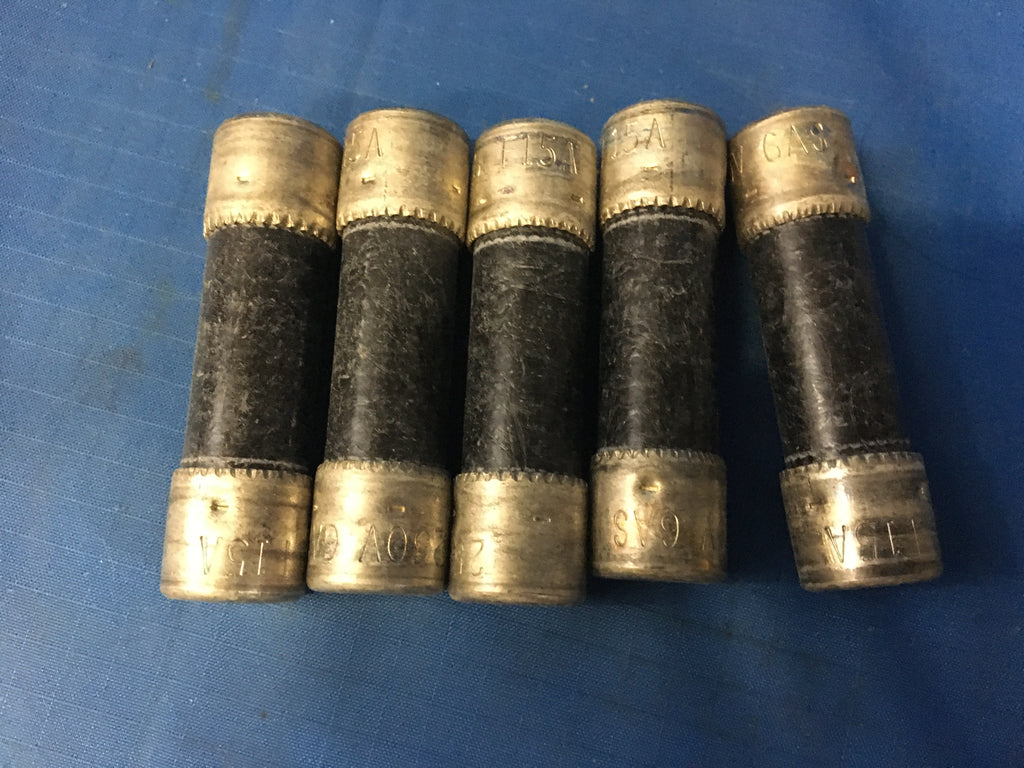

Cartridge Fuse

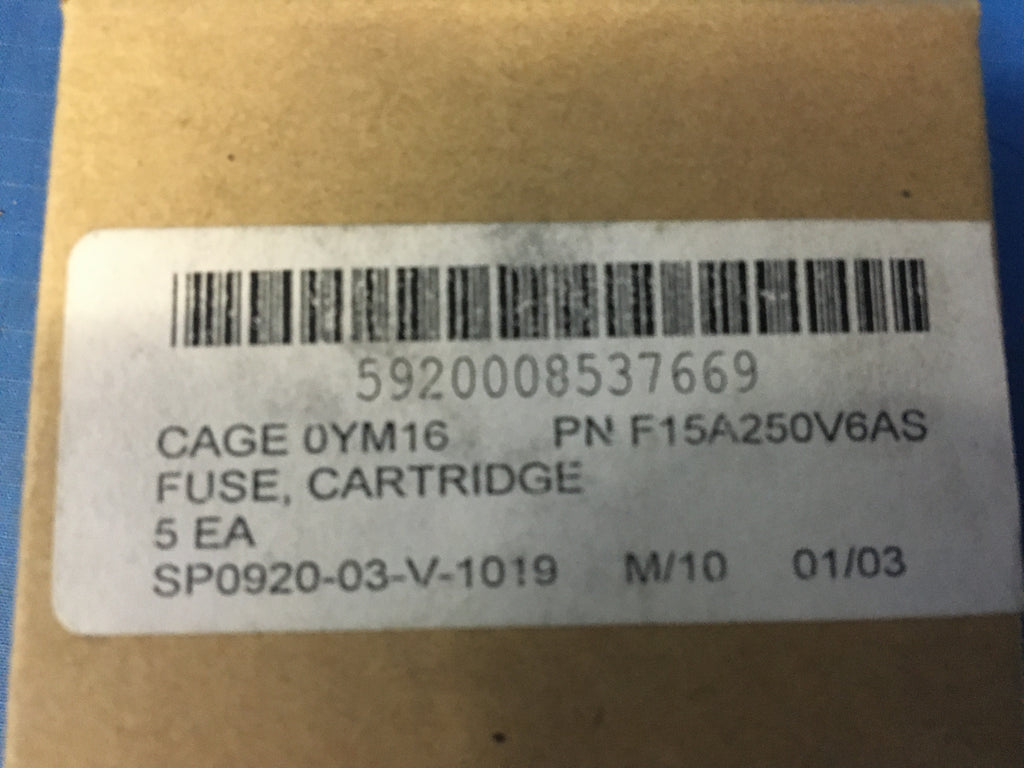

NSN: 5920-00-853-7669 | Model: F15A250V6AS
ITAR Registered seal

A fuse in which the element is enclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see fuse, enclosed link.

NSN Properties and Flags
NATO Stock Number
5920-00-853-7669
DEMIL
Yes - ITAR Controlled
Body Style
Tube type
Terminal Material
Brass
Terminal Surface Treatment
Silver plated
Overall Length
Between 1.969 inches and 2.031 inches
Overall Diameter
Between 0.556 inches and 0.568 inches
Case Material
Fiber
Continuous Current Rating In Amps
6.000
Maximum Voltage Rating In Volts
250.0 ac and 250.0 dc
Circuit Over-current Interruption Type
Normal instantaneous
Interruption Indicator Method
Opaque body
Features Provided
Nonrenewable fusible element
Short-circuit/interrupt Current Rating In Amps
10000.0
Precious Material And Location
Terminal surfaces silver
Precious Material
Silver
Test Data Document
81349-MIL-PRF-15160 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
81349-MIL-PRF-15160/15 government specification
