CTS Surplus

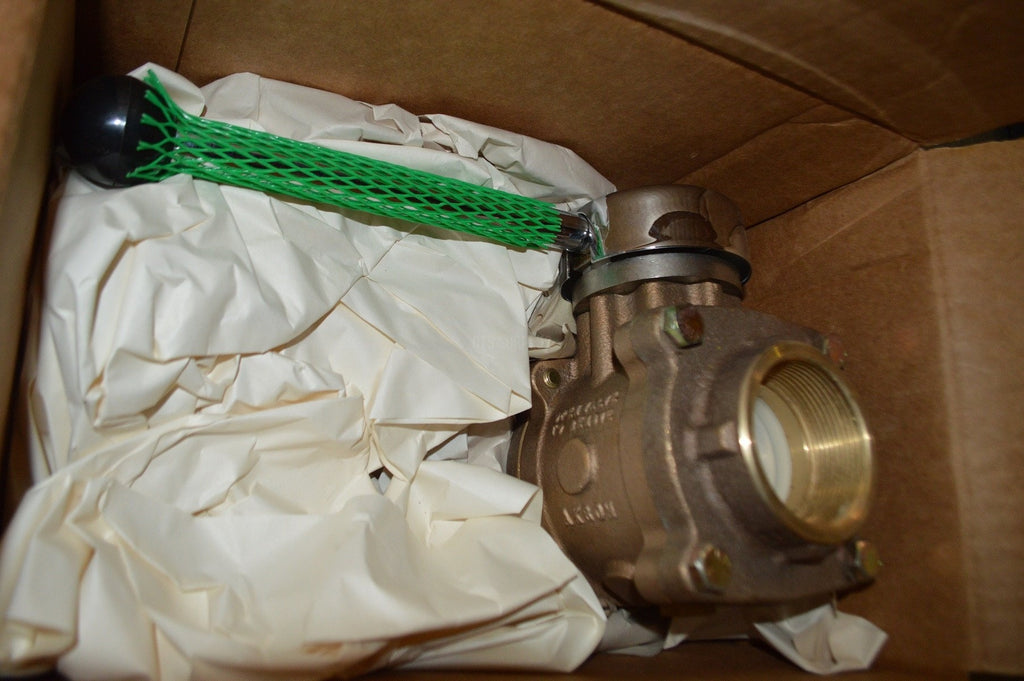

2" Ball Valve Model 78200049 NSN: 4820-00-162-1962
Regular price
$150.00
Ball Valve NSN: 4820-00-162-1962 Model 78200049
- A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. the flow is controlled by the rotation of a ported ball within a suitable ported seat(s). the ball is usually engaged by a stem. it is normally operated in an open or closed position. excludes valve, check.
| Connection Style: | Plain,optional end(pipe) all ends |
| Connection Type: | Threaded internal pipe all ends |
| Material: | Copper alloy body |
| Material: | Plastic flow control device |
| Maximum Operating Pressure: | 500.0 pounds per square inch single response |
| Media For Which Designed: | Water, fresh single response |
| Nominal Thread Size: | 2.000 inches all ends |
| Style Designator: | Straight thru |
| Thread Direction: | Right-hand all ends |
| Thread Series Designator: | Npt all ends |
| Valve Operation Method: | Manual |
