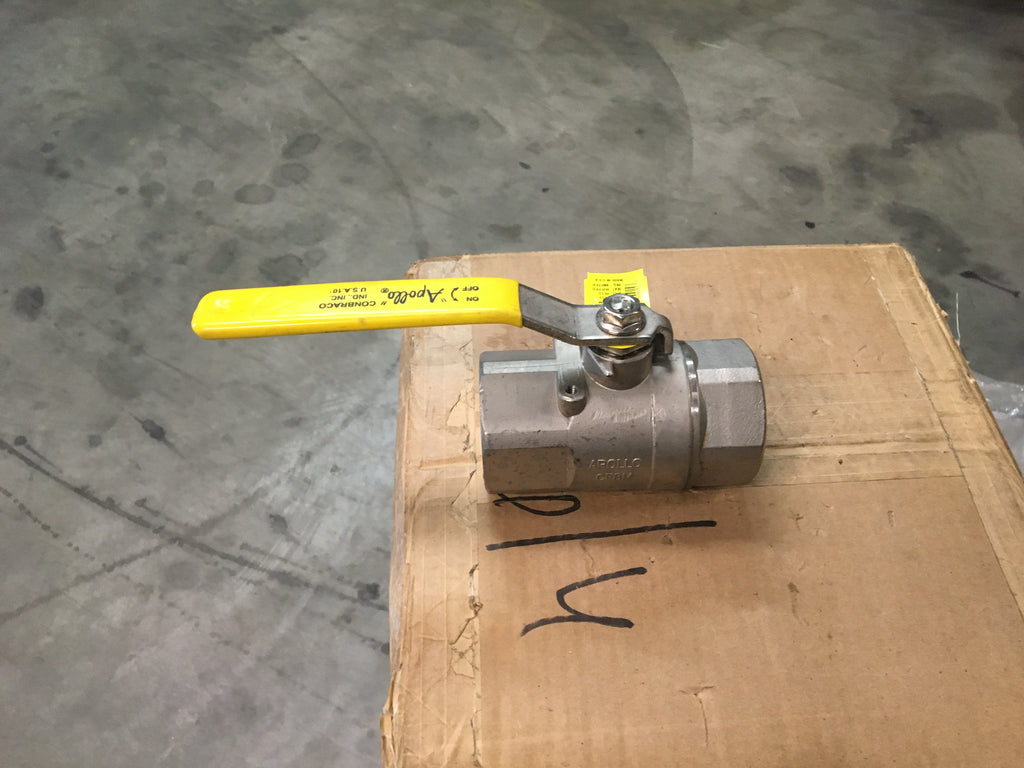

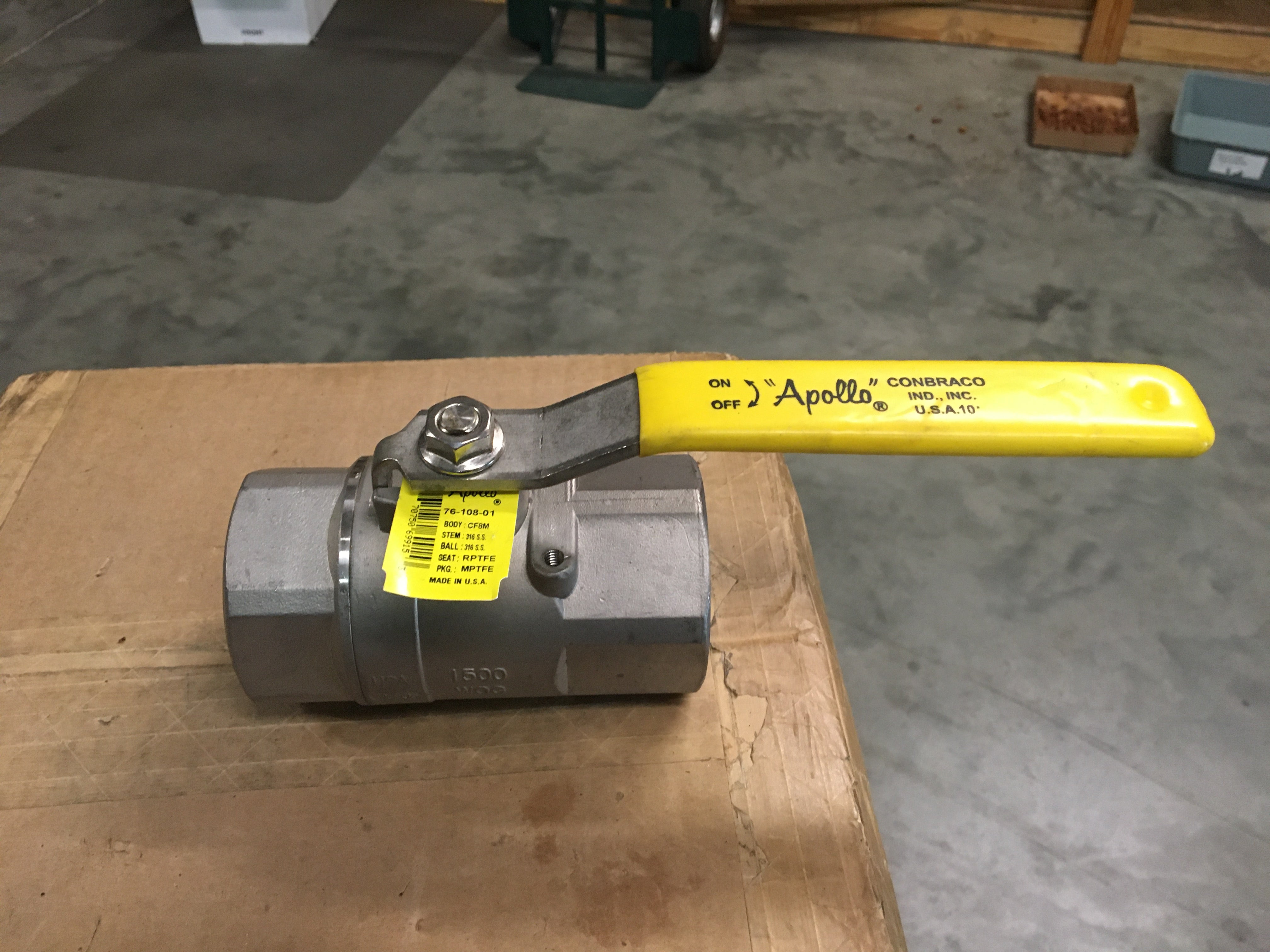

2" Apollo CF8M Stainless Steel Inline Ball Valve,1500 P.S.I Model: 086883-1 NSN: 4820-01-289-0996

Please fill out the form below for a price quote and availability on this item.

Ball Valve

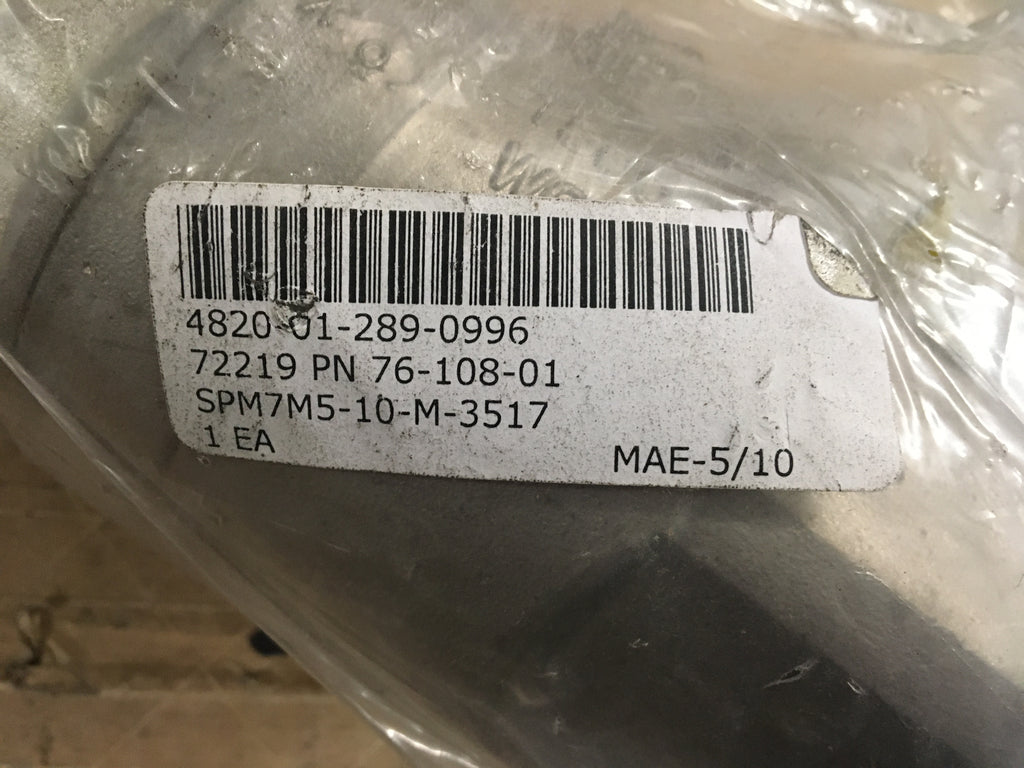

NSN: 4820-01-289-0996 | Model: 086883-1
ITAR Registered seal

A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported sea (s) . The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes valve, check.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Thread Direction
Right-hand all ends
Bonnet Type
Inside screw
Bonnet Attachment Method
End Application
Connection Style
G9 plain, optional en (pipe) all ends
Valve Operation Method
Connection Type
Threaded internal pipe all ends
Maximum Operating Pressure
1500.0 pounds per square inch single response
Thread Size
2.000 inches all ends
Special Features
Blow-out proof stem
Stainless steel flow control device
Media For Which Designed
Water-oil-gas single response
Style Designator
Thread Series Designator
Npt all ends

    This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
