AXIS

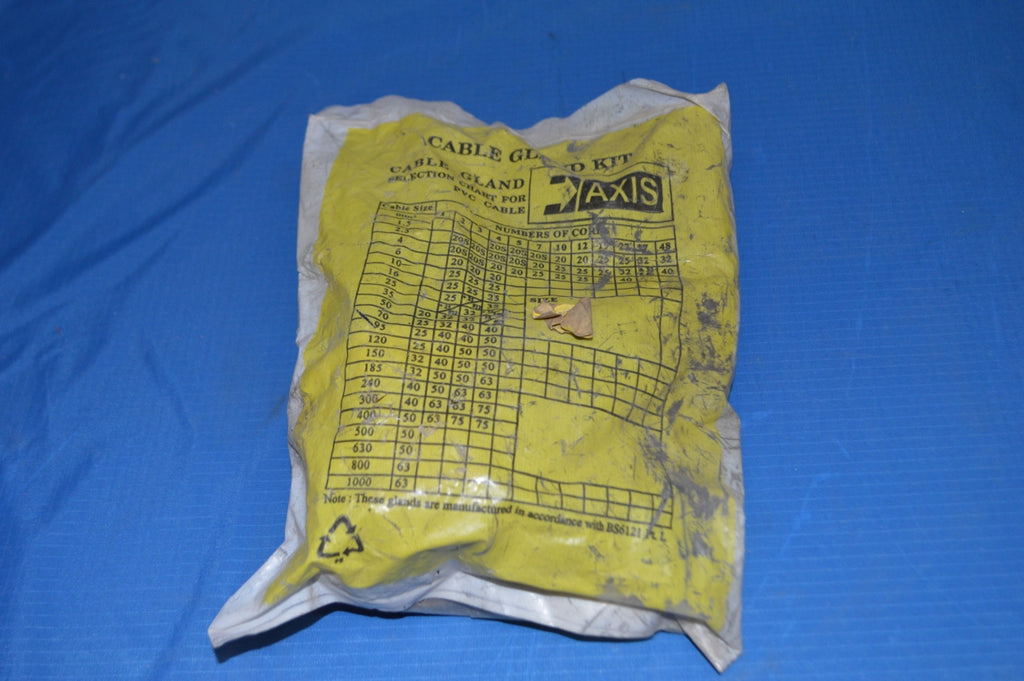

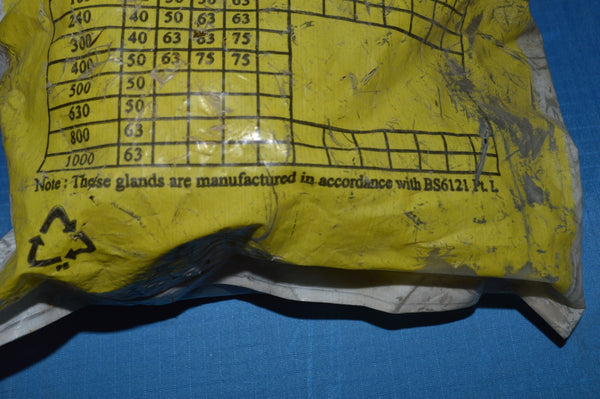

Axis Cable Gland Kit 65.3mm Diameter Max P/N: CW 63L
Regular price
$39.99
| Gland Size | Cable Dim Acco / Under Armour Dia Max | Cable Dim Acco / Overall Dia Max | Cable Dim Acco / Armour Wire | Gland Dim / Dia 'A' | Gland Dim / Dia 'B' | Gland Dim / Metric Enry Thread 'C' | Gland Dim / Minimum Thread Length 'D' | Gland Dim / Across Flat 'E' Max | E-CODE |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 6.0 | 13.2 | 0.9 | 9.5 | 16.9 | 16 | 10 | 24.20 | CWG0016B |
| 20S | 11.6 | 15.8 | 0.9/1.25 | 12.3 | 17.0 | 20 | 10 | 24.00 | CWG0020SB |
| 20L | 13.9 | 19.5 | 0.9/1.25 | 14.3 | 20.3 | 20 | 10 | 27.17 | CWG0020LB |
| 25S | 15.5 | 25.8 | 0.9/1.25 | 18.3 | 26.4 | 25 | 10 | 32.75 | CWG0025SB |
| 25L | 19.9 | 26.0 | 0.9/1.25 | 20.8 | 26.9 | 25 | 10 | 34.30 | CWG0025LB |
| 32 | 25.2 | 33.5 | 1.60/2.0 | 26.9 | 34.1 | 32 | 10 | 42.90 | CWG0032LB |
| 40S | 29.4 | 38.5 | 1.60/2.0 | 31.5 | 39.6 | 40 | 15 | 49.30 | CWG0040SB |
| 40L | 32.1 | 39.9 | 1.60/2.0 | 32.5 | 41.8 | 40 | 15 | 50.80 | CWG0040LB |
| 50S | 39.5 | 49.0 | 2.0/2.25 | 40.9 | 50.2 | 50 | 15 | 61.70 | CWG0050SB |
| 50L | 43.2 | 51.0 | 2.0/2.25 | 44.4 | 52.8 | 50 | 15 | 63.75 | CWG0050LB |
| 63S | 50.6 | 58.9 | 2.25 | 51.8 | 61.9 | 63 | 15 | 73.90 | CWG0063SB |
| 63L | 55.9 | 65.3 | 2.25 | 56.4 | 66.5 | 63 | 15 | 78.50 | CWG0063LB |
| 75S | 61.9 | 71.6 | 2.25 | 63.2 | 74.2 | 75 | 20 | 87.40 | CWG0075SB |
| 75L | 67.9 | 78.0 | 2.25 | 68.6 | 78.5 | 75 | 20 | 96.00 | CWG0075LB |
| 90 | 74.0 | 88.0 | 2.25 | 79.0 | 90.2 | 85 | 20 | 105.30 | CWG0090LB |
| Dimensions in Millimeters | |||||||||
