Hytennas Antenna 15 watt 150 megahertz NSN:5898-00-182-7352 P/N:85-82283J02
Please fill out the form below for a price quote and availability on this item.

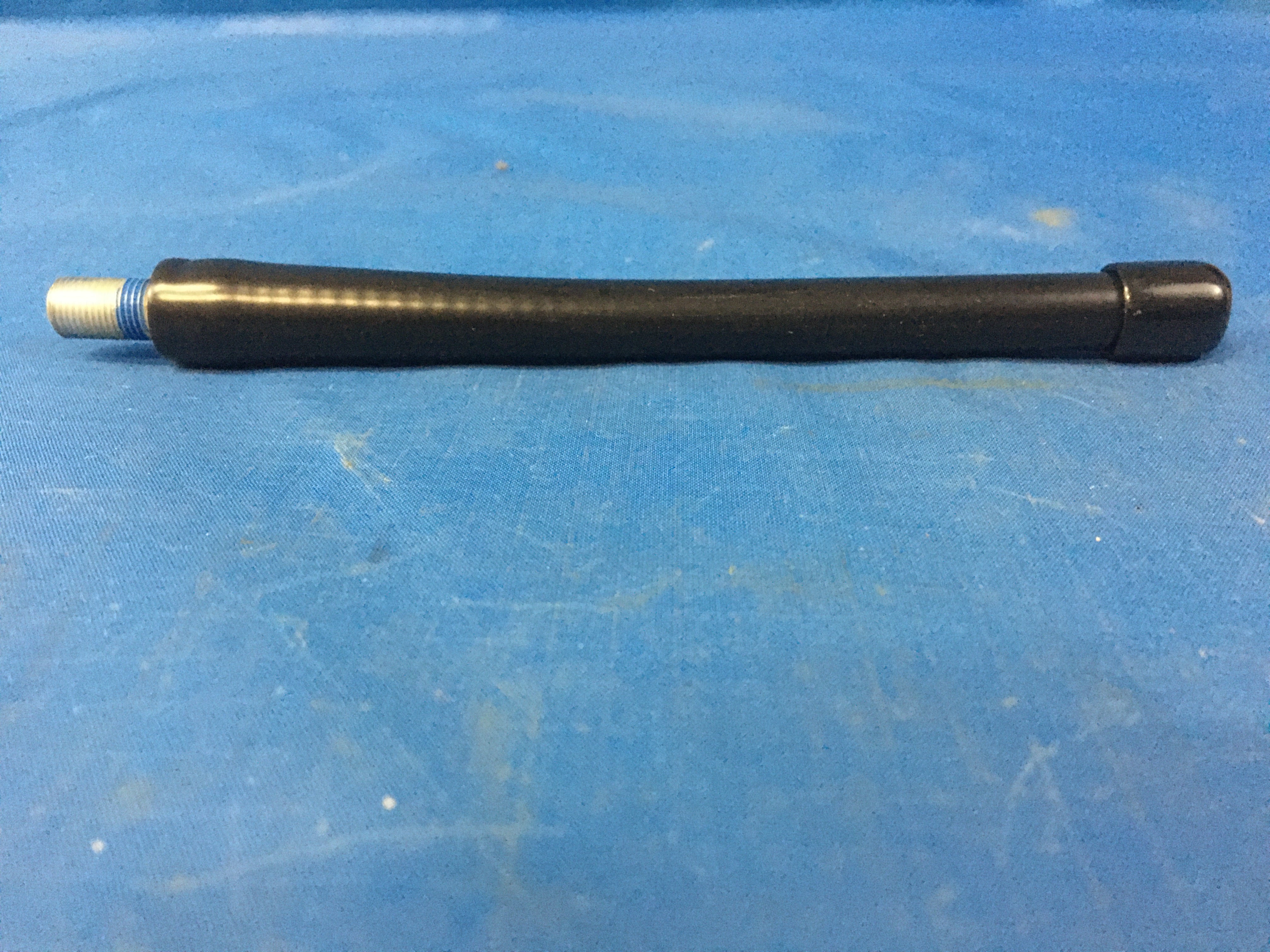

Antenna
NSN: 5985-00-182-7352 | Model: NAD6220A P/N:85-82283J02
An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
NSN Properties and Flags
NATO Stock Number
5985-00-182-7352
DEMIL
Yes - ITAR Controlled
Overall Length
5.562 inches
Frequency Rating
132.000 megahertz single antenna element and 150.000 megahertz single antenna element
Overall Diameter
0.500 inches
Radiation Pattern
Omnidirectional single antenna element
Power Rating
15.000 watts average single antenna element
Characteristic Impedance In Ohms
50.0 single antenna element
Beam Scanning Method
Fixed single antenna element
Design Type
Whip single antenna element
Mounting Method
Connector
Terminal Type
Connector, receptacle single antenna element
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
