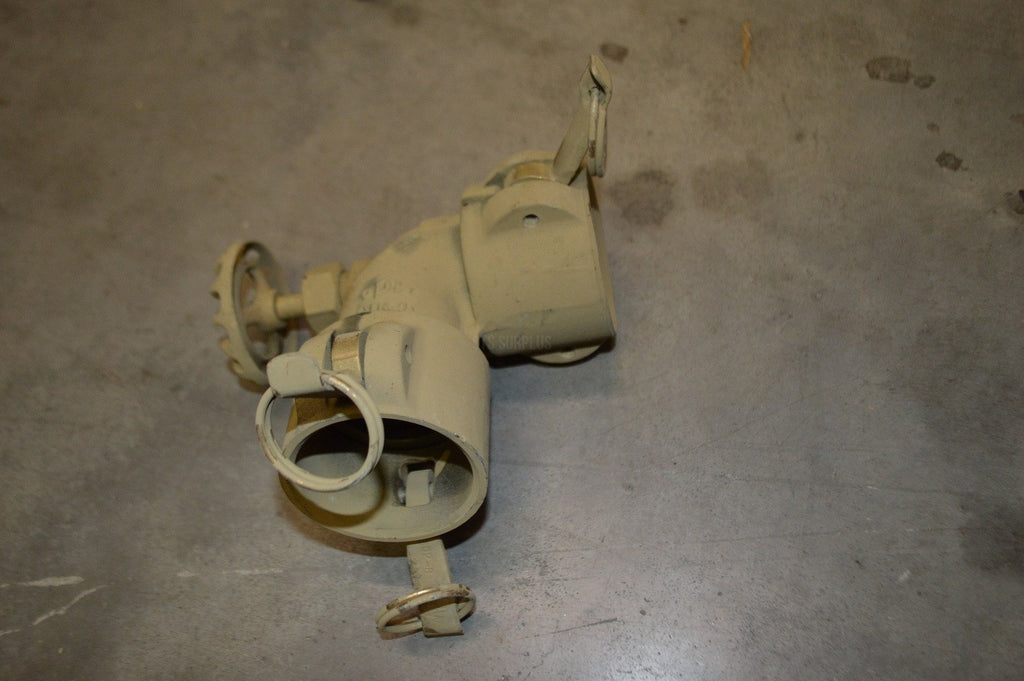

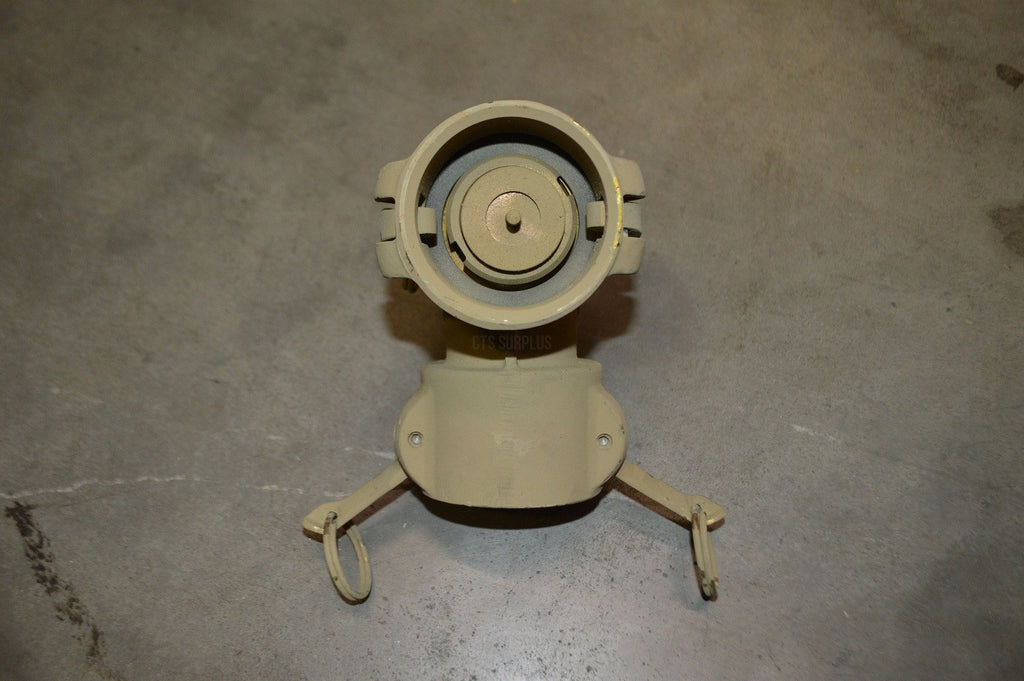

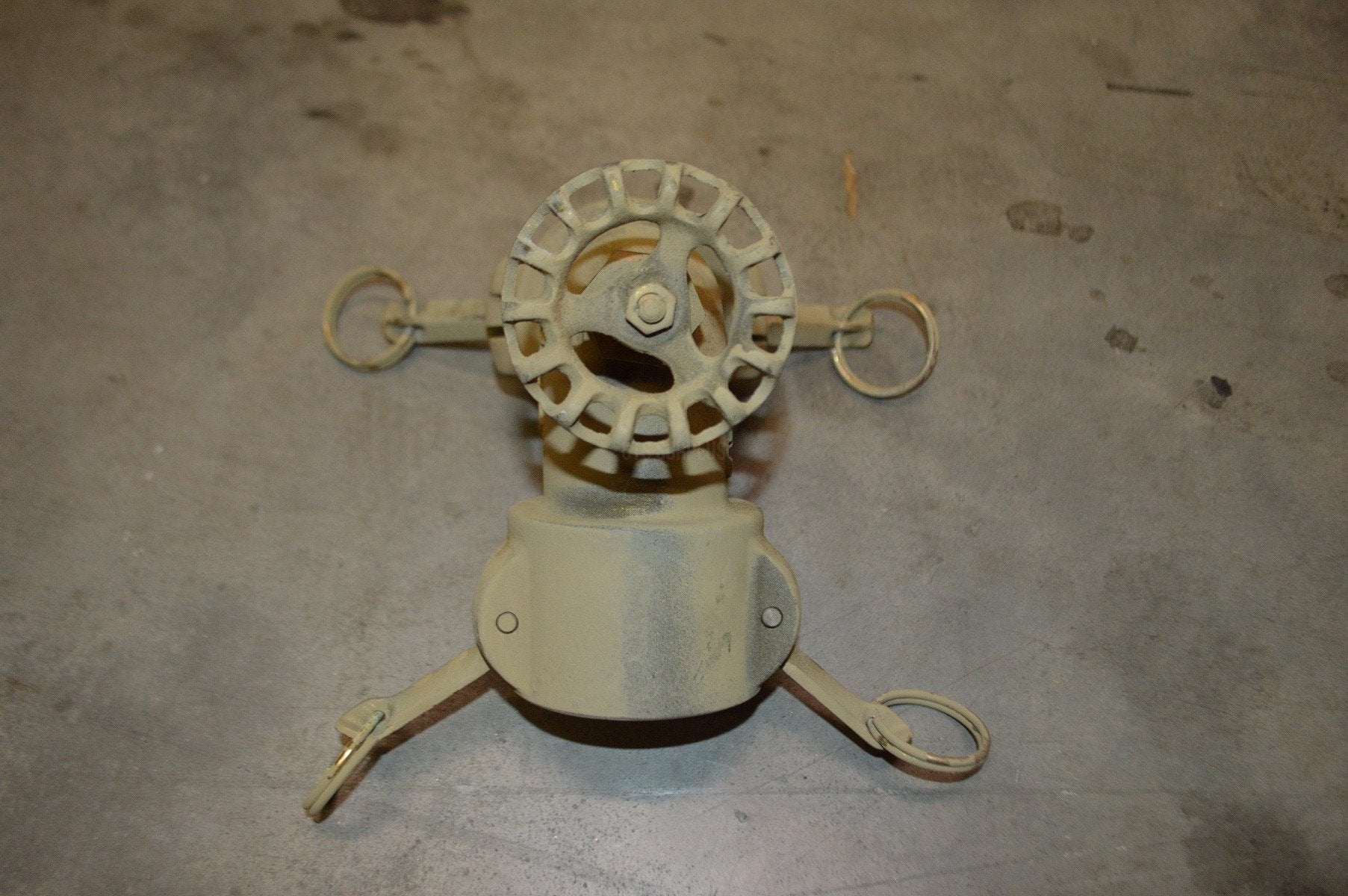

1.5" Angle Valve NSN: 4820-00-887-9519 P/N: 77B-2X2AL

Please fill out the form below for a price quote and availability on this item.

Angle Ball Valve- A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. the flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. it may be inline or cartridge (manifold) design. excludes valve (1), y; valve, stop-check; and cock, shutoff, screw stem.

Bonnet Attachment Method: Integral
Bonnet Type: Inside screw
Connection Style: Plain (tube) err-100
Connection Type: Unthreaded external tube 2nd end
Connection Type: Unthreaded internal tube 1st end
Features Provided: Bonnet packing
Flow Control Device: Disk
Material: Aluminum body
Material: Rubber seat
Nominal Outside Diameter Tube Accommodated: 1.500 inches 1st end
Nominal Outside Diameter Tube Accommodated: 1.500 inches 2nd end

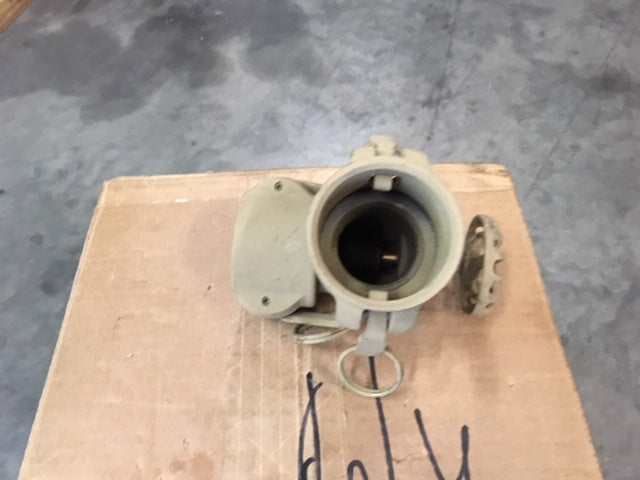

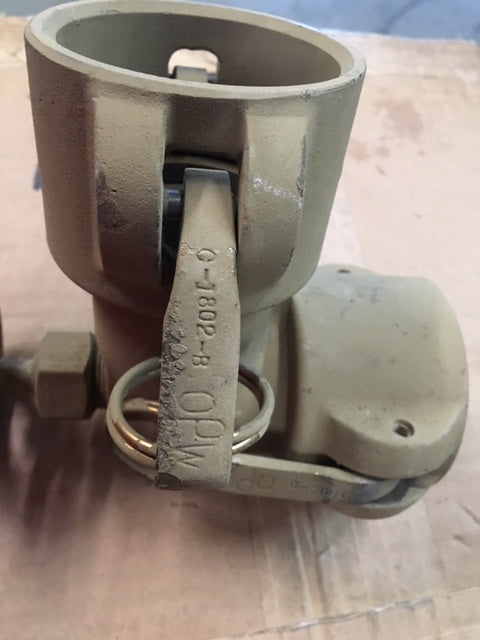

Special Features: W/2.0 in.quick-disconnect kamlok connections,internal on inlet and external onoutlet ends
Style Designator: Angle
Surface Treatment: Anodize
Valve Operation Method: Manual



      This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
