ANDERSON POWER PRODUCTS

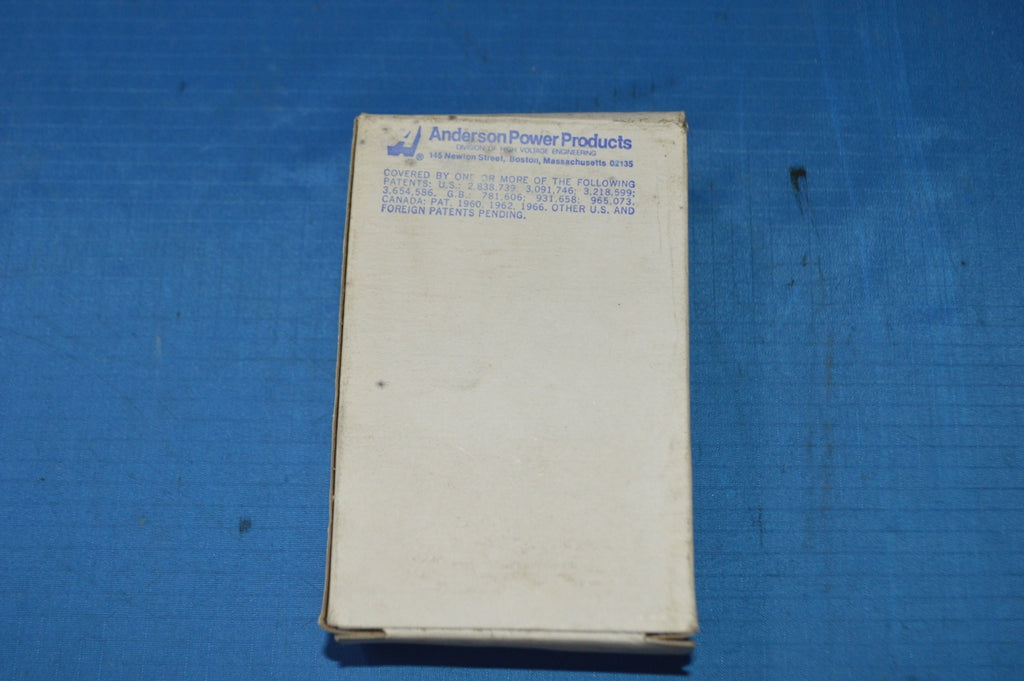

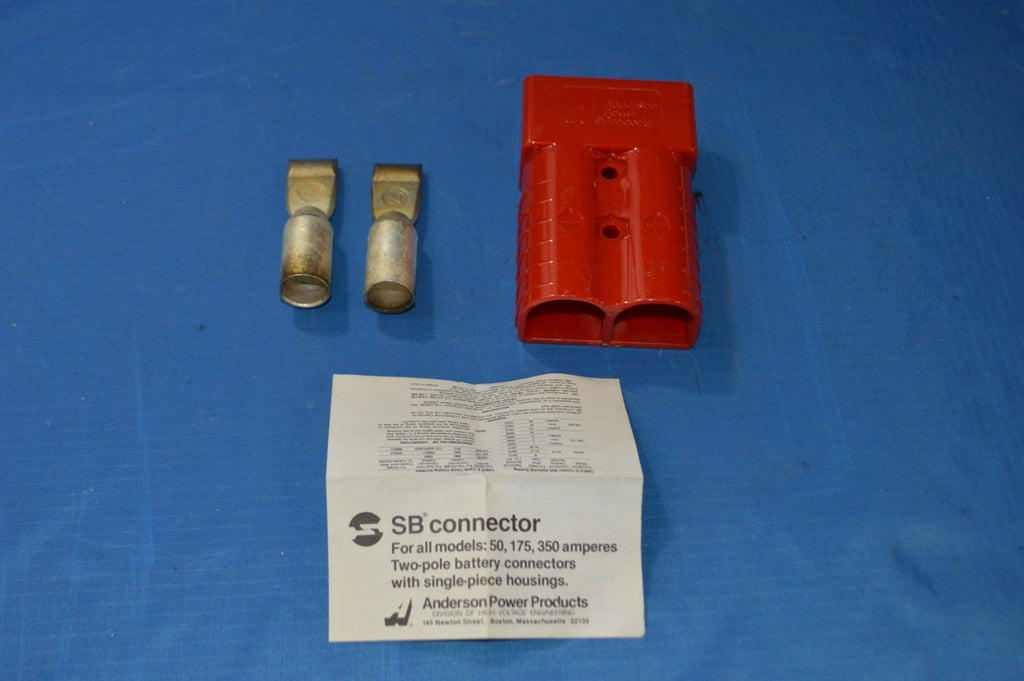

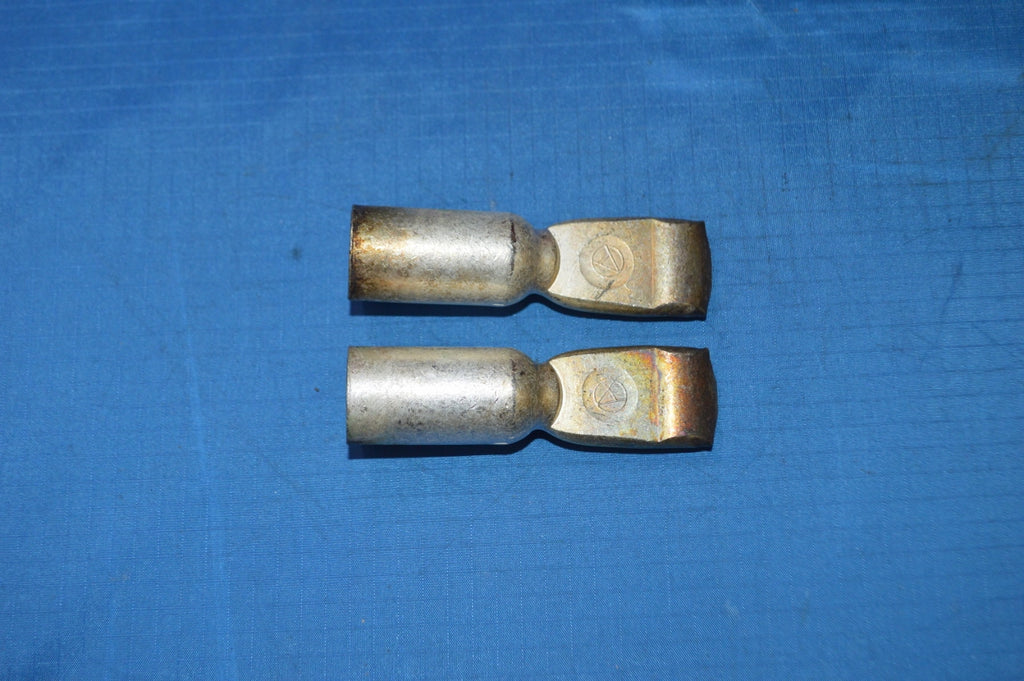

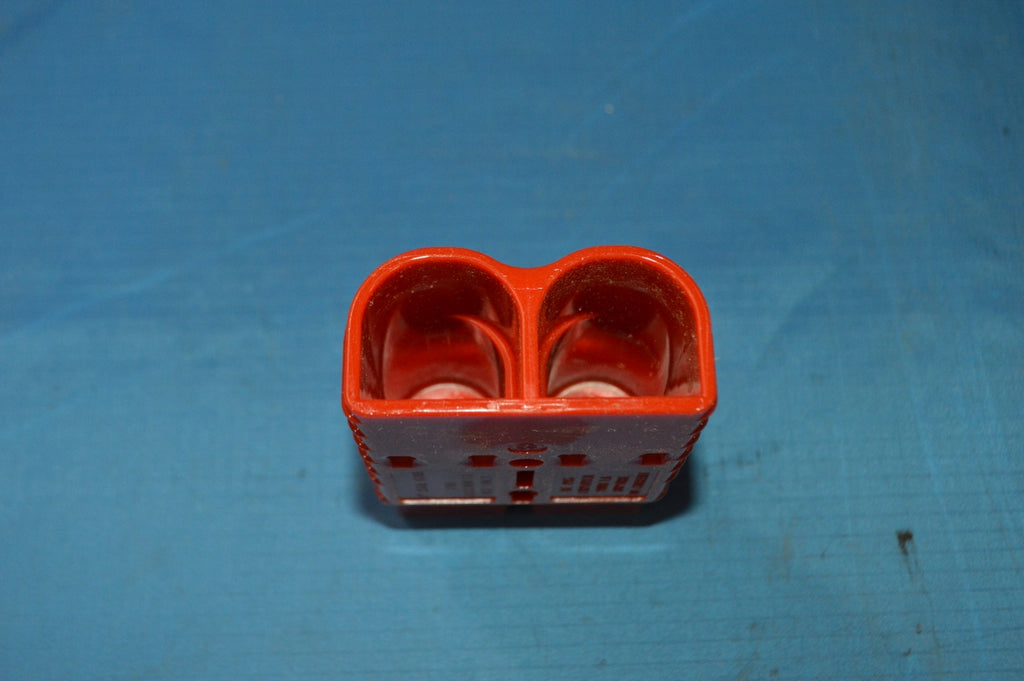

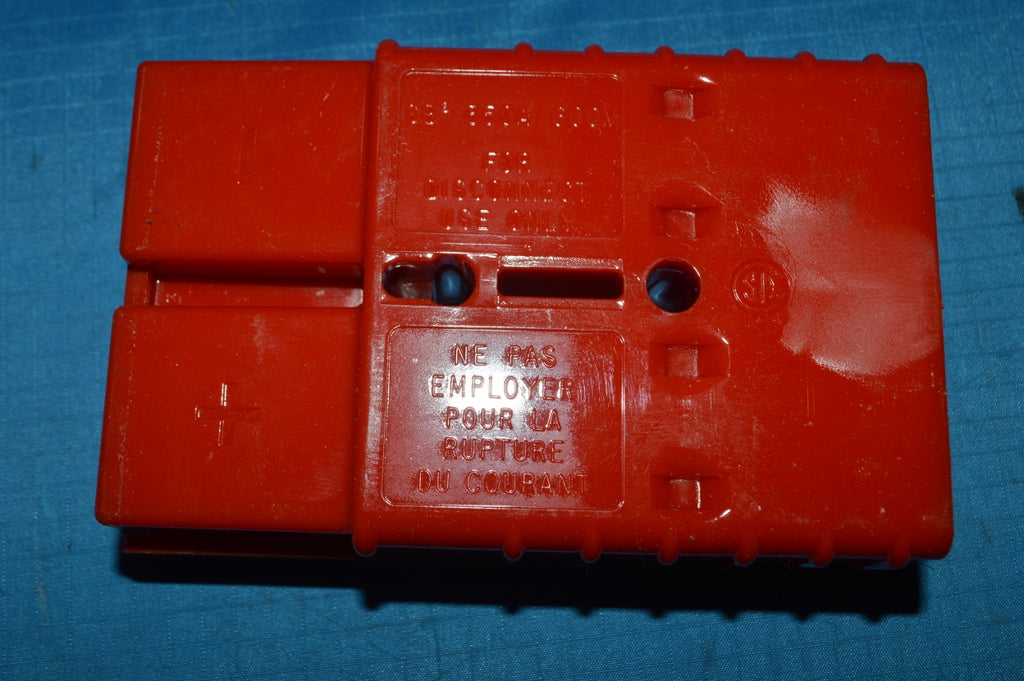

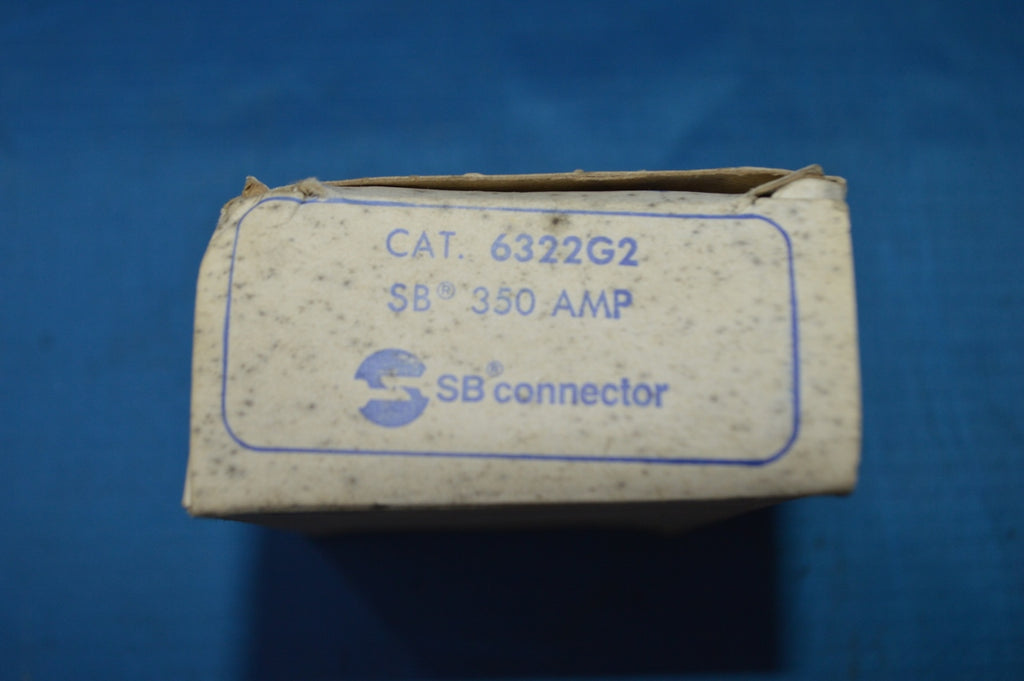

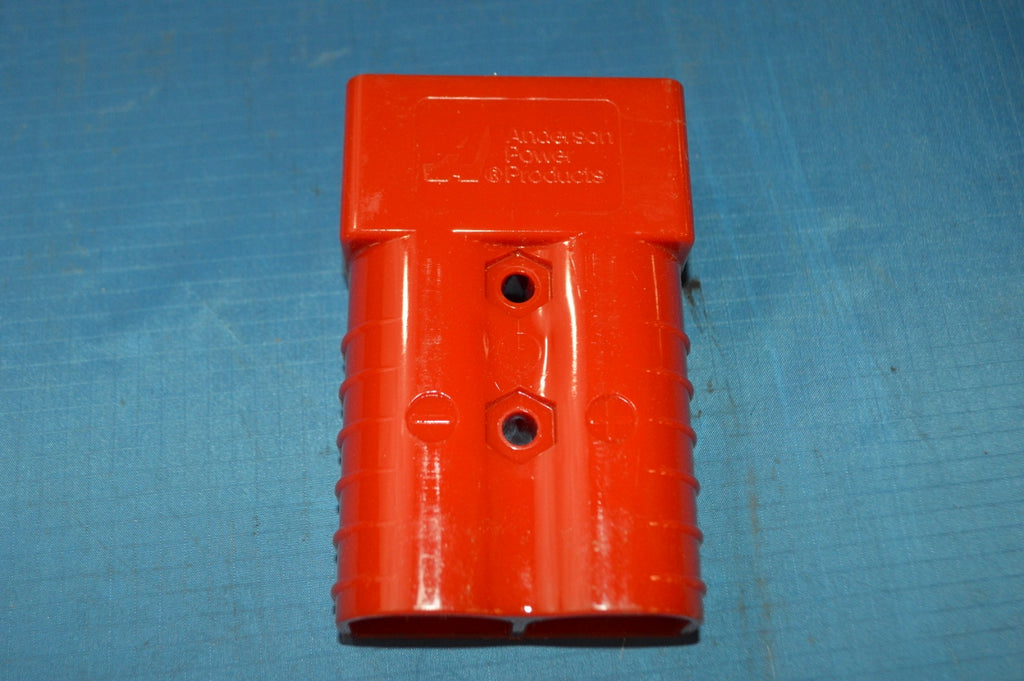

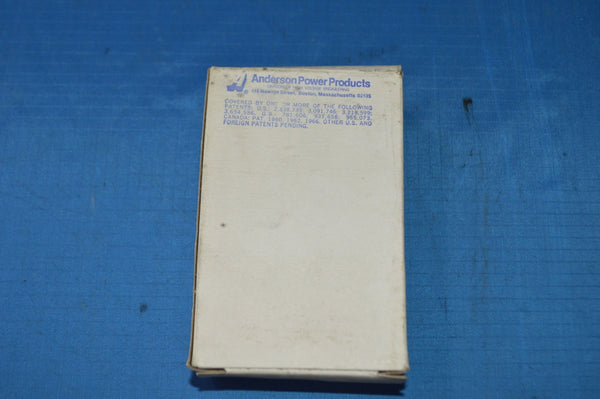

ANDERSON POWER PRODUCTS SB 350 AMP 6322G2 SB BATTERY CHARGER SB Connector NSN: 5935-01-020-9574 P/N: 6322G2

Regular price $15.99

Electrical Receptacle Connector

SKU: 5935010209574 | Model: 77C712608-1
NSN 5935-01-020-9574 NSN 5935-01-020-9574

Specifications from the Manufacturer

Body Style:
Right angle type
Overall Length:
3.180 inches nominal
Overall Height:
0.698 inches nominal
Overall Width:
0.240 inches nominal
Environmental Protection:
Humidity resistant and salt water resistant and shock proof and vibration resistant
Unthreaded Mounting Hole Diameter:
0.062 inches minimum and 0.075 inches maximum
Distance Between Mounting Facility Centers:
2.950 inches nominal
Mating End Quantity:
1
Contact Position Arrangement Style:
2 rows of contacts non-inserted board single mating end
Contact Removability:
Nonremovable single mating end single contact grouping
Contact Maximum Current Rating In Amps:
3.0 single mating end single contact grouping
Contact Maximum Ac Voltage Rating In Volts:
300.0 single mating end single contact grouping
Terminal Location:
Side single mating end single contact grouping
Contact Material:
Copper alloy single mating end single contact grouping
Contact Surface Treatment:
Gold single mating end single contact grouping
Insert Material:
Plastic diallyl phthalate single mating end
Contact Surface Treatment Document And Classification:
Mil-g-45204,type 2,class 1 mil spec single treatment response single mating end single contact grouping
Terminal Type:
Tab, solder lug single mating end single contact grouping
Insert Material Document And Classification:
Mil-m-14,type sdg-f mil spec single material response single mating end
Included Contact Quantity:
56 single mating end single contact grouping
Included Contact Type:
Round pin single mating end single contact grouping
Precious Material And Location:
Contact surfaces gold
Precious Material And Weight:
0.056 gold grains, troy
Precious Material:
Gold
