Amphenol Corp

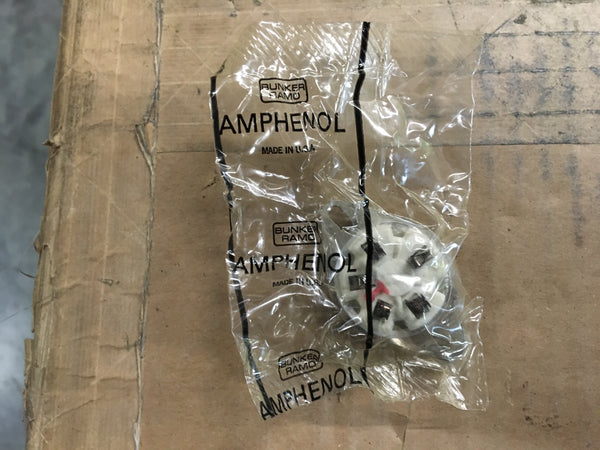

Amphenol Corp Plug-in Electronic Components Socket NSN:5935-00-248-3549 P/N:49RSS5

Regular price $9.99

Plug-in Electronic Components Socket

NSN: 5935-00-248-3549 | Model: CD2500XV1
ITAR Registered seal

An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting power transistors".

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Body Material
Body Style
Top mount w/metal saddle
Overall Length
2.156 inches
Overall Height
0.875 inches
Overall Width
1.375 inches
Mounting Slot Width
0.156 inches
Body Mounting Hole Accommodation Diameter
1.281 inches
Distance Between Mounting Facility Centers
1.844 inches
Mounting Hole Style
Round, w/two mounting slots
Contact Material
Phosphor bronze
Contact Surface Treatment
Accommodated Contact Quantity
Polarization Type
Contact position
Projection Length Below Mounting Surface
0.672 inches
Mounting Method
Mounting Type For Which Designed
Contact Position Arrangement Style
Precious Material And Location
Contact surfaces silver
Precious Material And Weight
0.025 silver grains, troy
Precious Material
Terminal Type And Quantity
5 tab, solder lug
