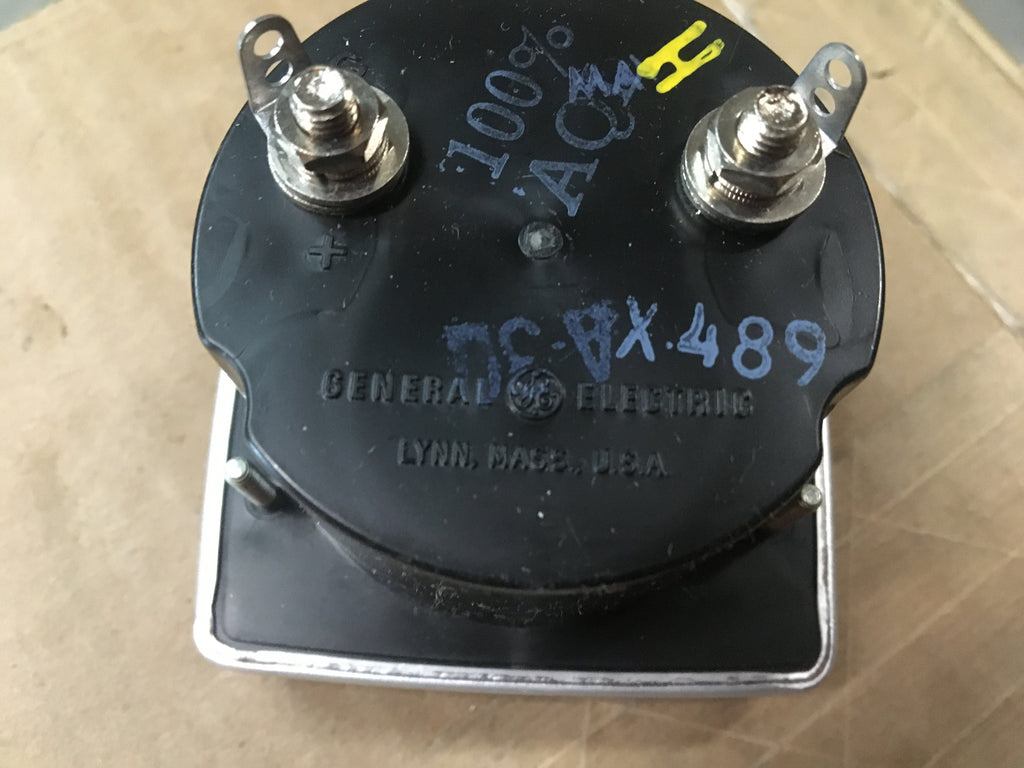

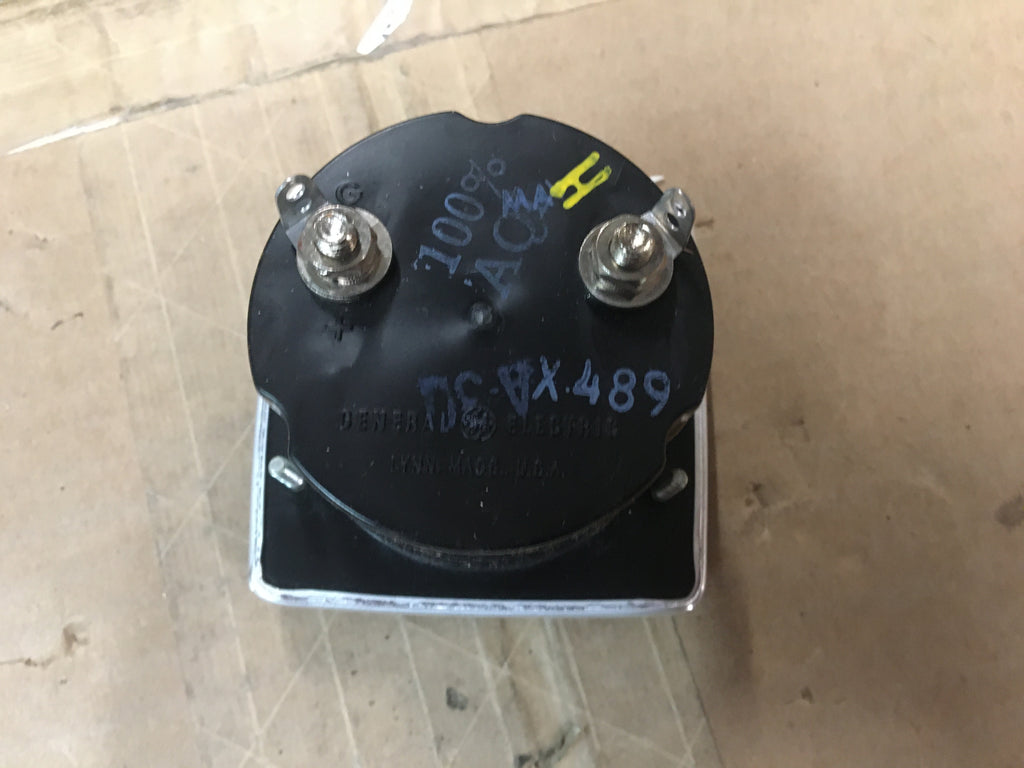

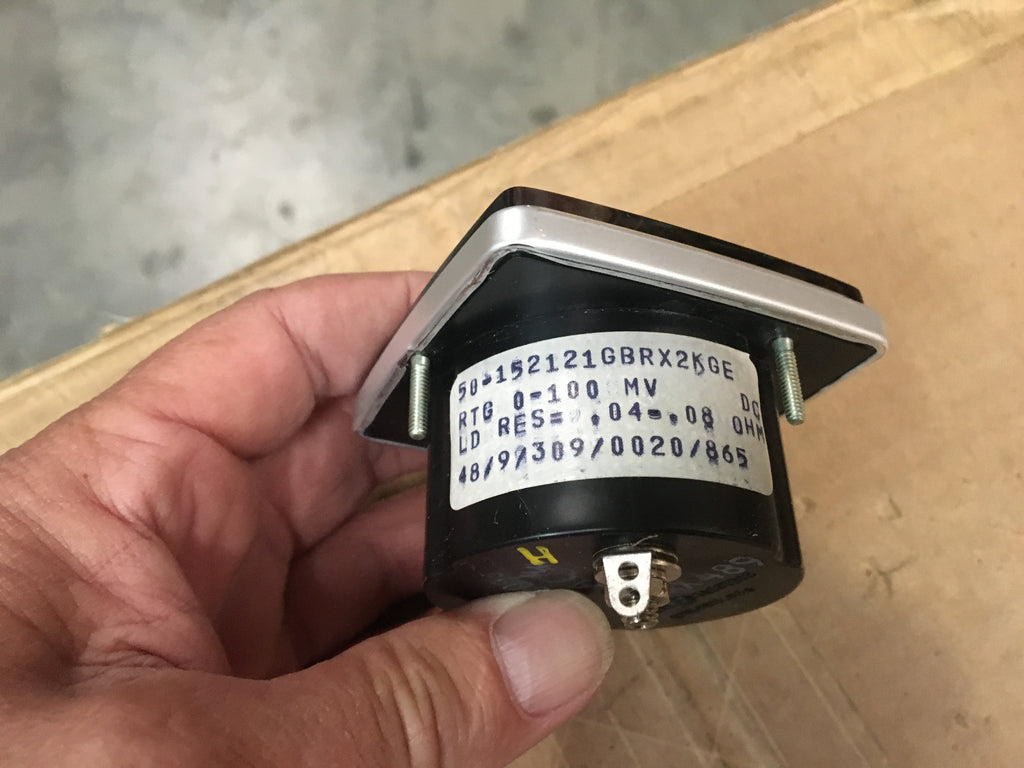

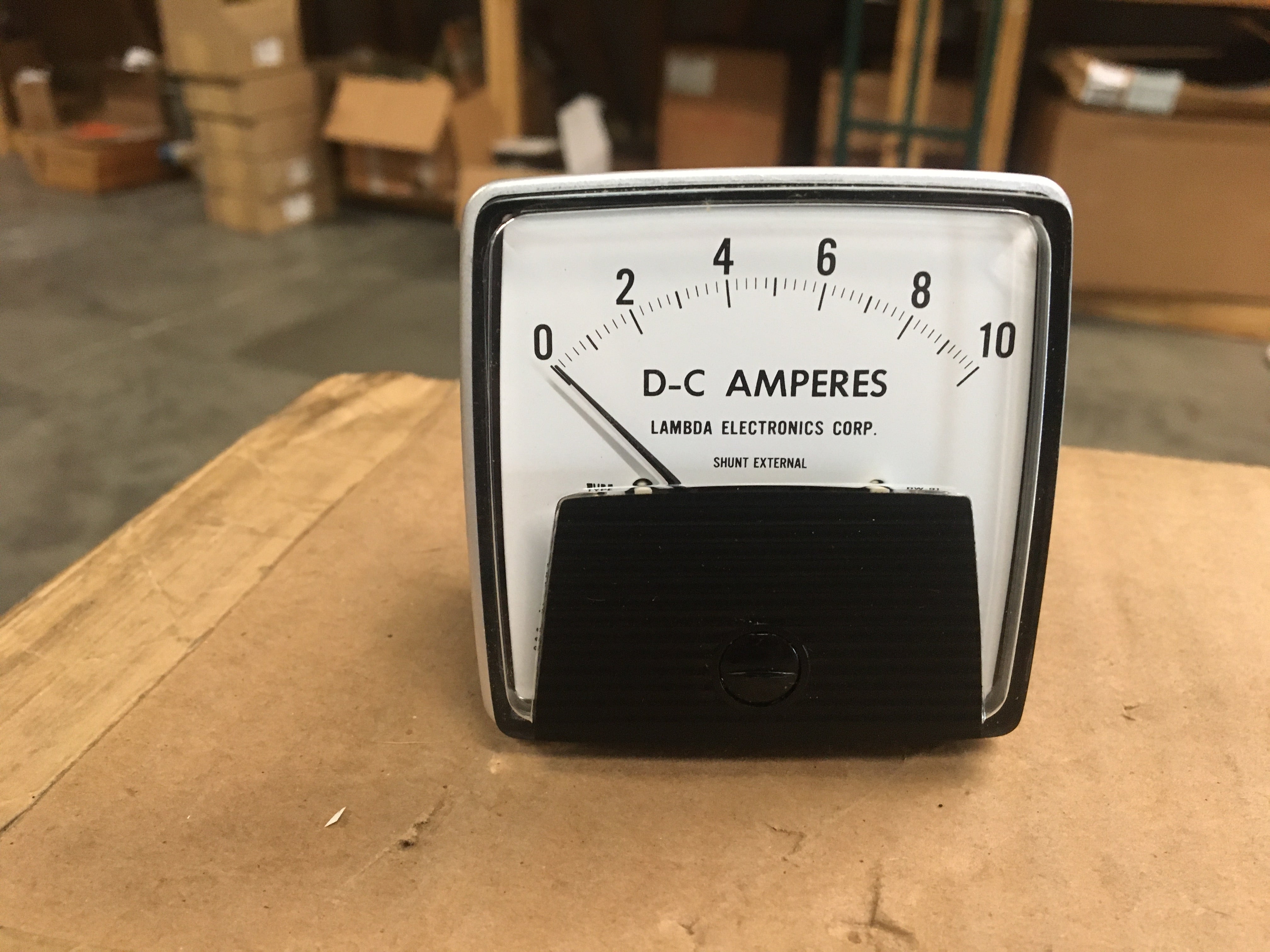

General Electric D-C Amperes 0-10 Panel Meter,Model: EDP-10-035 NSN:6625-01-136-1978

Please fill out the form below for a price quote and availability on this item.

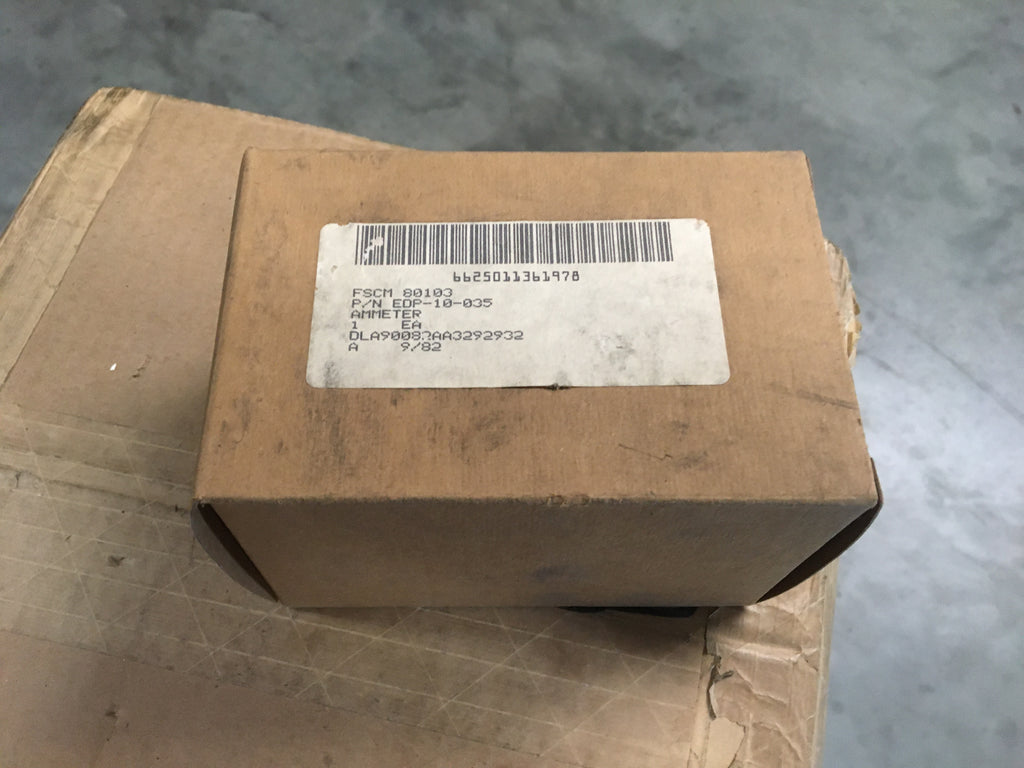

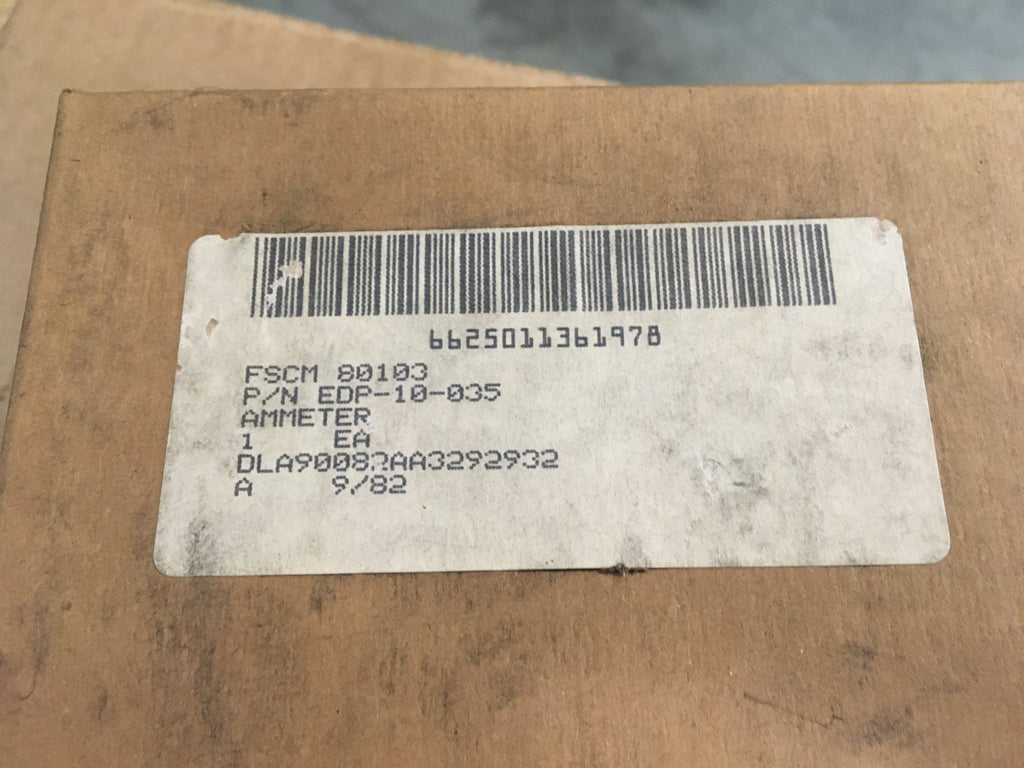

NSN: 6625-01-136-1978 | Model: EDP-10-035
ITAR Registered seal

An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see galvanometer.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Circuit Current For Which Designed
Overall Length
2.230 inches
Overall Height
2.702 inches
Overall Width
2.702 inches
Scale Division Quantity
50 single indicator single range
Mounting Stud Length
0.500 inches
Environmental Protection
Shock resistant and vibration resistant
Mounting Bolt Circle Diameter
2.440 inches
Furnished Items And Quantity
Nut 5; washer 7
Indicator Type
Dial w/pointer
Installation Design
Mounting Arrangement Style
Three hole/stud bolt circle
Dial Scale Marking Color
Black single indicator single range
Accuracy In Percent
-2.0/+2.0 at full scale single indicator single range
Unable To Decode
Unable to decode or unable to decode
Meter Depth Behind Mounting Flange
1.252 inches
Meter Body Diameter Behind Mounting Flange
2.180 inches
Movement Type
Moving coil, permanent magnet
Background Color
White single indicator single range
Pointer Color
Black single indicator single range
Power Source
Mounting Facility Type And Quantity
3 threaded stud
Scale Graduation Type
Linear single indicator single range
Measurement Range
+0.0/+10.0 amperes, dc single indicator single range
Mounting Stud Diameter
0.112 inches
Scale Selection Method
Features Provided
Zero adjuster
Movement Suspension Method
Jewel pivot base
Circuit Attachment Method And Quantity
2 solder lug and 2 threaded stud
Special Features
Nuclear Hardness Critical Feature
Style Designator
Rectangular flush mtg
Fsc Application Data
Test set, elect. Equip.

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
