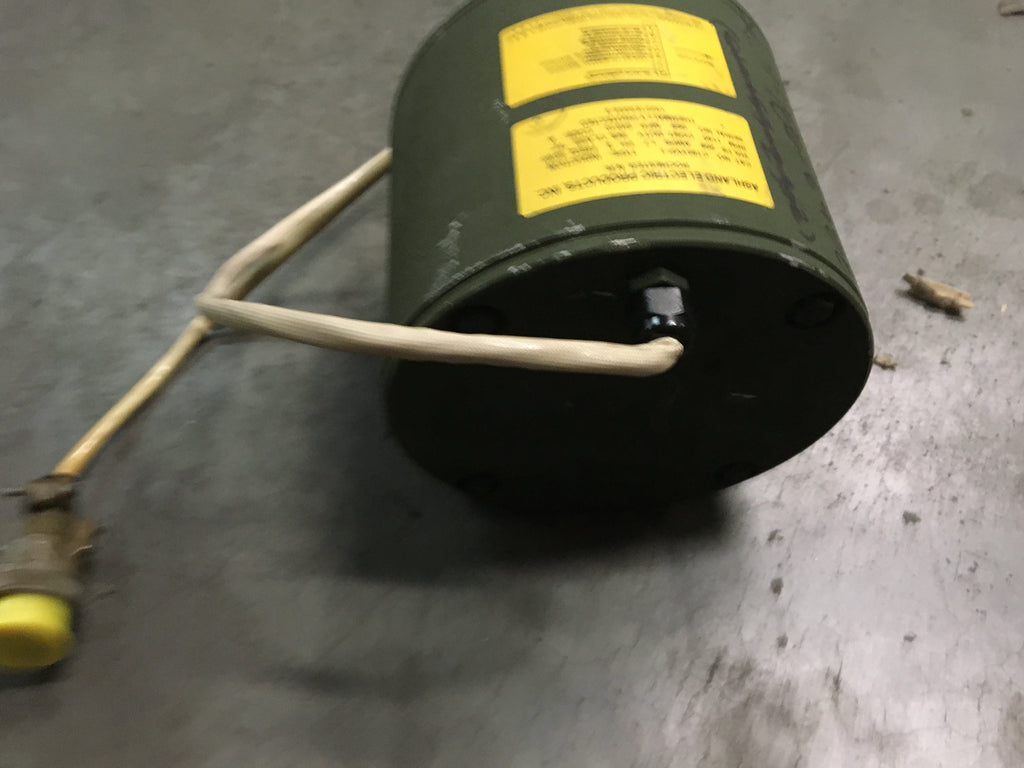

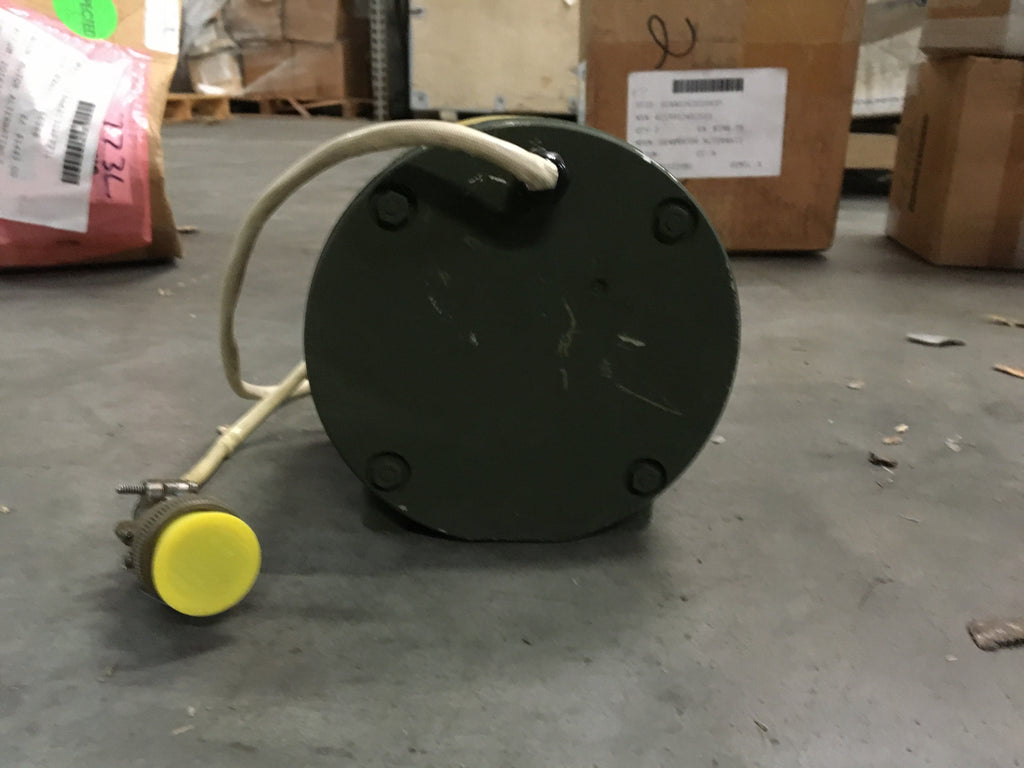

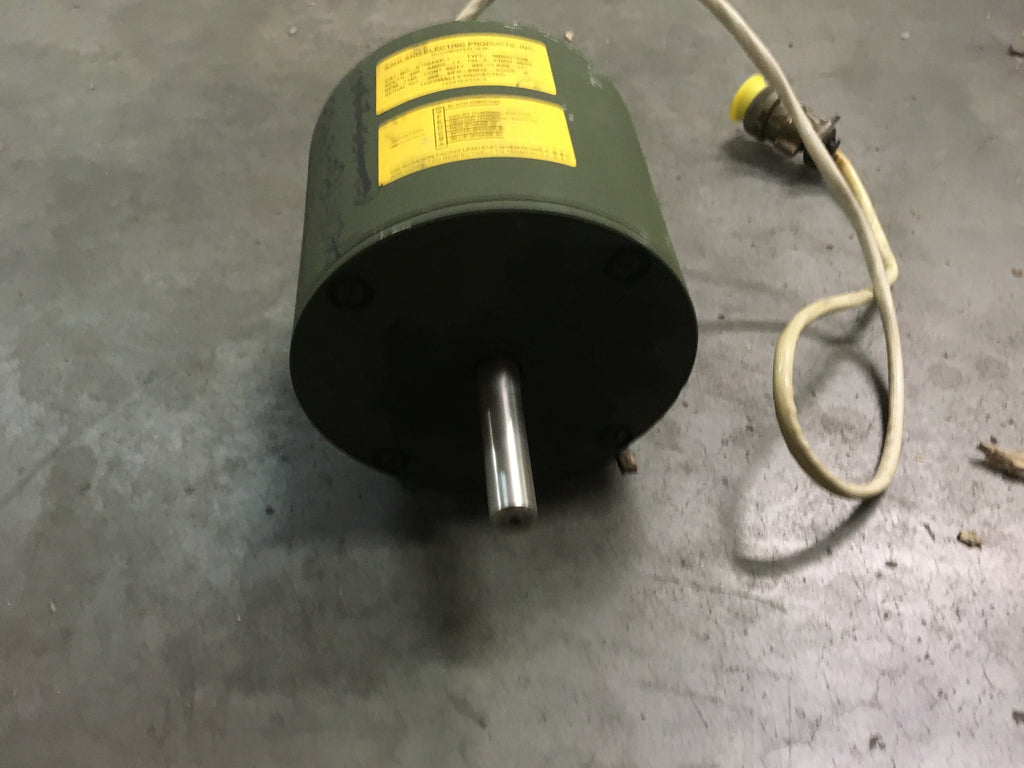

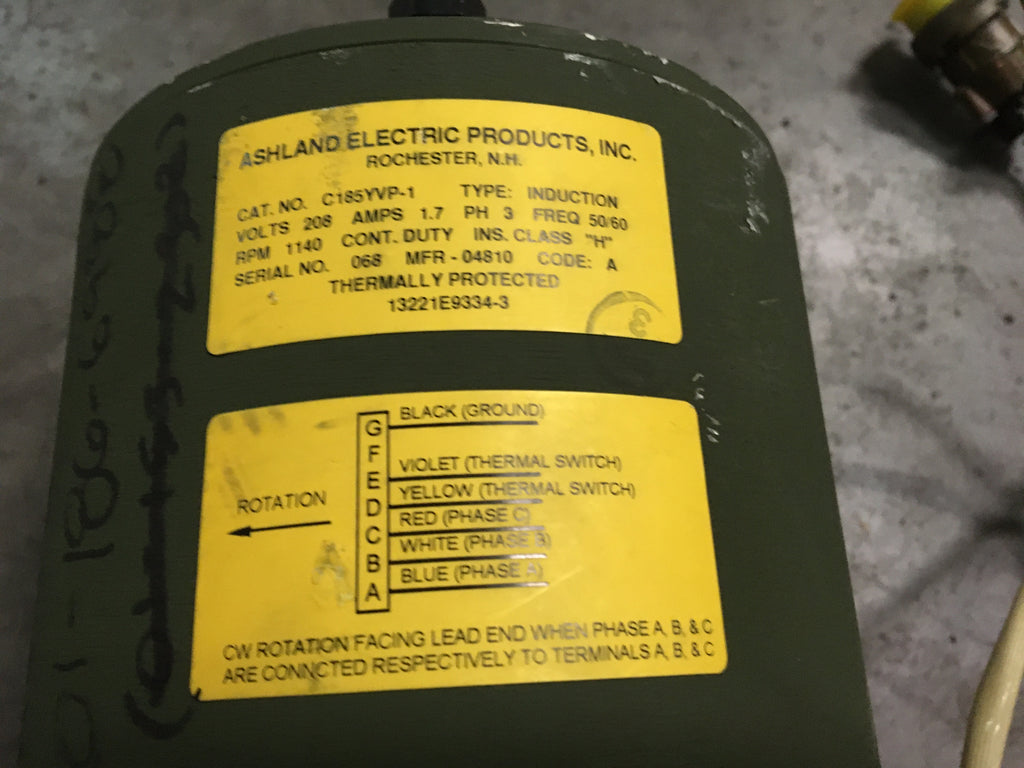

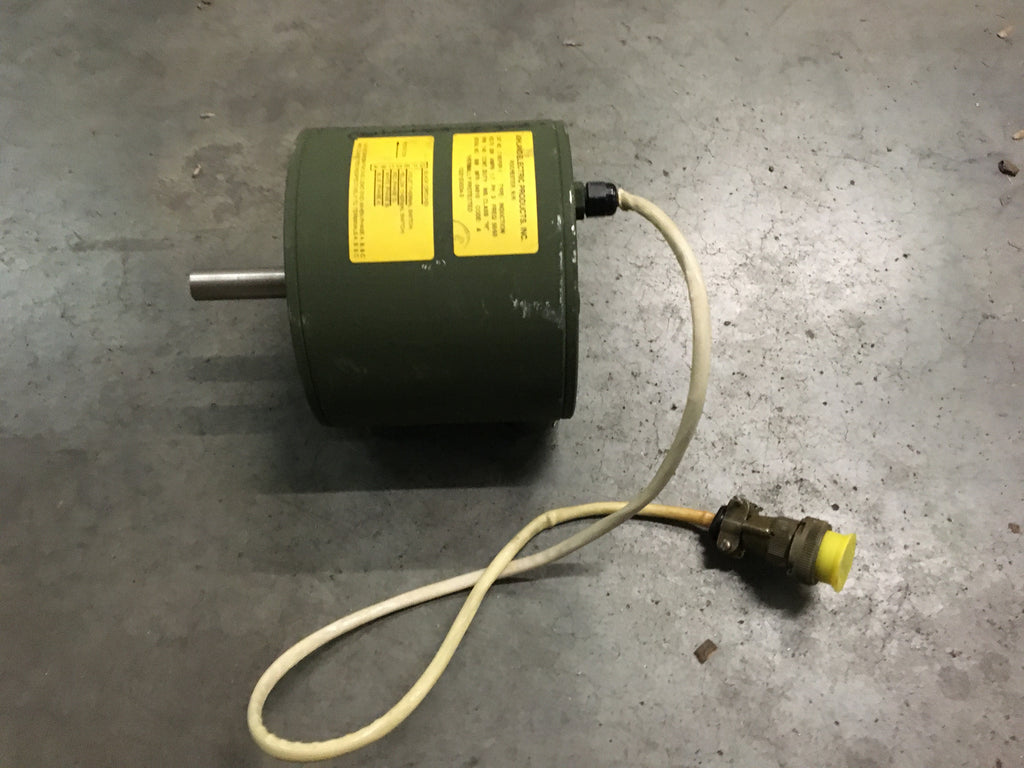

Ashland Electric AC Motor 208V, 1.7AMP, 3PH, 1140RPM, 50/60HZ NSN:6105-01-186-6988 P/N:M-4720-50

Please fill out the form below for a price quote and availability on this item.

Alternating Current Motor

NSN:6105-01-186-6988  CAT:C185YVP-1  Model:M-4720-50
ITAR Registered seal

A motor which is designed for operation from an alternating current source. See also motor, control.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Overall Length
7.300 inches
Overall Width
5.920 inches
Shaft Diameter
0.624 inches single end and 0.625 inches single end
Flatted Portion Length
2.250 inches single end
Flat Depth
0.560 inches single end
Duty Cycle
Inclosure Feature
Totally enclosed
Mounting Method
Fixed base
Mounting Facility Type And Quantity

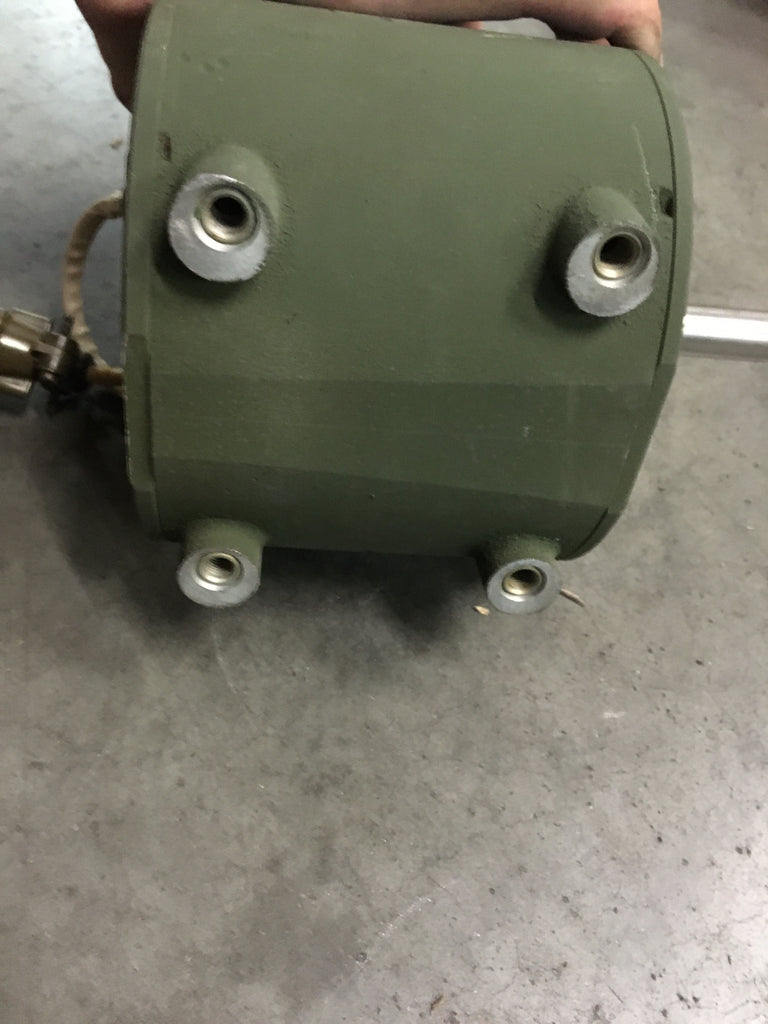

4 threaded hole
Cooling Method
Features Provided
Thermal protective device and frame electrically grounded
Power Rating
0.750 horsepower output
Length Of Shaft From Housing
2.500 inches single end
Shaft Center To Mounting Surface Distance
2.810 inches single end
Center To Center Distance Between Mounting Facilities Parallel To Length
3.125 inches
Center To Center Distance Between Mounting Facilities Parallel To Width
3.500 inches
Shaft End Characteristic
A5 single style single end
Three input
Special Features

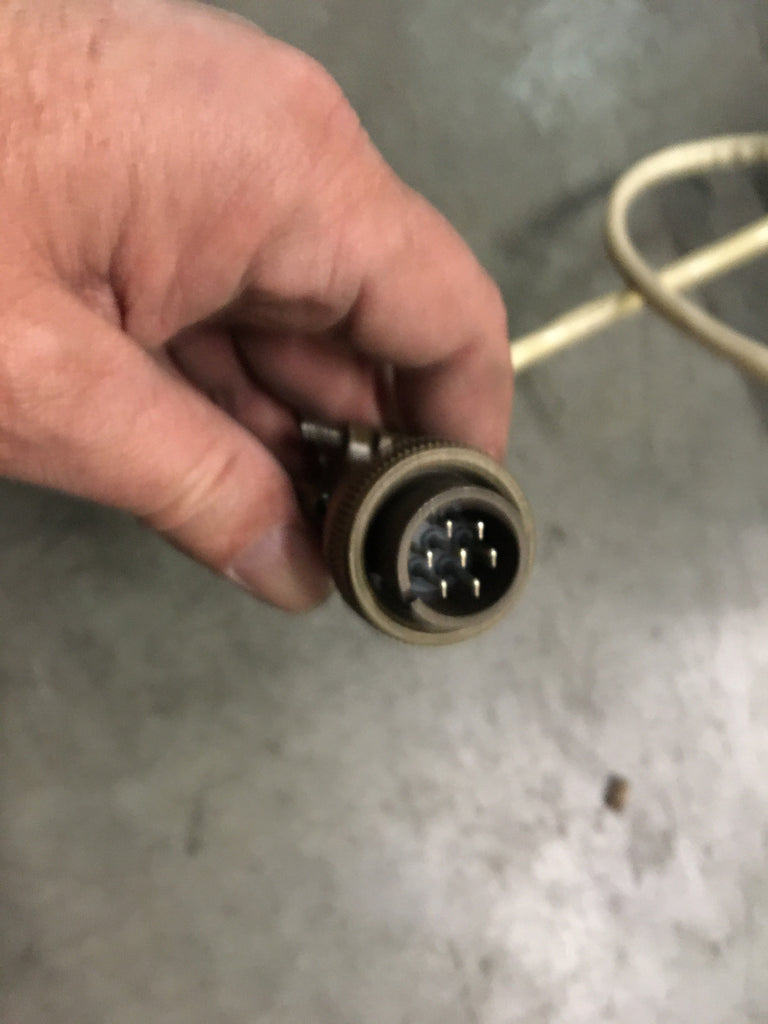

1 ea heat shrinkable slaving l 29.000 in porm 0.500 in; 1 ea connector, plug, electric, straight solder contacts, as type; 1 ea strain relief bushing
Frequency In Hertz
60.0 input

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
