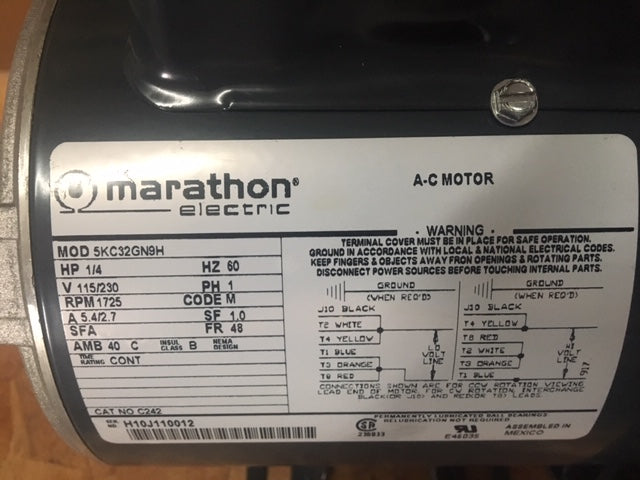

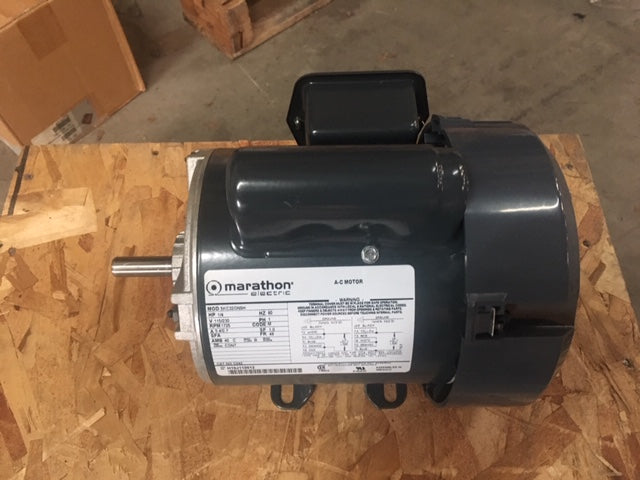

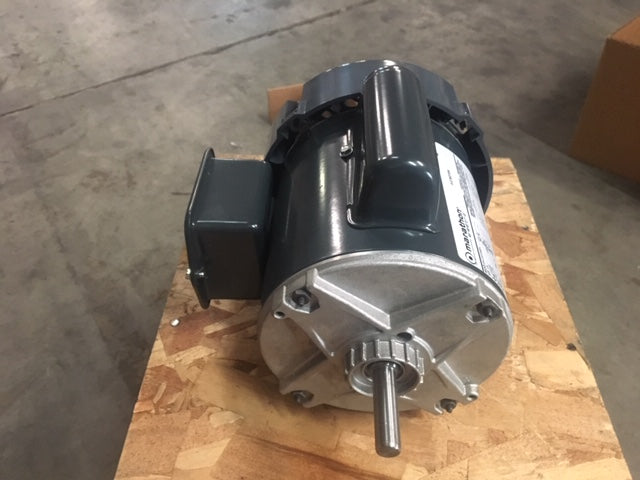

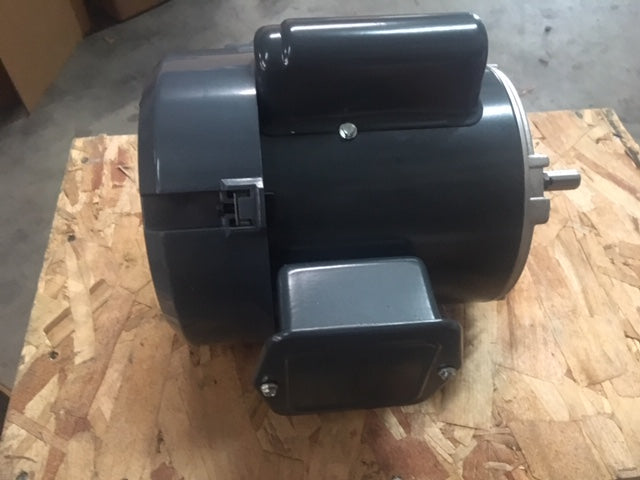

MARATHON, C242, 5KC32GN9, 1/4 HP, 1725 RPM, 115/230V, FR:48, TEFC, 1PH,NSN: 6105-01-165-8912
Please fill out the form below for a price quote and availability on this item.
Alternating Current Motor

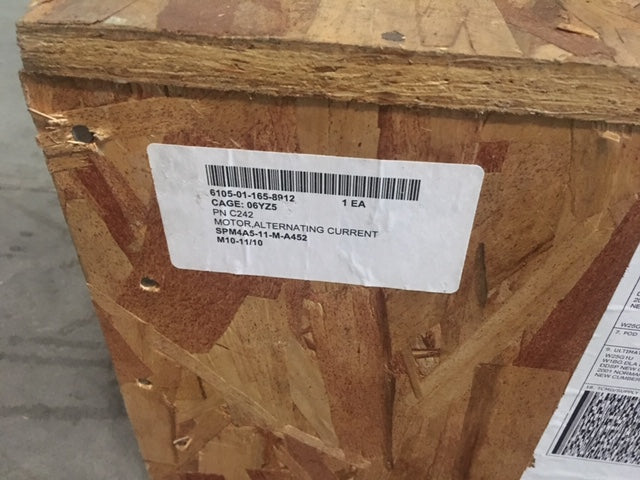

NSN: 6105-01-165-8912 | Model: C242
A motor which is designed for operation from an alternating current source. See also motor, control.
NSN Properties and Flags
NATO Stock Number
6105-01-165-8912
DEMIL
Yes - ITAR Controlled
Overall Height
6.250 inches
Overall Length
9.250 inches
Overall Width
8.500 inches

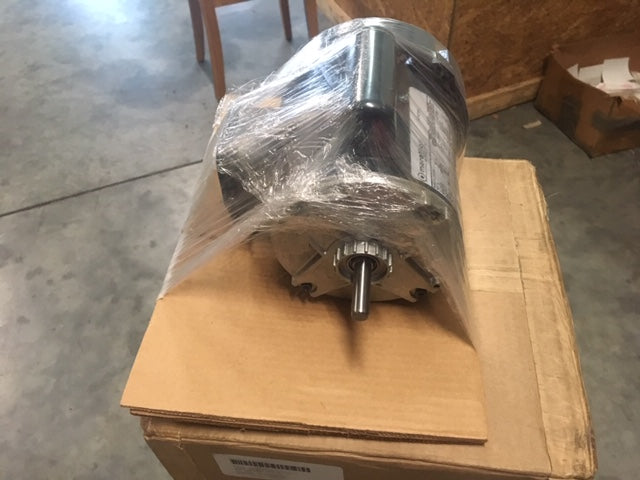

Shaft Diameter
0.500 inches single end
Flatted Portion Length
1.375 inches single end
Flat Depth
0.050 inches single end
Shaft Rotation Direction
Clockwise single end or counterclockwise single end
Duty Cycle
Continuous
Inclosure Feature
Totally enclosed
Winding Type
Induction-single value capacitor split phase
Mounting Method
Fixed base

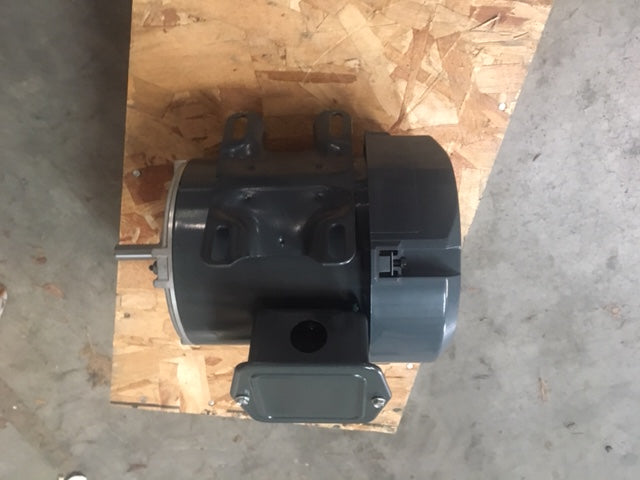

Mounting Facility Type And Quantity
4 slot

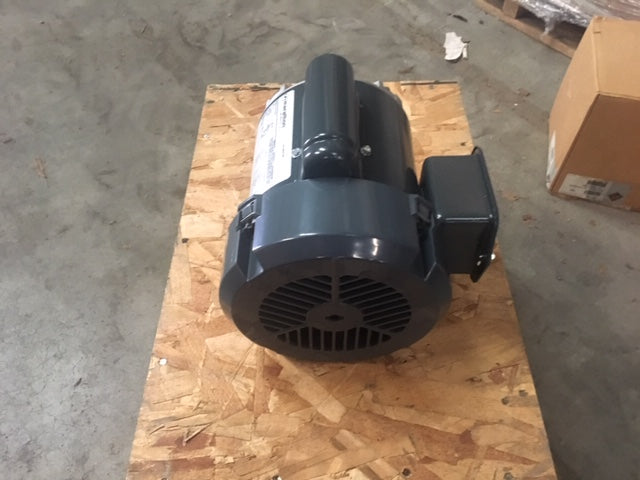

Cooling Method
Fan cooled
Current Rating Method
Load
Inclosure Specificationification
Nema
Features Provided
Horizontal mounting position
Frame Size Designation
48
Power Rating
0.250 horsepower output
Length Of Shaft From Housing
1.500 inches single end
Shaft Center To Mounting Surface Distance
3.000 inches single end
Center To Center Distance Between Mounting Facilities Parallel To Length
2.750 inches
Rotor Speed Rating In Rpm
1725.0 single full load
Center To Center Distance Between Mounting Facilities Parallel To Width
4.250 inches
Current Rating In Amps
5.400 single input

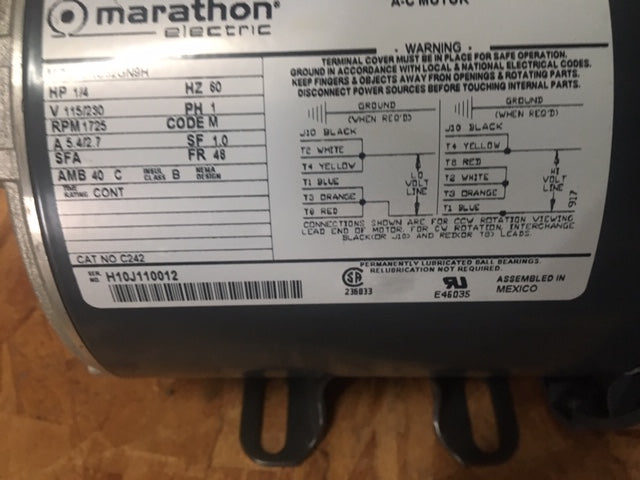

Connection Type And Voltage Rating In Volts
115.0 line to neutral low input or 230.0 line to neutral high input
Shaft End Characteristic
A5 single style single end
Phase
Single input
Frequency In Hertz
60.0 input
Terminal Type And Quantity
9 wire lead
