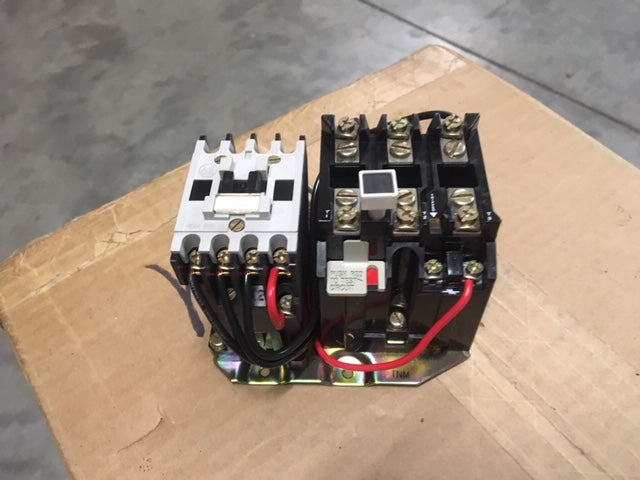

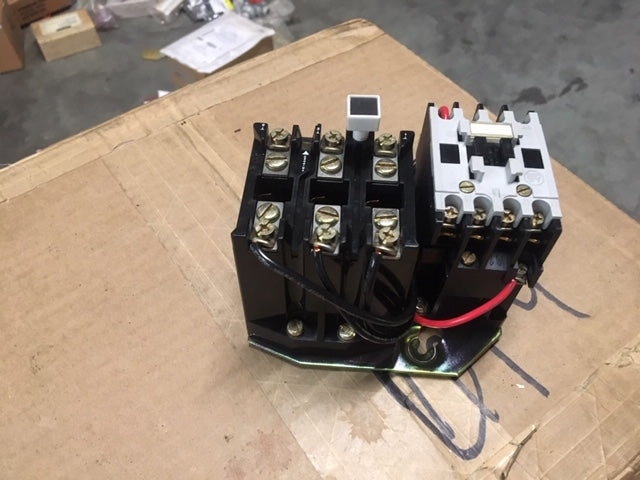

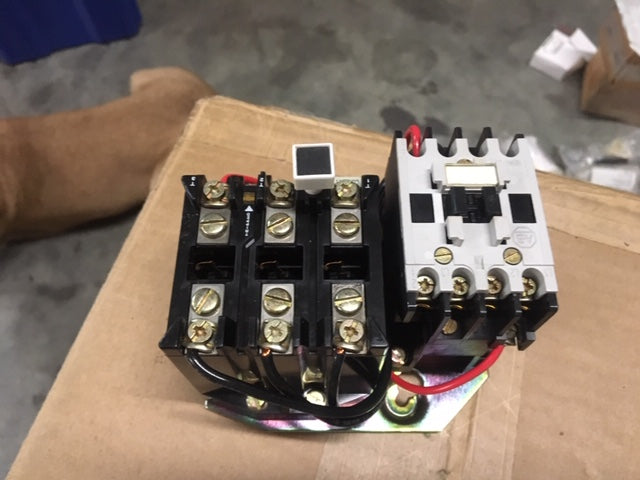

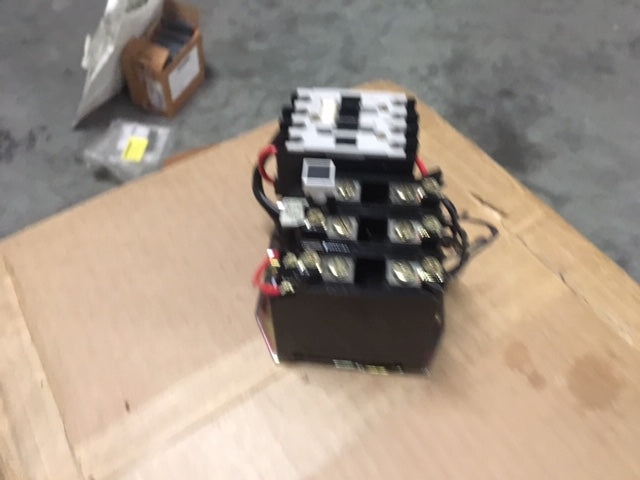

Allen Bradley 509-TOD Size 00 Motor Starter with 120 Volt Coil NIB NSN:6110-01-013-6482

Regular price $69.99

Motor Starter

SKU: 6110010136482 | Model: 13222E5327

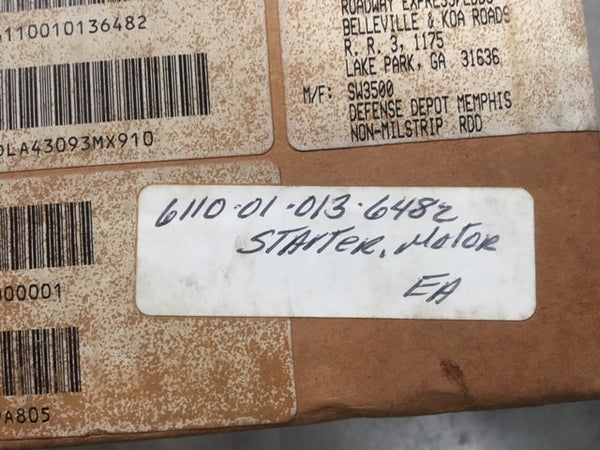

NSN 6110-01-013-6482NSN 6110-01-013-6482

Specifications from the Manufacturer

Overall Length:
3.688 inches nominal
Overall Height:
4.125 inches nominal
Overall Width:
4.875 inches nominal
Ac Voltage Rating:
120.0 volts nominal
Frequency Rating:
60.0 hertz nominal
Actuation Method:
Magnetic
Performance Type:
Automatic and manual
Fuse Accommodation Quantity:
1
Size Designator:
00
Duty Cycle:
Continuous

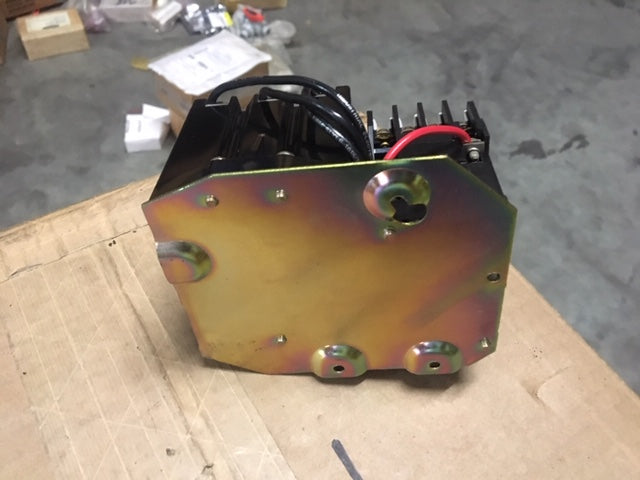

Mounting Configuration:
Four mtg holes on 3.250 in. by 1.500 in. mtg centers,fifth hole is 0.250 in. to left @of centerline on top
Operating Voltage Characteristic:
Full

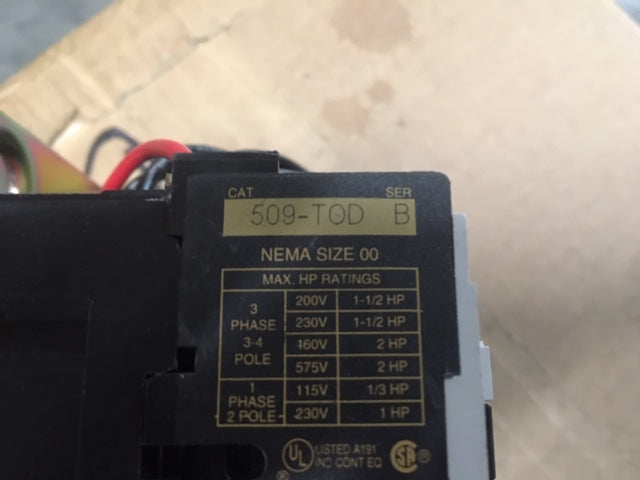

Horsepower Rating:
1.500
Actuator Voltage:
120.0 ac
Fuse Current Rating In Amps:
10.0
Load Protection Type:
Overload
Inclosure Feature:
Open
National Electrical Manufacturers Association Standards Design:
Designed per nema std
Amp Size Rating:
9.0
Switch Functional Positions:
Start and stop
Control Type:
Remote
Features Provided:
Circuit protection fuse
Phase:
Three
Special Features:
Separate controlmagnetic coil
Frequency In Hertz:
60.0
