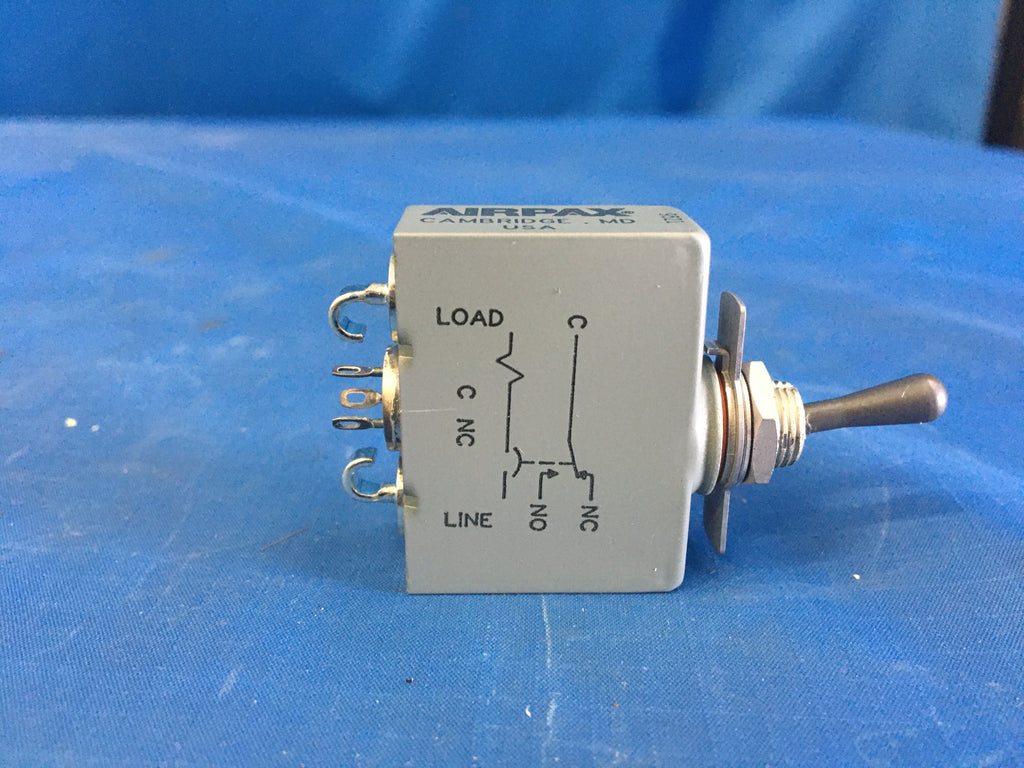

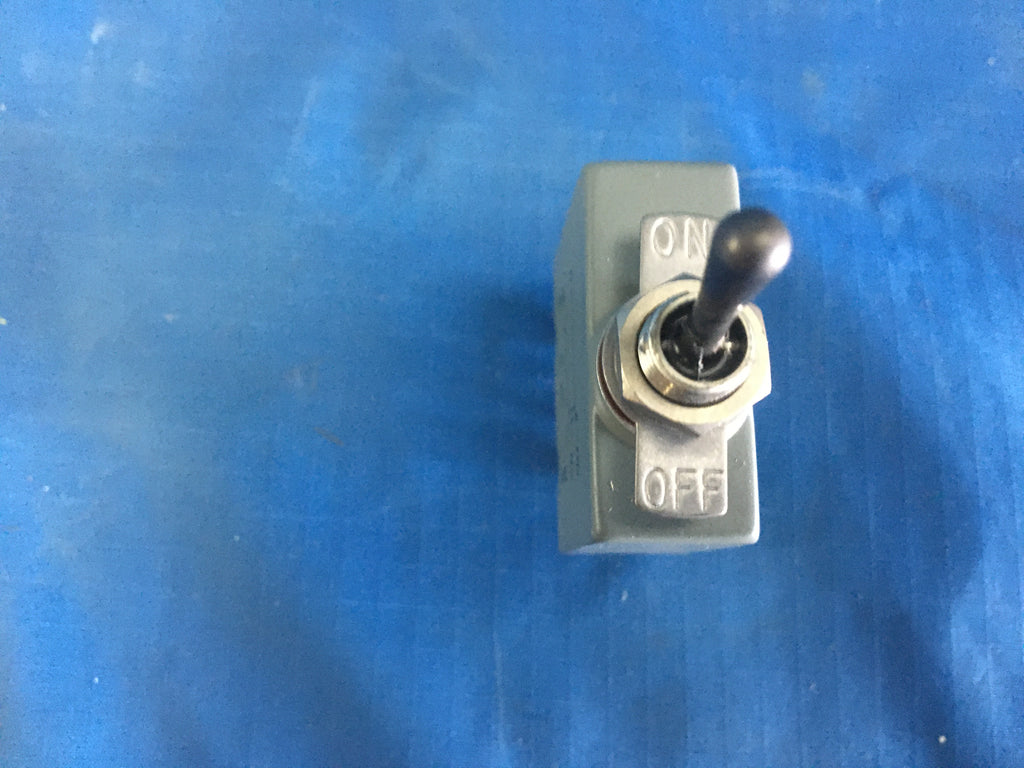

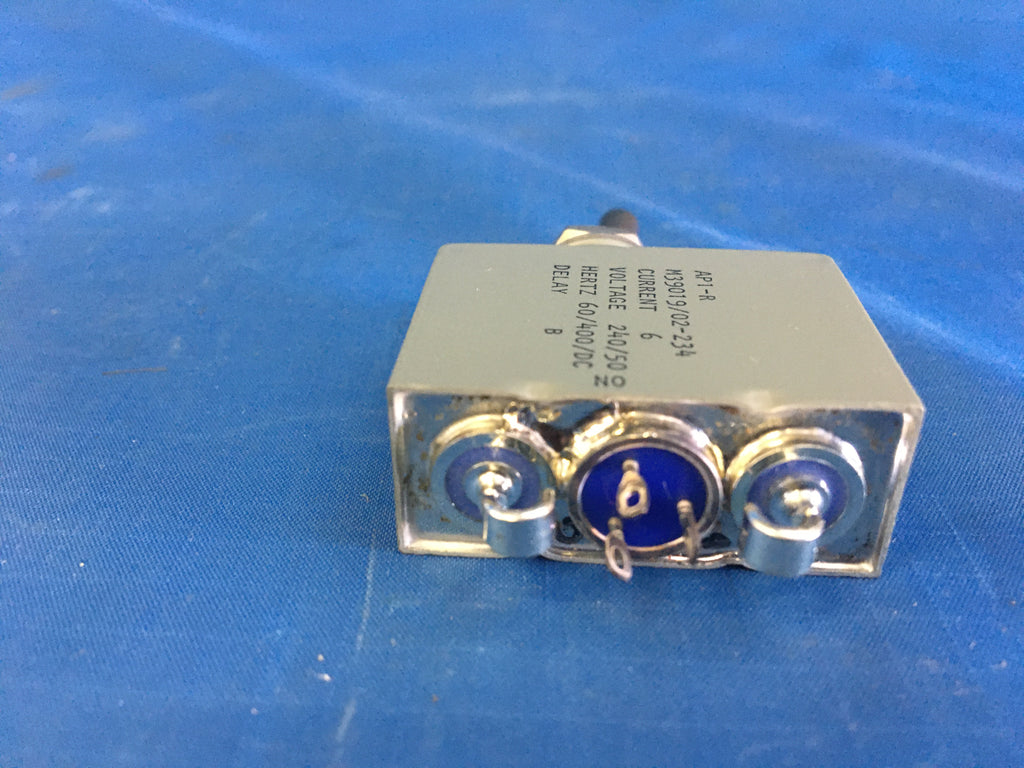

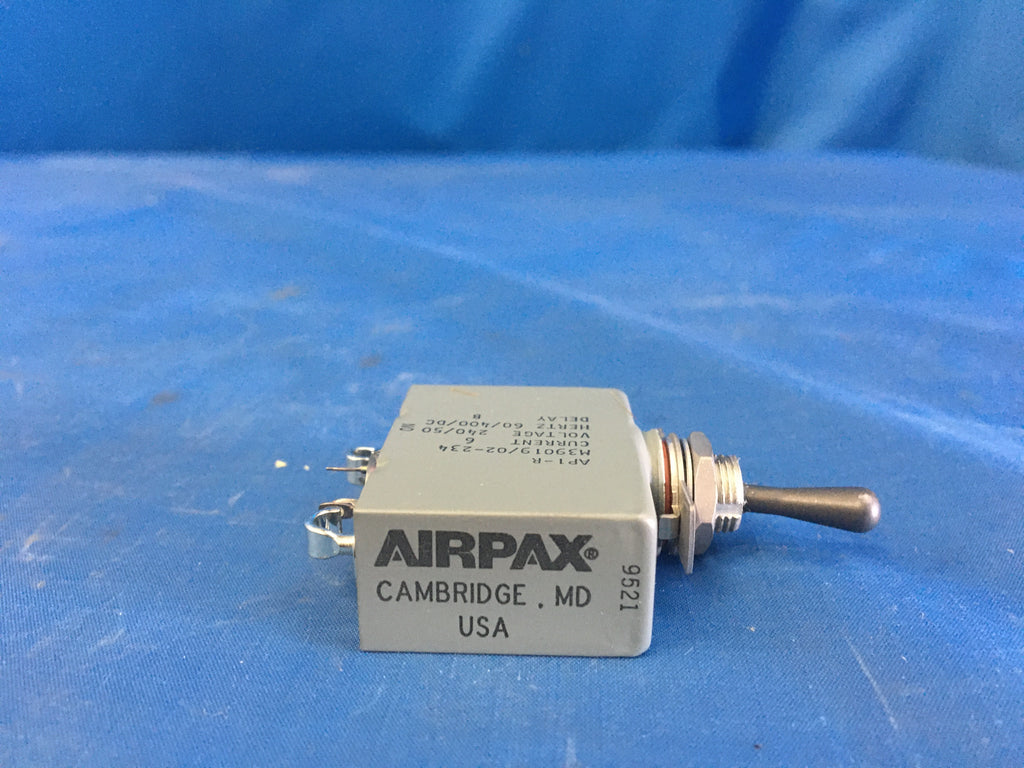

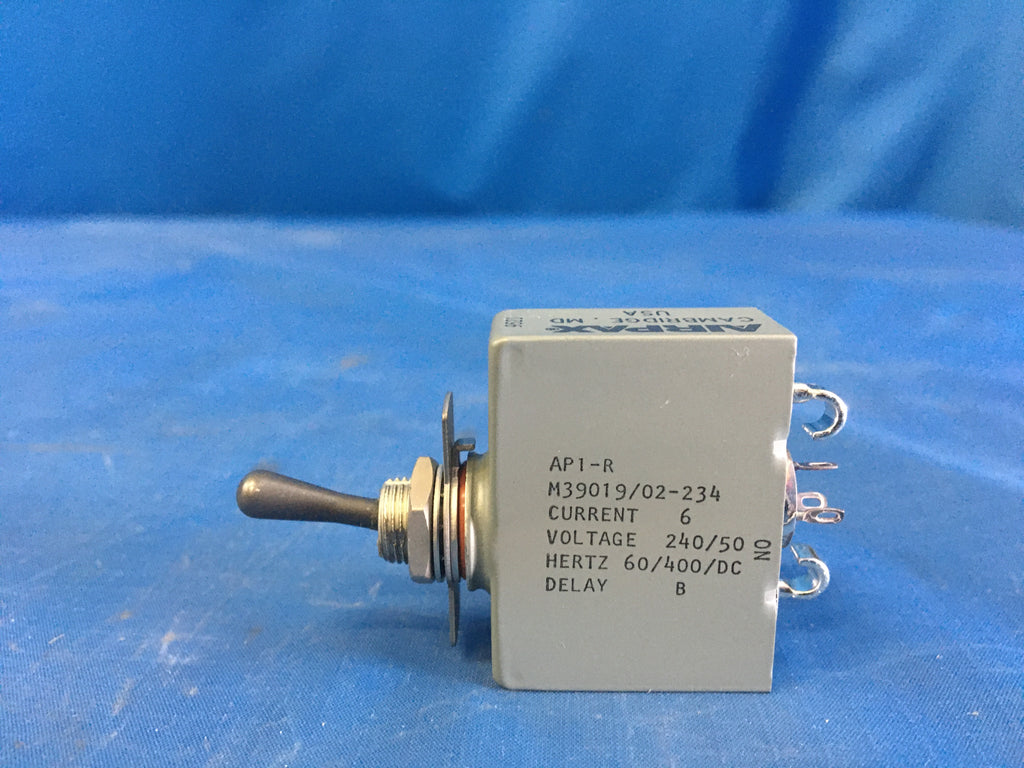

Airpax M39019/02-234 Circuit Breaker 6A 240V 60HZ NSN:5925-01-041-3930

Regular price $99.99

Circuit Breaker

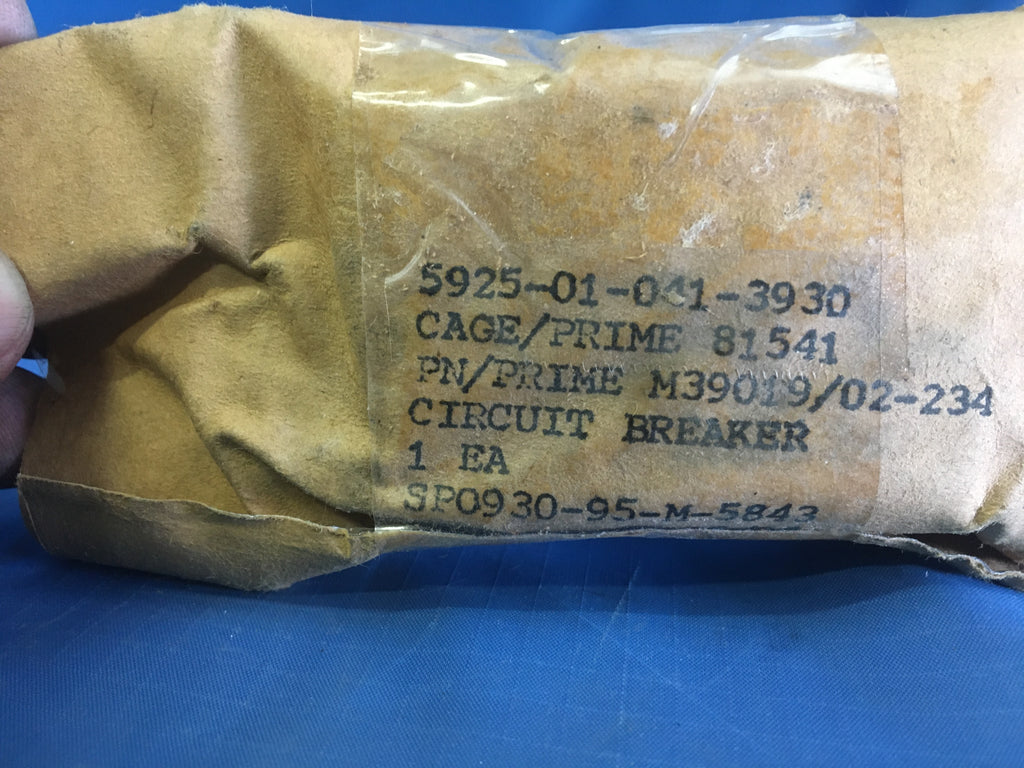

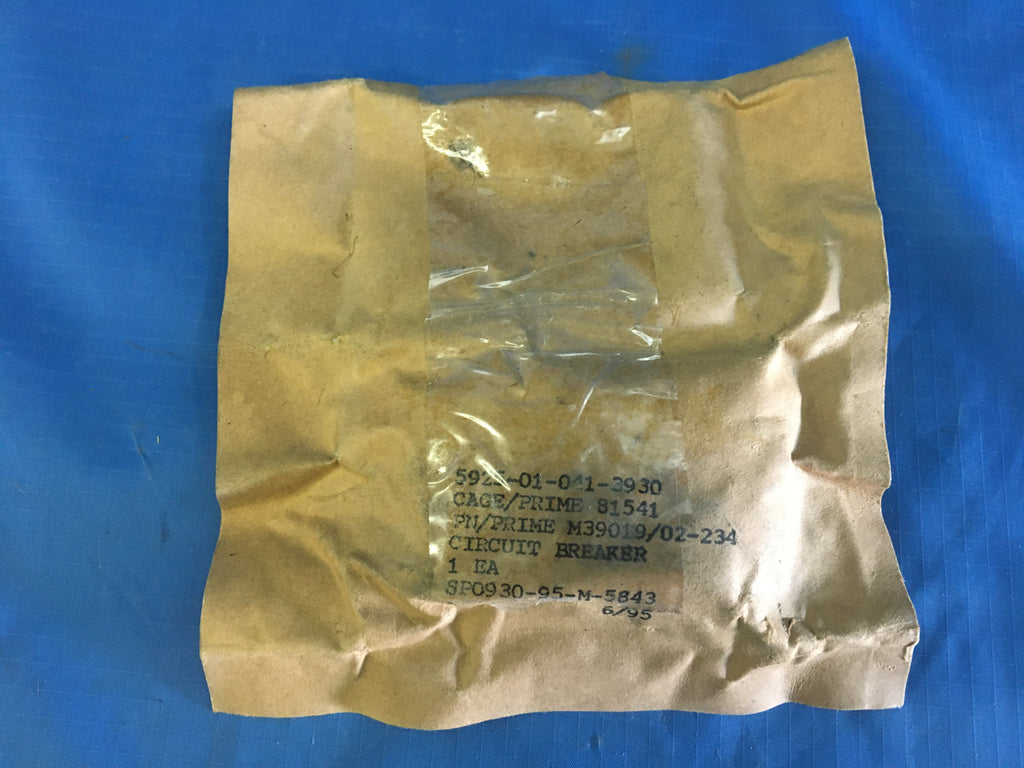

NSN: 5925-01-041-3930 | Model: HB1Z2-94
ITAR Registered seal

A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating elemen (s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see relay (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see relay-switch. Excludes circuit breaker box and magneto "breaker" assemblies. See also switch (as modified) ; and controller.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Thread Pitch Diameters
+0.3503/+0.3537 inches
Body Style
Single pole type
Bushing Length
Between 0.332 inches and 0.380 inches
Body Length
Between 1.531 inches and 1.562 inches
Body Width
Between 0.594 inches and 0.625 inches
Case Material
Center To Center Distance Between Terminals Parallel To Length
Between 0.875 inches and 0.906 inches
Switch Contact Arrangement
Single pole, double throw
Fragility Factor
Moderately rugged
Mounting Surface To Terminal End Distance
Between 1.669 inches and 1.700 inches
Pole Quantity
Mounting Facility Type And Quantity
1 threaded bushing w/panel seal
Storage Type
General purpose warehouse
Thready Qty Per Inch (tpi)
Maximum Continuous Load Current Rating Per Pole
6.0 amperes ac single location and 6.0 amperes dc single location
Operating Voltage Type And Rating Per Pole In Volts
240.0 ac single location and 50.0 dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps
300.0 ac single location and 500.0 dc single location
Circuit Protection Type
Overcurrent single location
Trip Release Method
Magnetic single location
Trip Release Characteristic
Time delay single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent
115.0 single location
Reset Method
Main Contact Tripping Mechanism Type
Trip free
Manual Actuator Type And Quantity
1 toggle
Actuator Function
Actuator Position Designation
At pole one
Auxiliary Switch Function And Quantity
1 alarm
Internal Trip Release Configuration
Series trip single location
Thread Size
0.375 inches
Switch Location And Position Designation
Internal at pole one
Trip Delay Time In Seconds Per Rated Continuous Current
0.500 at 200 pct single location and 9.000 at 200 pct single location
Inclosure Protection Type For Which Designed
Fungus resistant and hermetically sealed
Switch Terminal Type
Tab, solder lug
Switch Current Rating And Type In Amps
0.5 ac and 0.5 dc
Switch Voltage Rating And Type In Volts
120.0 ac and 50.0 dc
Frequency In Hertz
400.0 single location
Unpackaged Unit Weight
50.0 grams
Test Data Document
81349-mil-c-39019 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Terminal Type And Quantity
2 wire hook
Specification Data
81349-mil-c-39019/2 government specification
