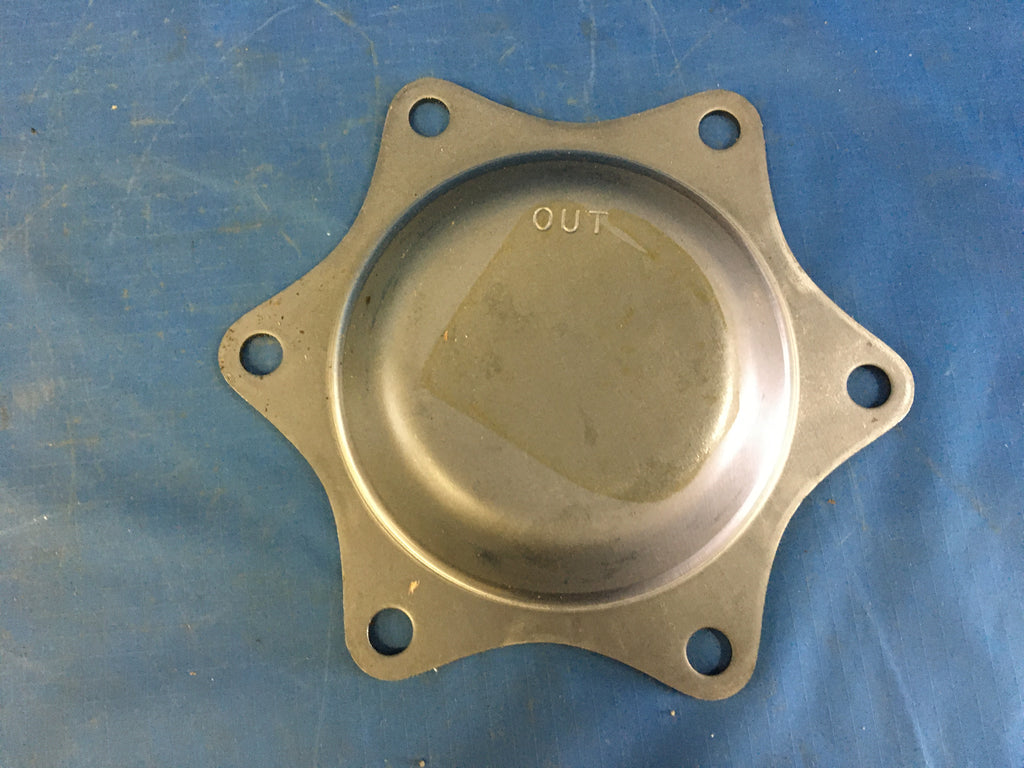

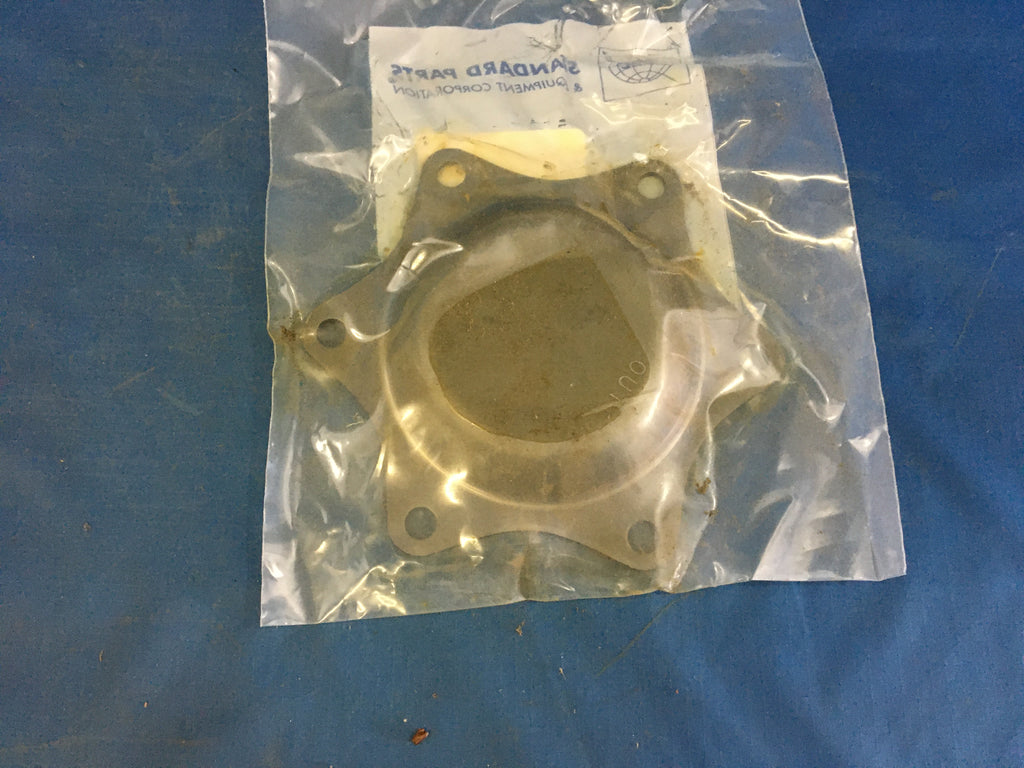

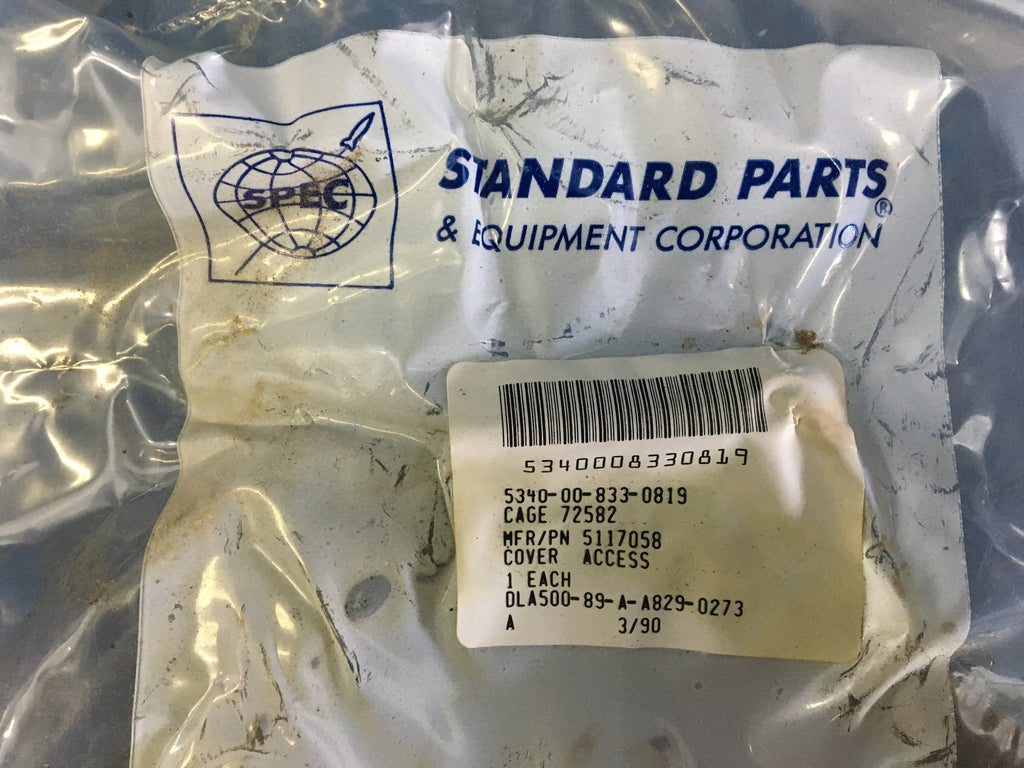

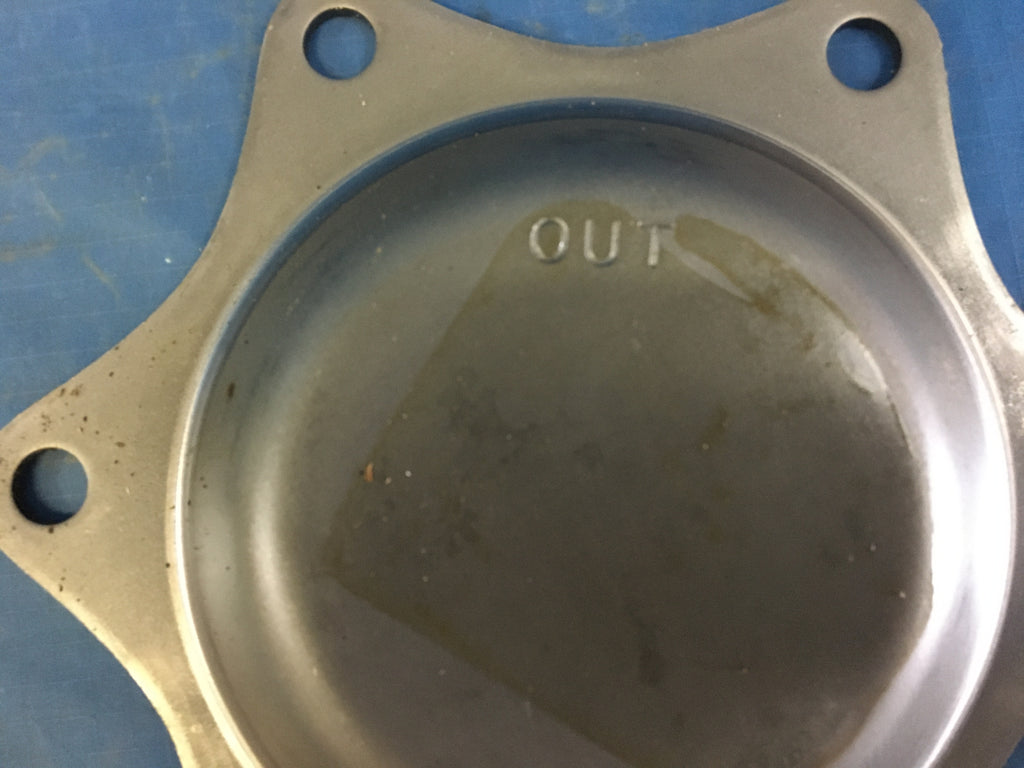

Access Cover NSN: 5340-00-833-0819 P/N: 5117058
Please fill out the form below for a price quote and availability on this item.
A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. it is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. to permit access, the mounted cover requires partial or complete removal. it may include an observation window. for items permanently attached by hinges and the like, see door, access (as modified). excludes all covers not specifically designed to provide access for the purposes listed above.
|Ear Radius:||0.440 inches nominal|
|For Use With/On:||Diesel engine,general motors corp,series 71|
|Body Radius:||2.766 inches nominal|
|Body Thickness:||0.135 inches nominal|
|Bolt Circle Diameter:||5.750 inches nominal|
|Bolt Circle Hole Quantity:||6|
|Cross-sectional Shape Style:||Circular recess|
|First Recess Inside Height:||0.625 inches nominal|
|Hole Diameter:||0.406 inches nominal|
|Mounting Opening Shape Style:||Unthreaded hole|
|Inside Corner Radius:||0.125 inches nominal|
|Inside Diameter:||4.500 inches nominal|
|Inverted Radius:||3.000 inches nominal|
|Securing Device Type:||Threaded fastener|
|Peripheral Shape Style:||Round, multiears and holes|
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
