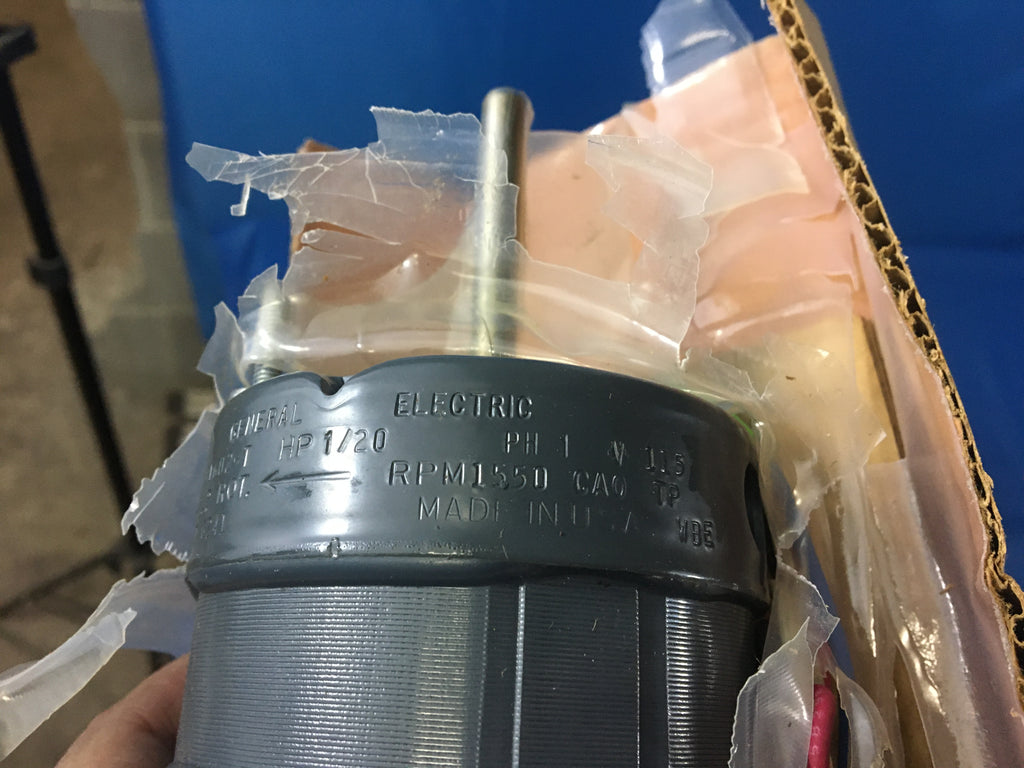

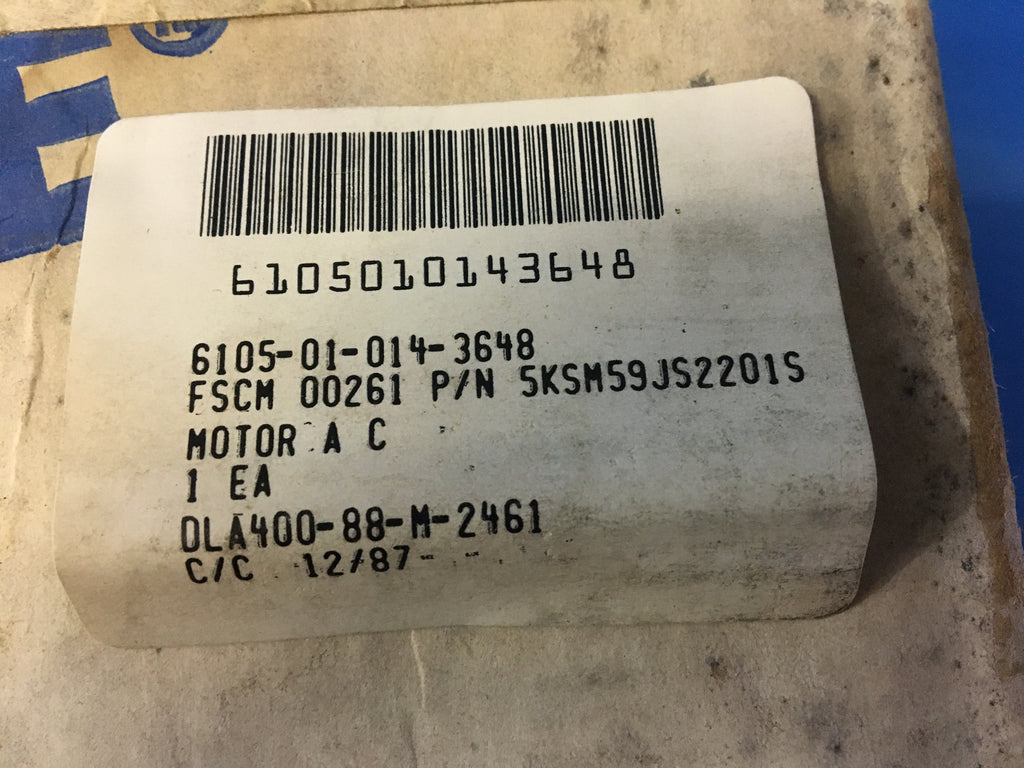

General Electric AC Motor, 1/20HP. 115V, 1PH,1550RPM P/N: 5KSM59JS2201S NSN: 6105-01-014-3648

Please fill out the form below for a price quote and availability on this item.

Alternating Current Motor

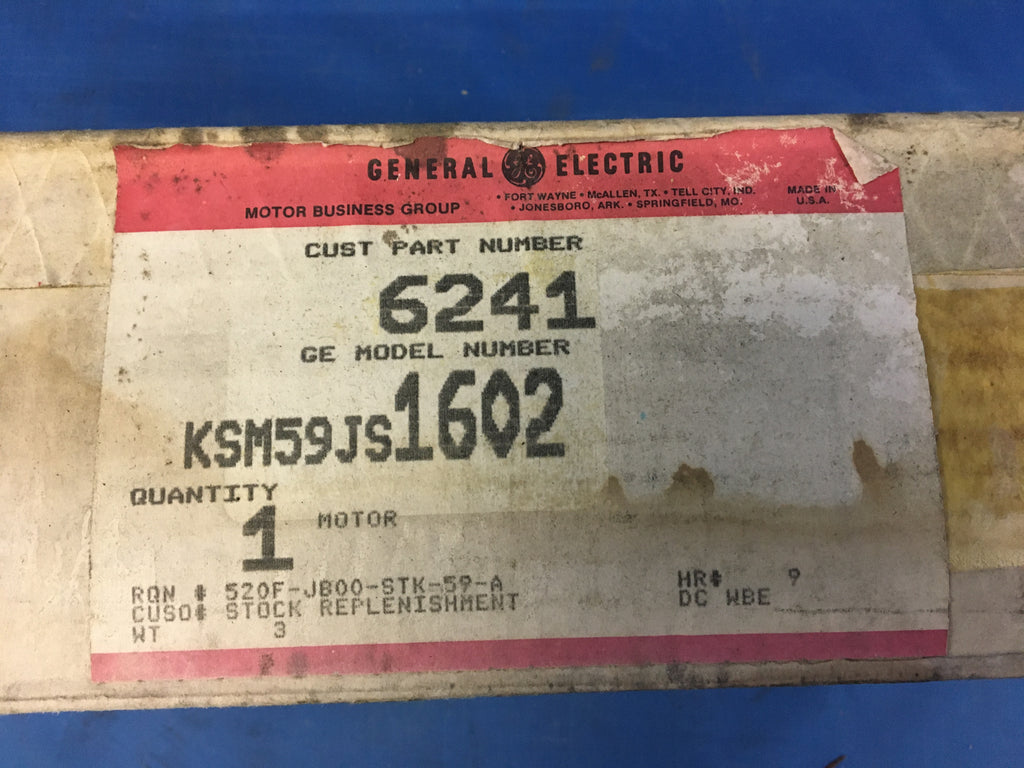

NSN: 6105-01-014-3648 | Model: 5KSM59JS1602T
ITAR Registered seal

A motor which is designed for operation from an alternating current source. See also motor, control.

NSN Properties and Flags
NATO Stock Number
6105-01-014-3648
DEMIL
Yes - ITAR Controlled
Overall Height
3.500 inches
Overall Length
8.250 inches
Overall Width
3.500 inches
Shaft Diameter
0.3125 inches identical ends
Flatted Portion Length
2.0000 inches identical ends
Flat Depth
0.0312 inches identical ends
Shaft Rotation Direction
Clockwise identical ends or counterclockwise identical ends
Duty Cycle
Continuous
Inclosure Feature
Open protected
Winding Type
Induction-shaded pole
Mounting Method
End bell
Mounting Facility Type And Quantity
4 threaded stud and 4 threaded stud
Cooling Method
Natural convection ventilated
Current Rating Method
Load
Inclosure Specificationification
Commercial
Features Provided
Thermal protective device and horizontal mounting position and vertical mounting position
Power Rating
0.0500 horsepower output
Length Of Shaft From Housing
2.500 inches identical ends
Mounting Facility Circle Diameter
2.800 inches
Rotor Speed Rating In Rpm
1550.0 single full load
Current Rating In Amps
2.200 single input
Connection Type And Voltage Rating In Volts
115.0 line to neutral single input
Shaft End Characteristic
A5 single style identical ends
Phase
Single input
Frequency In Hertz
60.0 input
Terminal Type And Quantity
2 wire lead



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
