A.O. Smith

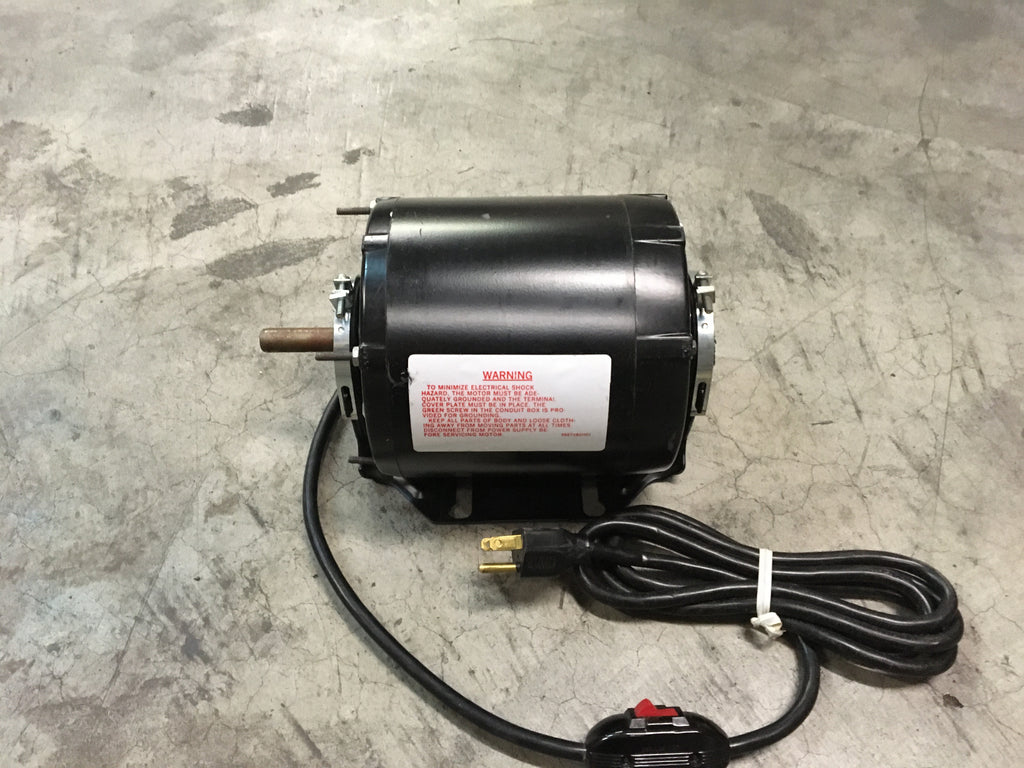

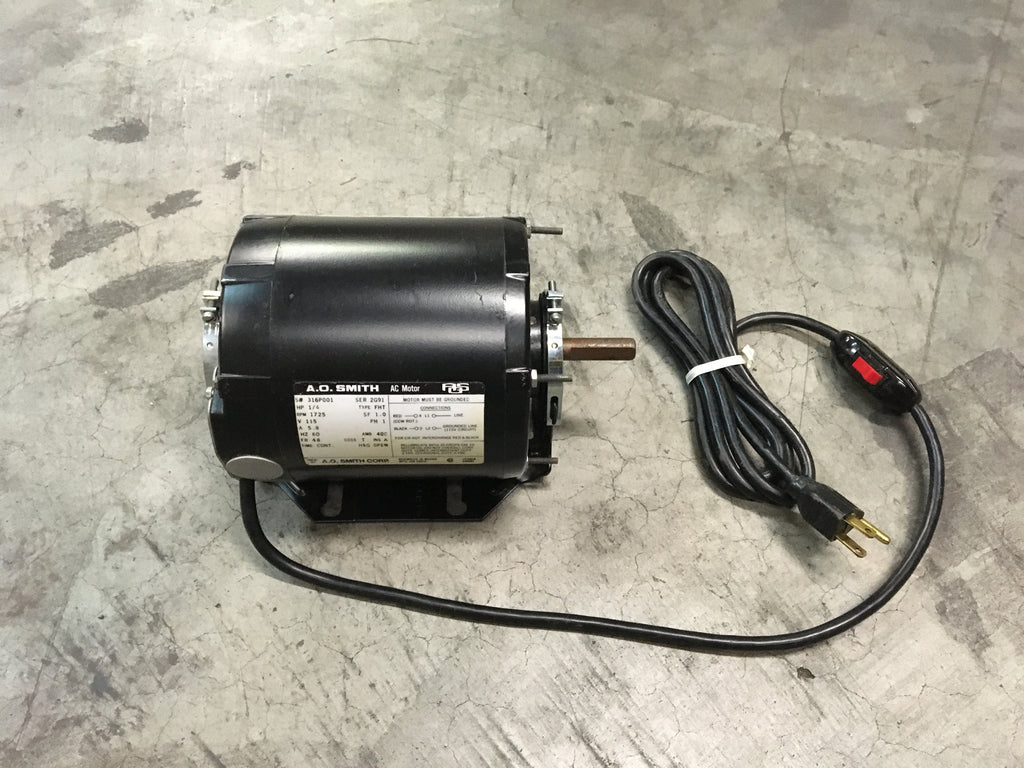

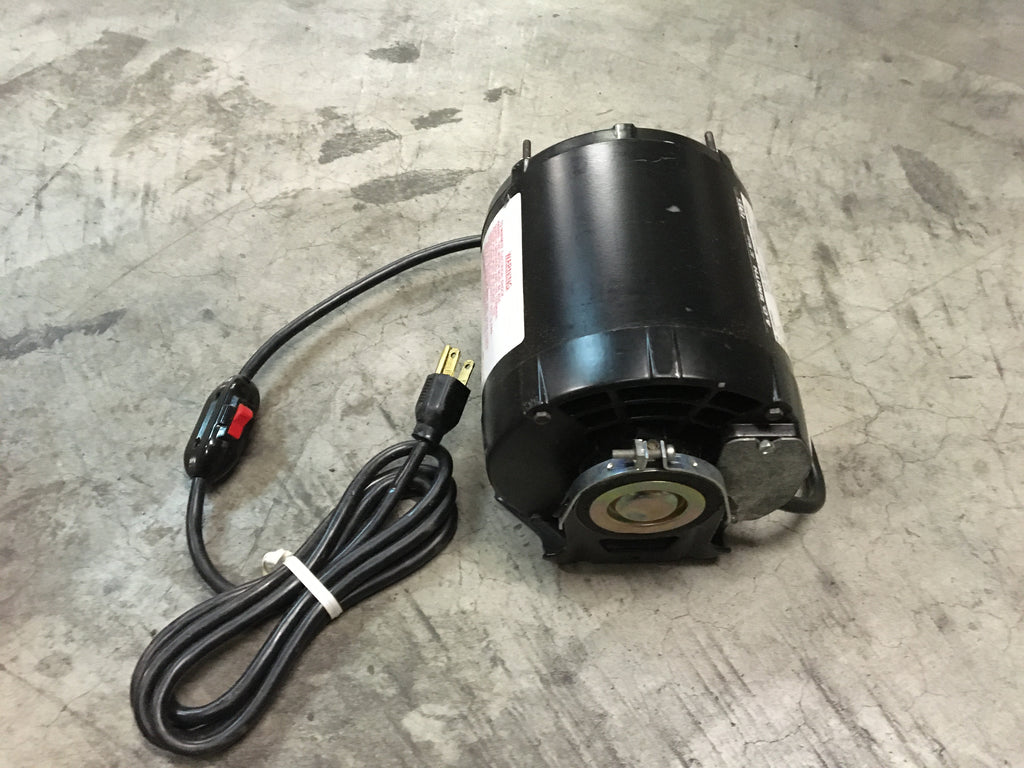

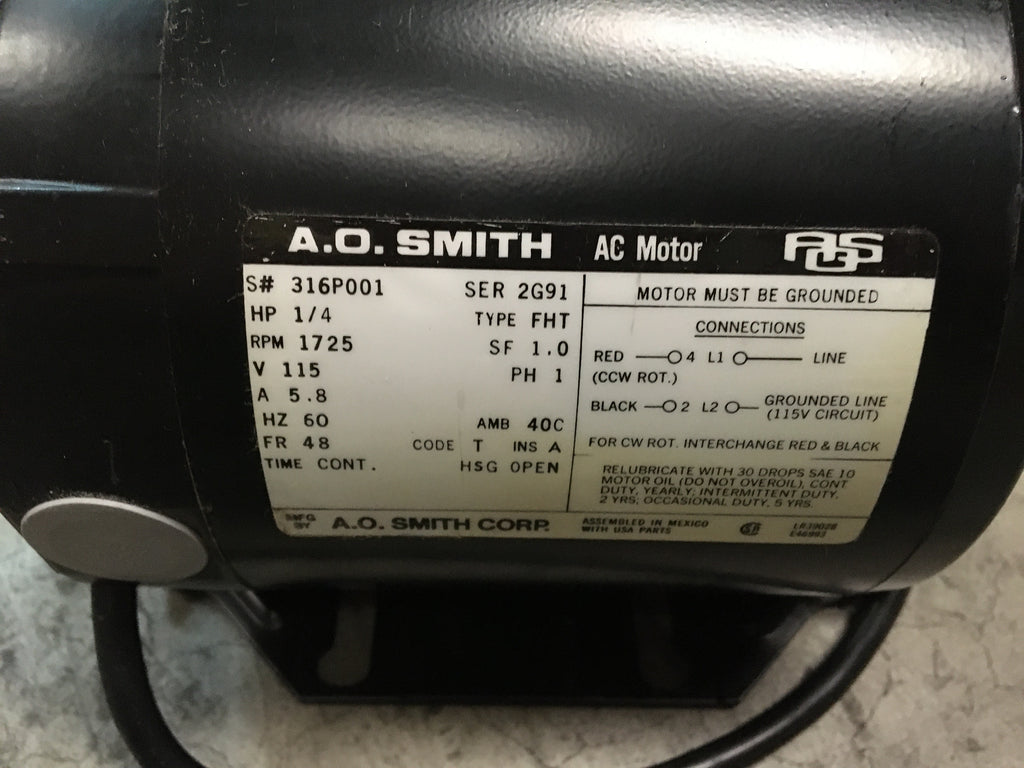

A.O. Smith 316P001 AC Motor, 1/4HP, 115V, 1725RPM, 1PH, NSN:6105-00-125-7964
Regular price
$129.99
Alternating Current Motor
NSN:6105-00-125-7964 Cat:316P001 Model:80840A motor which is designed for operation from an alternating current source. See also motor, control.
NSN Properties and Flags
NATO Stock Number
6105-00-125-7964
DEMIL
Yes - ITAR Controlled
Overall Height
5.875 inches
Overall Length
8.813 inches
Overall Width
5.750 inches
Shaft Diameter
0.500 inches single end
Flatted Portion Length
1.250 inches single end
Flat Depth
0.047 inches single end
Shaft Rotation Direction
Clockwise single end or counterclockwise single end
Duty Cycle
Continuous
Inclosure Feature
DRIPPROOF-15 deg
Winding Type
Induction-squirrel cage
Mounting Method
Fixed base
Mounting Facility Type And Quantity
4 slot
Cooling Method
Self-ventilated
Inclosure Specificationification
Nema
Features Provided
Thermal protective device and horizontal mounting position and vertical mounting position
Frame Size Designation
48A
Power Rating
0.250 horsepower output
Length Of Shaft From Housing
1.500 inches single end
Shaft Center To Mounting Surface Distance
3.000 inches single end
Center To Center Distance Between Mounting Facilities Parallel To Length
2.750 inches
Tempurature Rating
40.0 ambient degrees celsius
Rotor Speed Rating In Rpm
1725.0 single full load
Center To Center Distance Between Mounting Facilities Parallel To Width
4.250 inches
Connection Type And Voltage Rating In Volts
115.0 line to neutral single input
Shaft End Characteristic
A5 single style single end
Phase
Single input
Frequency In Hertz
60.0 input

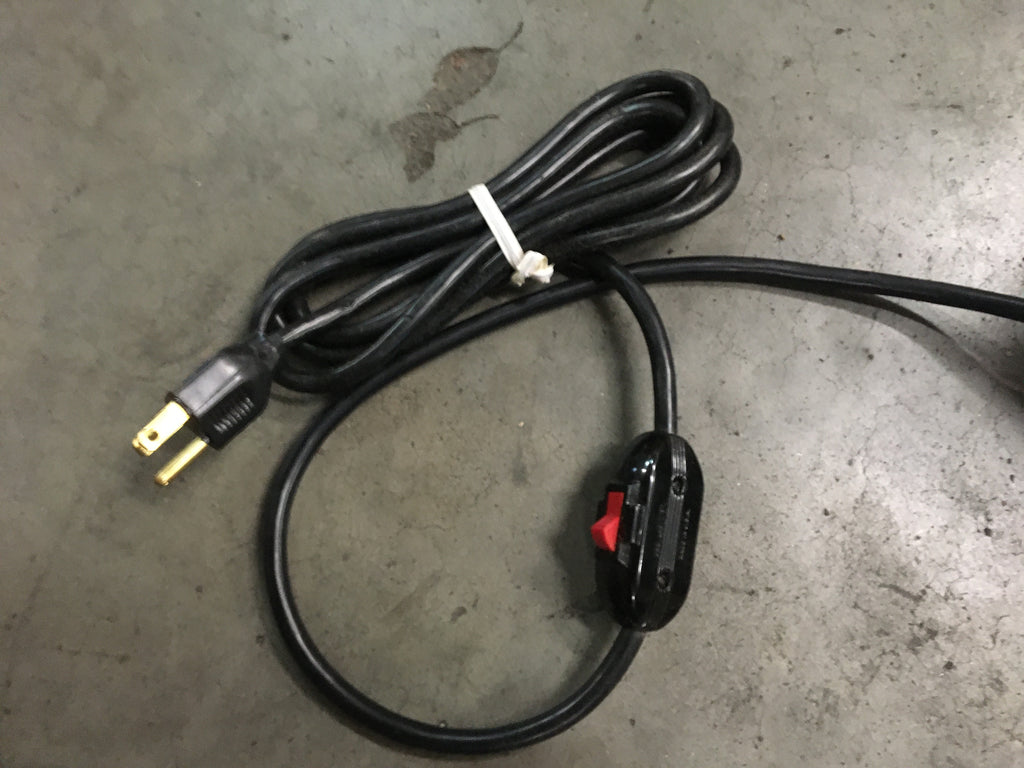

Terminal Type And Quantity
5 wire lead
