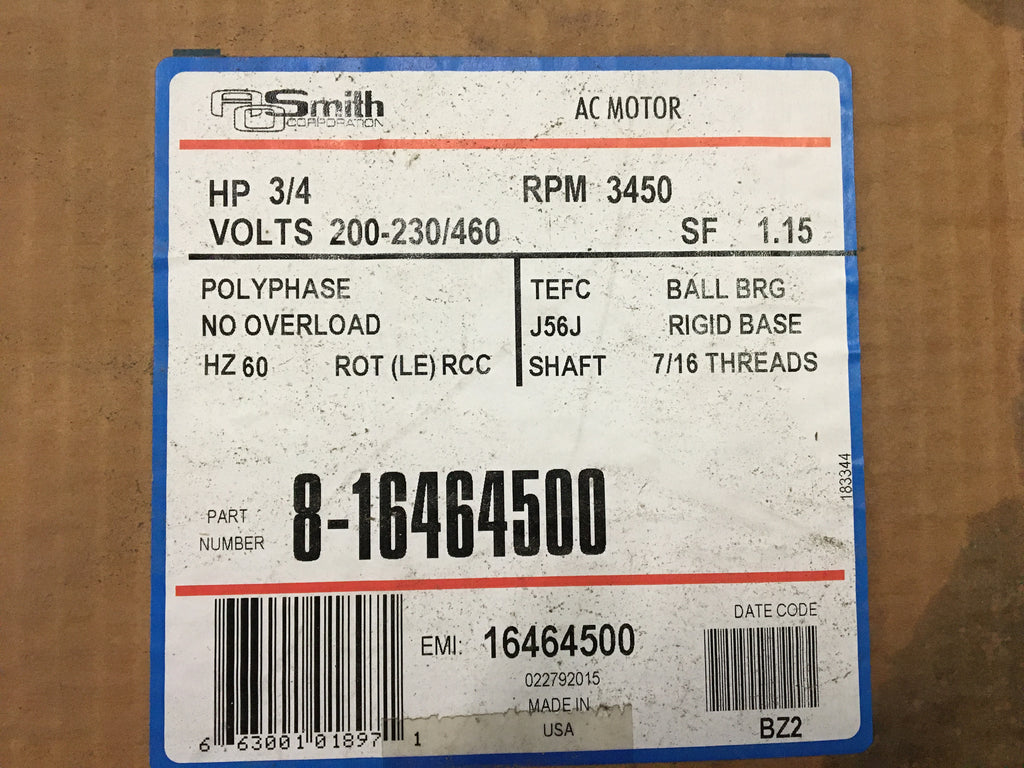

A.O Smith 3/4HP Alternating Current TEFC Motor NSN: 6105-00-439-8264 P/N: 8-164645-00

Regular price $95.00

A motor which is designed for operation from an alternating current source. see also motor, control.

Duty Cycle: Continuous
Connection Type And Voltage Rating In Volts: 208.0 line to neutral low input or 230.0 line to neutral high input or 460.0 line to neutral second multiple input
Cooling Method: Fan cooled
Current Rating In Amps: 2.600 first multiple input or 1.300 second multiple input
Current Rating Method: Load
Features Provided: Vertical mounting position
Frame Size Designation: 56j
Frequency In Hertz: 60.0 input
Mounting Facility Circle Diameter: 5.876 inches
Mounting Facility Type And Quantity: 4 slot
Mounting Method: Face
Nominal Thread Size: 0.438 inches single end
Overall Height: 6.094 inches
Overall Length: 11.312 inches
Inclosure Feature: Totally inclosed
Inclosure Specification: Nema
Length Of Shaft From Housing: 1.938 inches single end
Rotor Speed Rating In Rpm: 3450.0 single full load
Shaft Diameter: 0.625 inches nominal single end
Shaft End Characteristic: A2 single style single end
Shaft Rotation Direction: Clockwise single end or counterclockwise single end
Special Features: 125 microinch finish on surface
Overall Width: 6.500 inches
Phase: Three input
Power Rating: 0.750 horsepower output
Winding Type: Induction-squirrel cage
Temp Rating: 40.0 ambient deg celsius
Terminal Type And Quantity: 1 receptacle
Thread Class: 2a single end
Thread Direction: Right-hand single end
Thread Length: 0.532 inches nominal single end
Thread Quantity Per Inch: 20 single end
Thread Series Designator: Un single end
