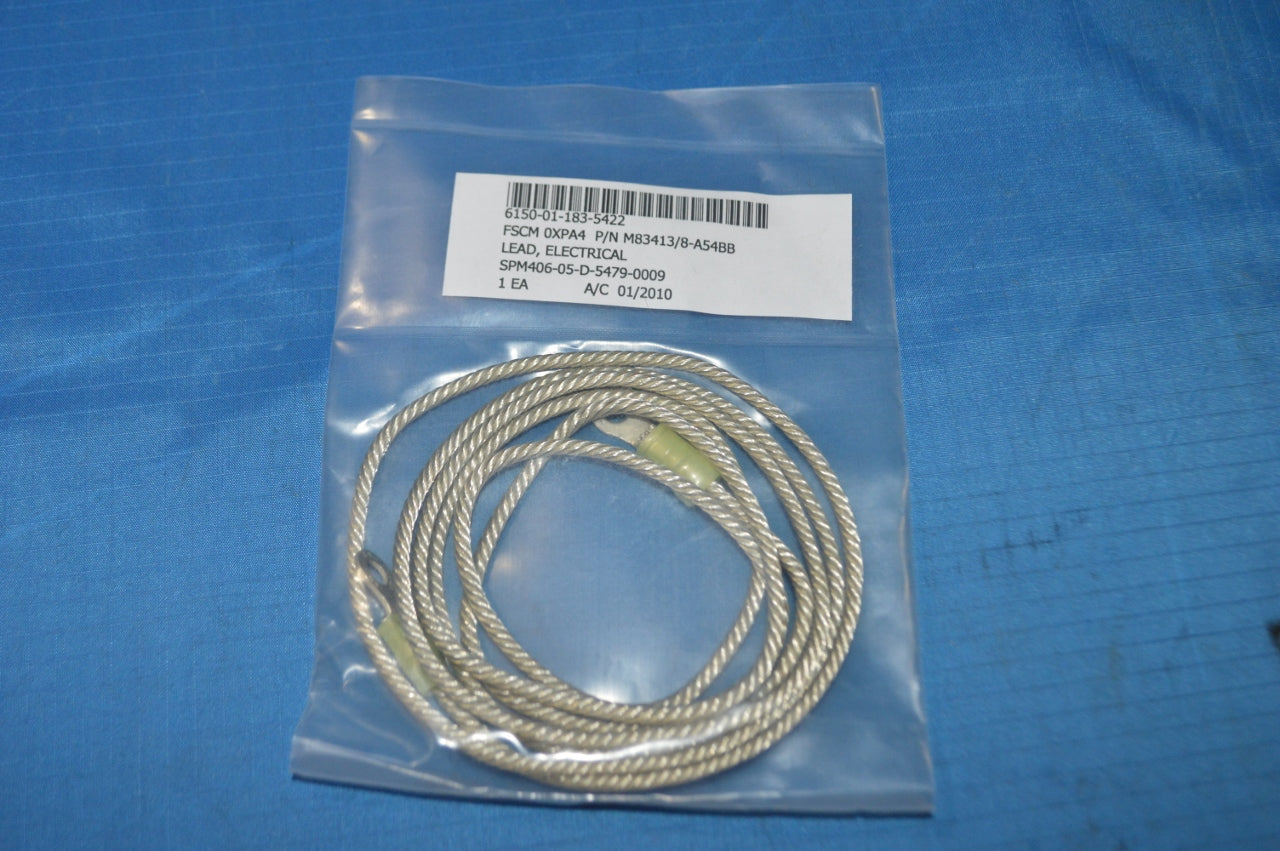

6150-01-183-5422 P/N:M83413/8-A54BB 12awg Electrical Lead
Please fill out the form below for a price quote and availability on this item.
Electrical Lead- A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. the lead may be of any size or shape, insulated or uninsulated. see also lead, test and bus conductor. excludes lead, storage battery; lead, ignition, engine, and items having attached switches, lampholders, suppressors, resistors, and the like.
| Conductor Form: | Stranded single conductor |
| Cross Section Outside Diameter: | 0.081 inches nominal |
| Cross-sectional Shape Style: | Round |
| Material: | Copper core conductor single conductor |
| Lead Overall Length: | 54.000 inches nominal |
| Lead Pull Strength: | 110.0 pounds |
| Round Conductor Size: | 12 awg single conductor |
| Strand Awg Size Per Conductor: | 37 single conductor |
| Strand Quantity Per Conductor: | 7 single conductor |
| Terminal Commercial And Government Entity Code: | 96906 both ends single conductor |
| Terminal Lug Aperture Size: | 0.193 inches 1st end single conductor |
| Terminal Lug Aperture Size: | 0.193 inches 2nd end single conductor |
| Termination Type: | Lug terminal w/mounting hole both ends single conductor |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
