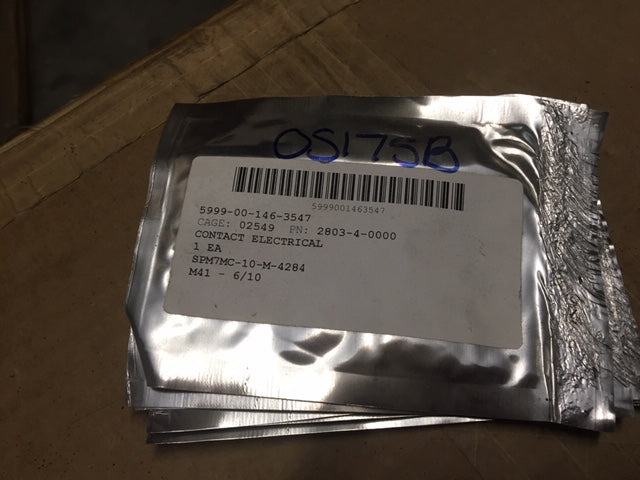

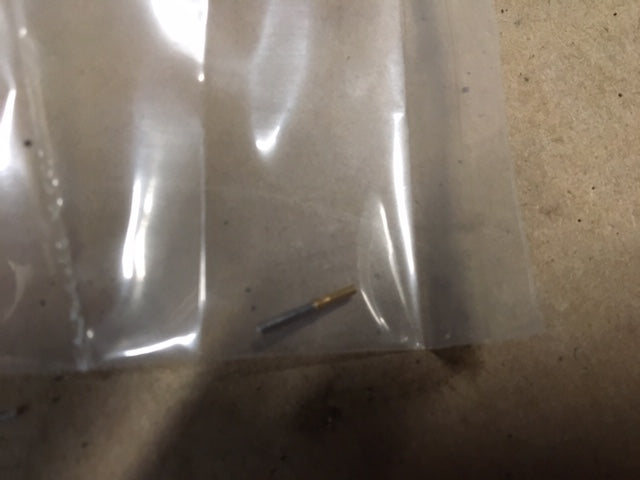

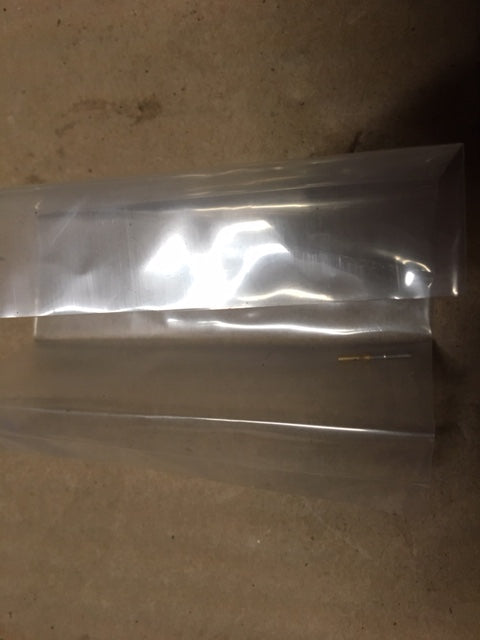

(6 PC) 5 AMP ELECTRICAL CONTACT NSN:5999-00-146-3547 Model: 418-0178-001

Regular price $7.99

Electrical Contact

SKU: 5999001463547 | Model: 418-0178-001
NSN 5999-00-146-3547NSN 5999-00-146-3547

Specifications from the Manufacturer

Overall Length:
0.441 inches minimum and 0.471 inches maximum
Overall Diameter:
0.036 inches minimum and 0.066 inches maximum
Cable Entrance Diameter:
0.042 inches nominal
Pin Accommodation Length:
0.118 inches minimum
Pin Accommodation Diameter:
0.035 inches minimum
Current Rating In Amps:
Mounting Method:
Force fit
Copper alloy body and contact
Material Document And Classification:
Mil-c-39029 mil spec single material response body and contact
Precious Material And Location:
Body and contact surfaces gold
Precious Material And Weight:
0.005 gold grains, troy
Precious Material:
Surface Treatment:
Gold body and contact
Surface Treatment Document And Classification:
Mil-g-45204,type 2,class 1 mil spec single treatment response body and contact
Style Designator:
Socket contact
Terminal Type And Quantity:
1 crimp and solder end opposite contact
