ITT CANNON

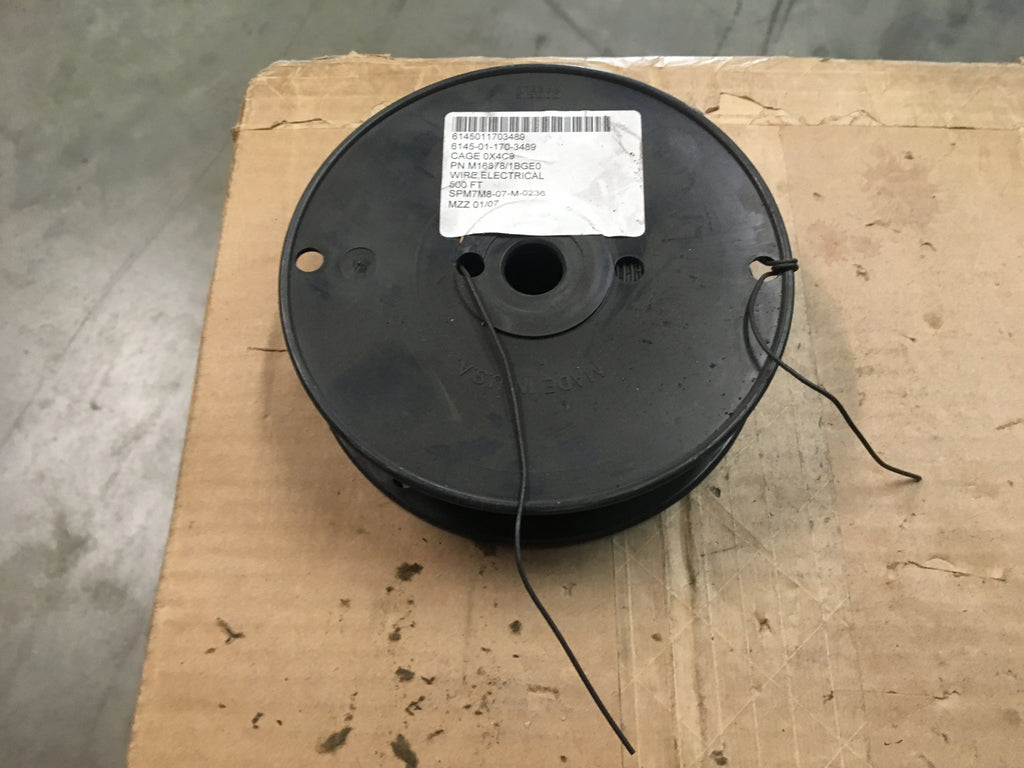

(500FT) Itt Cannon Electrical Wire M16878/1BGE0 Mil-Spec Cable Wire 20AWG 600V
Regular price
$49.99
Electrical Wire

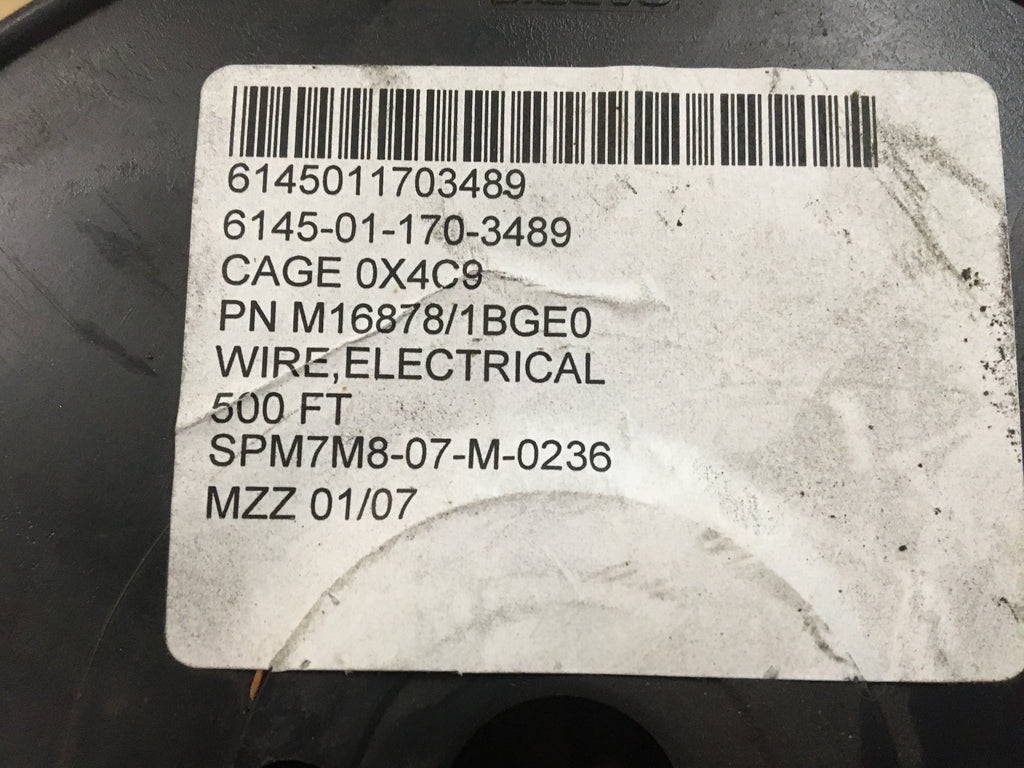

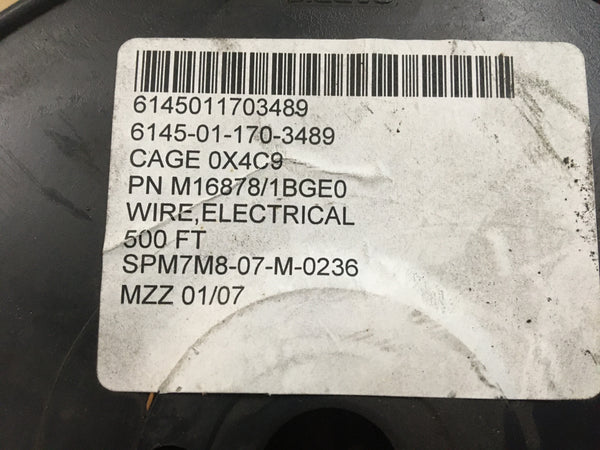

NSN: 6145-01-170-3489 | Model: M16878/1BGE0A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metallic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see wire, (as modified), includes litz wire and insulated/uninsulated armored, and ground wire. Excludes braid, wire; fuse wire; resistance wire and magnet wire.
NSN Properties and Flags
NATO Stock Number
6145-01-170-3489
DEMIL
Yes - ITAR Controlled
Cross Sectional Shape
Round
Tempurature Rating
105.0 degrees celsius
Cross Section Outside Diameter
0.058 inches
Strand Quantity Per Conductor
19 single conductor
Conductor Form
Stranded single conductor
Round Conductor Size
20 awg single conductor
Strand Awg Size Per Conductor
32 single conductor
Voltage Rating
600.0 root mean square (rms) operating voltage single conductor
Color
Black 1ST position cover single conductor
Material
Plastic polyvinyl chloride 1ST position primary insulation single conductor
Material Specification
Astm B33 assn standard all material responses core conductor single conductor
Surface Treatment
Tin core conductor single conductor
Surface Treatment Specification
Astm B33-63 assn standard single treatment response core conductor single conductor
