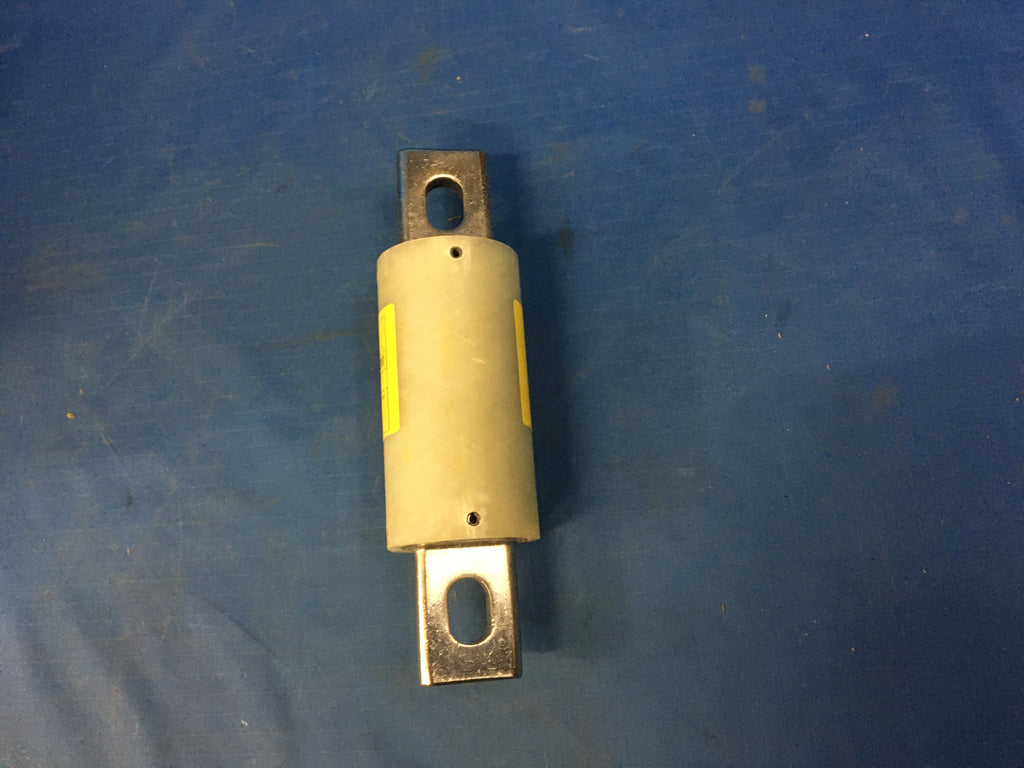

(5) Den-Mar UFR70P-200 Cartridge Fuse NSN:5920-01-121-1141

Regular price $54.99

Cartridge Fuse

NSN:5920-01-121-1141    P/N:UFR70P-200   Model:AA55496-017
ITAR Registered seal

A fuse in which the element is enclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see fuse, enclosed link.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Body Style
Hole type
Terminal Material
Terminal Surface Treatment
Silver plated
Overall Length
5.094 inches
Center To Center Distance Between Mounting Facilities Parallel To Length
4.031 inches
Mounting Hole Diameter
0.406 inches
Overall Diameter
1.500 inches
Case Material
Continuous Current Rating In Amps
Terminal Width
1.000 inches
Terminal Thickness
0.250 inches
Maximum Voltage Rating In Volts
700.0 ac and 700.0 dc
Circuit Over-current Interruption Type
Normal instantaneous
Interruption Indicator Method
Opaque body
Features Provided
Nonrenewable fusible element
Short-circuit/interrupt Current Rating In Amps
Precious Material And Location
Terminal surface silver
Precious Material
