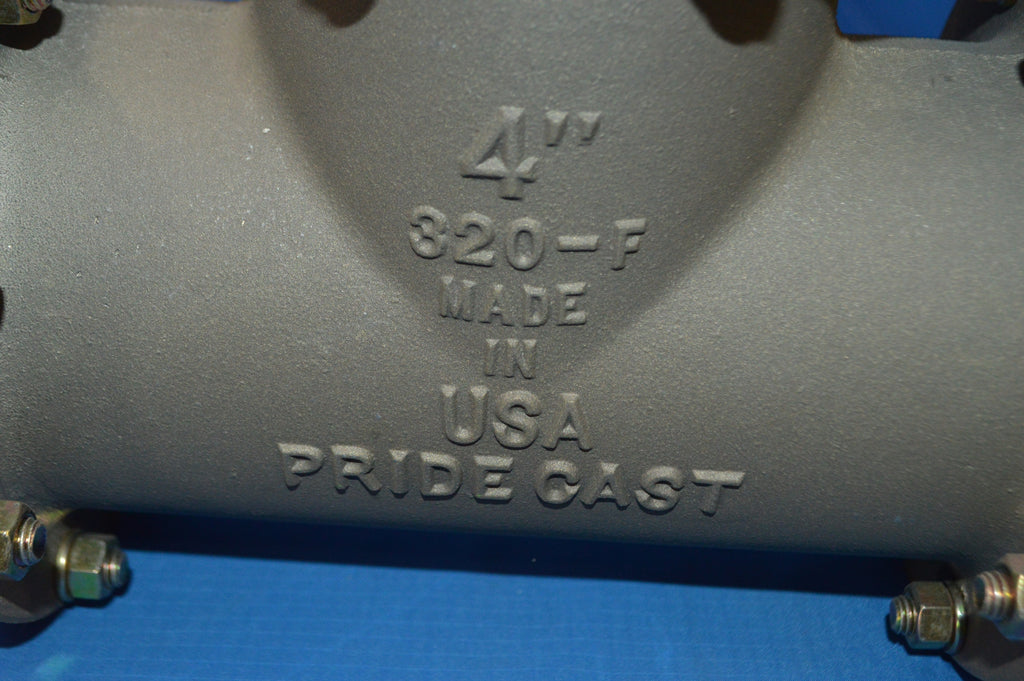

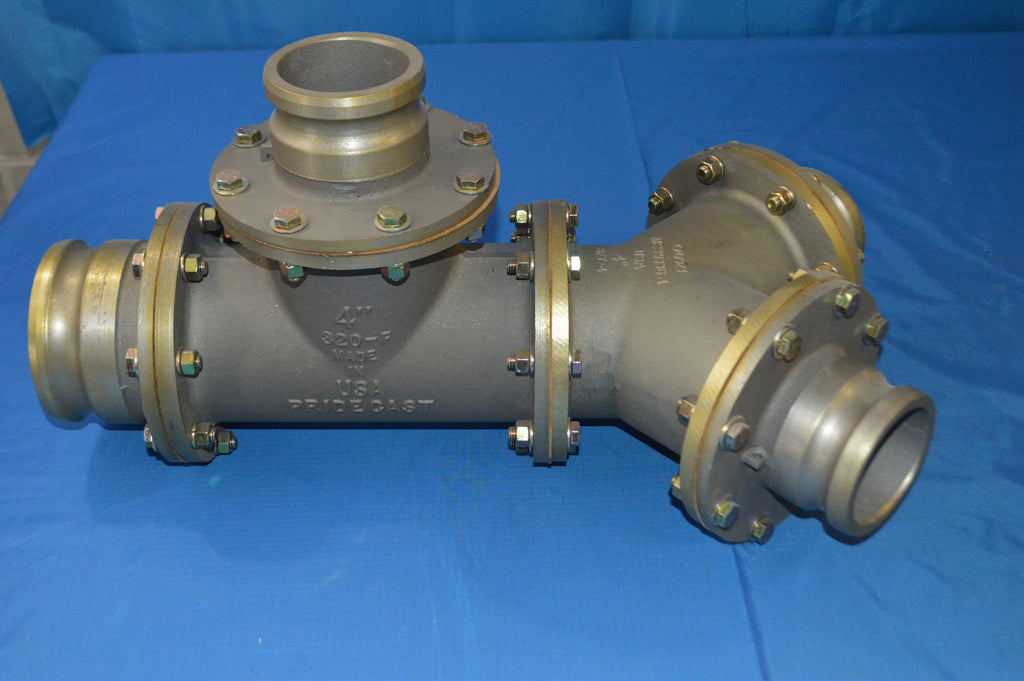

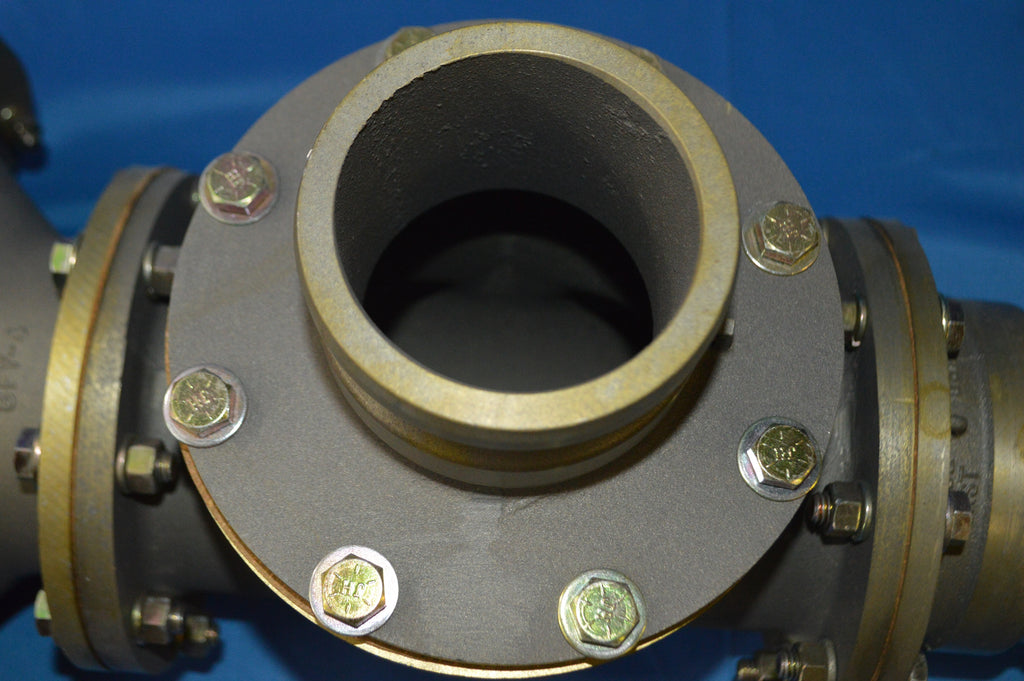

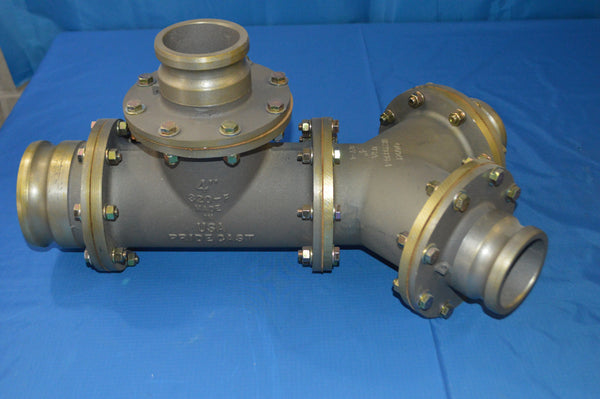

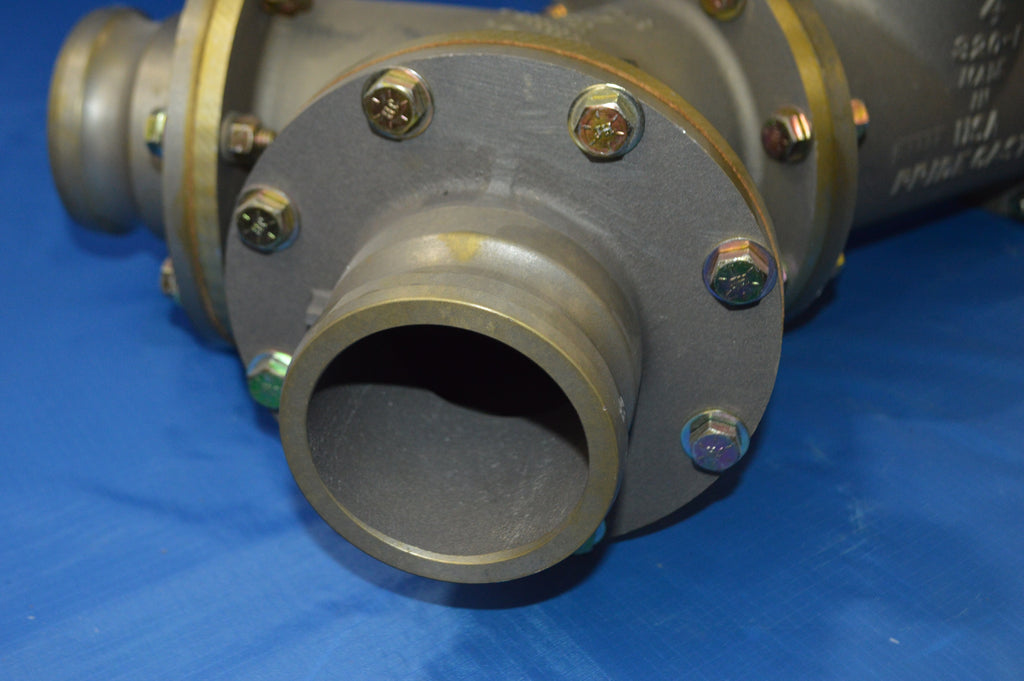

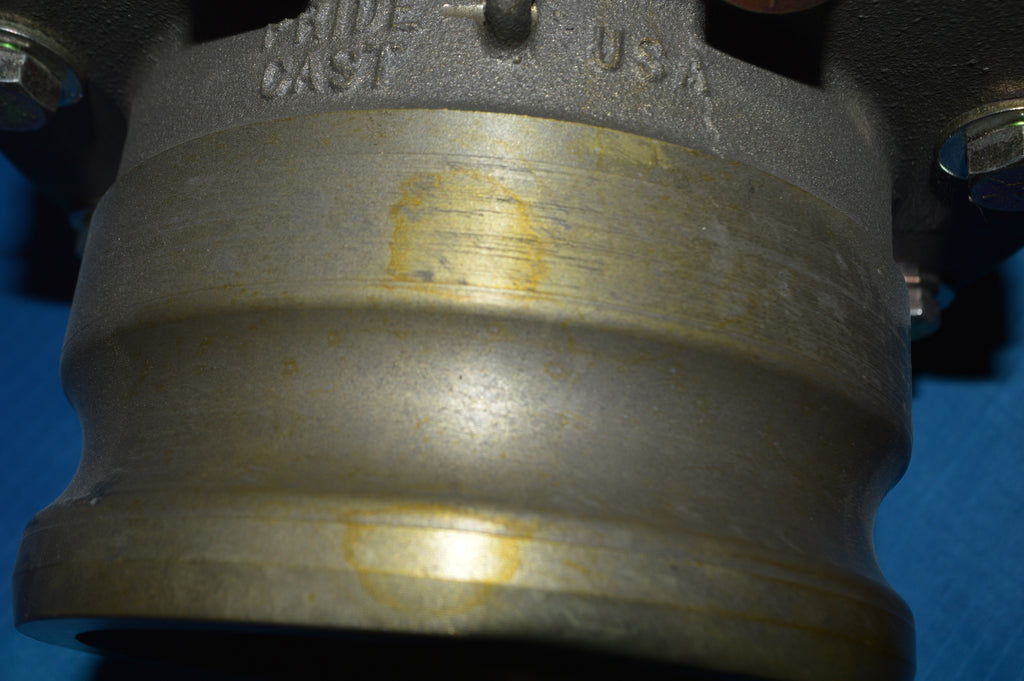

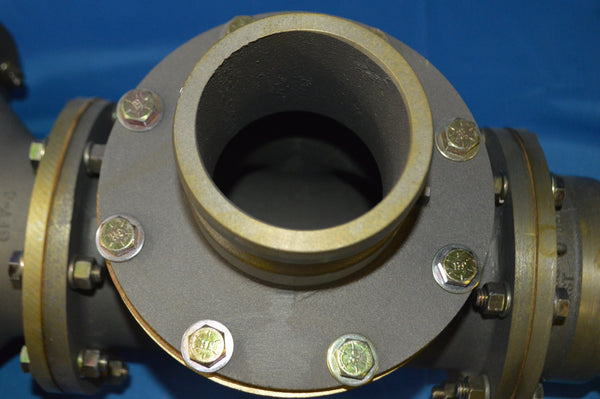

4" Wye Quick Disconnect Pipe NSN:4730-01-235-3264 P/N:MS39336-1

Regular price $259.00

Pipe True Wye

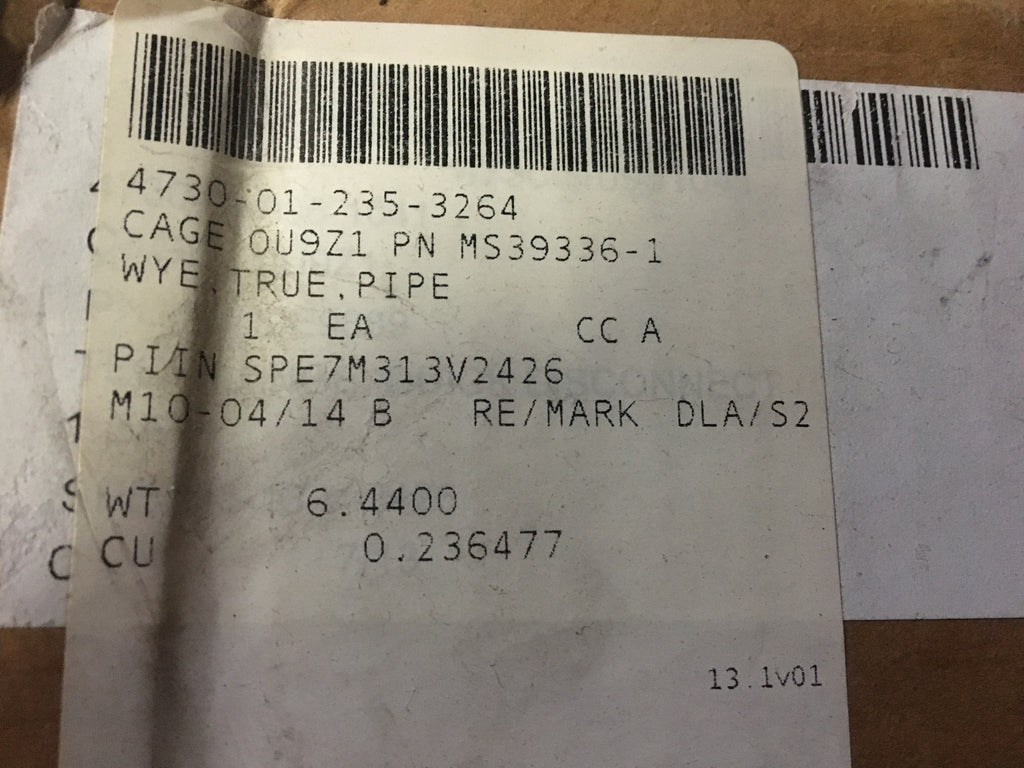

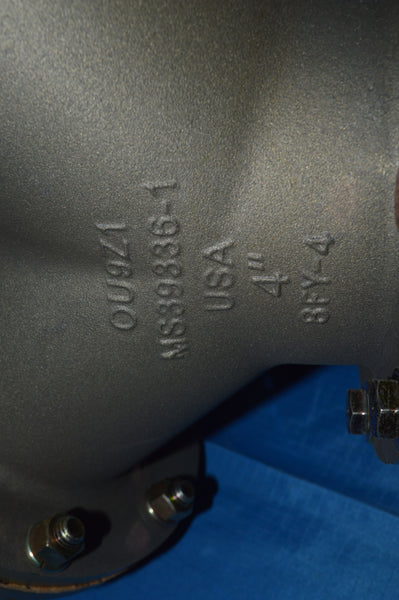

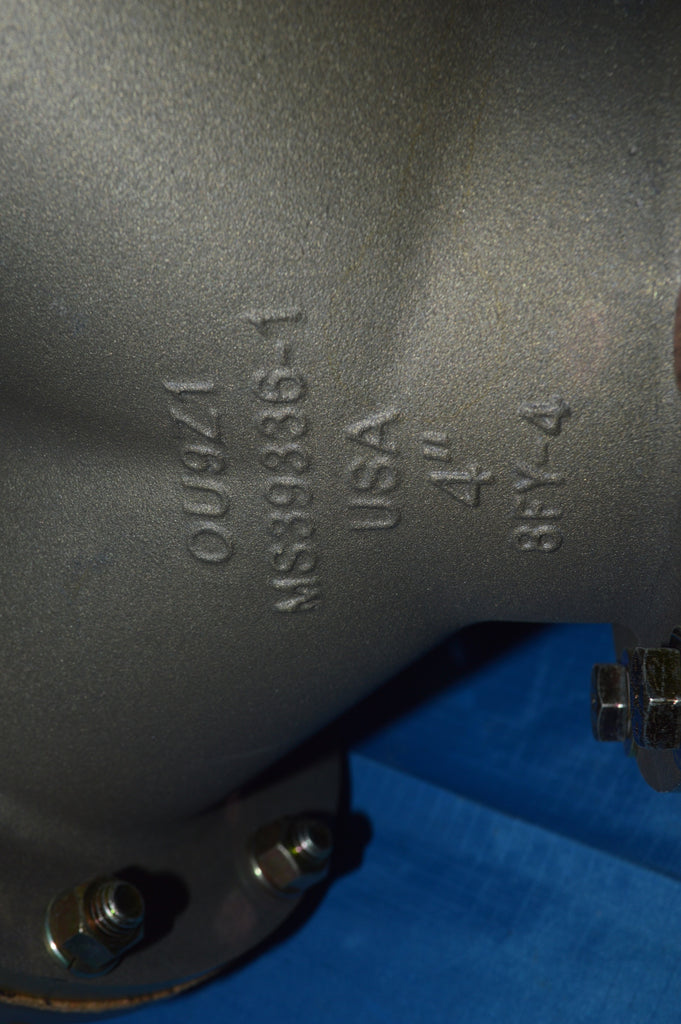

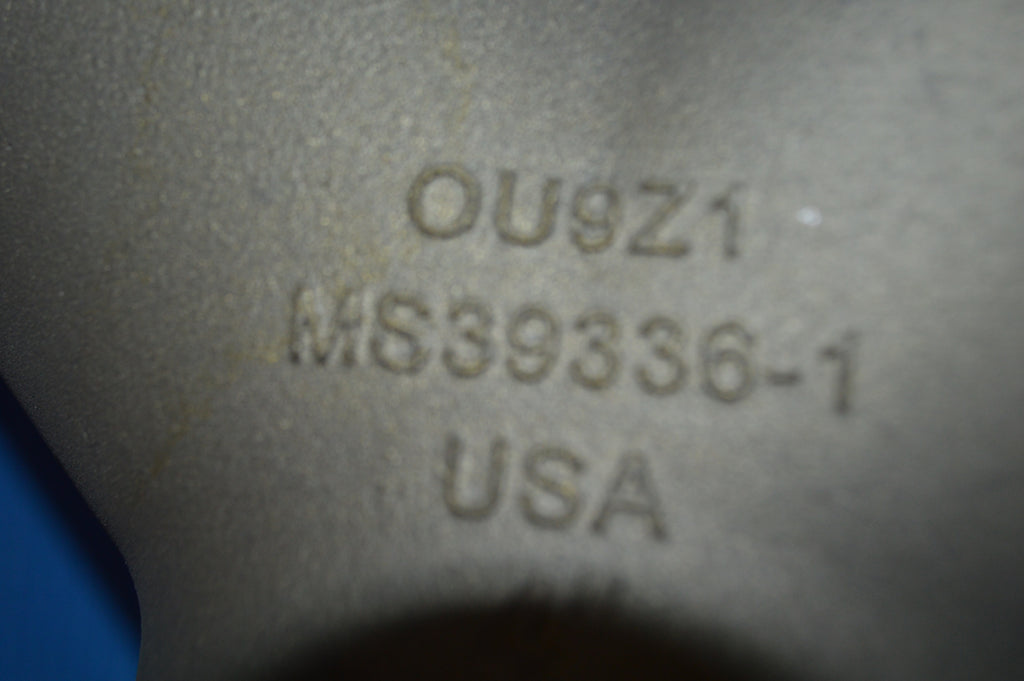

NSN:4730-01-235-3264    P/N:MS39336-1   Model:AA59326XX12
ITAR Registered seal

A fitting in the form of the letter y with each branch usually fixed at 45 degrees (0.78539 radians) to the run. It has identical flanged ends.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Bolt Hole Quantity
8 all ends
Leg Length
4.250 inches 3rd end and 6.000 inches 3rd end
Flange Shape
Round with holes all ends
Connection Type
Flange all ends
Outside Diameter
6.625 inches all ends
0.625 inches all ends
Bolt Hole Diameter
0.875 inches all ends
Bolt Circle Diameter
4.000 inches all ends
Flange Face Design
Plain all ends
Specification Data
96906-ms39336 government standard
