Janor Wire & Cable Corp

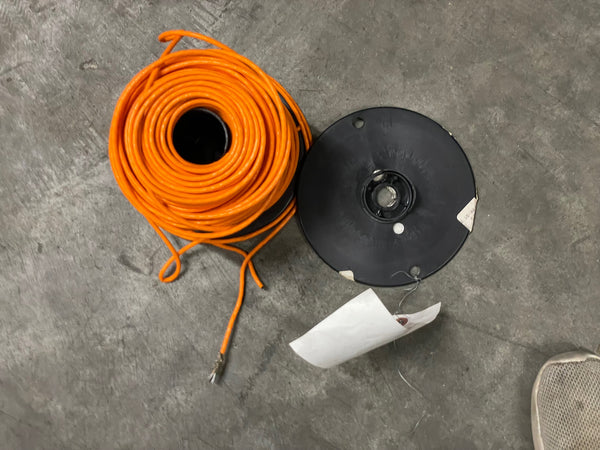

308ft Janor E22C9-0-2-5STW E Special Purpose Cable 22 awg NSN:6145-01-010-4437

Regular price $450.00

Electrical Special Purpose Cable

NSN:6145-01-010-4437  Model:E22C9-0-2-5STW
ITAR Registered seal

Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to cable, telephone; cable, power, electrical; cable, radio frequency or cord, electrical. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see cable assembly, special purpose, electrical.

NSN Properties and Flags
NATO Stock Number
Cross Sectional Shape
Tempurature Rating
-65.0 degrees celsius and 200.0 degrees celsius
Cross Section Outside Diameter
0.162 inches
End Application
Aircraft, f-111
Conductor Quantity
Strand Quantity Per Conductor
19 all conductors
Criticality Code Justification
Conductor Form
Stranded all conductors
Round Conductor Size
22 awg all conductors
Strand Awg Size Per Conductor
34 all conductors
Conductor Arrangement And Quantity
4 singles
Voltage Rating
600.0 root mean square (rms) operating voltage all conductors
Special Features
Weapon system essential
Green 1st position primary insulation fourth conductor
Plastic polytetrafluoroethylene 3rd position jacket cable
Material Specification
Astm b298 assn standard single material response core conductor all conductors
Precious Material And Location
Surface all conductors silver and surface shield braid silver
Precious Material
Surface Treatment
Silver core conductor all conductors
Surface Treatment Specification
Astm b298 assn standard single treatment response core conductor all conductors
Departure From Cited Document
As modified by conductor quantity
