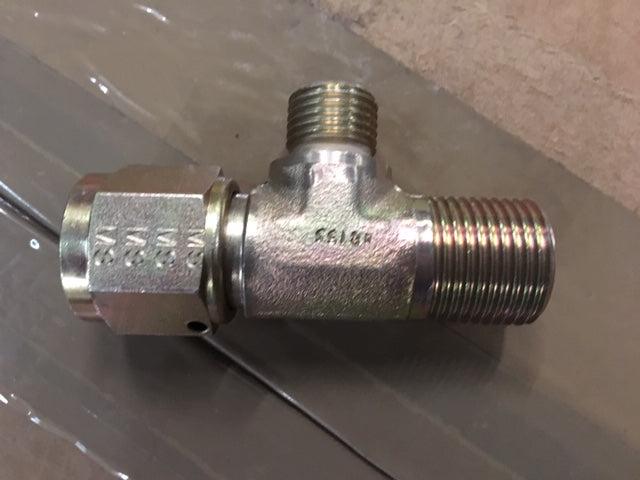

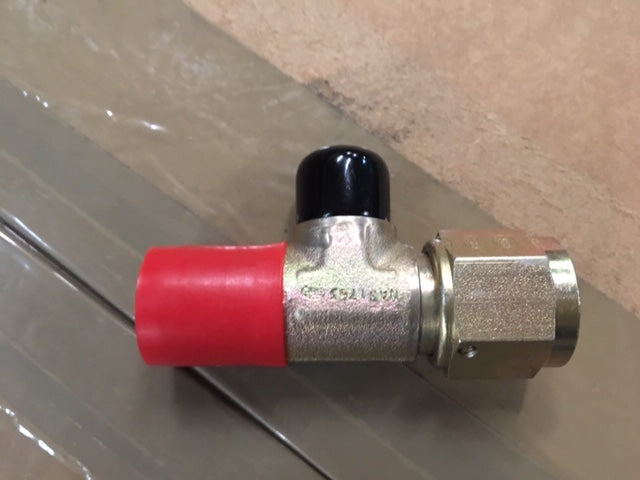

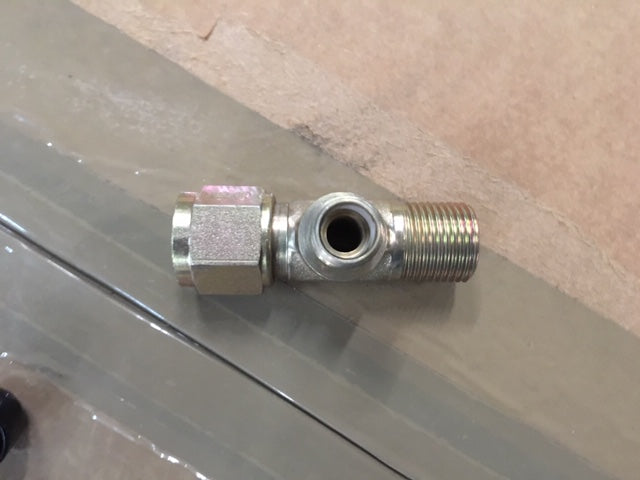

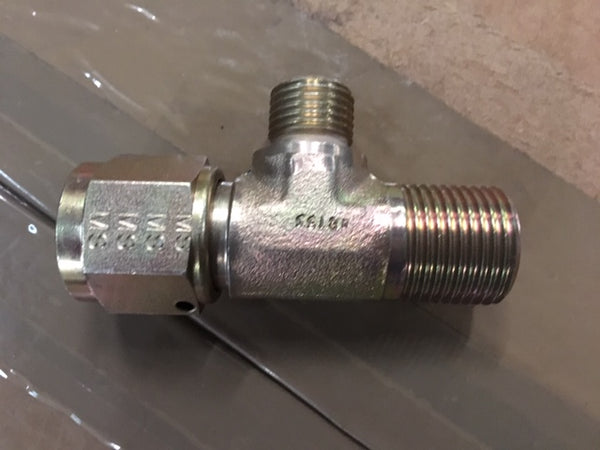

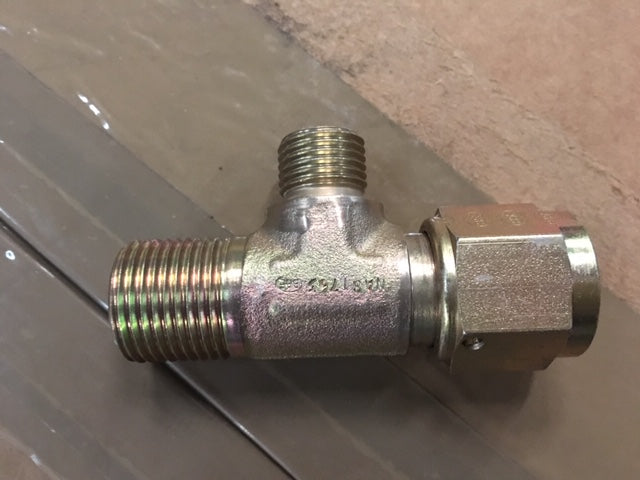

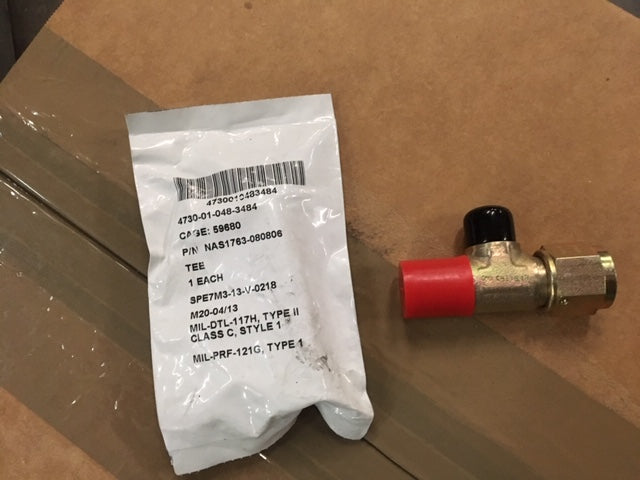

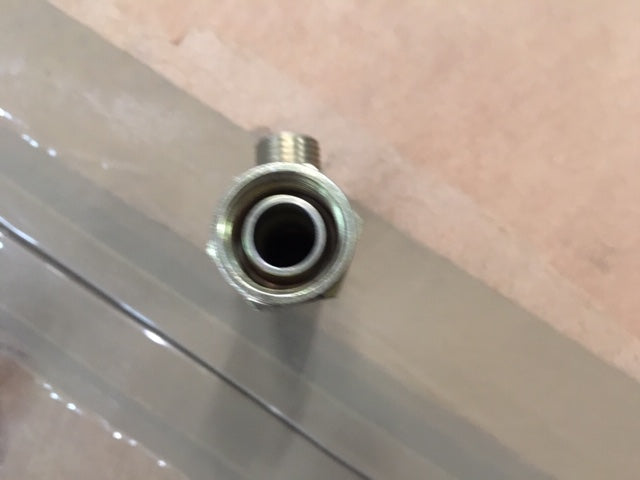

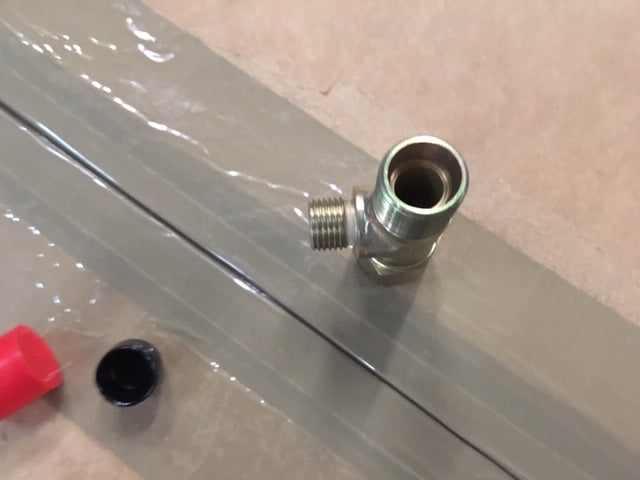

3/8" x 1/2" Tee Tube Alloy Steel Compression Max Swivel Tee Fitting NSN:4730-01-048-3484
Regular price
$22.99
Tube Tee
SKU: 4730010483484 | Model: NAS1763-080806NSN 4730-01-048-3484
Specifications from the Manufacturer
Thread Class:
3a 2nd end
Thread Class:
3b 1st end
Maximum Operating Temp:
-65.0 deg fahrenheit 1st response
Maximum Operating Temp:
275.0 deg fahrenheit 2nd response
Connection Style:
Flareless (tube) 3rd end
Connection Style:
Swivel nut, flareless (swivel nut attachment method optional) (tube) 1st end
Leg Length:
1.143 inches nominal 1st end
Leg Length:
0.971 inches nominal 3rd end
Connection Type:
Threaded external tube 2nd end
Connection Type:
Threaded internal tube 1st end
Maximum Operating Pressure:
3000.0 pounds per square inch single response
Nominal Thread Size:
0.562 inches 3rd end
Nominal Thread Size:
0.750 inches 2nd end
Seat Angle:
12.0 degrees 1st end
Seat Angle:
12.0 degrees 3rd end
Nominal Outside Diameter Tube Accommodated:
0.375 inches 3rd end
Nominal Outside Diameter Tube Accommodated:
0.500 inches 2nd end
Material:
Steel comp 4130 overall or steel comp 1137 overall or steel comp 1141 overall
Material Document And Classification:
Mil-s-6758 mil spec 1st material response overall or qq-s-637 fed spec 2nd material response overall or qq-s-637 fed spec 3rd material response overall
Media For Which Designed:
Aeronautical fluid single response
Surface Treatment:
Cadmium overall
Surface Treatment Document And Classification:
Qq-p-416,type 2,class 2 fed spec single treatment response overall
Thread Series Designator:
Unjf 2nd end
Thread Series Designator:
Unjf 1st end
Specification/standard Data:
80205-nas1763 professional/industrial association standard
