PARKER

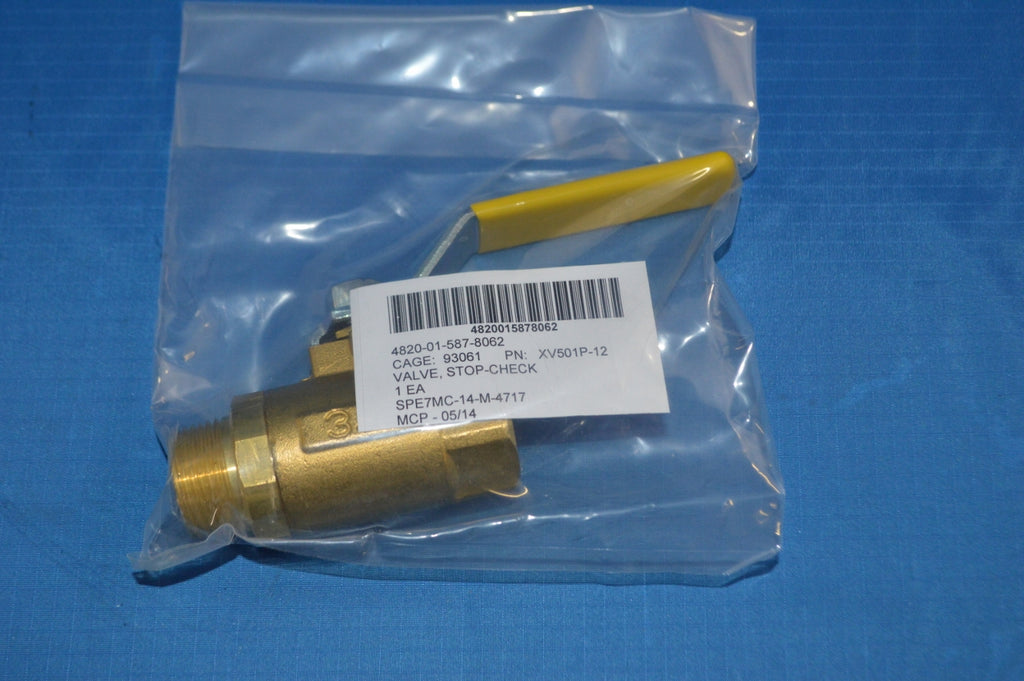

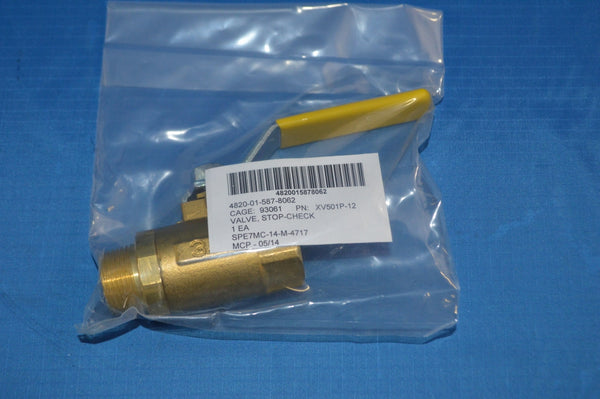

3/4" Stop Check Ball Valve - Parker Hannifin -P/N XV501-P12
Regular price
$5.99
Stop-check Valve
NSN:4820-01-587-8062 Model:XV501P-12A valve with a bolt or stem that may be mechanically actuated to two different positions by rotary or linear motion. In the first position, the valve disk is located and locked against the seat permitting no fluid flow through the valve. In the second position, one side of the valve disk is located against the seat permitting movement of the disk in a manner that will allow a flow of fluid in one direction through the valve. The valve disk may be spring loaded. It may be inline or cartridge (manifold) design. See also valve (1), lift-check and valve (1), stop-lift-check.
NSN Properties and Flags
NATO Stock Number
4820-01-587-8062
DEMIL
NO
Part Name Assigned By Controlling Agency
Stop check valve
Item: Ball Valve
Connection: MNPT x FNPT
Max Pressure: 600 PSI
Max Steam Pressure: 150 PSI
Pipe Size: 3/4"
Material: Brass
Seats: PTFE
Seals: PTFE
Handle: Steel
Temp. Range (F): 0 to 350 Degrees
Length: 5.83"
Standards:ANSI B1.20.3 (DRYSEAL PIPE THREAD)
Weight: 1.05
