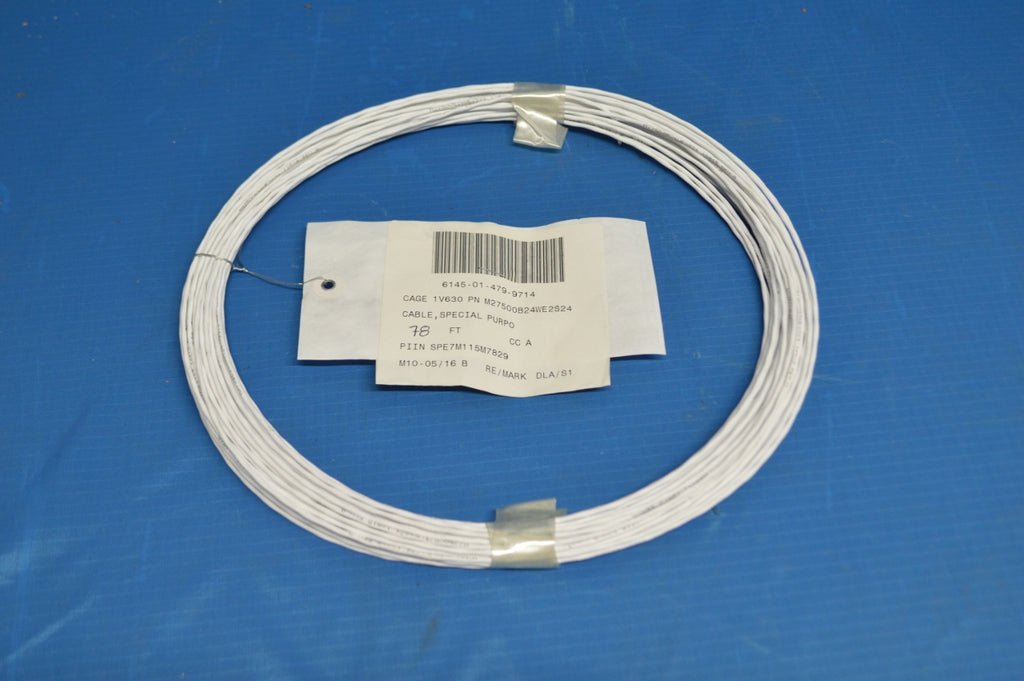

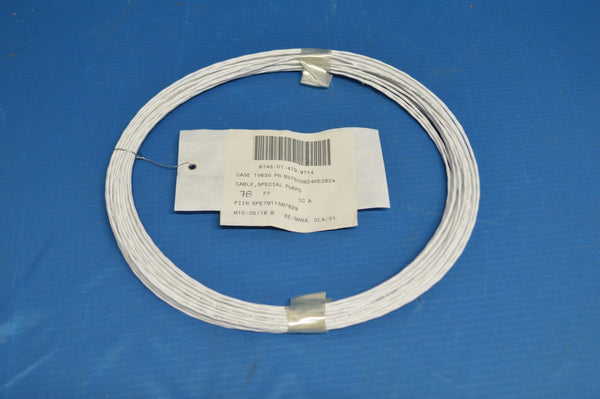

24 AWG Electrical Special Purpose Cable 78FT NSN: 6145-01-479-9714 P/N: M27500B24WE2524

Regular price $69.99

Electrical Special Purpose Cable

SKU: 6145014799714 | Model: NEMA WC27500

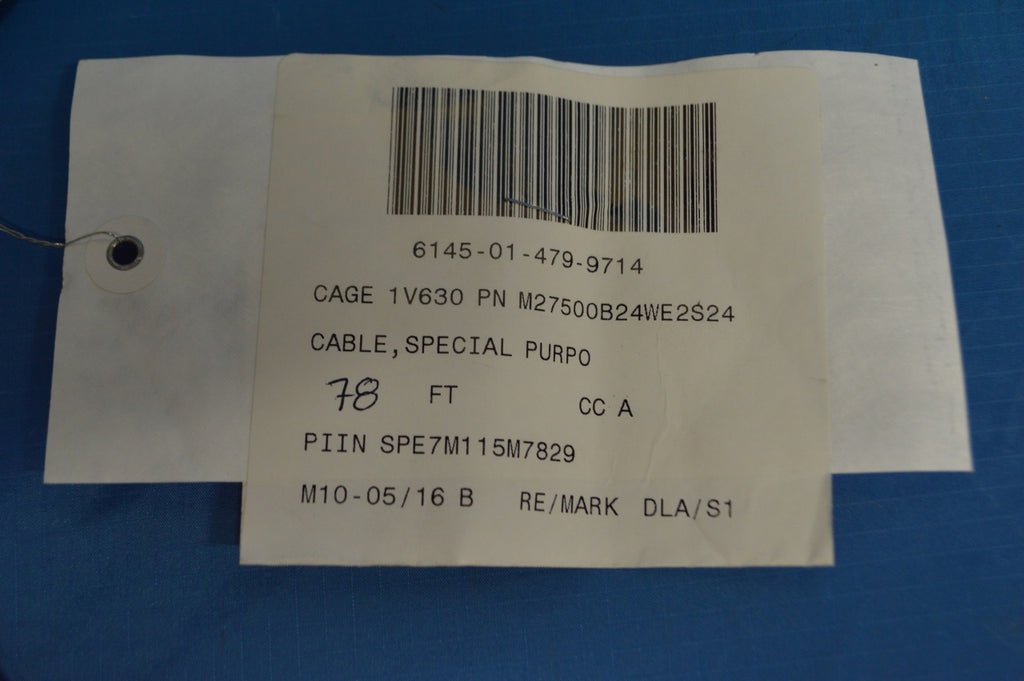

NSN 6145-01-479-9714 NSN 6145-01-479-9714

Specifications from the Manufacturer

Cross-sectional Shape Style:
Twist
Temp Rating:
200.0 deg celsius
Conductor Quantity:
2
Strand Quantity Per Conductor:
19 all conductors
Conductor Form:
Stranded all conductors
Round Conductor Size:
24 awg all conductors
Strand Awg Size Per Conductor:
36 all conductors
Special Features:
Basic wire spec. mil-w-22759/82; not for naval air systems command usage; tape layer of white polytetrafluoroethylene (ptfe) wrapped over a tape layer of natural polyimide combined with fep and heat sealed
Material:
Copper core conductor all conductors
Precious Material And Location:
Shield silver
Precious Material:
Silver
