Tyco Electronics Corp

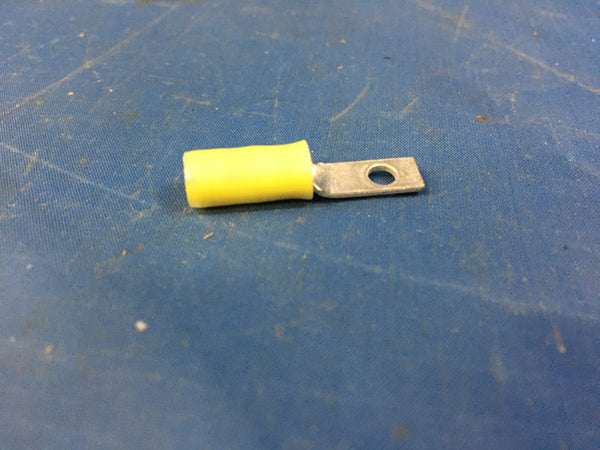

(20) Tyco M7928/2-3 Lug Terminal NSN:5940-01-210-3173

Regular price $4.99

Lug Terminal

NSN:5940-01-210-3173    P/N:M7928/2-3    Model:AS7928/2
ITAR Registered seal

A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. it has provisions for attachment of wir (s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. for post like terminals, see terminal stud. excludes clip, electrical; terminal, quick disconnect and terminal feedthru.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Overall Length
1.281 inches
Overall Width
0.237 inches
Material Thickness
0.041 inches
Maximum Conductor Size Accommodated
12 awg
Electrical Insulation Feature
Insulating sleeve
Mounting Method Style
Straight one hole
Mounting Hole Diameter
0.147 inches
Mounting Tongue Width
0.237 inches
Mounting Facility Thickness
0.041 inches
Identification Code Color
Basic Shape Style
Conductor Accommodation Type
Recessed barrel single end
Distance From Mounting Hole Center To Mounting End
0.195 inches
Plastic insulation
Surface Treatment
Tin single layer
