CORNWELL

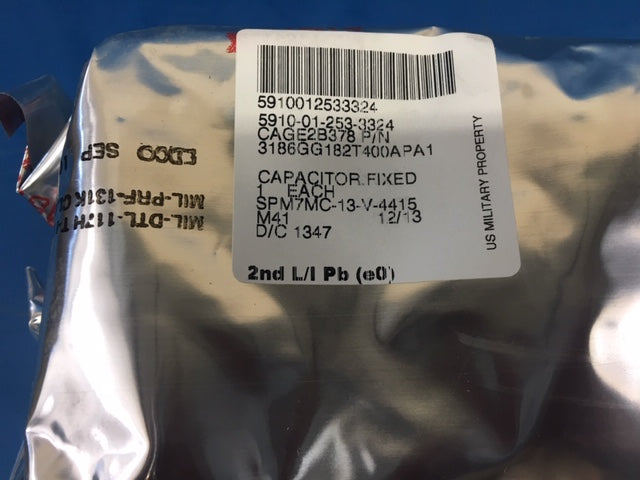

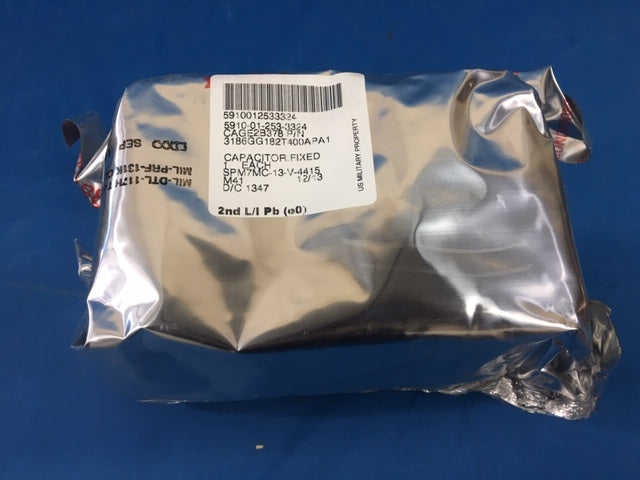

NSN 5910-01-253-3324

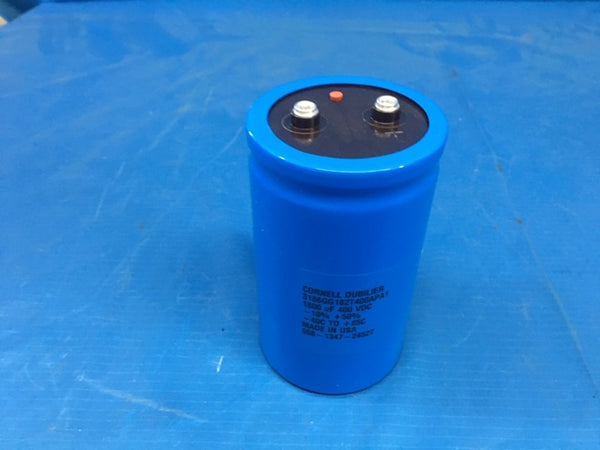

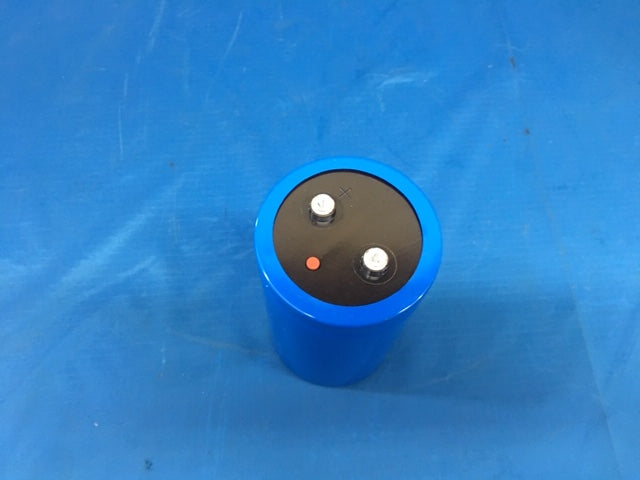

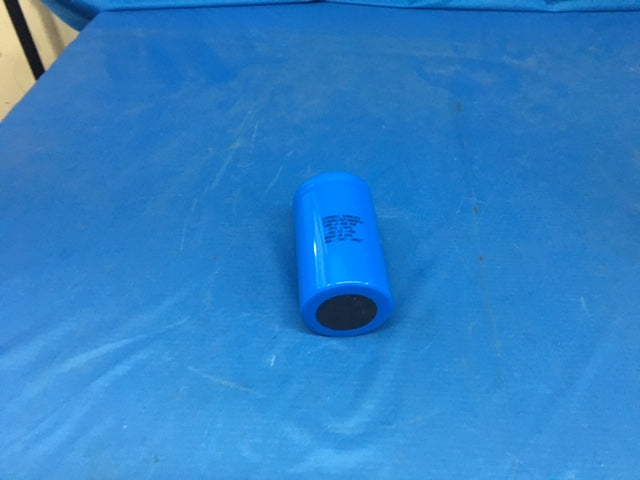

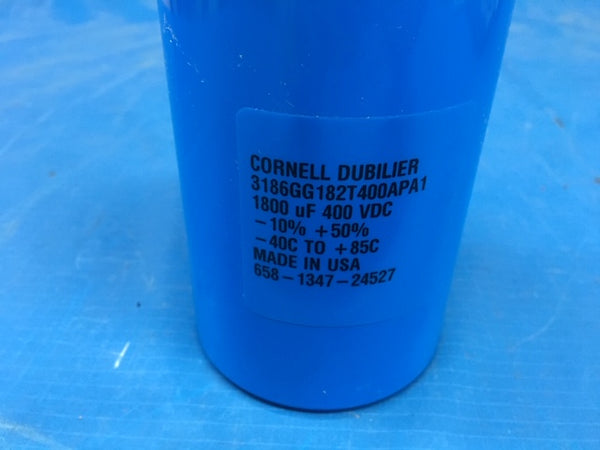

1800 uF 400VDC Large Can Electrolytic Capacitor 3186GG182T400APA1 NSN:5910-01-253-3324
Regular price
$29.99
Electrolytic Fixed Capacitor
SKU: 5910012533324 | Model: 3186GE182T400APA1NSN 5910-01-253-3324
Specifications from the Manufacturer
Body Style:
W/o mtg facilities, terminal(s) on one end
Reliability Indicator:
Not established
Terminal Length:
0.281 inches nominal
Body Diameter:
3.032 inches nominal
Body Length:
5.141 inches nominal
Center To Center Distance Between Terminals Parallel To Diameter:
1.250 inches nominal
Terminal Diameter:
0.190 inches nominal
Schematic Diagram Designator:
No common or grounded electrode(s)
Anode Type:
Plain foil
Impedance At Minimum Operating Temp In Ohms:
1.5
Electrical Polarization:
Polarized
Capacitance Value Per Section:
1800.000 microfarads single section
Nonderated Operating Temp:
-55.0 deg celsius minimum and 85.0 deg celsius maximum
Dc Leakage At Maximum Operating Temp:
7.1 milliamperes
Nonderated Continuous Voltage Rating And Type Per Section:
350.0 dc single section
Tolerance Range Per Section:
-10.00/+50.00 percent single section
Case Material:
Metal
Capacitive Electrode Material:
Aluminum
Equivalent Series Resistance At Reference Temp In Ohms:
0.11
Dc Leakage At Reference Temp:
1.190 milliamperes
Case Insulation Material:
Plastic
Test Data Document:
81349-mil-c-39018 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Terminal Type And Quantity:
2 threaded hole
Specification/standard Data:
81349-mil-c-39018/4 government specification
