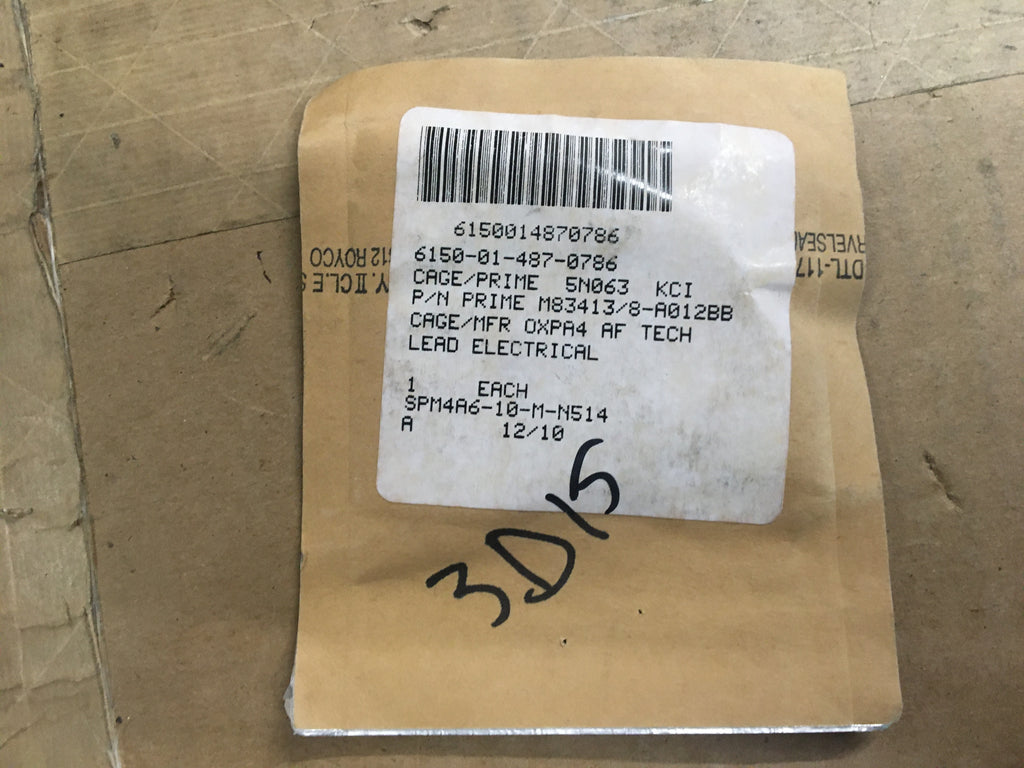

12awg Electrical Lead NSN:6150-01-487-0786 Model:M83413/8-A012BB

Regular price $3.99

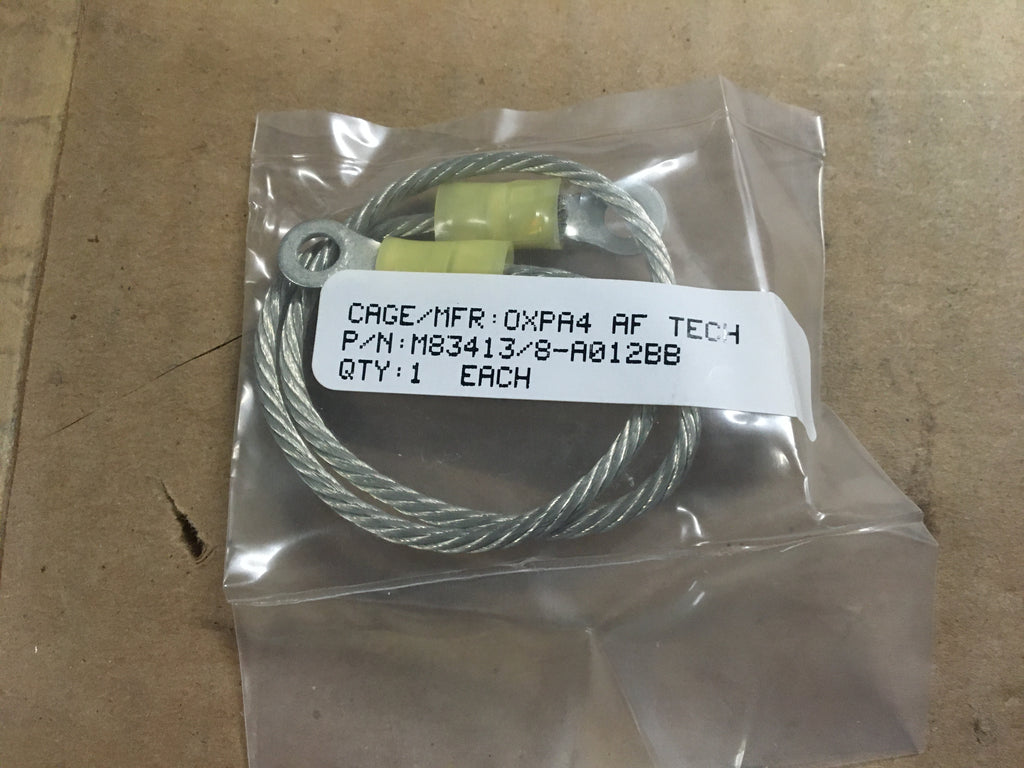

Electrical Lead

NSN: 6150-01-487-0786 | Model: M83413/8-A012BB
ITAR Registered seal

A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. The lead may be of any size or shape, insulated or uninsulated. See also lead, test and bus conductor. Excludes lead, storage battery; lead, ignition, engine, and items having attached switches, lampholders, suppressors, resistors, and the like.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Cross Sectional Shape
End Application
Apache helicopter, AH-64
Termination Type
Lug terminal w/mounting hole both ends single conductor
12.000 inches
Strand Quantity Per Conductor
7 single conductor
Conductor Form
Stranded single conductor
Round Conductor Size
12 awg single conductor
Strand Awg Size Per Conductor
37 single conductor
Terminal Lug Aperture Size
0.260 inches both ends single conductor
Copper core conductor single conductor
Test Data Document
81349-MIL-C-83413 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
81349-MIL-C-83413/8 government specification
