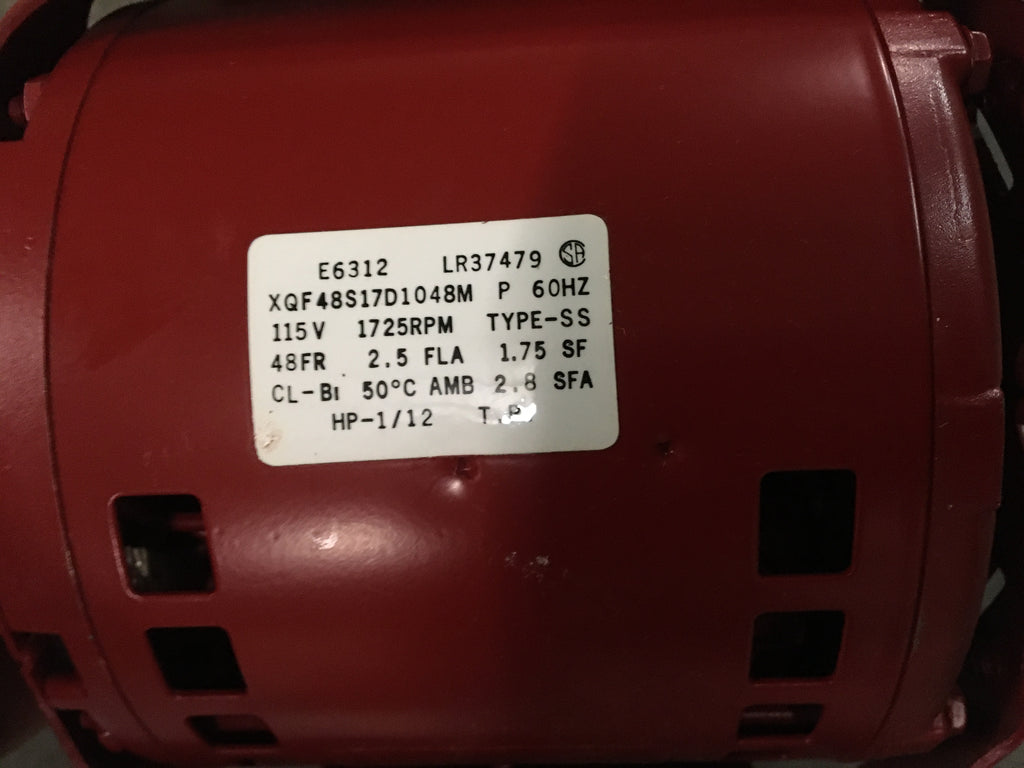

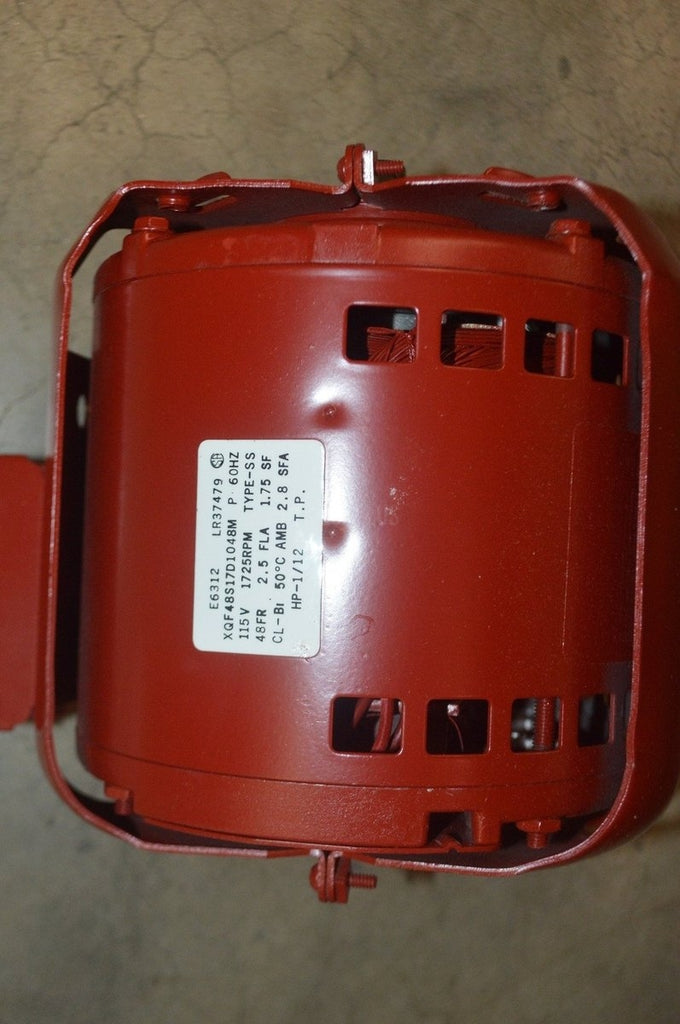

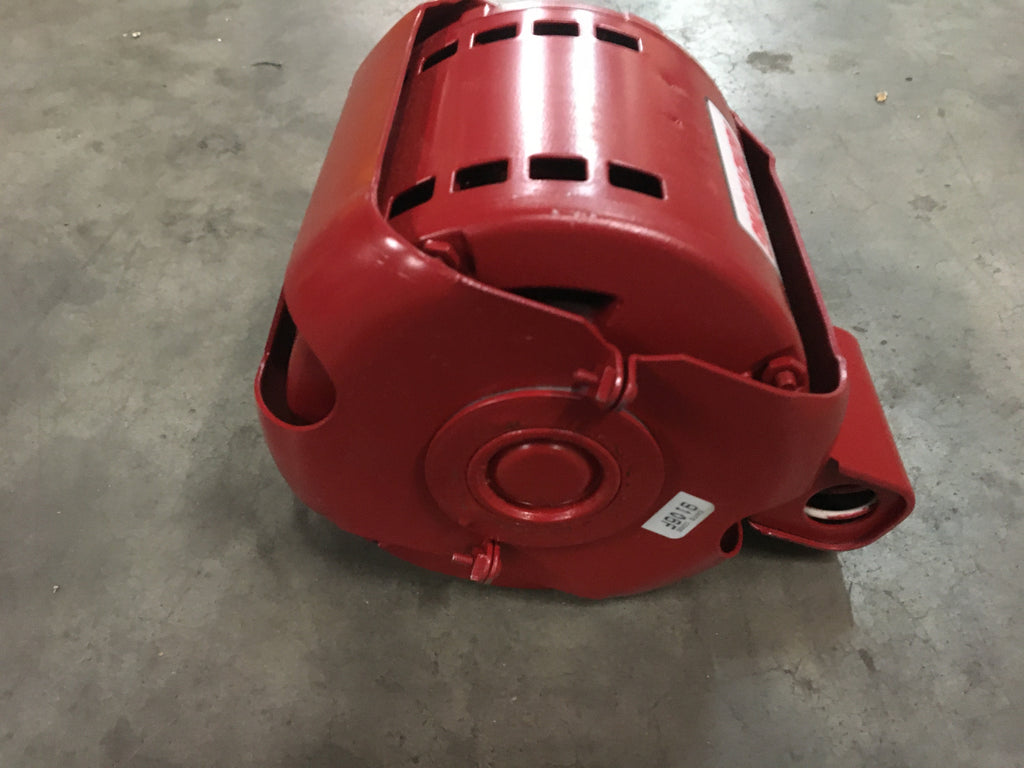

Armstrong 805316-010 AC Motor,1/12HP,1PH,115V,1725RPM NSN:6105-01-044-4123 P/N:1BR790-8-TB-BPS

Please fill out the form below for a price quote and availability on this item.

Alternating Current Motor

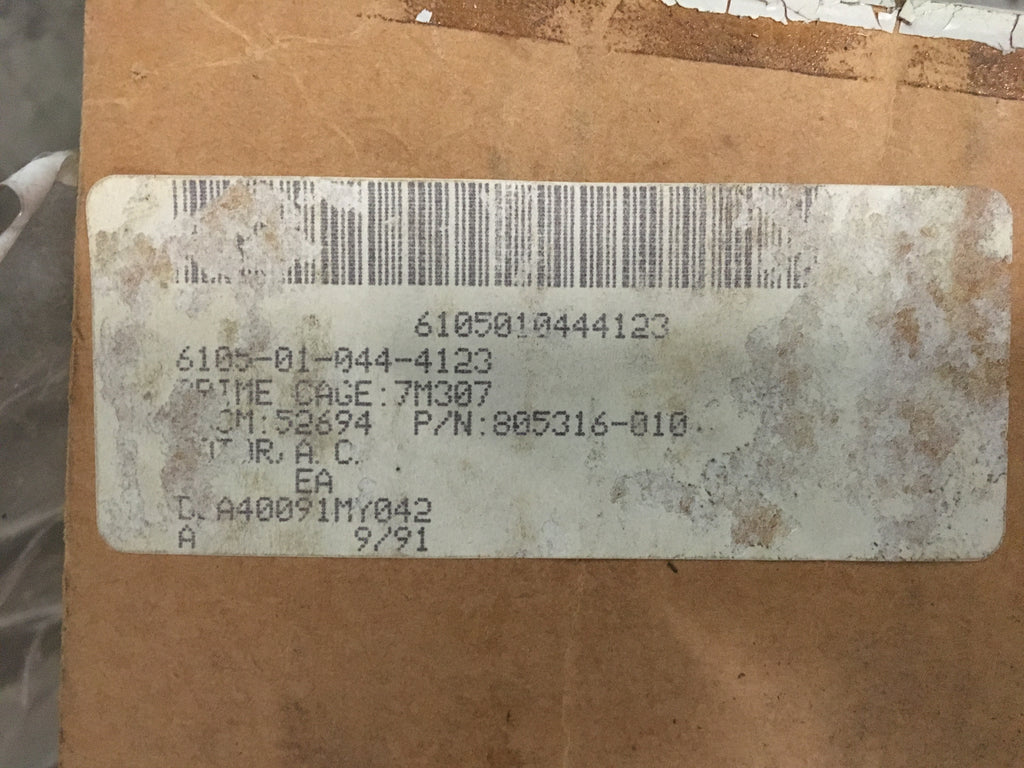

NSN:6105-01-044-4123  CAT:805316-010  Model:1BR790-8-TB-BPS

ITAR Registered seal

A motor which is designed for operation from an alternating current source. See also motor, control.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Overall Length
8.000 inches
Overall Width
5.000 inches
Hole Diameter
0.1900 inches single end
Hole Depth
0.5000 inches single end
Shaft Diameter
0.5000 inches single end
Hole Center To Shaft End Distance
0.3750 inches single end
Shaft Rotation Direction
Counterclockwise single end
Duty Cycle
Inclosure Feature
Specific Use
Boost model no. 75, no. 100, no. 125, no. 150 and model B75, B100, B125, B150
Winding Type
Induction-single value capacitor split phase
Mounting Method
Resilient cradle
Mounting Facility Type And Quantity
4 unthreaded hole
Cooling Method
Natural convection ventilated
Current Rating Method
Inclosure Specificationification
Features Provided
Thermal protective device and vertical mounting position
Power Rating
0.0833 horsepower output
Tempurature Rating
40.0 operating degrees celsius
Rotor Speed Rating In Rpm
1750.0 single full load
Current Rating In Amps
0.142 single input
Connection Type And Voltage Rating In Volts
115.0 line to neutral single input
Shaft End Characteristic
A13 single style single end
Single input
Frequency In Hertz
60.0 input
Terminal Type And Quantity
2 wire lead

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
