Tyco Electronics Corporation

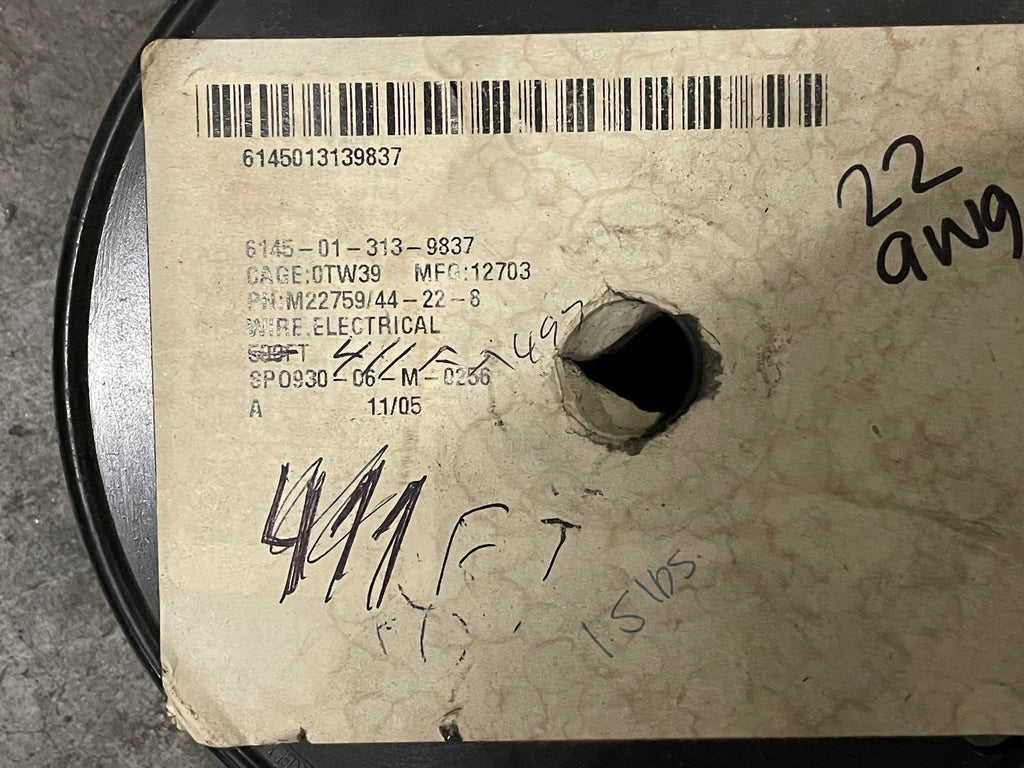

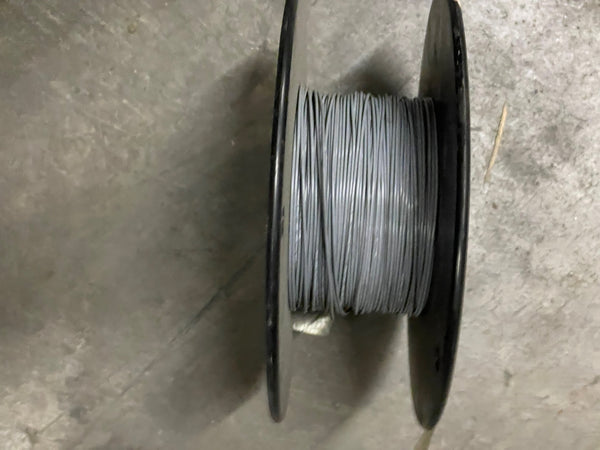

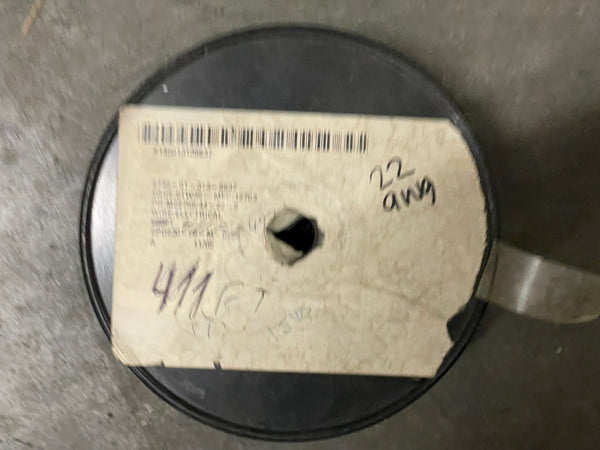

411FT M22759/44-22-8 Tyco Electrical Wire NSN:6145-01-313-9837 22AWG

Regular price $1,200.00

Electrical Wire

NSN:6145-01-313-9837  P/N:M22759/44-22-8   Model:AS22759/44
ITAR Registered seal

A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see wire, (as modified), includes litz wire and insulated/uninsulated armored, and ground wire. Excludes braid, wire; fuse wire; resistance wire and magnet wire.

NSN Properties and Flags
NATO Stock Number
Cross Sectional Shape
Cross Section Outside Diameter
0.043 inches
Strand Quantity Per Conductor
19 single conductor
Conductor Form
Stranded single conductor
Round Conductor Size
22 awg single conductor
Strand Awg Size Per Conductor
34 single conductor
Gray 1st position cover single conductor
Silver 1st position conductor single conductor
Test Data Document
81349-mil-w-22759 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
