Titan Transformer B22227 Power Transformer NSN:5950-00-474-6347

Regular price $259.99

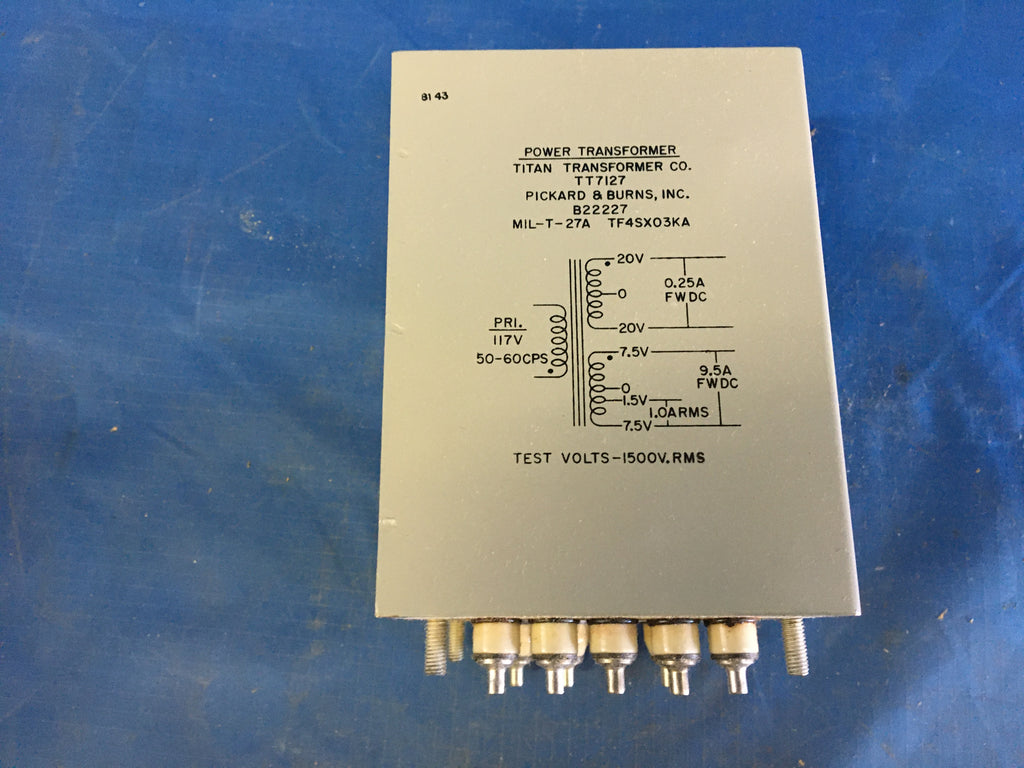

Power Transformer

NSN: 5950-00-474-6347 | Model: B22227
ITAR Registered seal

A transformer consisting of one or more primary windin (s) and one or more secondary winding(s). It may be designed for direct connection to an alternating current source for purposes of changing the secondary volts and amperes or designed to eliminate metallic interconnection between circuits in an one to one voltage ratio, with or without additional output windings, or items designed to automatically maintain a constant output voltage within specified limits under varying input or load conditions. Also includes items having a provision for mechanically changing the turns ratio or inductive coupling in progressive increments by means of voltage taps, ratio adjuster, or devices oe similar design. For transformers having winding(s) common to both input and output circuits, see transformer (1), power, autotransformer. Excludes transformer (1) , pulse.

NSN Properties and Flags
NATO Stock Number
5950-00-474-6347
DEMIL
NO
Reliability Indicator
Not establishednot established
Center To Center Distance Between Mounting Facilities Parallel To Length
3.000 inches single mounting facility single center group3.000 inches single mounting facility single center group
Center To Center Distance Between Mounting Facilities Parallel To Width
2.438 inches single mounting facility single center group2.438 inches single mounting facility single center group
Frequency Rating
50.0 hertz single component or 50.0 hertz single component or 60.0 hertz single component60.0 hertz single component
Input-output Phase Relationship
Single phase to single phase single componentsingle phase to single phase single component
Body Length
3.937 inches 3.937 inches
Body Width
3.375 inches 3.375 inches
Body Height
5.250 inches 5.250 inches
Inclosure Type
Hermetically sealedhermetically sealed
Mounting Facility Quantity
4 single group4 single group
Mounting Method
Threaded stud single groupthreaded stud single group
Winding Function And Quantity
1 primary single component and 1 primary single component and 2 secondary single component2 secondary single component
Thready Qty Per Inch (tpi)
32 single group32 single group
Thread Size
0.190 inches single group0.190 inches single group
Winding Operating Current
9.5 amperes ac single component 1st secondary
Winding Operating Voltage
6.00 ac volts single component 1st secondary and 15.00 ac volts single component 1st secondary
Thread Series Designator
Unf single group
Terminal Type And Quantity
9 tab, solder lug
