NATO Stock Number

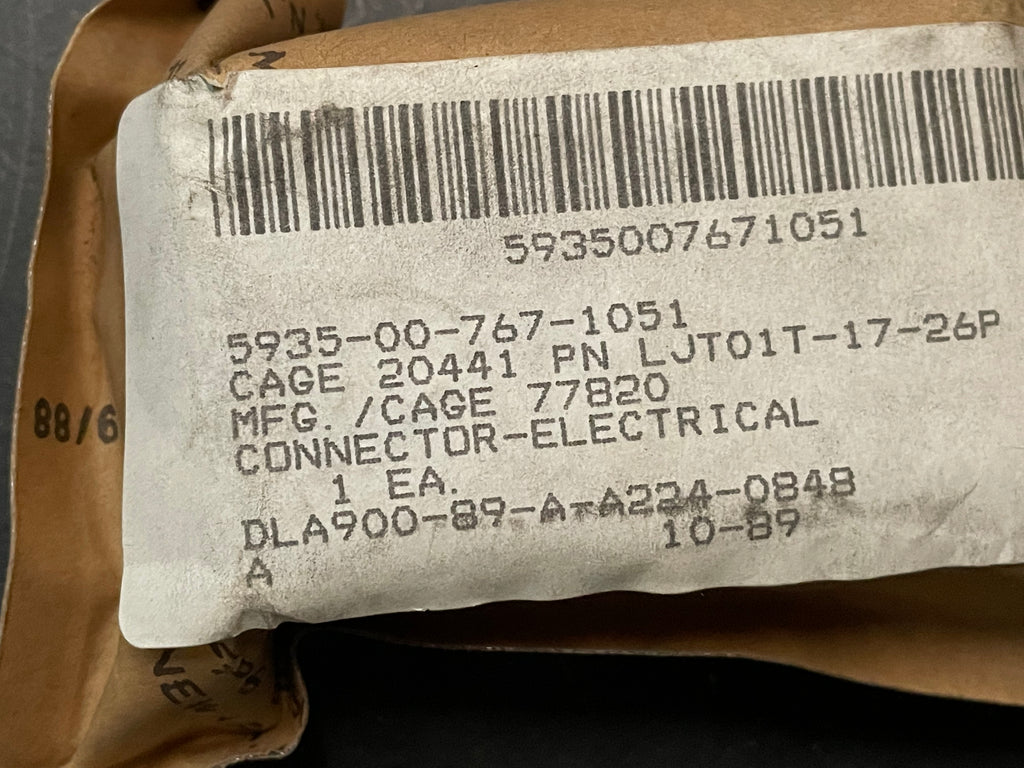

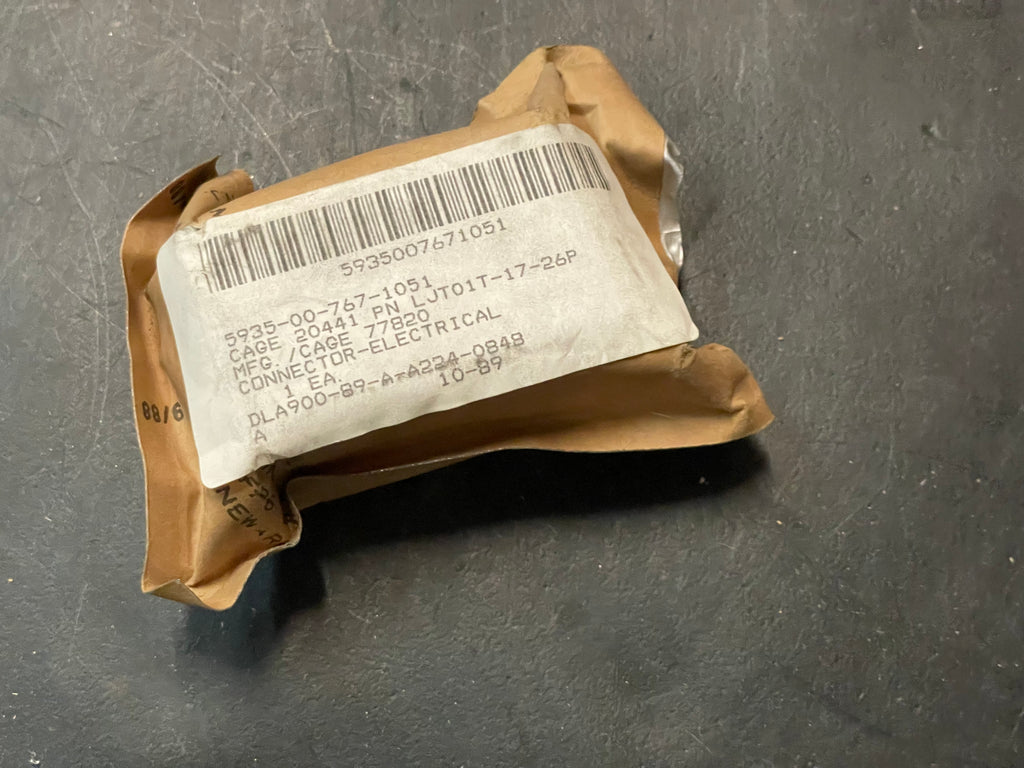

5935-00-767-1051
DEMIL
NO
Thread Class
2a
Thread Direction
Right-hand
Body Style
Straight shape, external coupling
Overall Length
1.219 inches
Overall Diameter
1.469 inches
Environmental Protection
Corrosion resistant and moisture resistant and pressure proof
Threaded Device Type
Back shell
Mating End Quantity
1
Contact Position Arrangement Style
17-26 single mating end
Contact Removability
Removable single mating end single contact grouping
Contact Maximum Ac Voltage Rating In Volts
600.0 single mating end single contact grouping
Contact Maximum Dc Voltage Rating In Volts
850.0 single mating end single contact grouping
Polarization Method
Keyway or multiple keyway
Insert Position In Deg
0.0
Shell Type
Solid
Connector Locking Method
Bayonet pin
Operating Tempurature Rating
302.0 degrees fahrenheit
Thready Qty Per Inch (tpi)
20
Thread Size
0.938 inches
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping
Insert Material
Plastic epoxy single mating end and glass fiber single mating end
Terminal Type
Crimp single mating end single contact grouping
Shell Material
Aluminum
Shell Surface Treatment
Cadmium and nickel
Included Contact Quantity
26 single mating end single contact grouping
Included Contact Type
Round pin single mating end single contact grouping
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.026 gold grains, troy
Precious Material
Gold
Thread Series Designator
Unef
