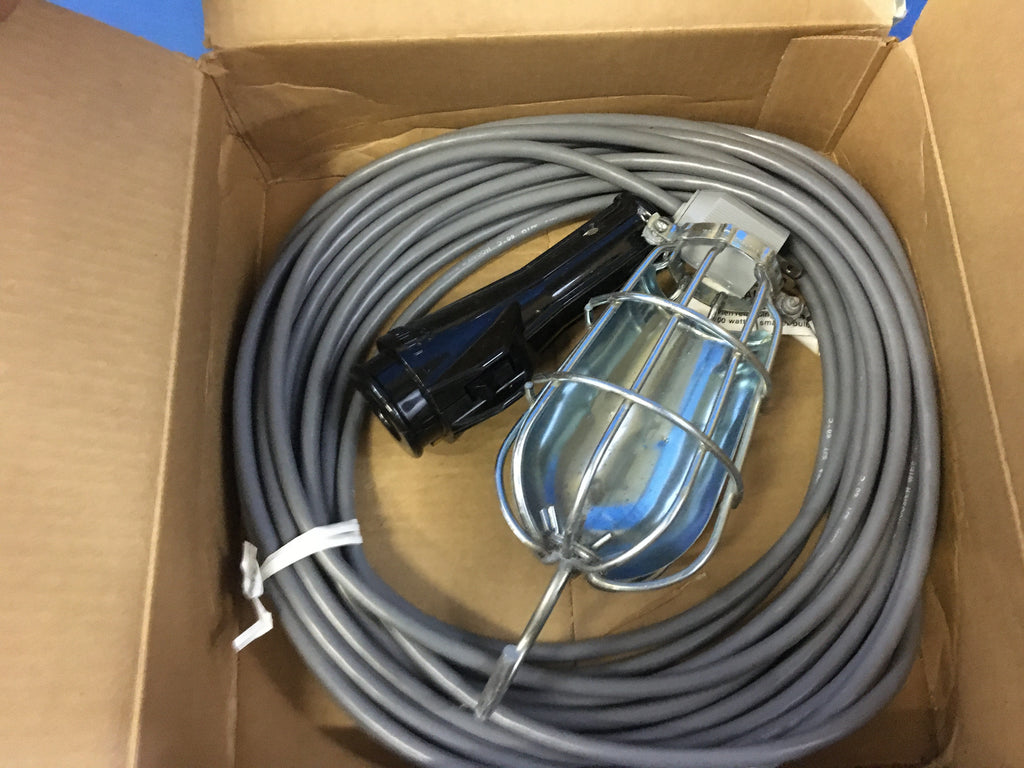

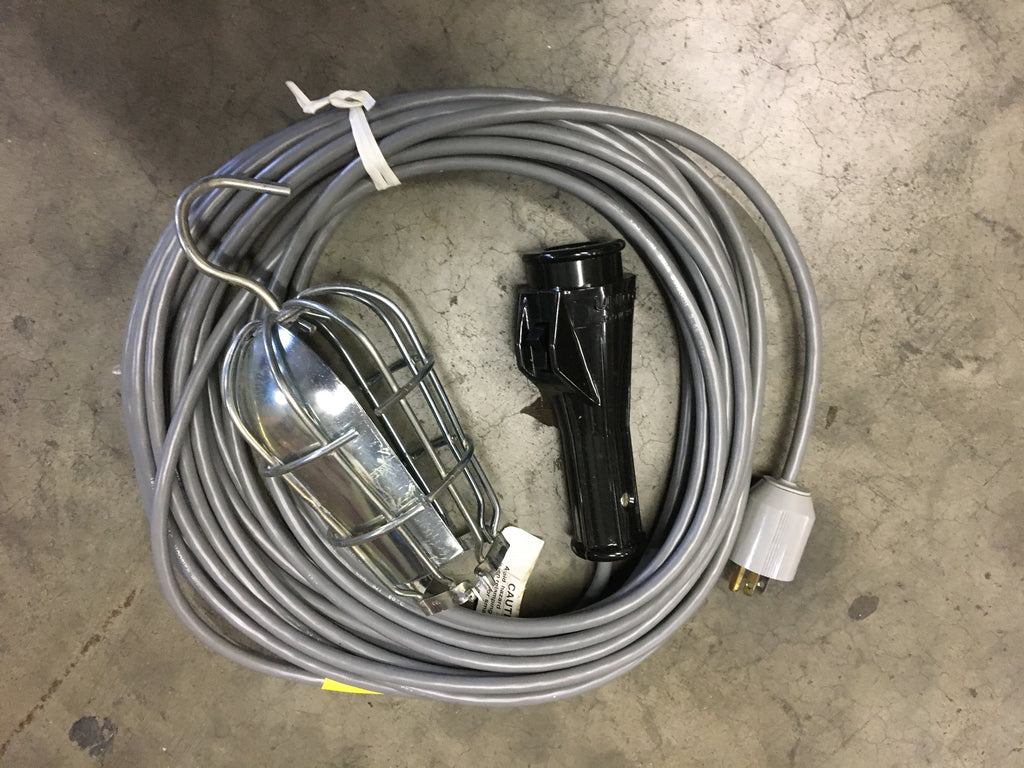

Military Spec 50Ft Underwriters Laboratories E-89453 Portable Hand Lamp NSN:6230-00-146-8898

Regular price $44.99

Extension Light

NSN:6230-00-146-8898     P/N:E-89453     Model:A-A-60006
ITAR Registered seal

A light specifically designed for portable use by means of a length of flexible cable, which may or may not be provided. Includes one or more of the following: lamp, handle, guard, hook, reflector, switch, connector, light filter, lens or globe. It may also include a cable reel. Excludes self-powered lights, and items such as desk lights and floor lights which are designed to be mounted or placed on or near a specified surface. See also floodlight, electric; light, cockpit, aircraft; searchlight; and spotlight.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Lamp Base Type Accommodated
Medium screw
Wiring Provision Method
Cable assembly
Wiring Provision Length
600.000 inches single provision
Voltage Rating In Volts
250.0 ac
Features Provided
Lamp Type Accommodated And Quantity
1 incandescent
Lamp Protection Device
Open side guard with hook
Electrical Connector Receptacle Mating Member Accommodation
Connector, plug, external, 3 contacts, 1 contact u-shaped for ground
Plastic body
Terminal Type And Quantity
3 connector, plug, external, 3 contacts, 1 contact u-shaped for ground
Specification Data
81348-w-l-661 professional/industrial association specification
Nondefinitive Specification/std Data
3 type and 1 class
