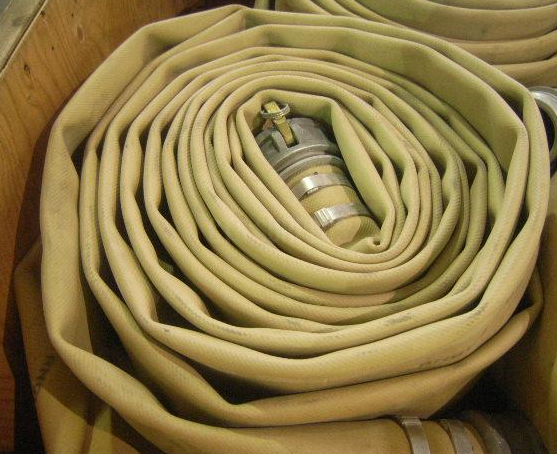

4" Non metallic hose assembly NSN: 4720-01-453-6488 P/N: M370C091A0500A

Requirement Name:

Requirement:

CROSS-SECTIONAL SHAPE STYLE

1 ROUND

INSIDE DIAMETER

4.000 INCHES NOMINAL

TEMP RATING

-25.6 DEG FAHRENHEIT AND 160.0 DEG FAHRENHEIT

OUTSIDE DIAMETER

4.125 INCHES NOMINAL

MINIMUM INSIDE BENDING RADIUS

NOT RATED

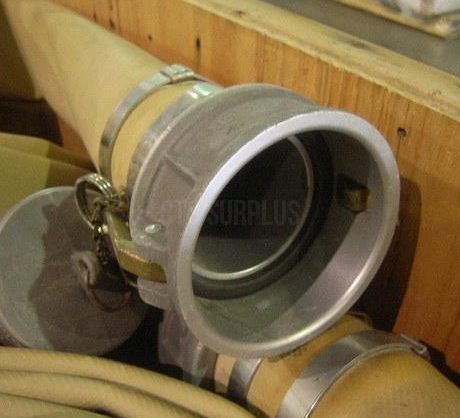

FIRST END CONNECTION TYPE

INTERNAL QUICK DISCONNECT

FIRST END STYLE DESIGNATOR

H3 CAM OR LEVER

SECOND END CONNECTION TYPE

EXTERNAL QUICK DISCONNECT

SECOND END STYLE DESIGNATOR

H4 CAM OR LEVER

INNER CONVEYING TUBE MATERIAL

RUBBER, ETHYLENE PROPYLENE

EXTERIOR COLOR

ANY ACCEPTABLE

FIRST END CONNECTION DESIGN

STRAIGHT

SECOND END CONNECTION DESIGN

STRAIGHT

FIRST END QUICK DISCONNECT NOMINAL SIZE

4.000 INCHES

SECOND END QUICK DISCONNECT NOMINAL SIZE

4.000 INCHES

SECOND END RELATIONSHIP WITH FIRST END

NOT IDENTICAL

BURST TEST PRESSURE

600.0 POUNDS PER SQUARE INCH

FIRST END SWIVEL ACTION CAPABILITY

NOT INCLUDED

LAYER COMPOSITION AND LOCATION

1ST LAYER BRAIDED TEXTILE YARN

LAYER COMPOSITION AND LOCATION

OUTER LAYER MOLDED RUBBER, ETHYLENE PROPYLENE

FIRST END FITTING/COMPONENT AND MATERIAL

COMPLETE FITTING ALUMINUM ALLOY, QQ-A-601, ALLOY 356, TEMPER T6

MAXIMUM OPERATING PRESSURE

150.0 POUNDS PER SQUARE INCH

SECOND END FITTING/COMPONENT AND MATERIAL

COMPLETE FITTING ALUMINUM ALLOY, QQ-A-601, ALLOY 356, TEMPER T6

HYDROSTATIC TEST PRESSURE

300.0 POUNDS PER SQUARE INCH

INSIDE SURFACE CONDITION

SMOOTH

MEASURING METHOD AND LENGTH

50.0 FEET NOMINAL OVERALL

SECOND END SWIVEL ACTION CAPABILITY

NOT INCLUDED

MANUFACTURERS CODE

81349

NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE

MIL-PRF-370

MANUFACTURERS CODE

81349

DEFINITIVE GOVERNMENT SPEC/STD REFERENCE

M370C091A0500A

SPECIFICATION/STANDARD DATA

81349-MIL-H-53073 GOVERNMENT SPECIFICATION

NONDEFINITIVE SPEC/STD DATA

4 SIZE AND A TYPE
