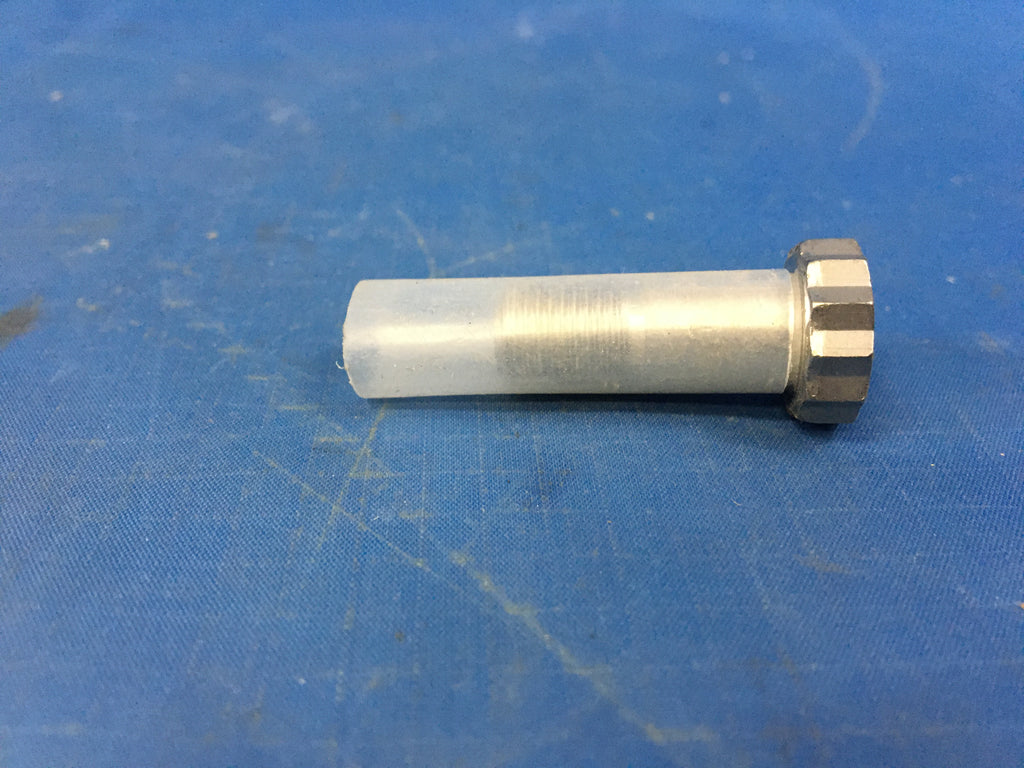

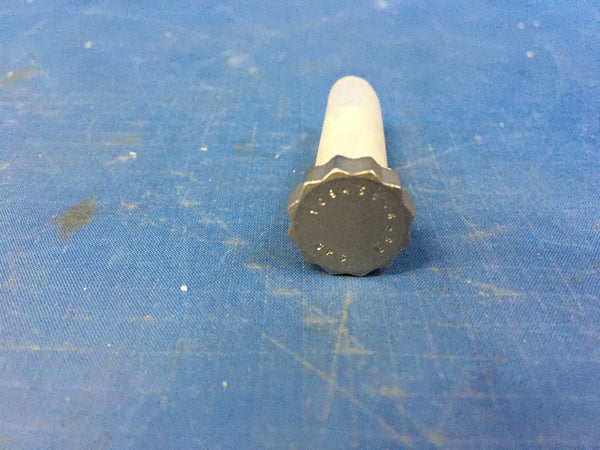

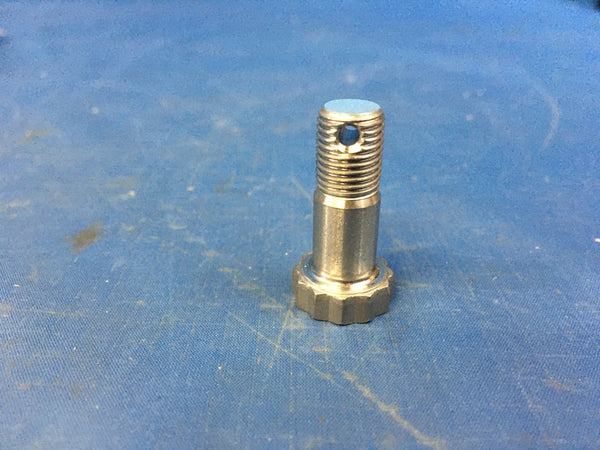

(10) Military Aircraft 109450-6D8 Stainless Shoulder Bolt 1/2" x 1" NSN:5306-01-303-9643

Regular price $49.99

Shoulder Bolt

NSN:5306-01-303-9643   P/N:109450-6D8   Model:VS3037-6D8
ITAR Registered seal

An externally threaded fastener whose threaded portion is of one diameter, no. 10 (0.190 in.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than no. 10 (0.190 in.) (5 mm) and those items with an inserted drive head, use screw, shoulder. For items which are no. 10 (0.190 in.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use bolt, externally relieved body. Excludes thumbscrew.

NSN Properties and Flags
NATO Stock Number
5306-01-303-9643
DEMIL
Yes - ITAR Controlled
Thread Class
3a
Thread Direction
Right-hand
Thread Length
Between 0.490 inches and 0.557 inches
Fastener Length
Between 1.000 inches and 1.047 inches
Head Style
Double hexagon
Head Height
Between 0.200 inches and 0.220 inches
Width Between Flats
0.564 inches
Shoulder Diameter
0.3896 inches first shoulder and 0.3901 inches first shoulder
Shoulder Length
0.490 inches first shoulder and 0.510 inches first shoulder
Shank Unthreaded Hole Diameter
0.106 inches first hole and 0.111 inches first hole
Thread Diameter
0.375 inches
Thready Qty Per Inch (tpi)
24
Min. Tensile Strength (psi)
125000 pounds per square inch
Distance From Head Largest Bearing Surface To Shank Hole Center
0.875 inches first hole and 0.932 inches first hole
Shoulder Shape
Round first shoulder
Material
Steel comp xm-13
Material Specification
Ams5629 assn standard single material response
Surface Treatment
Passivate
Surface Treatment Specification
Qq-p-35 federal specification single treatment response
Thread Series Designator
Unjf
