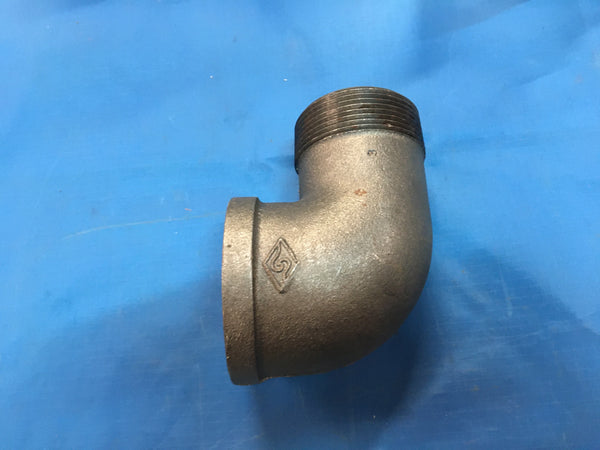

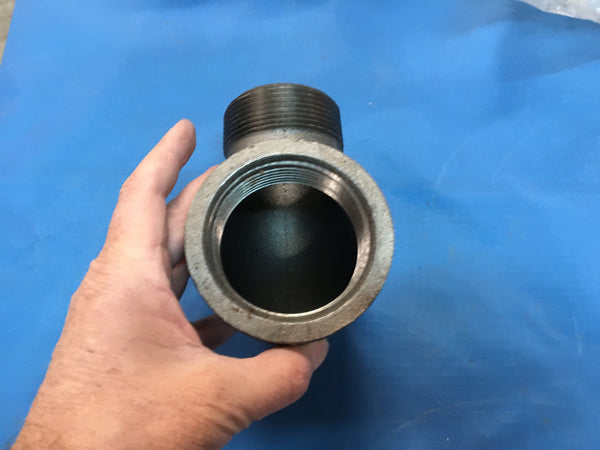

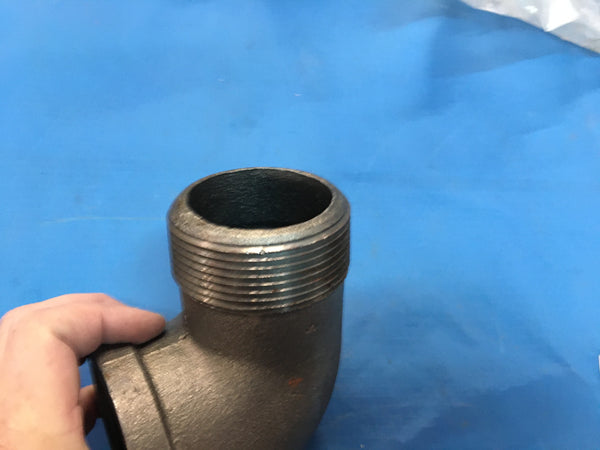

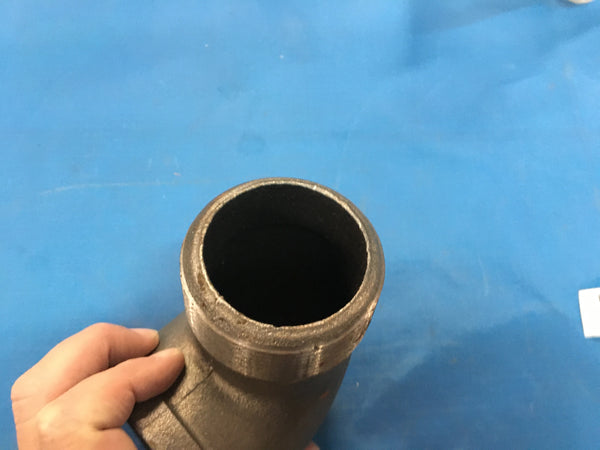

1-1/2" NPT, Malleable Iron Black Pipe, 90deg Street Elbow, Lot of 2

Regular price $24.99

Pipe Elbow

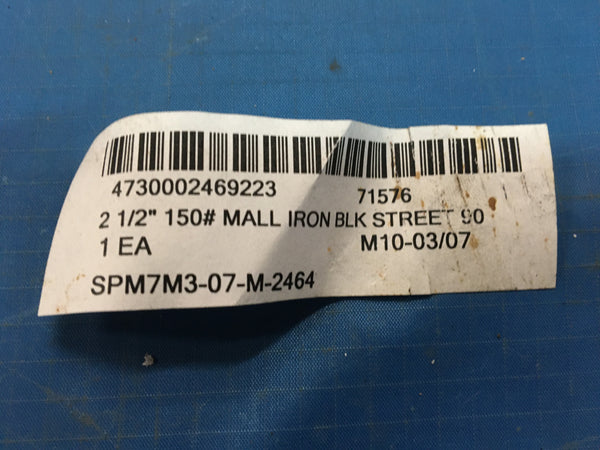

NSN: 4730-00-246-9223 | Model: 613-2 1/2
ITAR Registered seal

A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. Both connecting ends have standard pipe threads or are unthreaded and designed to accommodate a pipe. It may have side or heel inle (s) . See also elbow, tube; and connector, multiple, fluid pressure line. Excludes bend, soil pipe.

NSN Properties and Flags
NATO Stock Number
Yes - ITAR Controlled
Connection Style
Plain (pipe) 2ND end
Leg Length
3.860 inches 2ND end
Connection Type
Threaded internal pipe 1ST end
Thread Size
2.500 inches 2ND end
Flow Angle
90.0 degrees
Material Specification
Astm A197 assn standard single material response
Thread Series Designator
Npt 1ST end
Nondefinitive Specification/std Data
1 type
