Prestolite Leece-Neville

NOS Prestolite Leece-Neville AC Generator Model:8RG3044 Model:8SA3064PC NSN:6115-01-346-7585

Regular price $159.99

Alternating Current Generator

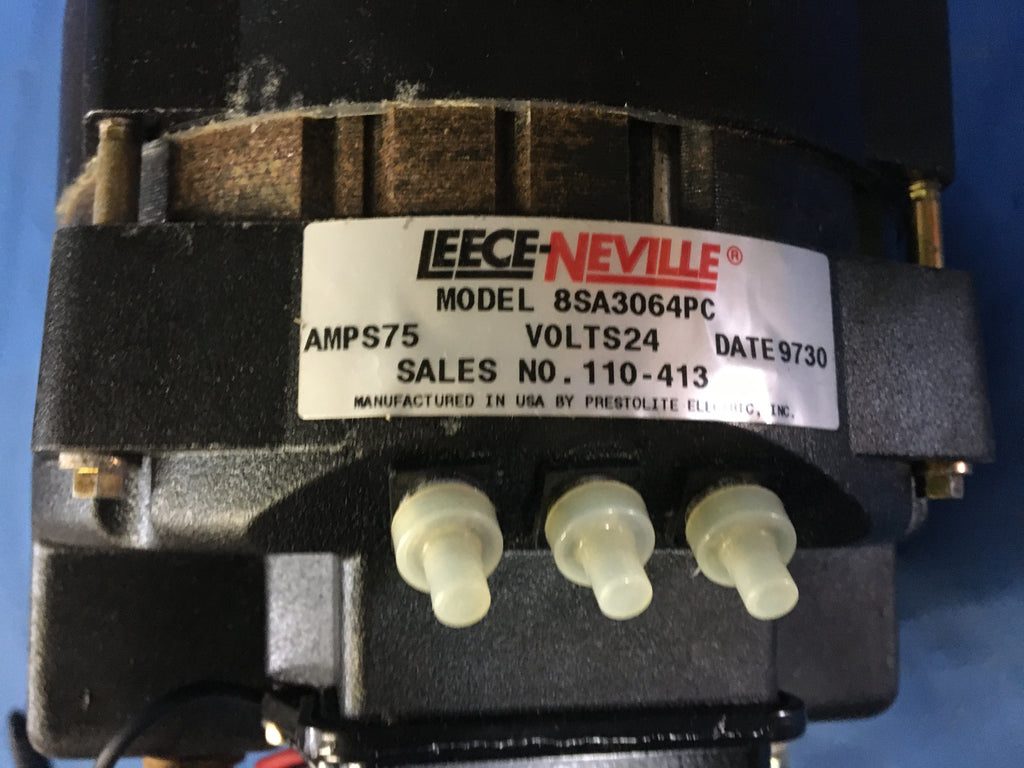

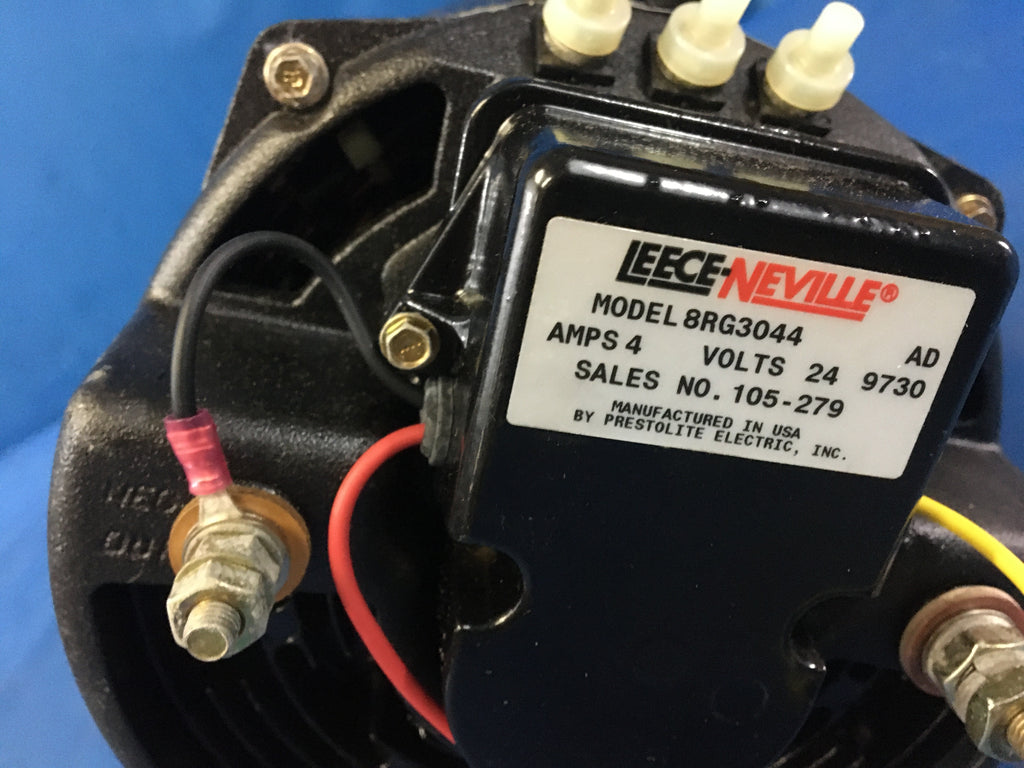

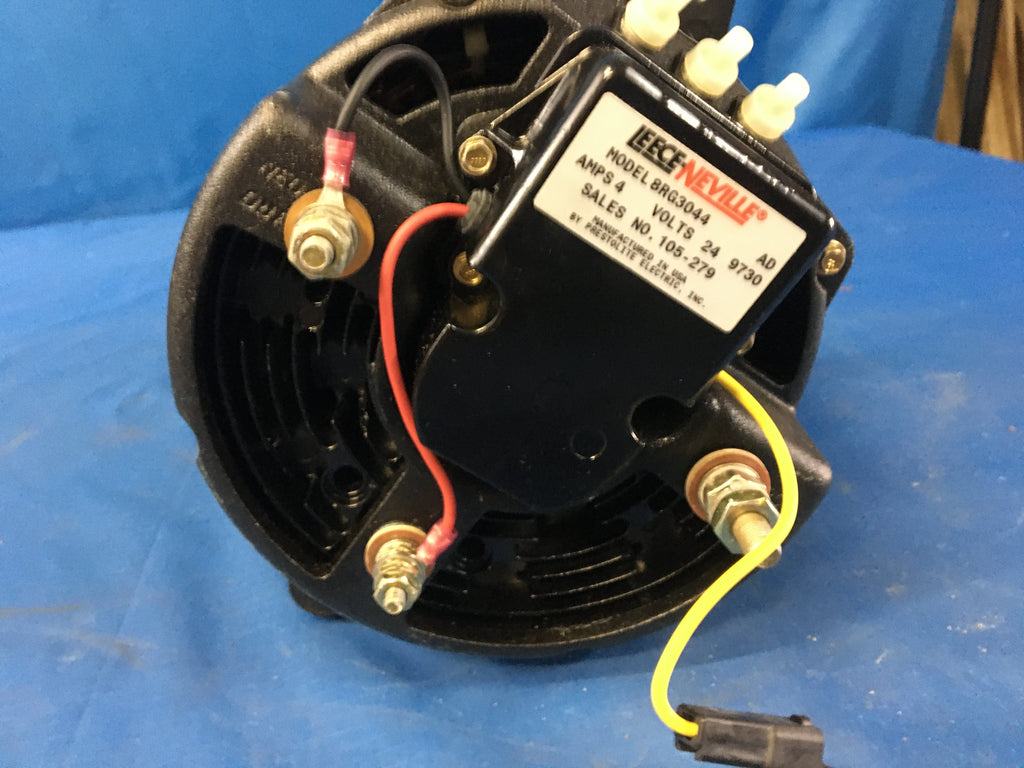

NSN: 6115-01-346-7585  Model:8SA3064PC   Model:8RG3044
ITAR Registered seal

A generator having a characteristic of current and voltage that is continually reversing in direction of flow at regular intervals. Does not include rotary inverters, motor-generators, generator sets, synchros, and frequency or phase changers. Excludes generator, tachometer.

NSN Properties and Flags
NATO Stock Number
6115-01-346-7585
DEMIL
Yes - ITAR Controlled
Overall Height
9.500 inches
Overall Length
9.500 inches
Overall Width
9.500 inches
Shaft Diameter
0.875 inches single end
Shaft Rotation Direction
Clockwise single end
Duty Cycle
Continuous
Inclosure Feature
Watertight
Winding Type
Series wound
Mounting Method
Fixed base
Mounting Facility Type And Quantity
2 threaded hole
Cooling Method
Air to air cooled
Cubic Measure
857.370 cubic inches
Power Rating
4.000 horsepower output
Length Of Shaft From Housing
2.870 inches single end
Shaft Center To Mounting Surface Distance
3.000 inches single end
Current Rating In Amps
70.000 single output
Connection Type And Voltage Rating In Volts
24.0 line to line single output
Shaft End Characteristic
A1 first style single end
Phase
Single output
Special Features
Item has a corrosion resistant coating for use in a saltwater environment
Terminal Type And Quantity
4 screw
