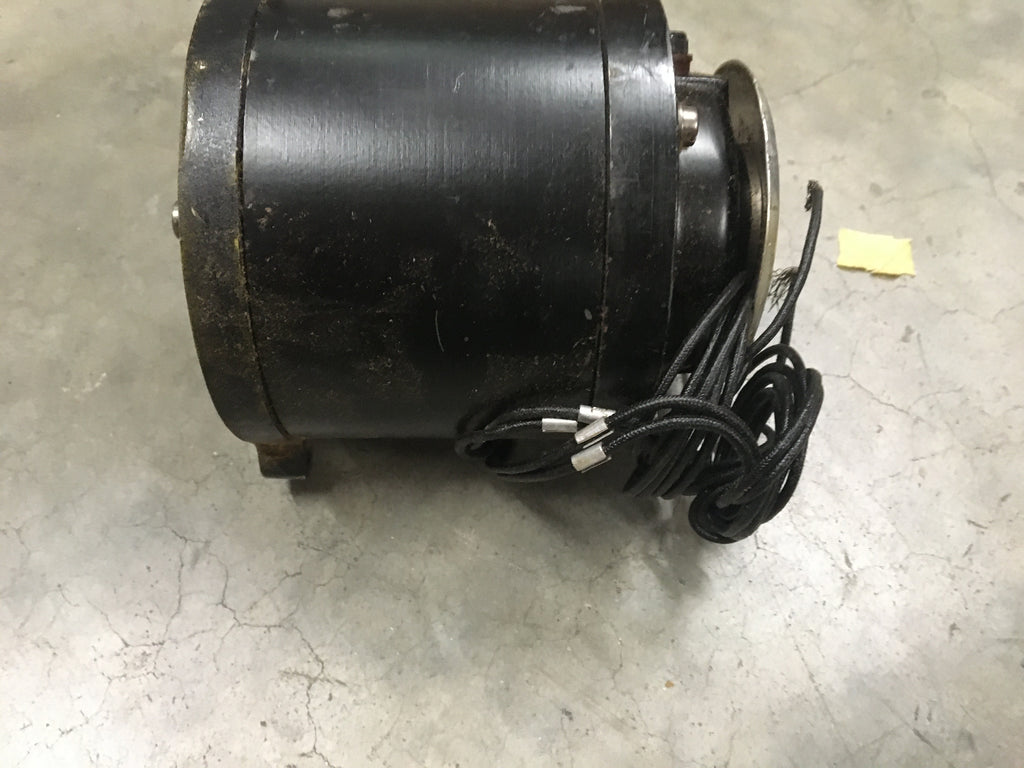

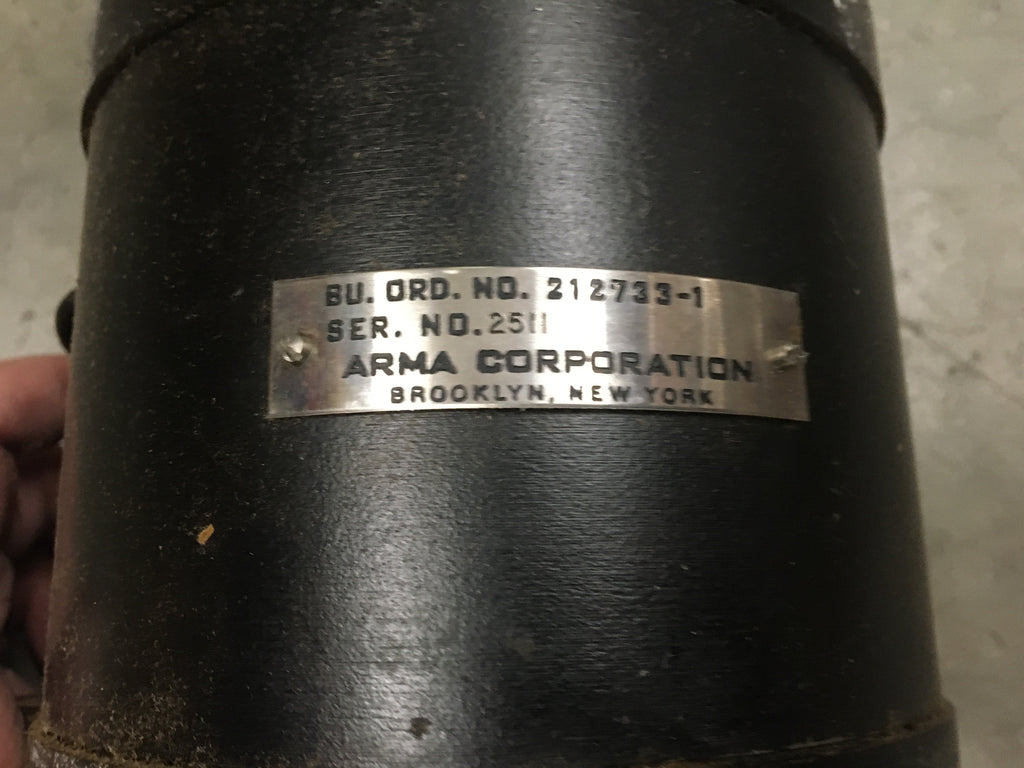

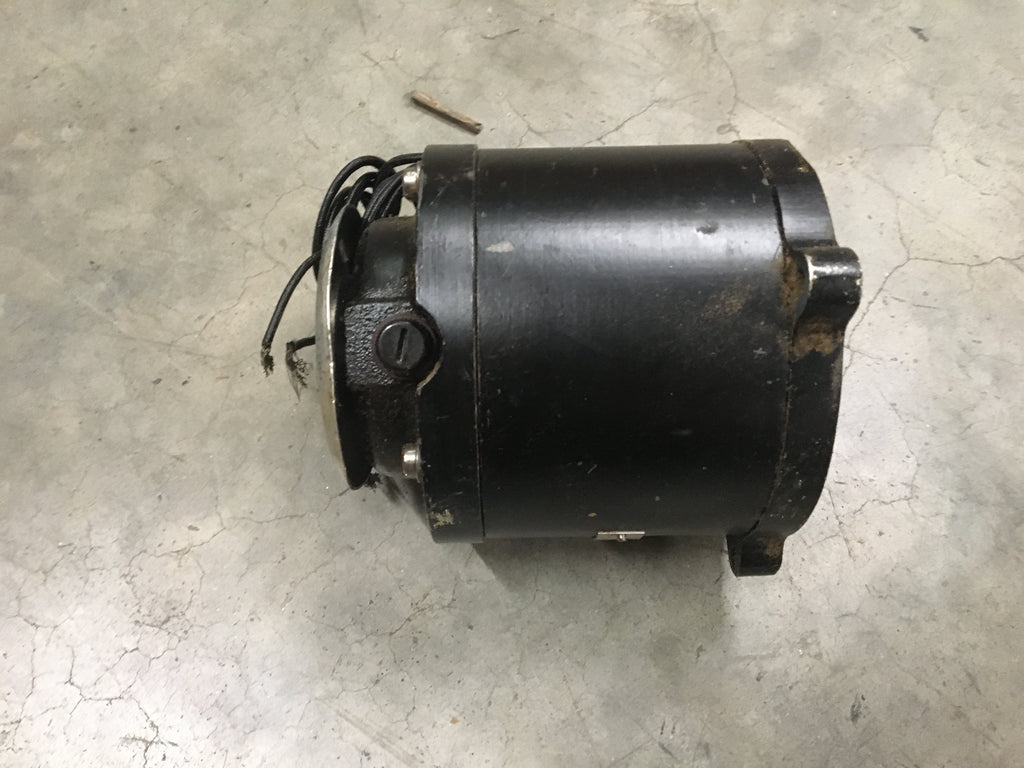

NOS Arma Corp DC Motor NSN:6105-00-538-8508 Model:212733PC1

Regular price $189.99

Direct Current Motor

NSN: 6105-00-538-8508 | Model: 212733PC1
ITAR Registered seal

A motor which is designed for operation from a direct current source. Excludes motor, engine starter, electrical. See also motor, control.

NSN Properties and Flags
NATO Stock Number
6105-00-538-8508
DEMIL
Yes - ITAR Controlled
Overall Height
6.875 inches
Overall Length
7.063 inches
Overall Width
6.875 inches
Keyway Width
0.1250 inches single end
Keyway Depth
0.0700 inches single end
Shaft Diameter
0.5000 inches single end
Keyway Length
0.8120 inches single end
Shaft Rotation Direction
Clockwise single end or counterclockwise single end
Duty Cycle
Continuous
Inclosure Feature
Totally enclosed
Winding Type
Shunt wound w/compensating win dings

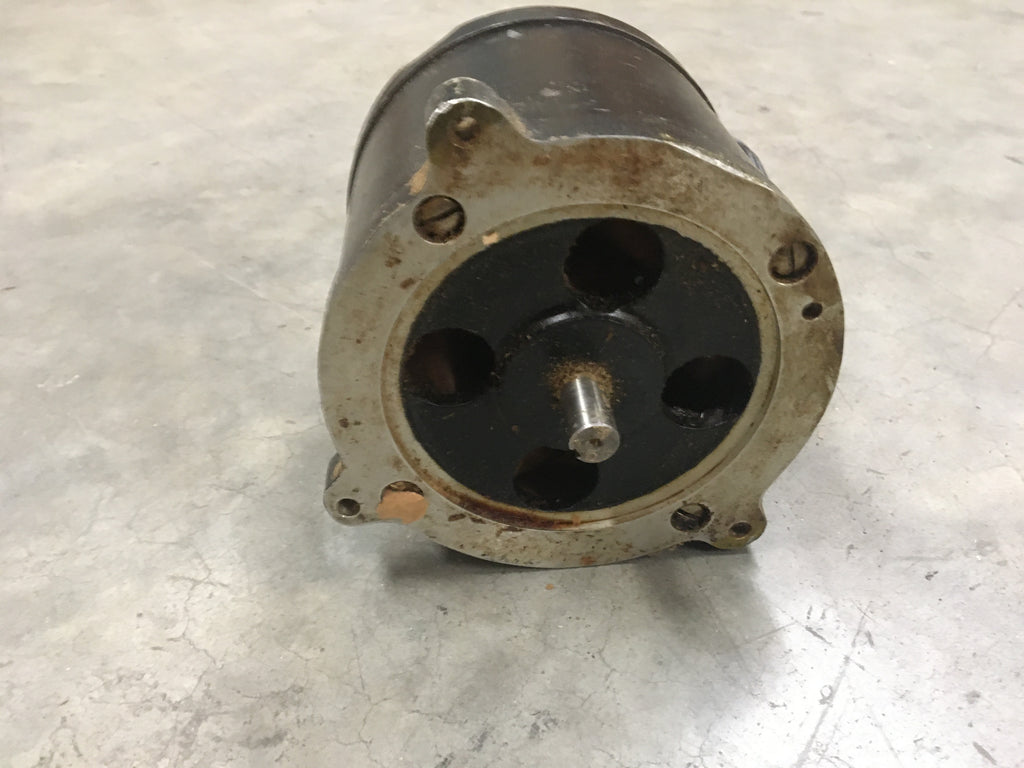

Mounting Method
Flange
Mounting Facility Type And Quantity
3 unthreaded hole
Cooling Method
Ambient air
Current Rating Method
Load
Inclosure Specificationification
MIL-STD-108
Features Provided
Vertical mounting position
Power Rating
0.2500 horsepower output
Length Of Shaft From Housing
0.938 inches single end
Tempurature Rating
75.0 ambient degrees celsius and 50.0 operating degrees celsius
Mounting Facility Circle Diameter
6.124 inches
Rotor Speed Rating In Rpm
5000.0 single full load
Current Rating In Amps
5.000 single input
Connection Type And Voltage Rating In Volts
115.0 line to neutral single input
Shaft End Characteristic
A9 single style single end
