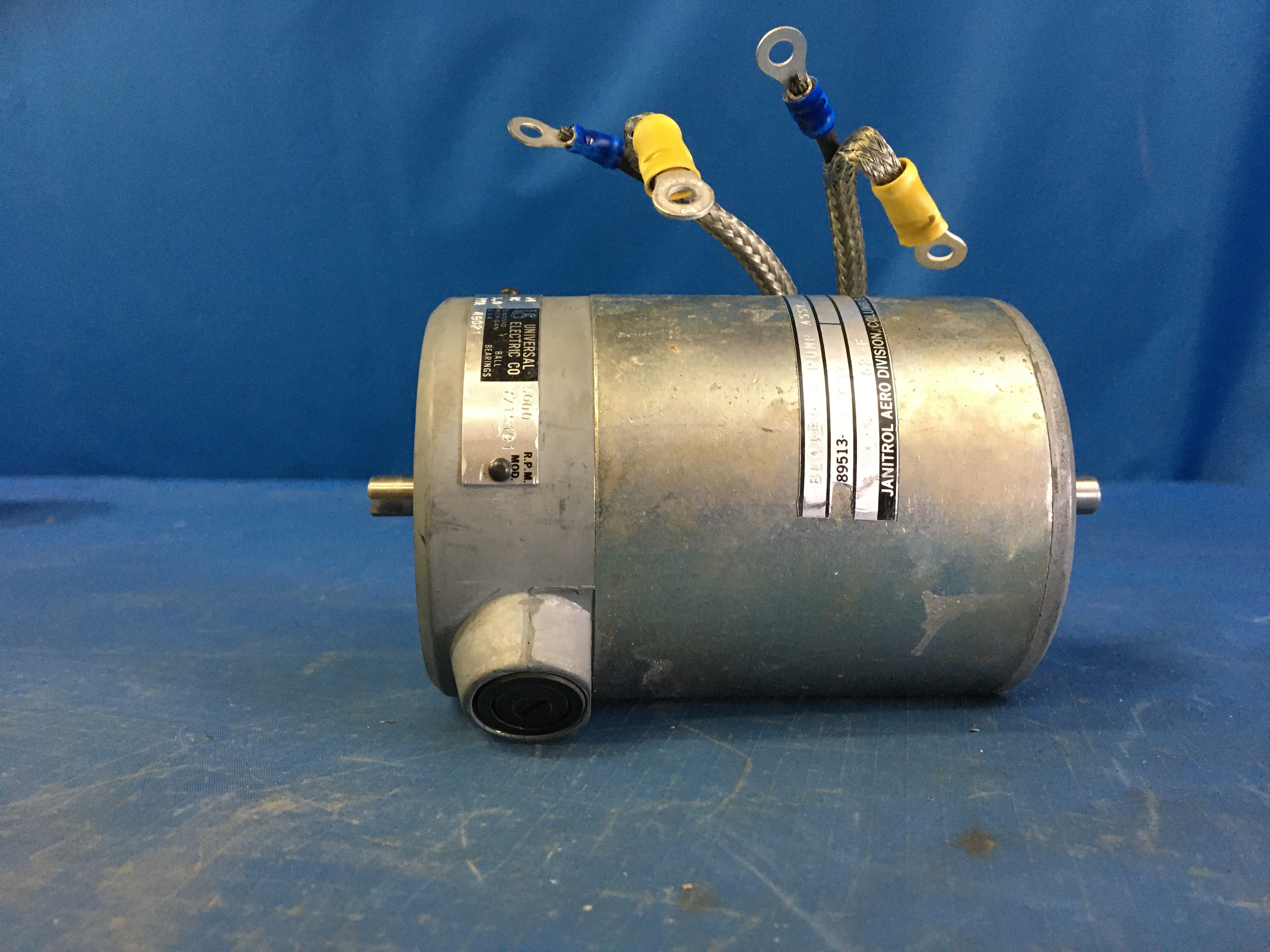

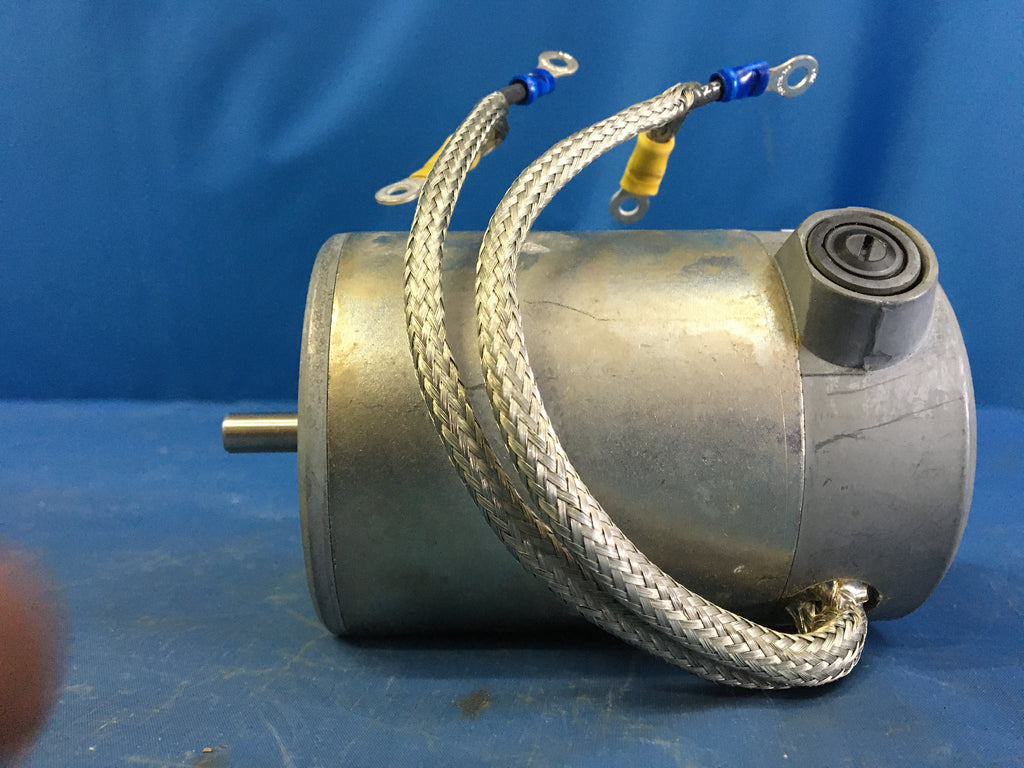

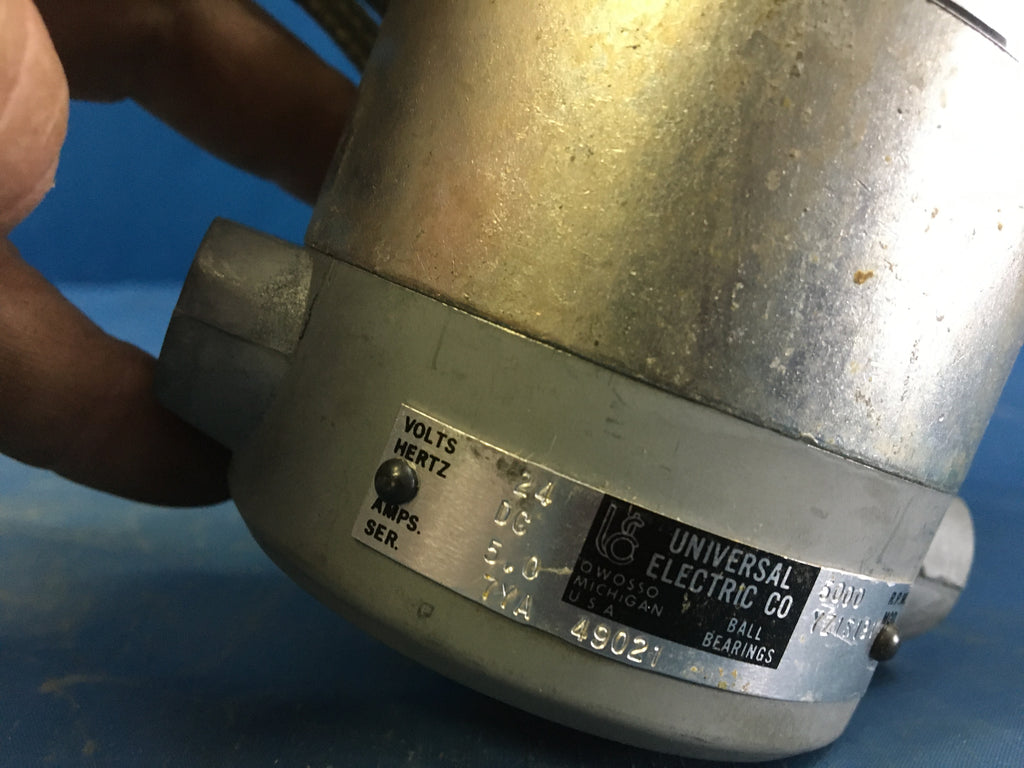

Grimes Aerospace 03C57-3 DC Motor 24V 5A 5000RPM NSN:6105-01-083-3601
Please fill out the form below for a price quote and availability on this item.
Direct Current Motor

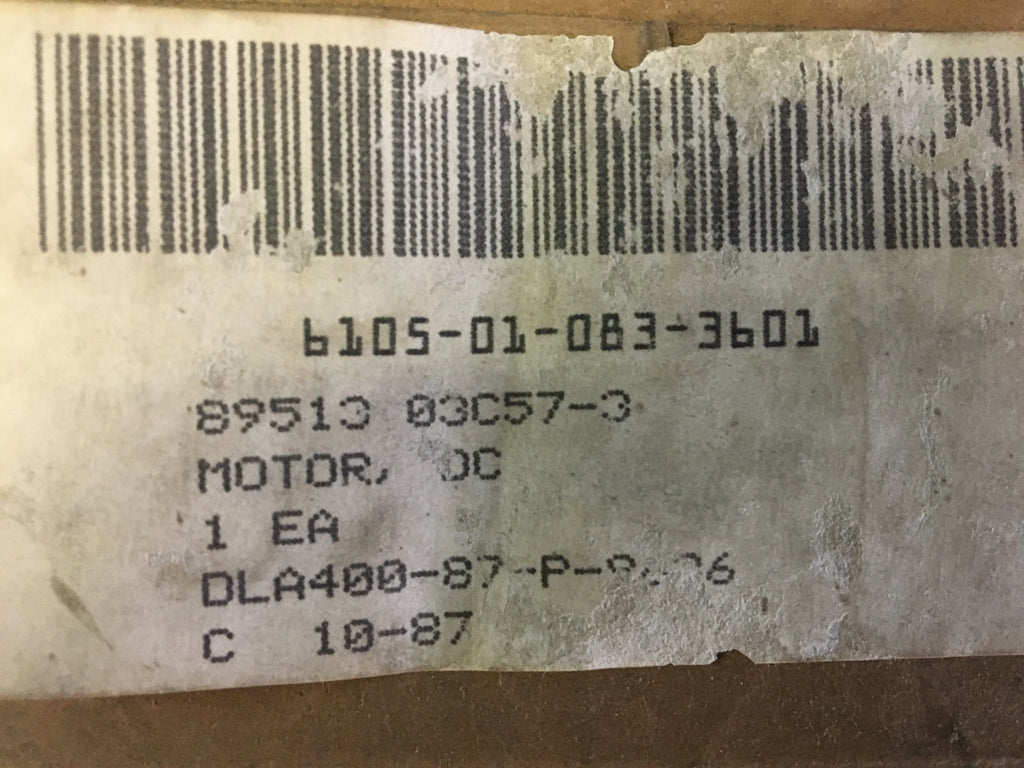

NSN: 6105-01-083-3601 | Model: 03C57-3
A motor which is designed for operation from a direct current source. Excludes motor, engine starter, electrical. See also motor, control.
NSN Properties and Flags
NATO Stock Number
6105-01-083-3601
DEMIL
NO
Overall Height
3.812 inches
Overall Length
5.516 inches
Overall Width
3.000 inches
Slot Depth
0.250 inches second end
Slot Width
0.125 inches second end
Shaft Diameter
0.3125 inches identical ends
Shaft Rotation Direction
Clockwise second end or counterclockwise second end
Duty Cycle
Continuous
Inclosure Feature
Totally enclosed
Winding Type
Series wound

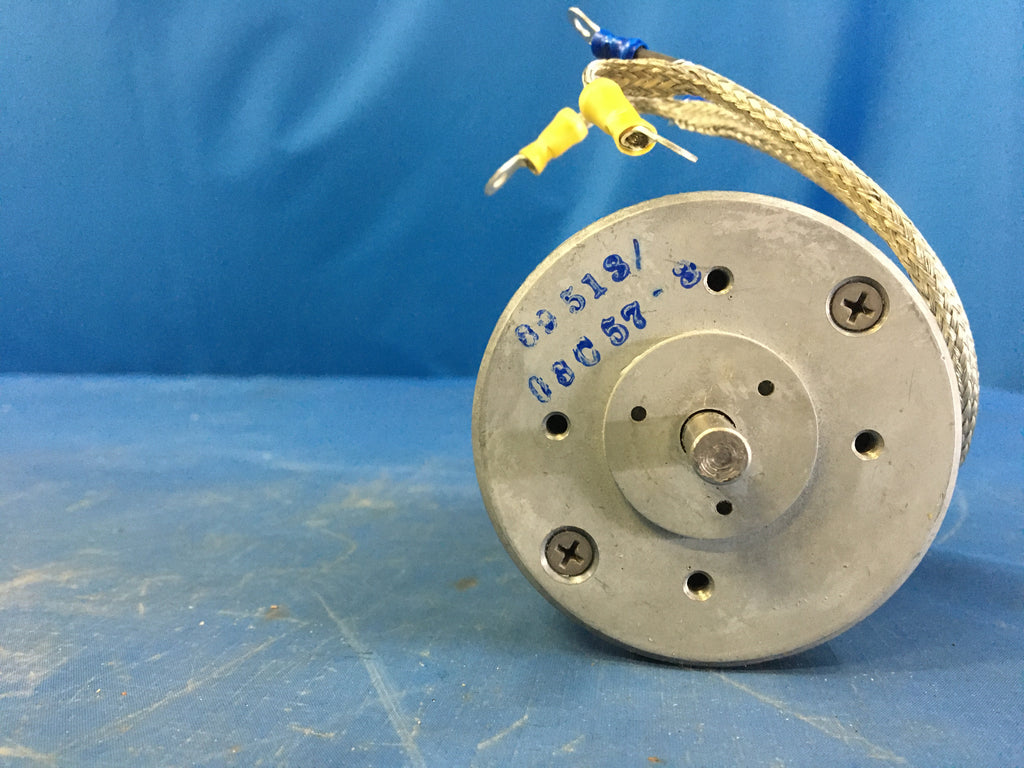

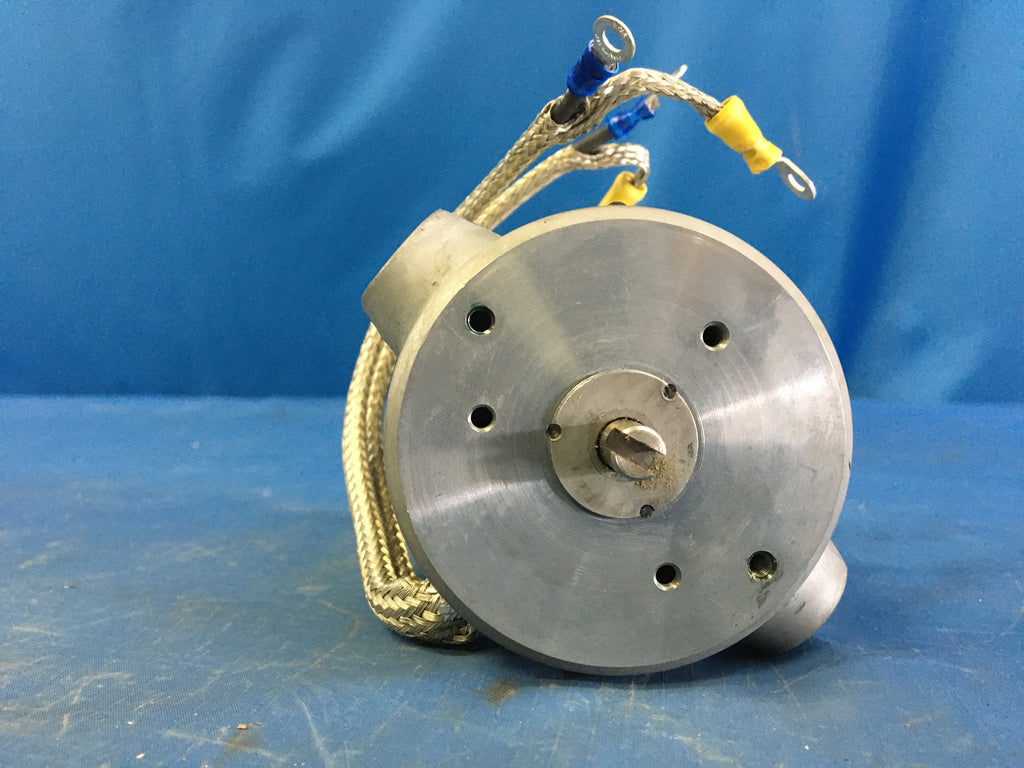

Mounting Method
Face
Mounting Facility Type And Quantity
3 threaded hole and 4 threaded hole
Cooling Method
Nonventilated
Current Rating Method
Load
Inclosure Specificationification
Commercial
Features Provided
Frame electrically grounded and horizontal mounting position and vertical mounting position
Length Of Shaft From Housing
0.766 inches second end
Mounting Facility Circle Diameter
1.750 inches
Rotor Speed Rating In Rpm
5000.0 single full load
Current Rating In Amps
5.000 single input
Connection Type And Voltage Rating In Volts
24.0 line to neutral single input
Shaft End Characteristic
A8 single style second end
Terminal Type And Quantity
2 solderless lug
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
